導入
Thank you for choosing the Chtoocy Safety Chick or Duckling Brooder, Model TK-T4030. This instruction manual provides essential information for the safe and efficient operation of your brooder. Please read this manual thoroughly before installation and use, and retain it for future reference. This brooder is designed to provide a warm and safe environment for young poultry, mimicking the natural warmth of a mother hen.
1. セットアップと組み立て
The Chtoocy Brooder requires minimal assembly. Ensure all components are present before beginning.
1.1 開梱とコンポーネントの確認
- すべての品目をパッケージから慎重に取り出します。
- Verify that you have the brooder plate, adjustable legs, hanging chains, and power adapter.
- Inspect all components for any signs of damage. Do not use if damaged.
図1.1: 以上view of the Chtoocy Brooder and its included components, showing dimensions (16 inches wide, 12 inches deep) and key features like 75W power, 95-167°F heating range, and timed settings.
1.2 組み立てオプション
The brooder offers multiple installation methods to suit your specific needs and brooder setup.
- Leg Stand Setup: Attach the adjustable legs to the corners of the brooder plate. Adjust the leg height to provide the appropriate clearance for your chicks or ducklings. Ensure the brooder is stable and level.
- 吊り下げセットアップ: Attach the hanging chains to the designated points on the brooder plate. Suspend the brooder from a secure overhead structure within your brooder enclosure. Adjust the chain length to achieve the desired height above the poultry.
- Angled Setup: The legs can also be adjusted to position the brooder at an angle, allowing chicks to move between warmer and cooler zones.
図1.2: Demonstrates various installation methods, including hanging the brooder from above, using it with adjustable legs, and positioning it at an angle.

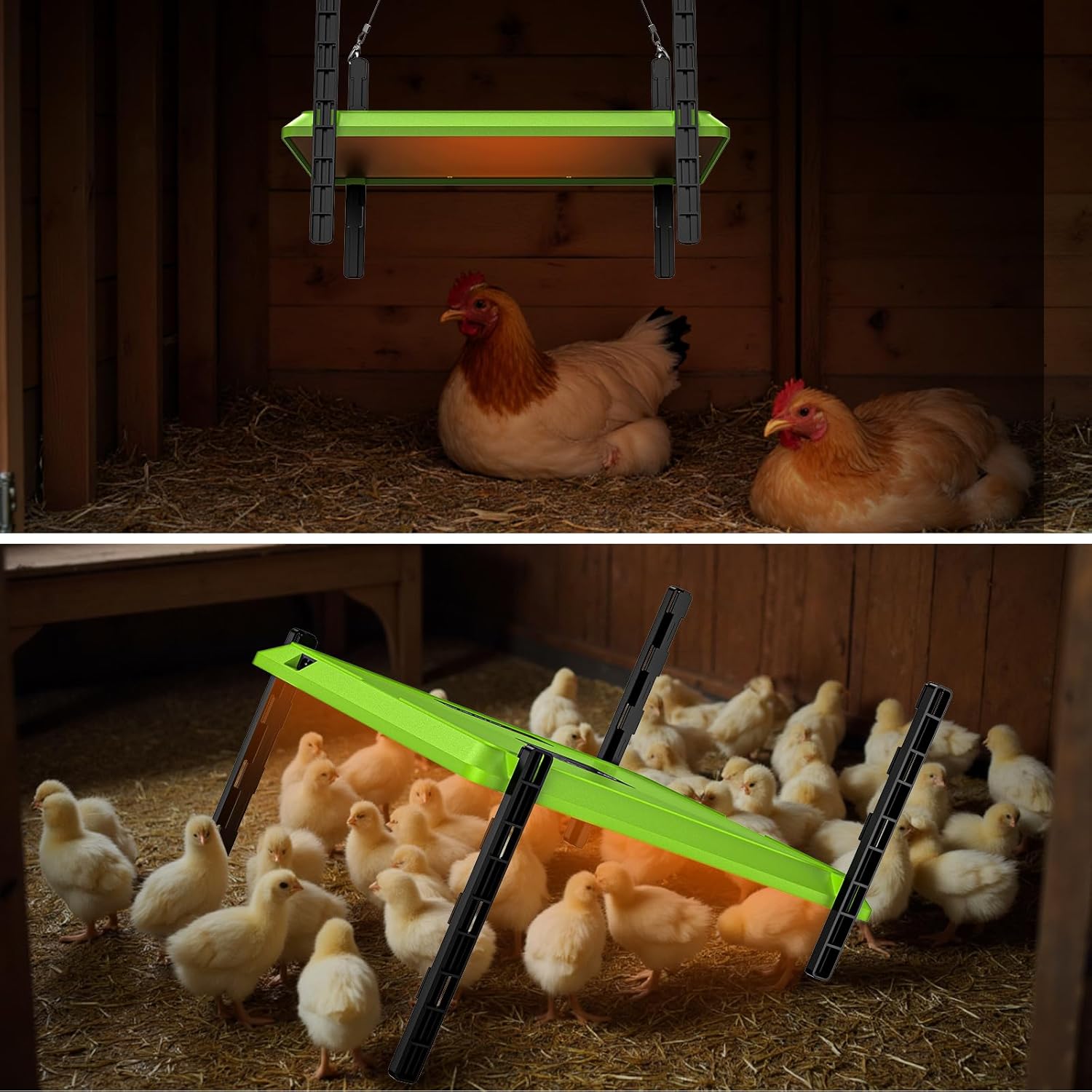

図1.3: Illustrates the brooder in practical use, showing both a hanging configuration above adult chickens and a floor-level setup with young chicks.
1.3 配置
Place the assembled brooder in a draft-free area within your brooder box or enclosure. Ensure there is adequate space around the brooder for chicks to move freely and escape the heat if necessary.
2. 操作手順
The Chtoocy Brooder features a smart control plate for precise temperature and timer management.
2.1 電源投入と初期設定
- Connect the power adapter to the brooder and then plug it into a standard electrical outlet.
- 電源ボタンを押します（ⓘ) to turn on the brooder.
- The display will illuminate, showing the current settings.
図2.1: 詳細 view of the smart control plate, illustrating temperature levels (95°F to 167°F) and timer settings (3 to 18 hours).
2.2温度調整
- 温度ボタン（☼) to cycle through the available temperature settings.
- The brooder offers a heating range of 95°F to 167°F (35°C to 75°C), with multiple levels (L01-L05).
- Adjust the temperature based on the age and needs of your poultry. Younger chicks typically require higher temperatures.
2.3 タイマー機能
- タイマーボタン（⏱) to select a desired operating duration.
- Available timer settings include 3, 6, 9, 12, 15, and 18 hours.
- The brooder will automatically shut off after the selected time period.
- 注記： If continuous 24-hour operation is required, you may choose to disable the timer function by not selecting any timer setting, or by selecting a setting that allows for continuous operation (refer to specific product instructions if a "continuous" mode is available, otherwise, re-engage the timer after it expires).
2.4 安全機能
The Chtoocy Brooder is designed with multiple safety features to protect your poultry and ensure reliable operation.
- 内蔵温度センサー： Monitors and maintains consistent heat.
- 過負荷保護: Prevents electrical issues.
- Doesn't Overheat: Designed to operate within safe temperature limits.
- IPX7 Electrical Safety Standards: Meets stringent standards for water resistance and electrical safety.
図2.2: Highlights the safety features of the brooder plate, including a built-in temperature sensor, overload protection, non-overheating design, and IPX7 electrical safety compliance.
図2.3: Shows young chicks comfortably gathered under the brooder, demonstrating its effectiveness in providing warmth.
3. メンテナンス
Regular maintenance ensures the longevity and safe operation of your Chtoocy Brooder.
- クリーニング： Disconnect the brooder from power before cleaning. Wipe the surface of the brooder plate with a damp cloth. Avoid using harsh chemicals or abrasive cleaners. Ensure the brooder is completely dry before reconnecting to power.
- 検査： Periodically inspect the power cord, plug, and brooder plate for any signs of wear, damage, or fraying. If any damage is observed, discontinue use immediately and contact customer support.
- ストレージ： When not in use, store the brooder in a clean, dry place, away from direct sunlight and extreme temperatures.
4。 トラブルシューティング
If you encounter issues with your Chtoocy Brooder, refer to the following common problems and solutions.
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| Brooder does not turn on. |
|
|
| Brooder is not heating. |
|
|
| Control buttons are unresponsive. |
|
|
5. 仕様
| ブランド | Chtoocy |
| モデル番号 | TK-T4030 |
| 製品寸法 | 40.64 x 30.48 x 22.35 cm（16 x 12 x 8.8インチ） |
| アイテム重量 | 1.78 kg (3.92 ポンド) |
| 材料 | アクリロニトリルブタジエンスチレン（ABS） |
| 色 | 緑 |
| 力 | 75W |
| 暖房範囲 | 95°F - 167°F (35°C - 75°C) |
| 組み立てが必要 | はい |
| 安全基準 | Meets IPX7 electrical safety standards |
6. 保証情報
Specific warranty details for the Chtoocy Safety Chick or Duckling Brooder (Model TK-T4030) are typically provided with your purchase documentation or on the manufacturer's official website. Please refer to these resources for information regarding warranty coverage, duration, and terms.
7. カスタマーサポート
For technical assistance, troubleshooting beyond this manual, or inquiries regarding parts and service, please contact Chtoocy customer support. Contact information can usually be found on the product packaging, the manufacturer's webサイト、または購入領収書をご覧ください。
メーカー: Chtoocy
