Bikevee Bikevee Cycling GPS Computer & Bikevee Out Front Mount

ユーザーマニュアル

Bikevee Wireless Cycling GPS Computer

Model: Bikevee Cycling GPS Computer & Out Front Mount

1. はじめに

This manual provides detailed instructions for the Bikevee Wireless Cycling GPS Computer, a device designed to track and display various cycling data. It features a 2.4-inch LCD display with auto backlight, IPX7 waterproofing, and multi-satellite GPS tracking for accurate data collection.

1.1 主な特徴

  • バッテリー寿命の延長: 650mAhの充電式バッテリーを搭載し、最大28時間の連続使用が可能です。
  • Precision GPS Tracking: Utilizes 5-satellite systems (GPS, BDS, GLONASS, Galileo, QZSS) for stable and accurate signal reception.
  • 耐久性と防水性: IPX7 waterproof rating ensures resistance to rain and splashes.
  • クリアなディスプレイ: 2.4-inch LCD screen with automatic backlight for visibility in various lighting conditions.
  • 包括的なデータ: Tracks speed (MPH/KM/H), distance, time, temperature, altitude, gradient, and more.

1.2 箱の中身

パッケージにすべてのコンポーネントが含まれていることを確認します。

Contents of the Bikevee GPS Computer package, including the computer, charging cable, rubber rings, standard mount, rubber pad, and user manual.

Figure 1.1: Package Contents. Includes Bike Computer, Charging Cable, Rubber Rings, Mount, Rubber Pad, and User Manual.

  • Bikevee GPS Cycling Computer
  • 標準バイクマウント
  • Out Front Mount
  • ゴムパッド
  • 充電ケーブル(Type-C)
  • マウント取り付け用ゴムリング
  • ユーザーマニュアル

2. セットアップとインストール

2.1デバイスの充電

Before first use, fully charge the Bikevee GPS Computer. Connect the provided Type-C charging cable to the device's charging port and a USB power source. The battery indicator on the screen will show charging status.

2.2デバイスの取り付け

The Bikevee GPS Computer comes with both a standard bike mount and an out front mount. Choose the mount that best suits your preference and bicycle setup.

2.2.1 Standard Bike Mount Installation

  1. Place the rubber pad on your bicycle's handlebar or stem.
  2. 標準の自転車マウントをゴムパッドの上に配置します。
  3. Secure the mount using the provided rubber rings, wrapping them around the handlebar/stem and hooking them onto the mount.
  4. Align the Bikevee GPS Computer with the mount's grooves and twist clockwise until it locks into place.

2.2.2 Out Front Mount Installation

Bikevee Out Front Mount with an Allen key, ready for installation.

Figure 2.1: Bikevee Out Front Mount.

  1. Place the rubber pad around your bicycle's handlebar where you intend to install the mount.
  2. Position the out front mount over the rubber pad.
  3. Use the provided Allen key to tighten the screw on the mount's clamp around the handlebar until it is secure.
  4. Align the Bikevee GPS Computer with the mount's grooves and twist clockwise until it locks into place.

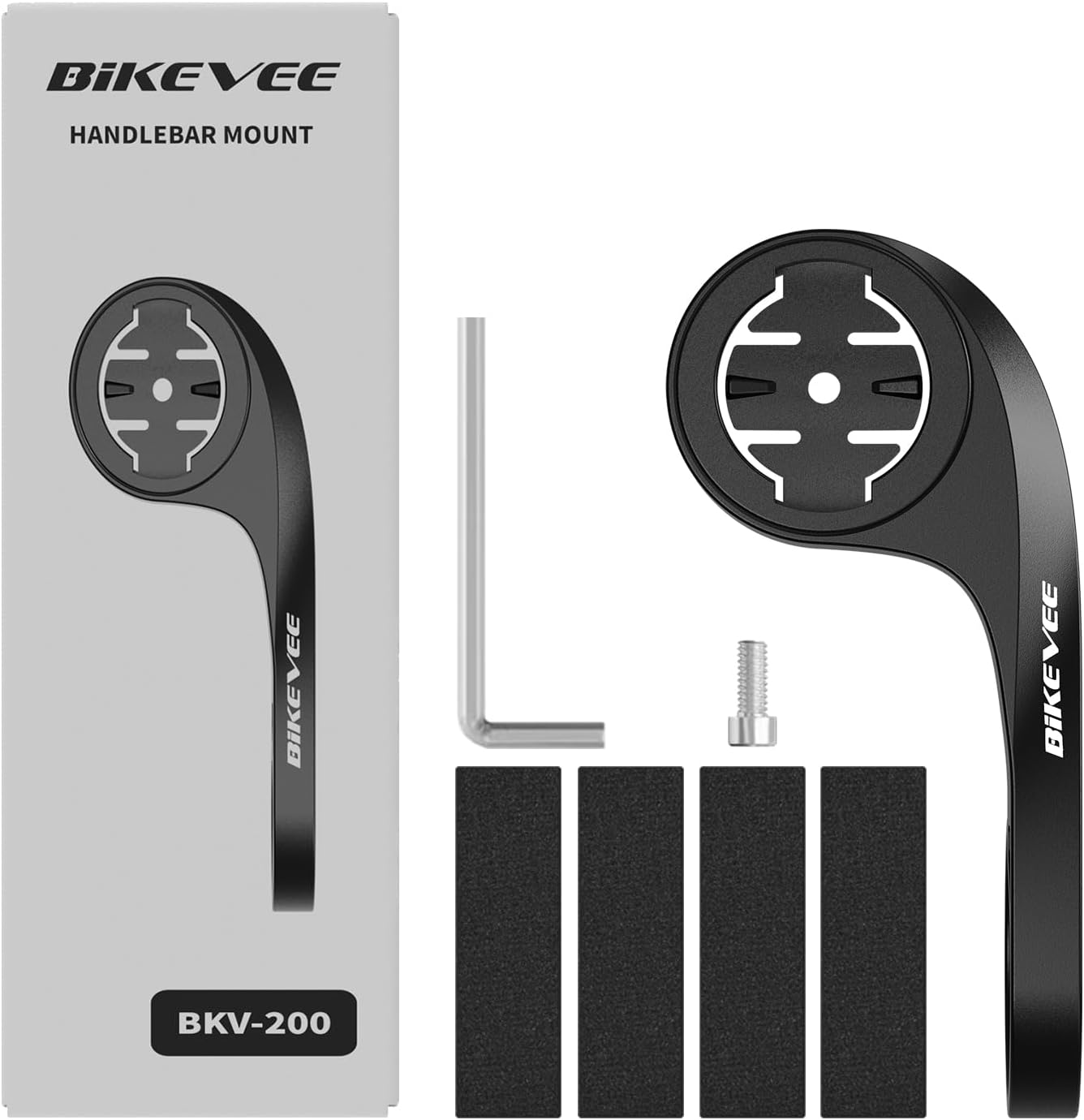

Packaging for the Bikevee Handlebar Mount, showing the mount, Allen key, and rubber pads.

Figure 2.2: Handlebar Mount Components.

2.3 初回電源投入と設定

  1. 電源オン: Press and hold the power button (usually located at the bottom left) until the screen illuminates.
  2. ユニット選択: Upon first power-on or after a reset, you may be prompted to select your preferred unit of measurement (MPH or KM/H). Use the navigation buttons to select and confirm.
  3. GPS取得: Take the device outdoors to an open area to allow it to acquire GPS satellite signals. This may take a few moments. A stable GPS signal icon will appear once connected.

3. 操作手順

3.1 基本操作

  • 電源オン/オフ: 左のボタンを長押しすると、電源のオン/オフが切り替わります。
  • 乗車の開始/一時停止/停止: Press the middle button to start recording a ride. Press again to pause. Press and hold to stop and save the ride data.
  • ページ切り替え: Use the right button to cycle through different data display pages.
  • バックライト: The device features an automatic backlight that adjusts based on ambient light conditions.

3.2 Data Display and Interpretation

The Bikevee GPS Computer displays up to 14 types of cycling data, providing comprehensive insights into your ride.

Bikevee GPS Computer display showing various data types like speed, ride time, distance, temperature, ascent, gradient, altitude, and clock.

Figure 3.1: Supported Data Types Display.

  • 現在の速度: Displays your real-time speed (MPH or KM/H).
  • 平均速度： The average speed for the current ride.
  • 最高速度: The highest speed recorded during the current ride.
  • 乗車時間: Duration of the current active ride.
  • Ride Distance: 現在の乗車中に走行した距離。
  • Total Distance (Odometer): Cumulative distance recorded by the device.
  • 温度： 周囲温度。
  • クロック： 現在の時刻。
  • 上昇: Total elevation gained during the ride.
  • 勾配： Current incline or decline percentage.
  • 高度： Current elevation above sea level.
Bikevee GPS Computer display showing various icons for satellite signal, IPX7 waterproof, battery level, temperature, automatic backlight, Type-C port, clock, and speed comparison.

Figure 3.2: Display Icons and Their Meanings.

  • 衛星信号: GPS 信号強度を示します。
  • IPX7： Confirms waterproof rating.
  • バッテリー残量: バッテリー残量を表示します。
  • 自動バックライト: Indicates auto backlight feature is active.
  • タイプC： Denotes the charging port type.
  • Speed Comparison: Arrow indicates if current speed is higher or lower than average speed.

4. メンテナンスとケア

4.1デバイスのクリーニング

最適なパフォーマンスと外観を維持するために、デバイスを定期的にクリーニングしてください。

  • 画面と本体を柔らかくて乾いた布で拭いてください。amp 布。
  • Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the device's surface or internal components.
  • ほこりや水の侵入を防ぐため、充電ポートのカバーがしっかりと閉まっていることを確認してください。

4.2 防水性能（IPX7）

Bikevee GPS Computer with water droplets on its screen, demonstrating its IPX7 waterproof rating in a rainy environment.

Figure 4.1: IPX7 Waterproof Feature.

The Bikevee GPS Computer has an IPX7 waterproof rating, meaning it is protected against temporary immersion in water (up to 1 meter for 30 minutes). However, it is important to note:

  • 装置を長時間水に浸さないでください。
  • 高圧水ジェットを避けてください。
  • Ensure the charging port cover is sealed before exposure to water.

4.3 バッテリーの取り扱いと保管

  • デバイスを使用しないときは、涼しく乾燥した場所に保管してください。
  • デバイスを長時間極端な温度（高温または低温）にさらさないでください。
  • 長期保管の場合は、バッテリーの状態を維持するために、バッテリーを約 50% まで充電してください。

5。 トラブルシューティング

If you encounter issues with your Bikevee GPS Computer, refer to the following common problems and solutions:

問題考えられる原因解決
デバイスの電源が入りません。バッテリー残量が少なくなりました。付属のType-Cケーブルを使用してデバイスを完全に充電します。
No GPS signal or inaccurate readings.妨害された view 空の; 初期信号取得。Move to an open outdoor area. Wait a few minutes for signal acquisition. Avoid dense forests or tunnels.
ディスプレイが暗い、または判読できない。Auto backlight setting; low battery.Ensure sufficient battery charge. The backlight adjusts automatically; try moving to a different lighting condition.
デバイスがフリーズしたり、応答しなくなったりします。ソフトウェアの不具合。デバイスが再起動するまで電源ボタンを 10 ～ 15 秒間押し続けて、ソフト リセットを実行します。

6. 仕様

Detailed technical specifications for the Bikevee Wireless Cycling GPS Computer:

Bikevee GPS Computer next to a smartphone, with dimensions indicating 70mm (2.76in) height and 45mm (1.77in) width, and a weight of 50g (0.11lb).

Figure 6.1: Device Dimensions and Weight.

  • モデル： Bikevee Cycling GPS Computer
  • 画面： 2.4-inch LCD, Automatic Backlight
  • バッテリー： 650mAh充電式リチウムイオン
  • バッテリー寿命: 最大28時間（連続使用）
  • GPS システム: GPS, BDS, GLONASS, Galileo, QZSS (5-satellite tracking)
  • 防水等級: IPX7
  • 寸法: Approximately 70mm (Height) x 45mm (Width) / 2.76in x 1.77in
  • 重さ： Approximately 50g / 0.11lb
  • 充電ポート: TypeーC USB
  • Data Types Supported: 14 types (e.g., Speed, Distance, Time, Temperature, Altitude, Gradient)

7. 保証情報

The Bikevee Wireless Cycling GPS Computer is covered by a limited manufacturer's warranty. This warranty typically covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For specific warranty terms and conditions, including duration and coverage details, please refer to the warranty card included with your product or contact Bikevee customer support directly.

8. カスタマーサポート

If you have any questions, require technical assistance, or need to report an issue with your Bikevee Wireless Cycling GPS Computer, please contact our customer support team.

  • オンラインサポート： Visit the official Bikevee webFAQ、トラブルシューティング ガイド、お問い合わせフォームのサイト。
  • メールサポート: 製品のパッケージまたは公式 webカスタマー サポートのメール アドレスについては、サイトをご覧ください。

When contacting support, please be prepared to provide your product model number (Bikevee Cycling GPS Computer) and a detailed description of the issue.
