Fenix PD35R ACE Tactical Flashlight User Manual

導入

The Fenix PD35R ACE is a high-performance, USB rechargeable LED tactical flashlight designed for various lighting needs, including outdoor activities and law enforcement. It features a powerful 2000 lumen output, a 380-meter beam distance, and Fenix's patented SET output customization system, offering three distinct mode selection profiles. This manual provides detailed instructions for its safe and effective use.

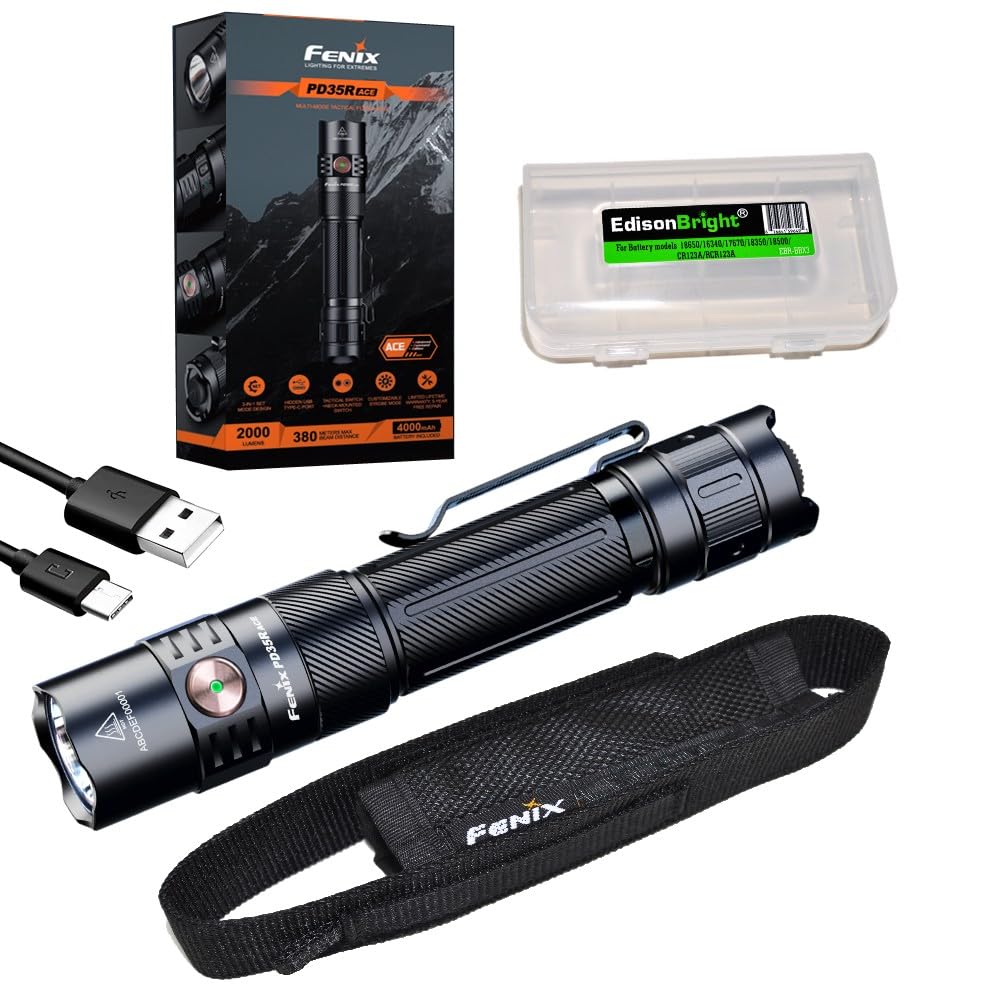

Image: The Fenix PD35R ACE flashlight, highlighting its robust construction and side switch.

箱の中身

• フェニックス PD35R ACE 懐中電灯
• 充電式リチウムイオン電池（付属）
• USB Type-C充電ケーブル
• ホルスター
• ストラップ
• スペアOリング
• EdisonBright Accessory Case

設定

バッテリーの取り付け

1. 懐中電灯のテールキャップを反時計回りに回して外します。
2. Insert the included Fenix ARB-L18-4000P Lithium-Ion battery with the anode (+) end facing towards the flashlight head.
3. Screw the tail cap back on clockwise until it is fully tightened. Ensure a secure connection for proper operation and waterproofing.

初期充電

Before first use, it is recommended to fully charge the battery. The PD35R ACE features a hidden USB-C charging port.

1. Locate the rubber cover on the side of the flashlight head, near the side switch.
2. Lift the rubber cover to expose the USB Type-C charging port.
3. Connect the USB Type-C cable to the flashlight and the other end to a USB power source (e.g., wall adapter, power bank, computer).
4. 充電インジケーターライトは充電状態を示します。赤いライトは充電中、緑のライトはフル充電を示します。
5. Once charging is complete, securely close the rubber cover to maintain the flashlight's waterproof rating.

画像: 上view of Fenix PD35R ACE features, including the hidden USB-C charging port.

操作手順

The Fenix PD35R ACE utilizes a dual-switch system: a tactical tail switch for momentary/constant on/off and a side switch for output selection and mode switching.

電源オン/オフ

• モーメンタリーオン： タクティカルテールスイッチを半押しします。離すと電源が切れます。
• 常時オン/オフ: Fully press the tactical tail switch until a click is heard to turn the flashlight on or off.

出力選択

With the flashlight on, single-click the side switch to cycle through Eco, Low, Med, High, and Turbo modes.

SET Mode Selection (ACE System)

The PD35R ACE features three distinct SET modes (Tactical Operation, Military and Duty, Outdoor Activity) that customize the available output levels and their order. To switch between SET modes:

• With the flashlight off, press and hold the side switch for 3 seconds. The flashlight will flash to indicate the current SET mode.
• Release the side switch, then quickly single-click it to cycle through the three SET modes.
• Once the desired mode is indicated by its unique flash pattern, press the tactical tail switch to confirm and exit.

Image: The SET 3-in-1 system, illustrating the customizable output options for different operational profiles.

ストロボとSOSモード

• ストロボ： With the flashlight on, press and hold the side switch for 0.8 seconds to activate Strobe mode. Single-click the side switch to return to the previously used general mode.
• SOS： In Outdoor Activity SET mode, cycle through the general modes until SOS is reached.

充電

The Fenix PD35R ACE features a convenient USB Type-C charging port. Ensure the flashlight is off during charging for optimal performance.

• Open the rubber cover on the flashlight head to access the USB-C port.
• 付属の USB-C ケーブルを懐中電灯と電源に接続します。
• 充電中は充電インジケーターが赤くなり、完全に充電されると緑色に変わります。
• Charging time for a fully depleted battery is approximately 3-4 hours, depending on the power source.
• Always close the rubber cover tightly after charging to maintain water resistance.

メンテナンス

• クリーニング： 懐中電灯本体は定期的に柔らかい布で拭いてください。頑固な汚れには、amp 布。刺激の強い化学物質は避けてください。
• Oリング: Inspect the O-rings regularly for wear and tear. Replace them if damaged to maintain the waterproof seal. Lubricate O-rings with silicone grease as needed.
• スレッド: スムーズな操作と良好な電気接触を確保するために、テール キャップのねじ山を清潔に保ち、潤滑してください。
• バッテリーのケア： Store the battery in a cool, dry place. If the flashlight will not be used for an extended period, remove the battery to prevent leakage. Recharge the battery every four months to prolong its lifespan.

トラブルシューティング

Fenix PD35R ACE 懐中電灯が正しく機能しない場合は、次の一般的な問題と解決策を参照してください。

• 懐中電灯が点灯しない、またはちらつく:
  • 電池のプラス（+）端が頭側を向くように正しく挿入されているか確認してください。
  • Ensure the tail cap is fully tightened. Loose connections can prevent power flow.
  • The battery may be low on charge. Try charging the battery fully.
  • アルコール綿を使用して、電池と懐中電灯の接点を清掃します。
• Flashlight won't charge:
  • USB-C ケーブルが懐中電灯と電源の両方にしっかりと接続されていることを確認します。
  • アクセサリの故障を排除するために、別の USB-C ケーブルまたは電源アダプターを試してください。
  • 充電ポートが清潔でゴミなどがないことを確認します。
  • The battery might be deeply discharged. Allow it to charge for a longer period, or try a different battery if available.
• Output modes are not cycling correctly:
  • バッテリーが十分に充電されていることを確認してください。
  • Refer to the 'Operating Instructions' section for correct mode selection procedures, especially for SET modes.

仕様

The following table details the performance specifications of the Fenix PD35R ACE flashlight:

Image: Detailed technical specifications for the Fenix PD35R ACE across all output modes.

保証とサポート

The Fenix PD35R ACE flashlight comes with a limited warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, service, or warranty claims, please contact your authorized Fenix dealer or visit the official Fenix web連絡先情報のサイト。
