1.製品オーバーview
The VEVOR Vacuum Stand HLFGSJLG-01 is designed to provide a stable and organized storage solution for various cordless upright vacuum cleaners and their accessories. This stand helps to keep your vacuum and tools neatly arranged and easily accessible without the need for wall drilling.
Image 1.1: The VEVOR Vacuum Stand HLFGSJLG-01 providing organized storage for a cordless vacuum and its attachments.
Image 1.2: The vacuum stand shown both as individual components and fully assembled, alongside a compatible vacuum cleaner.
2. 互換性
This vacuum stand is compatible with a wide range of cordless upright vacuum cleaner models.
- V-Series: V6、V7、V8、V10、V11、V15
- DC-Series: DC30, DC31, DC34, DC35, DC58, DC59, DC62, DC74
Note: The vacuum stand only. Charger dock and vacuum accessories are not included.
Image 2.1: Visual representation of compatible vacuum models, including V6, V7, V8, V10, V11, and V15 series.
3. パッケージ内容
組み立てを始める前に、すべてのコンポーネントが揃っていることを確認してください。
- ベース x 1
- 1 x Bottom Bracket
- 1 x Middle Bracket
- トップブラケット1個
- 4 xコネクタ
- プラスドライバー×1
- 1 x 8 mm Open Wrench
- 1 x L-shaped Hex Wrench
- 16 x Round Head Screws (M4 x 8)
- 2 x Countersunk Screws (M5 x 20)
- ネジ 4 本 (M6 x 25)
- ユーザーマニュアル x 1
画像3.1: 詳細 view of all components and tools included in the package, along with product specifications.
4. 組み立て手順
Follow these steps for quick and easy assembly. No drilling is required.
- ステップ1：ベースをインストールする
Attach the main support pole to the weighted base using the provided screws and tools. Ensure the base is stable. - Step 2: Attach the Hooks
Secure the accessory hooks to the main support pole at desired heights. The stand includes 6 hooks for various attachments. - ステップ3：トップパネルを取り付ける
Connect the top bracket to the upper section of the main support pole. - Step 4: Mount the Charger
If desired, mount your vacuum's charger dock onto the top panel using the appropriate screws.
Image 4.1: Step-by-step assembly guide for the VEVOR Vacuum Stand, illustrating base installation, hook attachment, top panel installation, and charger mounting.
5. 操作と使用
The VEVOR Vacuum Stand provides convenient storage and easy access to your vacuum cleaner and its accessories.
- 真空配置: Place your cordless upright vacuum cleaner onto the designated holder at the top of the stand.
- アクセサリー収納: Utilize the 6 hooks to store various vacuum attachments such as flexible crevice tools, soft dusting brushes, stubborn dirt tools, and soft roller cleaner heads. Each hook supports up to 11.02 lbs (5 kg).
- 安定性： The stand features a 3.96 lbs (1.8 kg) weighted base and anti-slip pads to ensure stability and prevent tipping or sliding.
- 省スペース設計: The compact base (11.41 x 11 inches) allows the stand to fit into corners or narrow areas, optimizing vertical space.
Image 5.1: Illustration of how to organize vacuum and accessories on the stand, labeling storage points for charger, vacuum, and various tools.
Image 5.2: The stand positioned in a room corner, highlighting its compact footprint and efficient layered storage for accessories.
6. メンテナンス
To ensure the longevity and appearance of your VEVOR Vacuum Stand, follow these simple maintenance guidelines:
- クリーニング： スタンドは定期的に柔らかくて乾いた布で拭いてください。amp 布で埃や汚れを拭き取ってください。仕上げを傷める可能性のある研磨剤入りの洗剤や溶剤は使用しないでください。
- 検査： すべてのネジと接続部がしっかりと締まっているか定期的に確認してください。安定性を維持するために、必要に応じて締め直してください。
- 配置: Place the stand on a flat, level surface to prevent instability.
7。 トラブルシューティング
If you encounter any issues with your vacuum stand, refer to the following common solutions:
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| スタンドがぐらついたり不安定になったりします。 | Screws are loose; uneven surface. | Ensure all screws are tightened securely. Move the stand to a flat, level surface. |
| Accessories do not fit on hooks. | Incorrect accessory type; hooks not positioned correctly. | Verify that your accessories are compatible. Adjust hook positions if necessary. |
| 組み立て中に部品が不足しました。 | 梱包エラーです。 | Refer to the "Package Contents" section and contact VEVOR customer support if parts are missing. |
8. 仕様
Detailed specifications for the VEVOR Vacuum Stand HLFGSJLG-01:
- モデル名: 真空スタンド
- 商品モデル番号: HLFGSJLG-01
- ブランド： ヴェヴォル
- 色： 黒
- 主な材質: Cold-rolled SPCC Steel
- 製品寸法（長さ x 幅 x 高さ）： 11.42インチ x 11.02インチ x 50インチ (290 x 280 x 1270 mm)
- 製品重量: 8.59ポンド（3.9kg）
- Hook Capacity: Up to 11.02 lbs (5 kg) per hook
- 特集: 省スペース
- 組み立てが必要: はい
- 屋内/屋外での使用: 屋内
- Compatible Vacuum Brands and Models: V6, V7, V8, V10, V11, V15, DC30, DC31, DC34, DC35, DC58, DC59, DC62, DC74 Series Upright Vacuums

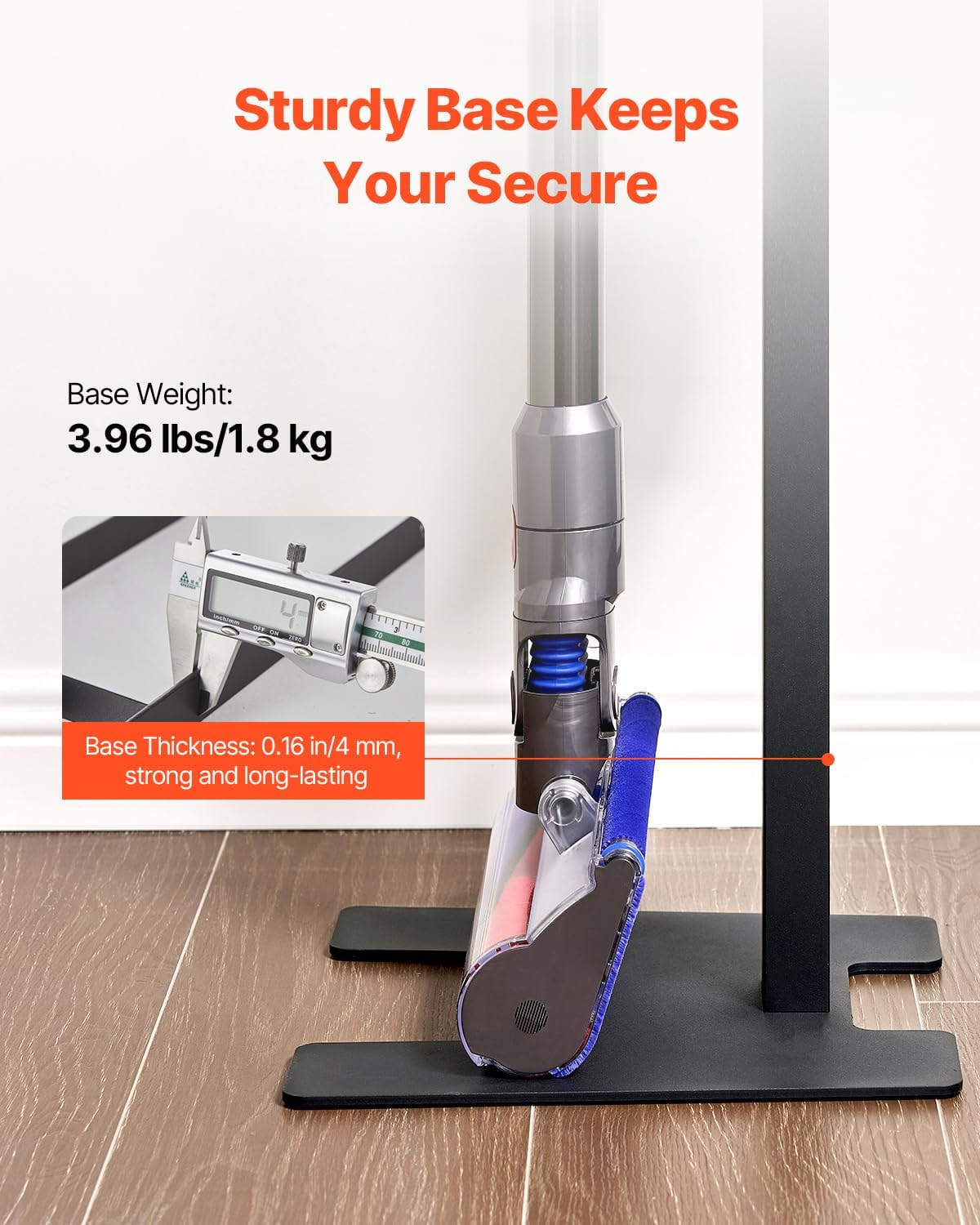

Image 8.1: Detail of the stand's sturdy base, indicating its weight (3.96 lbs / 1.8 kg) and thickness (0.16 in / 4 mm).
9. 保証とサポート
保証情報や技術サポートについては、公式VEVORをご覧ください。 webサイトをご覧いただくか、カスタマー サービスに直接お問い合わせください。
公式VEVOR Webサイト： www.vevor.com
