1. はじめに
Thank you for choosing the VEVOR Electric Utility Cart, Model EWB7614. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric cart. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage.
This electric utility cart is designed to assist with transporting heavy loads in various environments such as gardens, farms, and warehouses. Its robust design and electric assist feature make it an efficient tool for material handling.
2. 安全に関する注意事項
Always prioritize safety when operating the electric utility cart. Failure to follow these instructions may result in serious injury or property damage.
- マニュアルを読む: Understand all operating instructions and safety warnings before use.
- 個人用保護具: Wear appropriate safety gear, including sturdy footwear and gloves.
- 耐荷重: 最大積載量500ポンド（226kg）を超えないでください。過積載は不安定になり、損傷の原因となる可能性があります。
- 安定した負荷: Ensure all loads are securely placed and balanced in the cart to prevent shifting during transport.
- 地形： Operate the cart on stable, relatively even surfaces. Be cautious on inclines and uneven terrain.
- 制動： Familiarize yourself with the braking system and test it before each use. Use the electronic parking brake when stopped on inclines.
- 子供とペット: Keep children and pets away from the operating area. This is not a toy.
- バッテリーの安全性: Only use the provided charger. Do not expose the battery to extreme temperatures or moisture. Do not charge for more than 8 hours.
- メンテナンス： Regularly inspect the cart for any damage or loose parts. Do not operate if damaged.
3.製品オーバーview
3.1 コンポーネント
The VEVOR Electric Utility Cart (Model EWB7614) includes the following main components and accessories:
- ユーザーマニュアル x 1
- 1xモーター
- 2x Large Wheels
- 1x Small Wheel
- 1x Chassis
- 1xハンドル
- 1x Handle Bracket
- 1x Dumping Handle
- 1x Bottom Mesh
- 2x Left and Right Side Mesh
- 2x Front and Rear Side Mesh
- 1x Decorative Panel
- バッテリーボックス x 1
- 充電器 x 1
- 8x Large R Pins
- 2x Cotter Pins
- 2x Retaining Pins
- 8x M8x25 Screws (pcs)
- 12x M6x40 Screws + Nuts + Washers (pcs)
- 4x M6x60 Screws + Nuts + Washers (pcs)
- 2x Wheel Axle Plugs
- 4x ケーブルタイ
Image: VEVOR Electric Utility Cart with its charger and various components laid out.
3.2 仕様
| 特徴 | 仕様 |
|---|---|
| モデル番号 | EWB7614 |
| スタイル | 3輪 |
| 力 | 36V-12A-500W |
| バッテリー容量 | 36V-12A-432Wh |
| Forward Speed (D Power) | 0～5 km/h |
| Reverse Speed (R Power) | 0～3.5 km/h |
| 耐荷重 | 226 kg (500 ポンド) |
| Cargo Bed Dimensions | 850 x 550 x 275 mm (33.46 x 21.65 x 10.83 インチ) |
| タイヤ素材 | Rubber - Inflatable |
| タイヤ仕様 | 13-5.00-6 |
| ブレーキシステム | Yes (Electronic Parking, Wheel Brakes, ECO Downhill Assist) |
| 主な材料 | Iron + Plastic + Aluminum Alloy + Rubber + Lead Acid |
| 製品重量 | 53.4 kg (117.73 ポンド) |
| 製品寸法（長さ x 幅 x 高さ） | 1500 x 680 x 930 mm (59.06 x 26.77 x 36.61 インチ) |
Image: Detailed dimensions and specifications of the VEVOR Electric Utility Cart.
4. セットアップと組み立て
The VEVOR Electric Utility Cart requires some assembly. Please refer to the included user manual for detailed, step-by-step assembly instructions. Ensure all components listed in Section 3.1 are present before beginning assembly.
- 開梱: Carefully unpack all components and check for any shipping damage.
- ツール: Gather any necessary tools for assembly (e.g., wrenches, screwdrivers).
- ホイールの取り付け： Attach the large and small wheels as per the instructions, ensuring they are securely fastened.
- Chassis and Bed Assembly: Connect the chassis and cargo bed components, including the bottom and side meshes.
- Handle and Controls: Install the handle and handle bracket, ensuring all control cables are properly connected and secured.
- バッテリーの取り付け: Carefully install the battery into its designated box.
- 最終チェック: Before first use, double-check all bolts, nuts, and pins to ensure they are tightened and secured.
Image: The VEVOR Electric Utility Cart in its fully assembled state.
5. 操作手順
5.1 バッテリーの充電
Before initial use, fully charge the 36V-12A-432Wh battery. Connect the charger to the battery box and then to a standard power outlet. The charging indicator on the charger will show the charging status. It is recommended to charge for no more than 8 hours to ensure battery safety and longevity.
Image: The battery compartment of the electric cart, indicating its 432Wh capacity and charging recommendation.
5.2 基本操作
- 電源オン/オフ: Locate the power switch on the control panel and turn the cart on.
- スピードコントロール: Use the throttle control on the handle to adjust the speed. The cart offers forward speeds up to 5 km/h and reverse speeds up to 3.5 km/h.
- Smooth Start: The innovative controller minimizes startup impact, ensuring a smooth acceleration and preventing cargo from shifting abruptly.
- ブレーキシステム: The cart features electronic parking, wheel brakes, and ECO downhill assist for safe and stable operation. Engage the electronic parking brake when stopping, especially on inclines.
Image: An operator using the electric cart, demonstrating its forward and reverse speeds and suitability for slopes up to 15 degrees.
Image: The cart's braking features, including electronic parking, ECO downhill assist, and wheel brakes, ensuring secure transport.

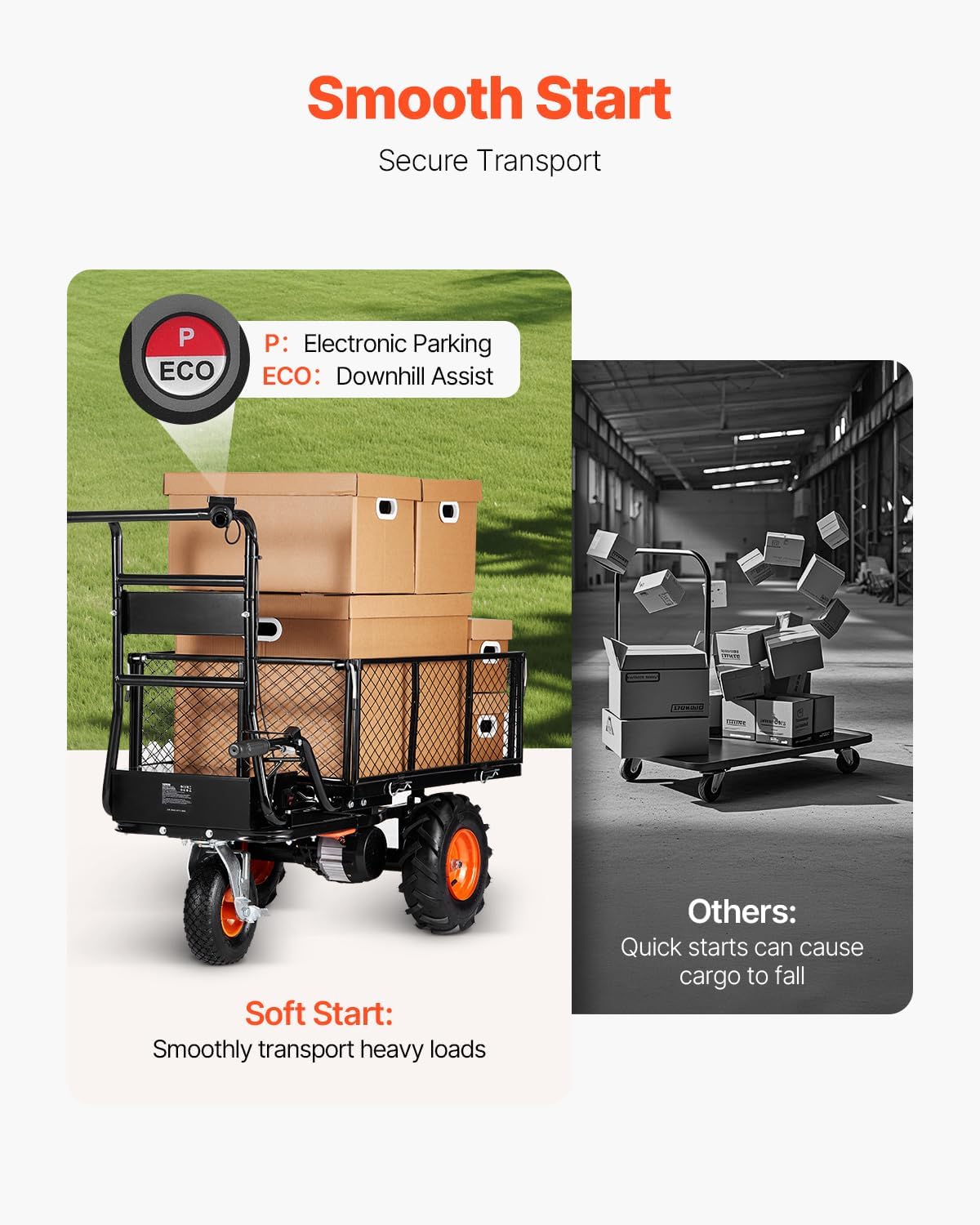

Image: Illustration of the smooth start feature, which ensures stable transport of heavy loads by preventing abrupt movements.
5.3 Loading and Transporting
- 耐荷重: The cart can carry up to 226 kg (500 lbs). Distribute the load evenly to maintain stability.
- Convertible Fence Design: The cart features a convertible fence design, allowing for easy loading and unloading. The side meshes can be adjusted or removed to accommodate larger or irregularly shaped items.
- 地形適応性: The 13-inch rubber wheels are designed to adapt to various terrains, including rock, mud, grass, and snow.
Image: The cart's flexible design, allowing conversion between a fenced cart for small items and a flatbed for larger items like bagged fertilizers.
Image: The electric cart being loaded with firewood, showcasing its 500 lbs load capacity for transporting various materials.
Image: The cart's 13-inch rubber wheels and 360-degree swivel feature, designed to tackle diverse terrains like rock, mud, grass, and snow.
5.4 荷降ろし
The cart is designed for effortless unloading. Utilize the dumping handle and the 90-degree discharge angle to efficiently empty the cargo bed. The extended handle reduces effort during the unloading process.
Image: The cart's extended handle and tilting function making the unloading of materials like firewood simple and efficient.
6. メンテナンス
Regular maintenance ensures the longevity and safe operation of your VEVOR Electric Utility Cart.
- クリーニング： カートを定期的に清掃してくださいamp cloth. Avoid using harsh chemicals that could damage the finish or electrical components.
- バッテリーのケア： Store the battery in a cool, dry place when not in use. Charge the battery fully before long-term storage and recharge every 3 months to maintain its health.
- タイヤ空気圧: Check tire pressure periodically and inflate to the recommended PSI as indicated on the tire sidewall.
- 留め具: Periodically check all bolts, nuts, and screws for tightness. Tighten any loose fasteners.
- 潤滑: Lubricate moving parts, such as wheel axles and pivot points, as needed with appropriate grease or oil.
- 腐食防止: The cart is constructed with rust-resistant iron and aluminum alloy. However, avoid prolonged exposure to moisture and store in a dry area to prevent corrosion.
Image: Details on the durable construction materials of the cart, including heavy-duty iron, rust-resistant powder coating, a reinforced frame, and thicker mesh for long-lasting use.
7。 トラブルシューティング
If you encounter issues with your VEVOR Electric Utility Cart, refer to the following common troubleshooting steps:
- Cart Not Powering On:
- バッテリーが完全に充電されているか確認してください。
- Ensure the battery is correctly installed and connections are secure.
- 電源スイッチが「オン」の位置にあることを確認します。
- Motor Not Engaging / Weak Power:
- バッテリーが十分に充電されていることを確認してください。
- 車輪やモーターの周囲に障害物がないか確認してください。
- Ensure the throttle control is functioning correctly.
- Brakes Not Functioning Properly:
- Inspect the brake cables and mechanisms for wear or damage.
- Ensure the electronic parking brake engages firmly.
- 異常な音:
- ただちに操作を中止してください。
- Inspect for loose parts, foreign objects, or damaged components.
これらの手順を実行しても問題が解決しない場合は、VEVOR カスタマー サポートに問い合わせて、さらにサポートを受けてください。
8. 保証とサポート
For warranty information, technical support, or to order replacement parts, please contact VEVOR customer service. Refer to the contact details provided with your purchase documentation or visit the official VEVOR webサイト。
メーカー: ヴェヴォル
発売日: 9年2025月XNUMX日
