1. はじめに
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Daikin 12,000 BTU 18 SEER2 Single Zone Ductless Mini Split Heat Pump System. Please read this manual thoroughly before using the unit and retain it for future reference.
2. 安全情報
Always adhere to local electrical codes and safety regulations during installation and maintenance. Only qualified personnel should perform electrical work. Ensure the unit is properly grounded. Disconnect power before servicing. Keep children away from the unit during operation and maintenance.
3.製品オーバーview
The Daikin Mini Split Heat Pump System offers efficient heating and cooling for single zones. It features inverter technology for consistent temperature control and energy savings. The indoor unit is designed for wall-mounted installation, while the outdoor unit handles the heat exchange process.
室内機3.1台
Image: The indoor unit of the Daikin mini split system, wall-mounted. It features a sleek white design with a visible Daikin logo and a blue indicator light.
3.2 室外機
Image: The outdoor unit of the Daikin mini split system, mounted on an exterior wall. It is a compact, gray unit with a protective grille and the Daikin logo.
3.3リモコン

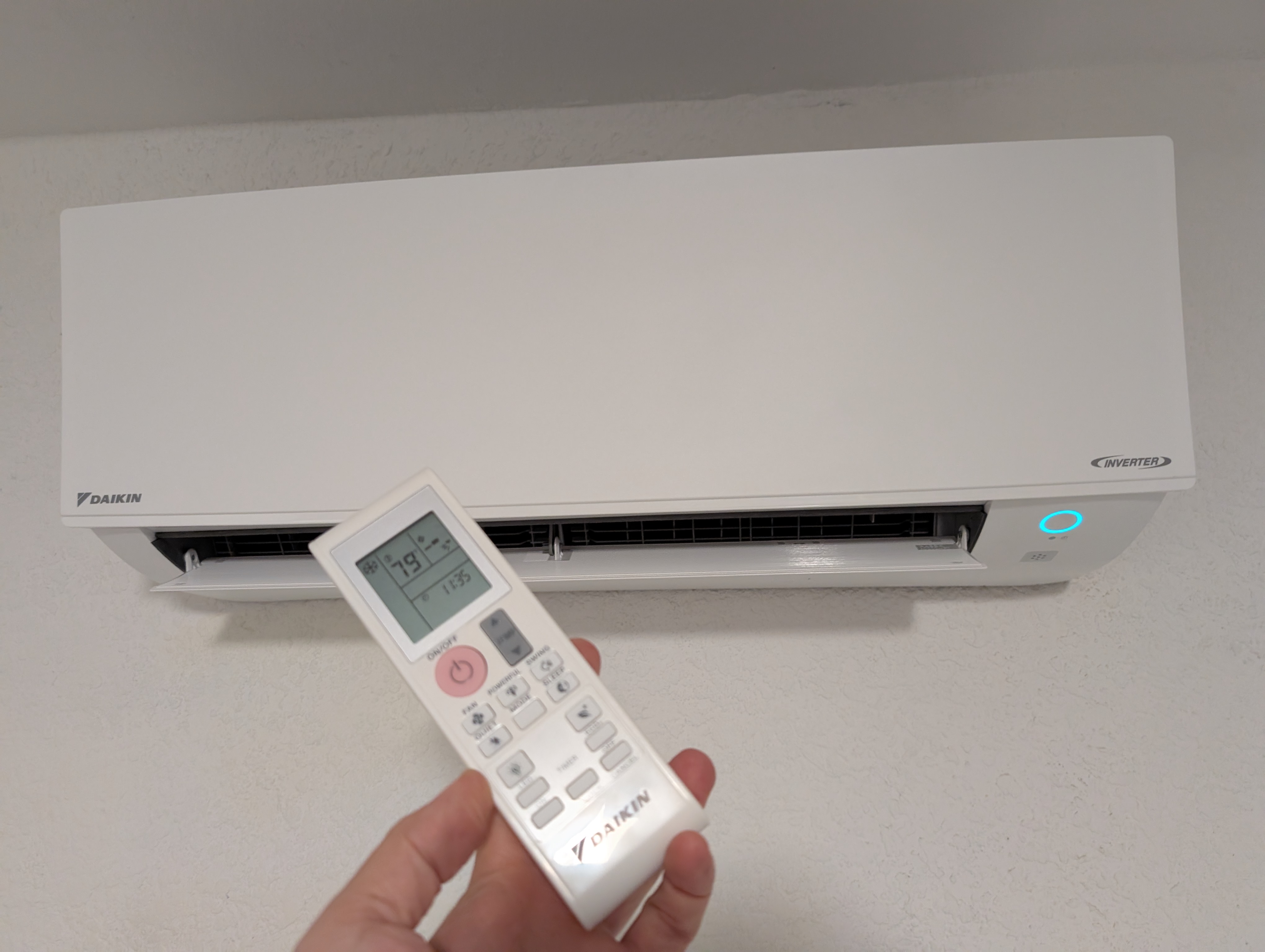

Image: A close-up of the Daikin mini split remote control, displaying a set temperature of 79°F and the current time. It features various buttons for fan speed, mode, sleep, and timer functions.
4. セットアップとインストール
Professional installation is recommended for optimal performance and safety. Ensure proper placement of both indoor and outdoor units, considering factors like air circulation, drainage, and electrical access. The outdoor unit requires a stable mounting surface and adequate clearance for airflow.
4.1インストールオーバーview
ビデオ: オーバーview of the Daikin mini split system, showcasing both the indoor and outdoor units. The video discusses the unit's efficiency, installation considerations, and features like the remote control. It highlights the quiet operation and the importance of proper installation, including addressing potential issues like refrigerant leaks and insulation.
4.2電気接続
The system requires a dedicated electrical circuit. Ensure all wiring is correctly connected and secured according to the wiring diagram provided in the full installation guide. The electrical conduit should be routed efficiently to minimize visual impact and protect wiring.
4.3 Refrigerant Lines and Drainage
Proper connection and insulation of refrigerant lines are crucial for efficiency. Ensure the condensate drain line is correctly installed with a downward slope to allow for proper water drainage, preventing leaks and water damage.
5. 操作手順
Your Daikin Mini Split system is controlled via a wireless remote. Familiarize yourself with the remote's functions for optimal comfort.
5.1 基本操作
- オン/オフボタン: 押すとユニットの電源がオンまたはオフになります。
- モードボタン: 動作モードを切り替えます: 冷房、暖房、ファン、ドライ、自動。
- TEMP Up/Down Buttons: 希望する温度設定を調整します。
- ファンボタン： Select fan speed (Auto, Low, Medium, High).
5.2高度な機能
- SWINGボタン： Activates or deactivates the automatic vertical airflow swing. Horizontal airflow direction is typically adjusted manually.
- スリープモード： Adjusts temperature automatically during sleep for comfort and energy saving.
- タイマー機能: Set the unit to turn on or off at specific times.
- QUIETモード: ファン速度を下げて静かに動作します。
5.3 Unit Functionality Demonstration
Video: A demonstration of the indoor unit's operation, highlighting its ability to provide both cooling and heating. The video emphasizes the convenience of the remote control for adjusting settings and maintaining comfortable temperatures in various environments.
6. メンテナンス
定期的なメンテナンスにより、ダイキンシステムの寿命と効率が確保されます。
- エアフィルターの掃除： Clean the air filters every two weeks or as needed. Refer to the full manual for instructions on how to remove and clean the filters.
- 室外機の清掃： Keep the outdoor unit free from debris, leaves, and other obstructions to ensure proper airflow.
- プロフェッショナルサービス: 冷媒レベルの確認、コイルの清掃、電気部品の検査を行うために、専門家による年次メンテナンスをスケジュールします。
7。 トラブルシューティング
If you encounter issues with your unit, refer to the following common problems and solutions before contacting service personnel.
- ユニットの電源が入らない: Check the power supply and ensure the circuit breaker is not tripped. Verify the remote control batteries.
- 冷房/暖房不足: Ensure air filters are clean. Check for obstructions around the indoor and outdoor units. Verify the temperature setting on the remote.
- 異常な音: Minor noises during operation are normal. If loud or unusual noises occur, contact a qualified technician.
- 水漏れ: Check the condensate drain line for blockages or improper slope.
8. 仕様
| 特徴 | 詳細 |
|---|---|
| ブランド | ダイキン |
| モデル情報 | RXC12AXVJU, FTXC12AXVJU |
| 製品寸法 | 9.68 x 30.31 x 11.3インチ |
| 効率 | 高い |
| フォームファクター | ミニスプリット |
| 床面積 | 550平方フィート |
| 冷却力 | 12000 英国熱量単位 |
| 季節エネルギー効率比（SEER） | 18 |
| 制御方法 | リモート |
| インバータタイプ | インバータ搭載 |
| コンプレッサータイプ | rotary_scroll |
| 屋外ユニットが必要 | はい |
9. 保証とサポート
For warranty information and technical support, please refer to the documentation included with your product or visit the official Daikin webサイトでご確認ください。保証請求の際は購入証明として領収書を保管してください。
