1. はじめに

Thank you for choosing the ORICO 9928RU3 2-Bay RAID HDD Enclosure. This device is designed to provide a reliable and efficient solution for your data storage needs, supporting both 2.5-inch SSD/HDD and 3.5-inch HDD with advanced RAID functionality. Please read this manual carefully to ensure proper installation and operation.

画像1.1：正面 view of the ORICO 9928RU3 2-Bay RAID HDD Enclosure, showcasing its sleek silver design and two drive bays.

2. 主な特徴

• 大容量ストレージ: Supports up to 22TB per drive, totaling 44TB for extensive data storage requirements.
• 効率的なデータ管理: Offers PM (Port Multiplier), RAID 0, RAID 1, and SPAN (JBOD) modes for flexible data organization and protection. This is ideal for video editing and critical data backup.
• 2.5/3.5-inch Drive Compatibility: Includes brackets to securely mount both 3.5-inch HDDs and 2.5-inch SSD/HDDs. A 48W external power supply ensures stable operation even with multiple disks.
• 優れた放熱性: Constructed with an aluminum alloy body and equipped with a 40mm silent fan, along with front and rear ventilation holes, to effectively dissipate heat. This maintains low operating temperatures and prevents performance degradation.
• 5Gbpsデータ転送: Features a USB 3.0 interface compatible with SATA 6Gbps and supports the UASP acceleration protocol, delivering transfer speeds up to 235MB/s for rapid backups and file 転送。
• スタイリッシュで機能的なデザイン: The silver-white aluminum alloy casing complements any desktop setup. Non-slip feet provide stability, and individual LED indicators for each disk slot offer clear operational status.

Image 2.1: Illustration of the ORICO 9928RU3's large storage capacity, indicating support for up to 44TB total.

3.セットアップガイド

3.1 パッケージ内容

パッケージにすべてのアイテムが揃っていることを確認してください:

• ORICO 9928RU3 2ベイ RAID HDDエンクロージャ
• USB 3.0 データケーブル
• 12V/4A 電源アダプター
• HDD取り付けネジ
• ドライバー
• ユーザーマニュアル

3.2 HDD/SSD Installation

1. Gently pull the handle of the drive bay to open it.
2. For 2.5-inch SSD/HDD, attach the provided bracket to the drive using screws. For 3.5-inch HDD, the bracket may not be necessary.
3. Slide the prepared drive into the open bay until it is firmly seated.
4. Secure the drive within the bay using the provided screws.
5. Close the drive bay by pushing the handle back into place.

画像3.1: 詳細 view of installing a hard drive into the ORICO 9928RU3 enclosure, showing the spring-loaded switch and screw fixation points.

3.3 RAIDモード構成

The ORICO 9928RU3 supports multiple RAID modes configured via DIP switches located on the rear panel. Important: Always back up your data before changing RAID modes, as this process will erase all data on the drives.

• PM（ポートマルチプライヤ）: 各ドライブは独立したディスクとして認識されます。
• RAID 0 (ストライピング): ドライブを組み合わせて最大の速度と容量を実現しますが、データの冗長性は提供されません。
• RAID 1 (ミラーリング): Duplicates data across drives for redundancy, protecting against single drive failure. Capacity is limited to the smallest drive.
• SPAN (JBOD - Just a Bunch Of Disks): Concatenates drives to form one large volume without performance or redundancy benefits.

Refer to the diagram below for DIP switch settings for each RAID mode:

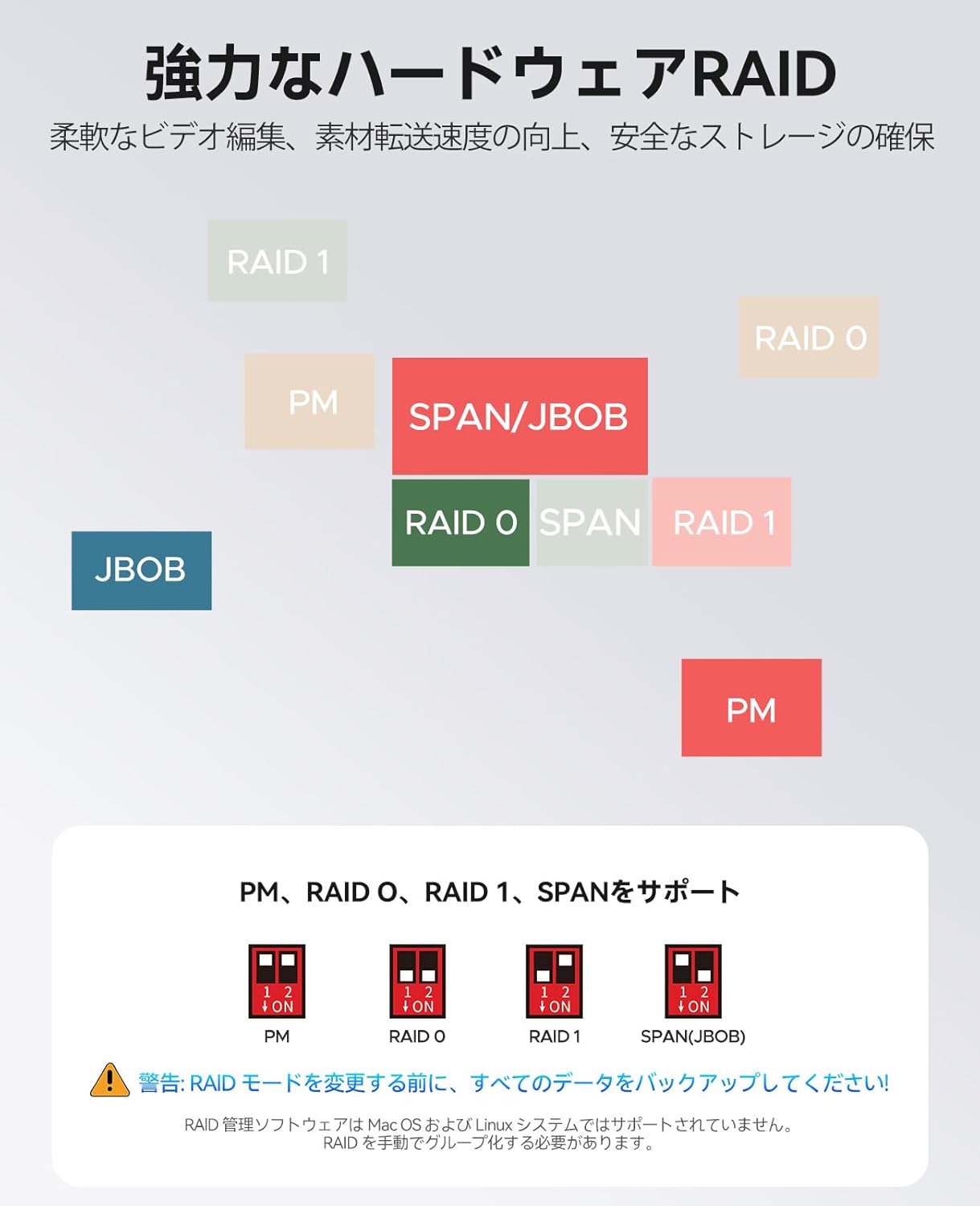

Image 3.2: Diagram illustrating the DIP switch configurations for PM, RAID 0, RAID 1, and SPAN (JBOD) modes.

3.4 Power and Computer Connection

1. Connect the 12V/4A power adapter to the DC input port on the rear of the enclosure and then to a power outlet.
2. Connect the USB 3.0 data cable from the enclosure's USB 3.0 port to an available USB port on your computer.
3. 電源ボタンを使用してエンクロージャの電源を入れます。

Image 3.3: The ORICO 9928RU3 connected to its 48W external power adapter and a computer via USB, ensuring stable data flow.

4. 操作手順

4.1 Power On and Drive Recognition

Once connected and powered on, your operating system should detect the enclosure and its installed drives (or RAID volume, depending on your configuration). The LED indicators on the front panel will illuminate to show the status of each drive bay.

4.2データ転送

Utilize the USB 3.0 connection for high-speed data transfer. The enclosure supports UASP (USB Attached SCSI Protocol) for optimized performance, reaching speeds up to 235MB/s for both reading and writing data.

Image 4.1: The ORICO 9928RU3 connected to a computer, demonstrating its 5Gbps data transfer capability for efficient file 管理。

5. メンテナンス

5.1 放熱

The enclosure features an aluminum alloy body and an integrated 40mm silent fan to maintain optimal operating temperatures. Ensure that the front and rear ventilation holes are not obstructed to allow for proper airflow.

Image 5.1: Illustration of the ORICO 9928RU3's cooling system, highlighting the internal fan and airflow for efficient heat dissipation.

5.2 クリーニング

To clean the exterior of the enclosure, use a soft, dry cloth. Avoid using liquid cleaners or abrasive materials that could damage the finish.

6。 トラブルシューティング

• ドライブが認識されない:
  - Ensure the enclosure is powered on and connected correctly to your computer.
  - Verify that the drives are properly seated in their bays.
  - Check the RAID mode settings via the DIP switches. If you changed modes, ensure the drives are initialized or formatted as required by the new mode (this will erase data).
• 転送速度が遅い:
  - Confirm that the enclosure is connected to a USB 3.0 port on your computer.
  - Ensure your operating system and drivers support UASP for optimal performance.
• Difficulty Removing Drives:
  - If a drive feels stuck, try gently tilting the drive bay handle slightly up or down while pulling it out. This can help disengage any internal catches.
• ファンの騒音：
  - The enclosure includes an internal cooling fan. Some users may perceive a high-pitched noise during operation. This is a characteristic of the fan and is generally within normal operating parameters. Ensure ventilation is not obstructed.

7. 仕様

8. 保証とサポート

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official ORICO website. If you encounter any issues not covered in this manual, please contact ORICO customer service for assistance.
