1.製品オーバーview
This manual provides essential information for the installation, maintenance, and proper use of your LESIONGO Lawn Mower Deck Belt. This belt is designed as a replacement for specific Ariens and Gravely lawn mower models, ensuring optimal performance and durability.
Image 1.1: LESIONGO Lawn Mower Deck Belt in its packaging.
2. 製品の特徴と利点tages
- OEM交換品: Directly replaces Ariens OEM number 07200023 and Gravely OEM number 07200023.
- 耐久性のある構造: Features a special fabric layer for high wear resistance.
- 滑りの低減: Engineered to minimize sliding under sudden load conditions.
- Aramid Cords: Constructed with Aramid cords for long-lasting belt life, high performance, minimized stretch, and high tensile strength.
- Temperature and Wear Resistance: Designed to withstand high temperatures and extreme wear common in lawn and garden equipment.
画像2.1: クローズアップ view of the Aramid cords, highlighting the belt's durable construction.
Image 2.2: LESIONGO Mower Belts are engineered for high performance, resisting high temperatures, wear, oil, and dust.
3. 互換性
This deck belt is compatible with the following lawn mower models:
- For Ariens Zoom Series: 1640, 1840, 2044, 2348, 2552, and Zoom XL Series.
- For Gravely ZT Series: 1640、1840、2044、2348、2552。
- For Gravely ZTXL Series: 1842, 2042, 2548, 2554, ZTXL 42, ZTXL 48, and ZTXL 54 Series.
Always verify the OEM part number (07200023) or belt dimensions to ensure correct fitment for your specific equipment.
4. 設置とメンテナンス
Proper installation and maintenance are crucial for the longevity and performance of your lawn mower deck belt. Follow these steps carefully:
- プーリー検査: Ensure that all pulleys are clean, properly aligned, and show no signs of wear. Worn or misaligned pulleys can significantly reduce belt life.
- ベルトの取り付け: Do not force the belt around pulleys by prying. Instead, slacken the take-up mechanism first, then carefully install the belt around all pulleys.
- 張力調整: After installation, tighten the belt take-up. Run the mower for approximately 10 minutes, then recheck and adjust the belt tension as needed according to your mower's specific instructions.
Image 4.1: Visual guide for lawn mower belt installation and maintenance steps.
4.1. Understanding Mower Belt Types
It is important to distinguish between different types of mower belts:
- Deck Belt: This belt connects the engine crankshaft to the transaxle pulley, which drives the rear wheels. This product is a deck belt.
- ドライブベルト: This belt connects the crankshaft to the lawn mower blades, causing them to turn.

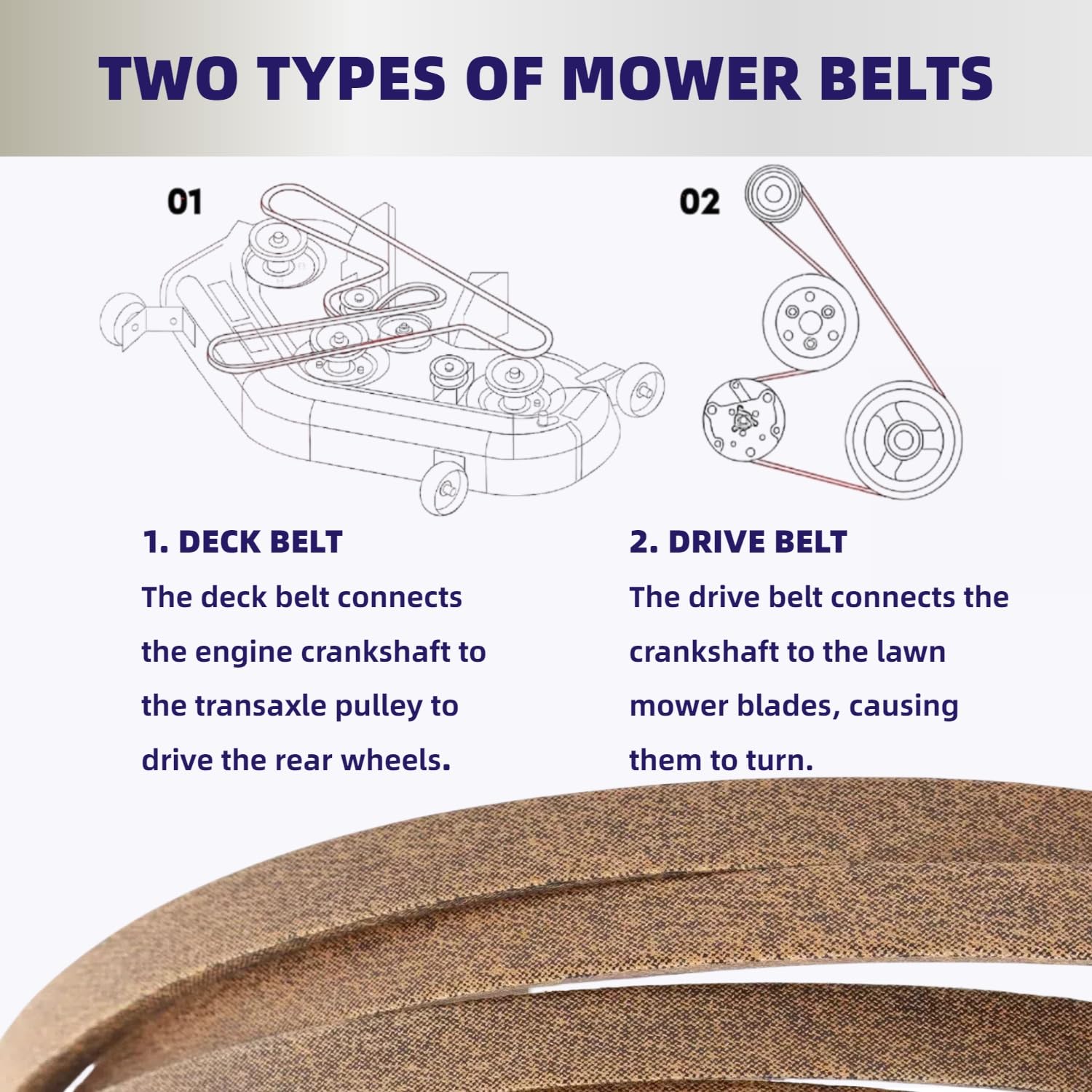

Image 4.2: Diagram showing the difference between a deck belt and a drive belt.
5. How to Order the Correct Belt
To ensure you select the correct replacement belt for your equipment, follow these guidelines:
- Reference OEM Part Number: Always prioritize referencing your Original Equipment Manufacturer (OEM) part number. This number can typically be found in your user manual or on an OEM sticker located on your machine. For riding mowers, the OEM sticker is often found under the hood or seat.
- Measure Existing Belt: If the OEM part number is unavailable, measure the outside circumference of your existing belt. Ensure these dimensions match the belt you intend to order. Lawn and garden belts are determined by their outside circumference ONLY, not by diameter.
- Measure Broken Belt: If your belt has snapped, measure its overall length. This measurement will be equivalent to the outside circumference.
- Measure Top Width: Also measure the top width of your existing belt. Common top width sizes are 1/2 inch and 5/8 inch (also known as 21/32 inch).
Image 5.1: Detailed instructions for identifying and ordering the correct replacement belt.
6. 仕様
| 特徴 | 詳細 |
|---|---|
| 製品寸法 | 54"L x 0.5"W (1/2" x 145" nominal) |
| アイテム重量 | 13.1オンス |
| メーカー | LESIONGO |
| 材料 | アラミド |
| ベルトスタイル | デッキベルト |
| 対応デバイス | Lawn Mower (Ariens, Gravely) |
| OEM番号を置き換えます | Ariens 07200023, Gravely 07200023 |
7. 安全情報
Always prioritize safety when working with lawn mowers and their components:
- Ensure the lawn mower is turned off, the engine is cool, and the spark plug wire is disconnected before performing any maintenance or installation.
- 手袋や目の保護具などの適切な個人用保護具 (PPE) を着用してください。
- Refer to your lawn mower's original owner's manual for specific safety instructions and procedures.
- 作業エリアに子供やペットを近づけないでください。
8. 保証とサポート
For warranty information or technical support regarding your LESIONGO Lawn Mower Deck Belt, please contact the manufacturer directly through the retailer's platform or their official webサイトでご確認ください。購入証明として購入レシートを保管してください。
