1. はじめに
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your VEVOR 400W Electric Wire Stripping Machine, Model 1.5-38mm. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.
The VEVOR 400W Electric Wire Stripping Machine is constructed from durable aluminum alloy, designed to withstand rigorous environments and provide years of reliable service. It features a powerful 400W motor and high-hardness blades for efficient wire stripping.
Figure 1: Heavy-Duty Construction. This image highlights the robust build of the machine, featuring a 400W motor and high-quality aluminum alloy components.
2. 安全に関する注意事項
火災、感電、人身傷害の危険を軽減するために、基本的な安全上の注意事項を常に守ってください。
- すべての指示をお読みください: Familiarize yourself with the machine's operation and potential hazards.
- 適切な個人用保護具（PPE）を着用してください。 This includes safety glasses, gloves, and hearing protection.
- Ensure a stable work environment: Operate the machine on a flat, stable surface to prevent tipping.
- 作業エリアを清潔で明るい状態に保ちます。 雑然とした場所や暗い場所では事故が起こりやすくなります。
- 子供や傍観者を近づけないでください: 気が散るとコントロールを失う可能性があります。
- 誤って起動しないようにします。 Ensure the switch is in the off position before connecting to power.
- 行き過ぎない: 常に適切な足場とバランスを維持してください。
- 仕事には適切なツールを使用します。 Do not force the machine or attachments to do a job for which they were not designed.
- 電源を切る: Always unplug the machine before making adjustments, changing accessories, or storing it.
- 機械を検査します。 Check for damaged parts before each use. Replace or repair any damaged parts.
- 緊急停止： 緊急停止ボタンの位置と操作方法をよく理解しておいてください。
- 電気安全: Ensure the power supply matches the machine's requirements. Do not operate in wet conditions.

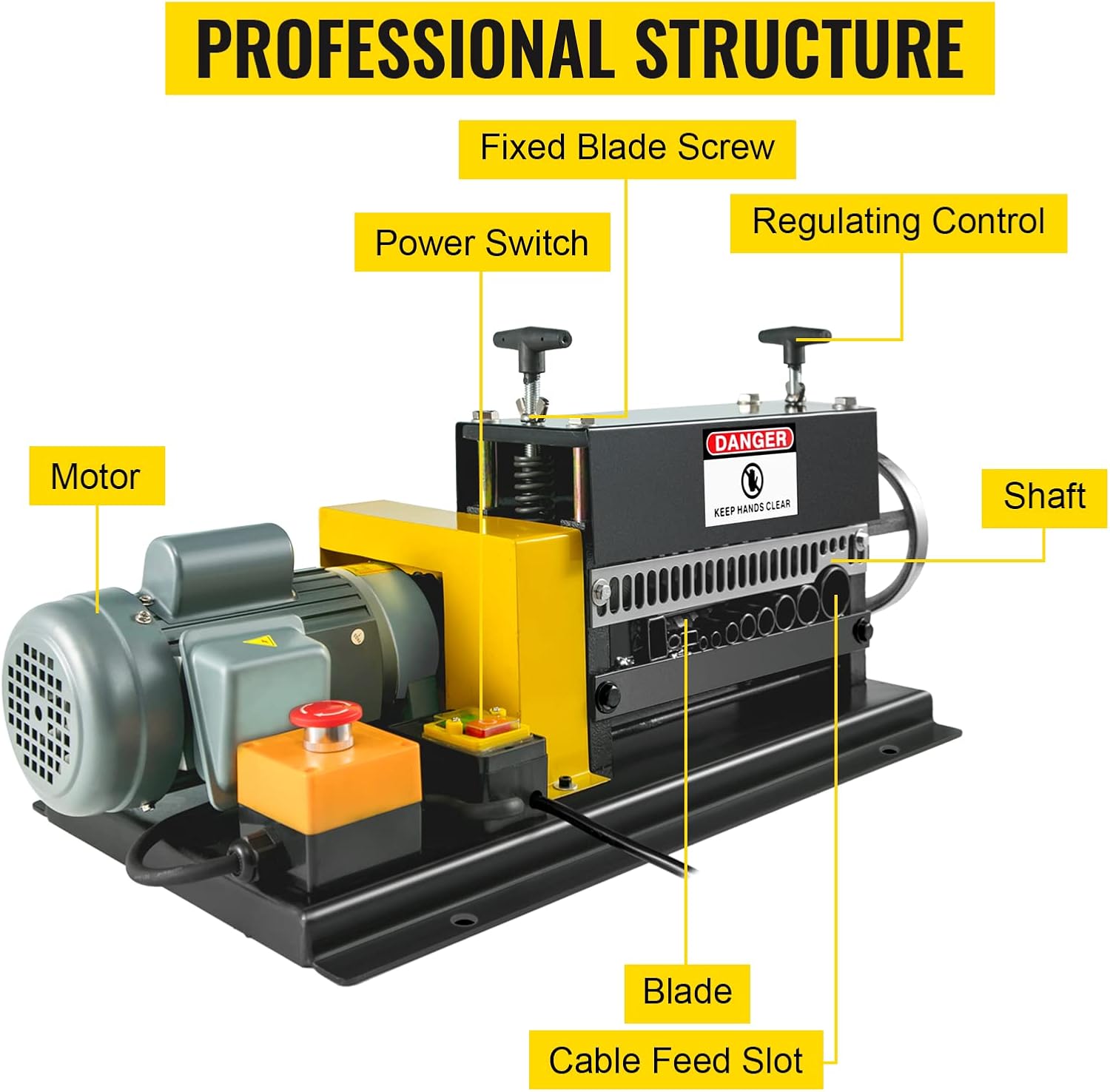

Figure 2: Key Components of the Wire Stripping Machine. This image shows the main parts of the machine, including the motor, power switch, regulating control, fixed blade screw, shaft, blade, and cable feed slot, highlighting the professional structure.
3. セットアップ
3.1 開梱と検査
- 機械を梱包から慎重に取り出します。
- Inspect the machine for any signs of damage during transit. If damage is found, do not operate the machine and contact customer support.
- 梱包リストに記載されているすべてのコンポーネントが揃っていることを確認してください。
3.2 配置
- Place the wire stripping machine on a sturdy, level workbench or surface capable of supporting its weight (approximately 41.3 kg).
- Ensure adequate clearance around the machine for safe operation and wire feeding/retrieval.
3.3電源接続
- 電源スイッチが「オフ」の位置にあることを確認します。
- 電源コードを、本機の電圧に合ったアース付きコンセントに接続します。tag要件。
4. 操作手順
4.1 Wire Compatibility
This machine is designed to strip various types of wires, including copper wire, hardcover wire, electric wire, and feeder lines, with diameters ranging from 1.5 mm (0.06 inches) to 38 mm (1.5 inches).
Figure 3: Wire Types and Compatibility. This image illustrates the various types of wires the machine can process, including copper, hardcover, electric, and feeder lines.
4.2 Adjusting Blades and Rollers
The machine features adjustable blades and rollers to accommodate different wire sizes. Proper adjustment is crucial for effective stripping and to prevent damage to the wire or machine.
- Identify the appropriate feed hole for your wire diameter. The machine has 8 round channels and 2 flat slots.
- Use the blade adjusting handle (refer to Figure 4) to raise or lower the blade assembly.
- Adjust the blade so it scores the insulation without cutting into the copper conductor. Test with a small piece of wire and fine-tune as needed.

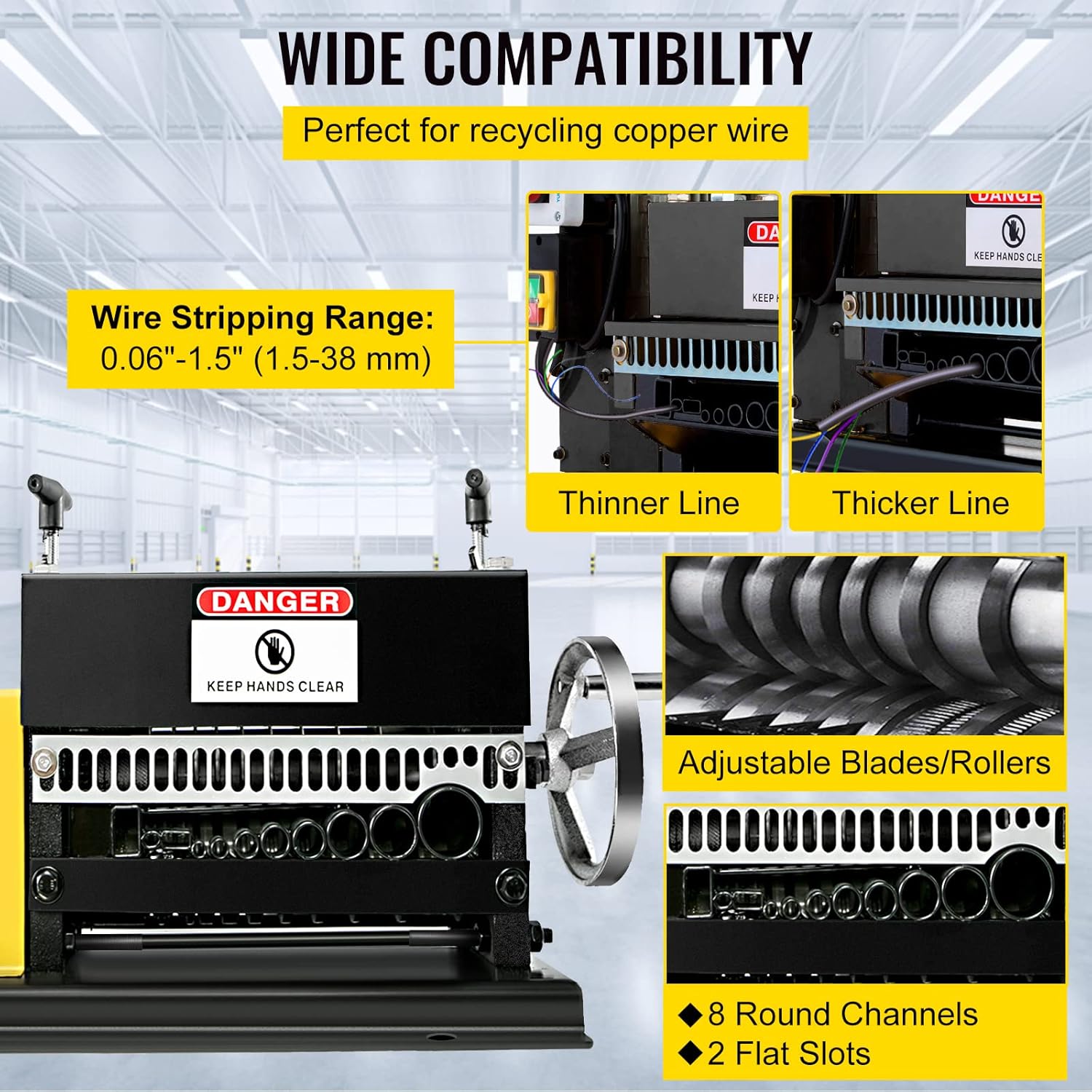

Figure 4: Adjustable Blades and Wire Feed Slots. This image details the machine's wide compatibility, showing the adjustable blades/rollers and the various feed slots for wires ranging from 1.5mm to 38mm.
4.3 Stripping Process
- Ensure the machine is properly adjusted for your wire size.
- Turn on the machine using the one-key switch (refer to Figure 5).
- Carefully feed the end of the wire into the chosen feed slot. The machine will automatically pull the wire through and strip the insulation.
- Collect the stripped wire and insulation.
- In case of a wire jam or any emergency, immediately press the red emergency stop button.
Figure 5: Effortless Operation. This image demonstrates the simple operation of the machine, featuring the blade adjusting handle and the one-key control switch.
Figure 6: High Stripping Efficiency. This image highlights the machine's powerful motor and fast stripping speed, capable of processing wire at 18 meters (60 feet) per minute.
5. メンテナンス
定期的なメンテナンスにより、ワイヤーストリッピング マシンの寿命が長くなり、最適なパフォーマンスが確保されます。
5.1 クリーニング
- クリーニングの前に必ず電源を切ってください。
- Remove any accumulated wire scraps or insulation debris from the machine after each use.
- Wipe down the exterior surfaces with a clean, dry cloth. Do not use harsh chemicals or solvents.
5.2 ブレードの点検と交換
- Regularly inspect the stripping blades for wear, dullness, or damage.
- Dull blades can lead to inefficient stripping and damage to the wire. Replace blades as necessary. Refer to the machine's diagram for blade access.
5.3 潤滑
- Periodically apply a small amount of machine oil to moving parts, such as the adjustment screws and rollers, to ensure smooth operation. Avoid over-lubrication.
6。 トラブルシューティング
このセクションでは、発生する可能性のある一般的な問題について説明します。ここに記載されていない問題については、VEVORカスタマーサポートにお問い合わせください。
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| マシンが起動しません。 | No power supply; Emergency stop button engaged; Faulty switch. | Check power connection; Disengage emergency stop; Contact support for switch replacement. |
| Wire not stripping effectively. | Blades are dull; Blades not adjusted correctly; Incorrect feed slot used. | Inspect and replace blades if dull; Adjust blade height; Use the correct feed slot for wire diameter. |
| Wire gets jammed. | Wire fed incorrectly; Blade setting too deep; Debris in feed mechanism. | Immediately press emergency stop. Disconnect power. Clear obstruction. Re-adjust blade and feed wire properly. |
| 動作中に過度の騒音が発生する。 | Lack of lubrication; Loose components; Internal motor issue. | Apply lubrication to moving parts; Check and tighten any loose fasteners; If noise persists, contact support. |
7. 仕様
| 特徴 | 詳細 |
|---|---|
| モデル | 1.5-38mm |
| ブランド | ヴェヴォル |
| モーター出力 | 400W |
| モーター速度 | 1400 回転 |
| Wire Stripping Range | 1.5 mm - 38 mm (0.06 インチ - 1.5 インチ) |
| 剥離速度 | 18 meters/minute (60 feet/minute) |
| Number of Feed Holes | 10 (8 Round Channels, 2 Flat Slots) |
| 材料 | 高品質アルミニウム合金 |
| 製品寸法（長さ x 幅 x 高さ） | 81.5 x 34.3 x 32.2 cm（32 x 13.5 x 12.6インチ） |
| アイテム重量 | 41.3 kg (106.2 ポンド) |
| 認証 | IP44 |
Figure 7: Product Dimensions and Weight. This image provides a visual representation of the machine's physical specifications, including its length, width, height, and weight.
8. 保証とサポート
VEVOR products are designed for durability and performance. For warranty information, technical support, or to order replacement parts, please contact VEVOR customer service through their official web製品を購入したサイトまたは小売店。
- オンラインサポート： 公式VEVORをご覧ください webFAQ、製品登録、お問い合わせフォームのサイト。
- 購入証明: 保証請求のために購入領収書を保管してください。
