Cangaroo Pilot Child Car Seat Instruction Manual

1.はじめにおよび安全情報

Thank you for choosing the Cangaroo Pilot Child Car Seat. This manual provides essential information for the correct installation, safe use, and maintenance of your car seat. Please read these instructions carefully before use and keep them in a safe place for future reference. Failure to follow these instructions may compromise your child's safety.

The Cangaroo Pilot car seat is designed for children from birth up to 36 kg, covering Groups 0+/1/2/3. It features ISOFIX connectivity for secure installation and a 360-degree rotation function for convenience.

重要な安全上の警告：

• Always ensure the car seat is correctly installed and secured in the vehicle before placing your child in it.
• 決して子供をチャイルドシートに放置しないでください。
• Ensure the harness is properly adjusted and snug against your child's body, without twisting.
• 事故に遭ったチャイルドシートは、目に見える損傷がなくても使用しないでください。内部の損傷により安全性が損なわれる可能性があります。
• Follow the weight and age guidelines for each installation group.
• Refer to your vehicle's owner's manual for information on child restraint system installation.

2.製品オーバーview

The Cangaroo Pilot car seat offers versatility and safety for your child's journey. Key features include:

• ISOFIX System: For rigid and secure attachment to your vehicle's ISOFIX anchor points.
• 360度回転: Allows easy access for placing and removing your child, and effortless switching between rear-facing and forward-facing positions.
• Deep Padding: Provides enhanced comfort and side impact protection.
• Multi-Group Use: Suitable for Group 0+ (0-13 kg), Group 1 (9-18 kg), Group 2 (15-25 kg), and Group 3 (22-36 kg).

Image: Key features of the Cangaroo Pilot car seat, highlighting 360-degree rotation, 36 kg weight capacity, deep padding, and ISOFIX compatibility.

画像: 正面 view of the Cangaroo Pilot car seat, showing the comfortable pink interior padding and harness system.

3. セットアップとインストール

The Cangaroo Pilot car seat can be installed using either the ISOFIX system or the vehicle's 3-point seat belt, depending on the child's weight group and vehicle compatibility.

3.1. ISOFIX Installation (Groups 0+/1, 0-18 kg)

For children from birth up to 18 kg, ISOFIX installation is recommended for maximum security. Ensure your vehicle is equipped with ISOFIX anchor points.

1. Extend ISOFIX Connectors: Locate the ISOFIX release button (often red or grey) on the car seat base. Press it and pull the ISOFIX connectors outwards until they fully extend.
2. 車両への取り付け: Align the ISOFIX connectors with your vehicle's ISOFIX anchor points. Push the car seat firmly until both connectors click securely into place. Green indicators should appear on both connectors, confirming correct attachment.
3. Push Back: 車のシートを車両のシートバックにしっかりと押し付けて、たるみをなくします。
4. セキュリティをチェック: Tug on the car seat to ensure it is rigidly fixed and does not move excessively.

画像: サイド view of the car seat showing the ISOFIX connectors extended from the base, ready for attachment to vehicle anchor points.

画像: 別の側面 view illustrating the ISOFIX base mechanism and extended connectors.

3.2. Seat Belt Installation (Groups 0+/1/2/3, 0-36 kg)

For all groups, the car seat can also be installed using the vehicle's 3-point seat belt. Specific belt routing varies for rear-facing (Group 0+) and forward-facing (Groups 1/2/3) positions.

1. Rear-Facing (Group 0+, 0-13 kg): Position the car seat rear-facing. Route the vehicle's 3-point seat belt through the designated blue belt guides on the car seat. Ensure the lap belt is tight across the child's lap and the diagonal belt passes through the guide at the back of the seat. Fasten the seat belt buckle.
2. Forward-Facing (Groups 1/2/3, 9-36 kg): Position the car seat forward-facing. Route the vehicle's 3-point seat belt through the designated red belt guides. For Group 1, use the car seat's internal harness. For Groups 2/3, the child is secured directly by the vehicle's 3-point seat belt, with the car seat acting as a booster.
3. セキュリティをチェック: Ensure the vehicle seat belt is taut and the car seat is firmly secured.

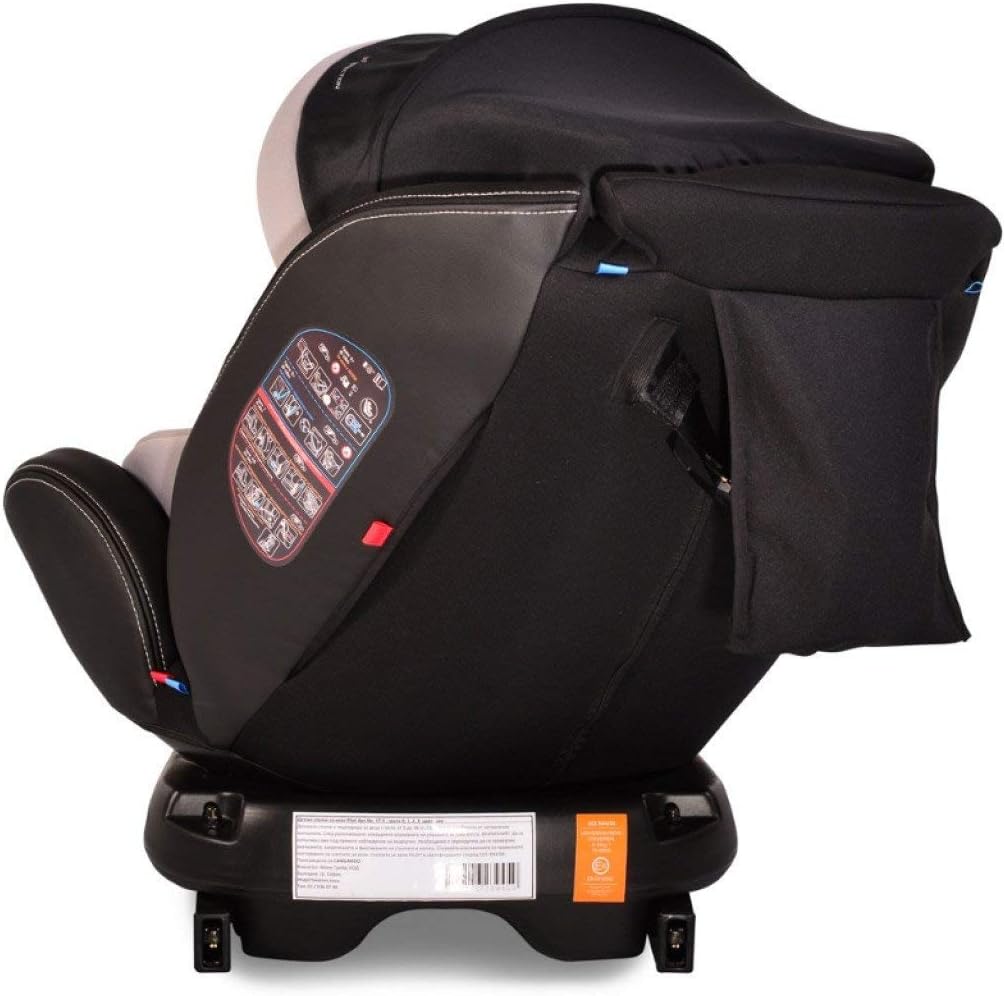

画像: 背面 view of the car seat, illustrating the various belt routing guides for different installation methods and child groups.

4. 操作手順

4.1. 360度回転

The Cangaroo Pilot car seat features a 360-degree rotation function for ease of use.

1. Unlock Rotation: Locate the rotation release lever or button on the front or side of the car seat base. Press or pull it to unlock the rotation mechanism.
2. シートを回転させる: Gently rotate the car seat to the desired position (e.g., towards the car door for child placement, or to switch between rear-facing and forward-facing).
3. ロック位置: Ensure the seat clicks back into a locked position once rotated. Never drive with the seat unlocked or in an intermediate rotation position.

4.2. ハーネスの調整

The 5-point harness system must be correctly adjusted for your child's safety and comfort.

1. Loosen Harness: Press the harness release button (usually located at the front of the seat, under a flap) and pull the shoulder straps outwards.
2. 子供の配置: お子様をチャイルドシートに乗せてください。
3. バックルハーネス: Bring the two buckle tongues together and insert them into the central buckle until they click.
4. ハーネスを締める: Pull the harness adjustment strap (located at the front of the seat) until the harness is snug against your child's body. You should not be able to pinch any slack in the shoulder straps.
5. Adjust Shoulder Height: The shoulder straps should be at or just below your child's shoulders for rear-facing, and at or just above for forward-facing. Adjust the headrest and shoulder strap height as needed.

4.3. リクライニングポジション

The car seat offers multiple recline positions for your child's comfort. Locate the recline adjustment lever (usually at the front or side of the base) and adjust to the desired angle. Ensure the seat is securely locked in the chosen recline position before driving.

5. メンテナンス

5.1. 布製カバーのクリーニング

The fabric covers can be removed for cleaning. Refer to the care label on the fabric for specific washing instructions. Typically, they can be hand-washed or machine-washed on a delicate cycle with mild detergent and cold water. Do not bleach, tumble dry, or iron.

5.2. プラスチック部品の洗浄

広告でプラスチック部品を拭くamp 布と中性洗剤を使用してください。研磨剤入りの洗剤や溶剤は使用しないでください。

5.3. Harness and Buckle Care

Inspect the harness straps and buckle regularly for wear or damage. Clean the buckle by rinsing it with warm water if it becomes sticky. Do not use lubricants.

6。 トラブルシューティング

• 取り付け後に車のシートが緩く感じる: Recheck all installation steps. Ensure ISOFIX connectors are green and fully engaged, or that the vehicle seat belt is taut and correctly routed through all guides. Push the car seat firmly into the vehicle seat.
• ハーネスを締めたり緩めたりするのが困難です: Check for any twists in the harness straps. Ensure the harness release button is fully pressed when loosening. Clean the buckle if it feels sticky.
• シートが回転しない: Ensure the rotation release lever/button is fully engaged. Check for any obstructions around the base.
• Child is uncomfortable: Adjust the recline position, headrest height, and harness tightness. Ensure no clothing is bunched up under the harness.

ここに記載されていない問題が発生した場合は、Cangaroo カスタマー サポートにお問い合わせください。

7. 仕様

8. 保証とサポート

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, spare parts, or any questions regarding the Cangaroo Pilot car seat, please contact Cangaroo customer service through their official webサイトまたは製品に付属の連絡先詳細をご覧ください。
