QSC KS118 アクティブ 18インチ サブウーファー 取扱説明書

導入

The QSC KS118 is a very high output active subwoofer designed to produce impressive low frequencies for a wide range of professional audio applications, including mobile entertainment, AV production, clubs, and performance venues. It features an 18-inch direct radiating driver powered by a robust 3600-watt Class D amplifier, ensuring high sound pressure levels with dynamic and musical reproduction of very low frequencies.

Equipped with on-board Digital Signal Processing (DSP), the KS118 optimizes and protects system performance. This advanced DSP also offers capabilities such as the ability to array two units in a cardioid arrangement for directional bass control. The rugged enclosure is highly transportable, featuring comfortable handles and four low-noise casters for easy movement. Additionally, an M20 threaded pole receptacle allows for easy vertical deployment with full-range loudspeakers.

画像: 斜め正面 view of the QSC KS118 Active 18" Subwoofer, showcasin頑丈なグリルと一体型ハンドルを備えています。

設定

1。 開梱と検査

Carefully remove the KS118 subwoofer from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. Retain all packaging materials for future transport or in case the unit needs to be returned for service.

2.配置

Position the subwoofer on a stable, flat surface. The integrated casters facilitate easy movement. For optimal bass response, consider placing the subwoofer on the floor or a sturdy stage. The KS118 features an M20 threaded pole receptacle on its top surface, allowing for the mounting of a full-range loudspeaker using a compatible pole (sold separately).

画像: 正面 view of the QSC KS118 Subwoofer, highlighting its protective grille.

画像: 下 view of the QSC KS118 Subwoofer, clearly showing the four integrated casters for mobility.

3. 電源接続

Connect the supplied AC power cable to the AC INLET on the rear panel of the subwoofer and then to a grounded electrical outlet. Ensure the power switch is in the OFF position before connecting to power.

4.オーディオ接続

The KS118 offers versatile input and output options:

• MIC/LINE IN A & B: These inputs accept XLR and 1/4-inch TRS connectors. Use these to connect audio sources such as mixers, instruments, or microphones. Ensure the MIC/LINE switch is set appropriately for your source (MIC for microphones, LINE for line-level signals).
• RCA入力： For consumer-level audio devices, use the RCA inputs.
• LINE OUT (POST GAIN - MIX): These XLR outputs provide a mixed signal of inputs A and B, post-gain. Use these to daisy-chain multiple subwoofers or send the signal to other full-range loudspeakers.

Image: Rear panel of the QSC KS118 Subwoofer, showing the various input/output connections and control switches.

操作手順

1.電源のオン/オフ

Locate the POWER switch on the rear panel. Flip the switch to the ON position to power on the subwoofer. The PWR LED on the front panel will illuminate. To power off, flip the switch back to the OFF position.

2. ゲインコントロール

Adjust the GAIN A and GAIN B knobs to control the input level for each channel. Start with the gain set to minimum and slowly increase it until the desired volume is achieved without distortion. The SIGNAL LEDs will illuminate when an audio signal is present.

3. DSP Settings (LF/HF Switches)

The KS118 features on-board DSP with selectable modes:

• EXT SUB / NORM / DEEP: This switch adjusts the low-frequency extension.
  • EXT SUB: For use with external subwoofers.
  • NORM： Standard low-frequency response.
  • 深い： Provides extended low-frequency response for enhanced bass.
• VOCAL BOOST / FLAT: This switch adjusts the high-frequency response.
  • ボーカルブースト: Enhances vocal clarity, typically used when the subwoofer is paired with full-range speakers handling vocals.
  • フラット： Provides a neutral high-frequency response.

4.フロントLEDインジケーター

• PWR： ユニットの電源がオンになっていることを示します。
• スタンバイ: スタンバイモードを示します。
• 制限: Illuminates when the internal limiter is active, protecting the speaker from excessive signal levels. If this LED flashes frequently, reduce the input gain.

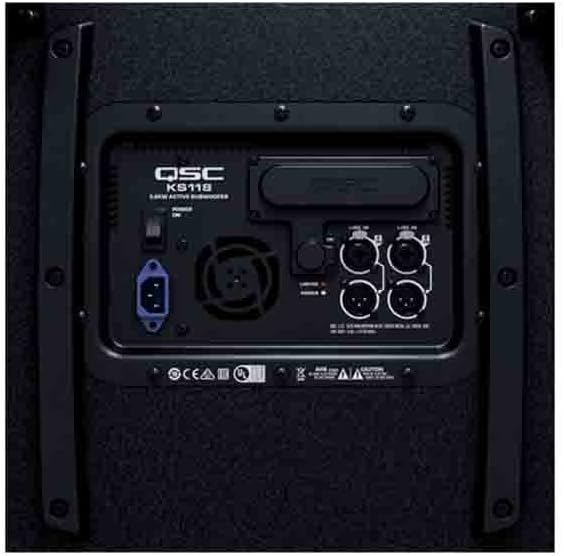

画像: クローズアップ view of the QSC KS118 Subwoofer's rear panel, detailing the various control knobs and switches for audio adjustment.

メンテナンス

1. 清掃

Clean the exterior of the subwoofer with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents. Ensure no liquids enter the enclosure.

2. ストレージ

When not in use, store the subwoofer in a dry, cool environment, away from direct sunlight and extreme temperatures. Using an optional protective cover (e.g., KS-LOC security cover) is recommended to prevent dust accumulation and physical damage.

3. 安全上の注意

• ユニットを雨や湿気にさらさないでください。
• 適切な換気を確保し、冷却用の通気口を塞がないようにしてください。
• 熱源の近くにユニットを置かないでください。
• Always disconnect power before performing any maintenance or moving the unit.

トラブルシューティング

If you encounter issues with your QSC KS118 Subwoofer, refer to the following common troubleshooting steps:

• 電源なし:
  • Check if the power cable is securely connected to both the subwoofer and the electrical outlet.
  • 別のデバイスを接続して、電源コンセントがアクティブであることを確認します。
  • Ensure the POWER switch on the rear panel is in the ON position.
• 音が出ない:
  • Confirm that the audio source (mixer, instrument, etc.) is sending a signal and its volume is turned up.
  • すべてのオーディオ ケーブルが確実に接続されていること、また損傷がないことを確認します。
  • Adjust the GAIN A and GAIN B knobs on the subwoofer to an audible level.
  • Ensure the correct input (MIC or LINE) is selected via the switch.
• 歪んだ音:
  • Reduce the input gain from your audio source or the GAIN A/B knobs on the subwoofer. The LIMIT LED should not be constantly illuminated.
  • Check if the audio cables are properly connected and not damaged.
  • Ensure the subwoofer is not being overdriven by the source.
• 過熱：
  • Ensure the cooling vents on the rear panel are not obstructed.
  • Operate the subwoofer in a well-ventilated area.
  • If the unit frequently overheats, reduce the operating volume or consider a different setup.

If the issue persists after following these steps, please contact QSC customer support for further assistance.

仕様

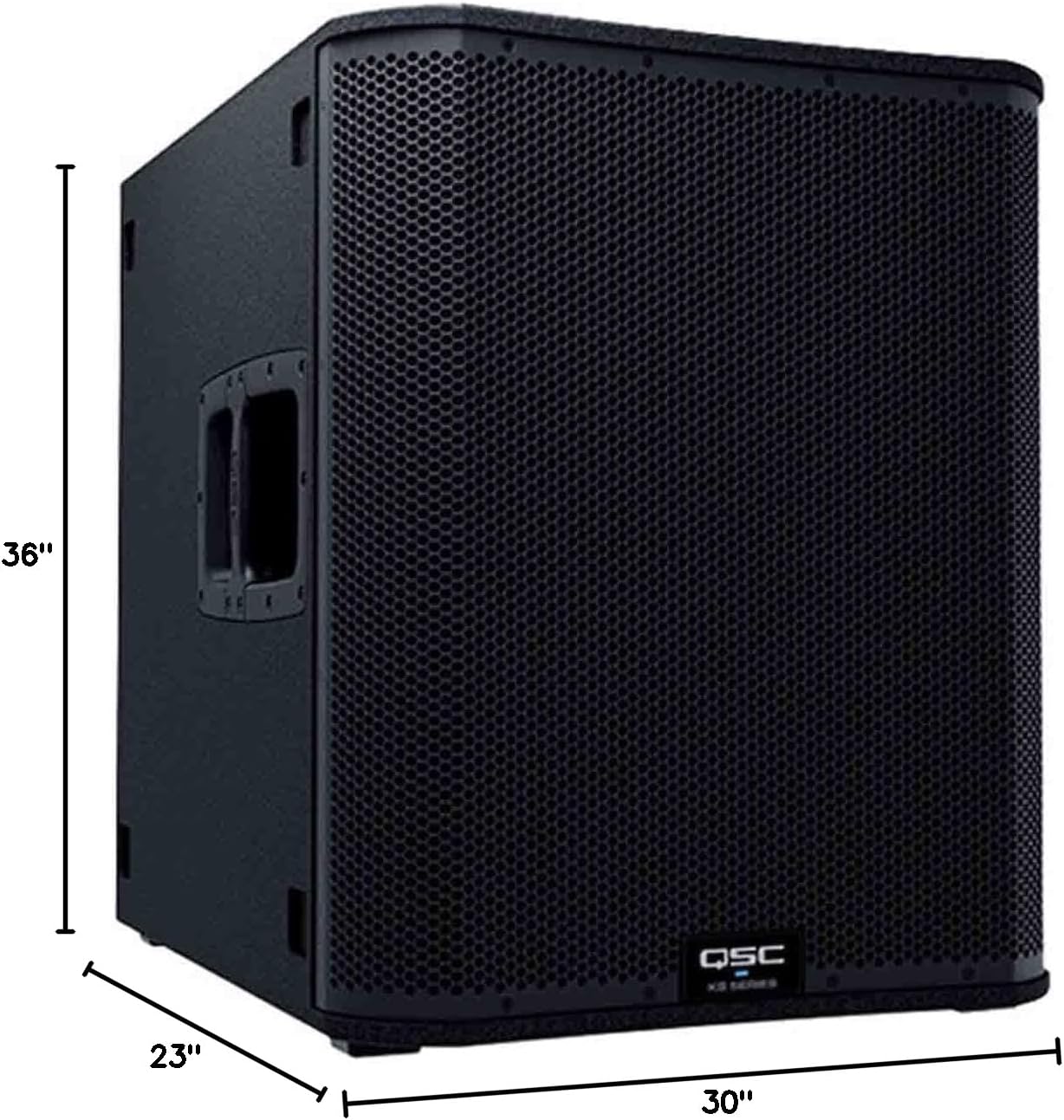

Image: Diagram illustrating the dimensions of the QSC KS118 Subwoofer (36"D x 30"W x 23"H).

保証とサポート

The QSC KS118 Active 18" Subwoofer comes with a 限定保証. For specific details regarding the warranty period, coverage, and terms, please refer to the warranty card included with your product or visit the official QSC webサイト。

For technical support, service, or any inquiries not covered in this manual, please contact QSC customer support. You can find contact information and additional resources on the QSC Store on Amazon or the official QSC webサイト。
