Bosch Eco 6 Instantaneous Water Heater User Manual

1. はじめにview

The Bosch Eco 6 Instantaneous Water Heater is designed to provide unlimited hot water on demand, offering an efficient alternative to traditional water heaters. This model operates with LP Gas and is suitable for indoor installation in a well-ventilated area. Its compact design and advanced features ensure comfort and energy savings.

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Bosch Eco 6 water heater. Please read it thoroughly before installation and use.

2. 安全情報

Always prioritize safety during installation and operation. Incorrect installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Consult a qualified installer, service agency, or gas supplier.

• ガスの種類: This model is designed for LP Gas only. Ensure your gas supply matches the unit's requirements.
• 換気： Install the water heater in a covered, well-ventilated area. Do not install it in an unventilated space or exposed to direct weather elements.
• 自動点火: The unit features automatic ignition, eliminating the need for a pilot light. It requires 2 D-type alkaline batteries for operation.
• 安全システム： Equipped with a 3+1 safety system to prevent accidents.
• 過熱保護: The unit has a safety block to prevent temperatures exceeding 70°C (158°F) to avoid scalding.

3 製品の特徴

• Instantaneous Hot Water: Provides hot water immediately upon demand.
• 無制限のお湯: Enjoy continuous hot water without running out.
• High and Low Pressure Operation: Functions effectively even with varying water pressures.
• Temperature and Flow Regulation: Independent control knobs for adjusting water temperature and flow rate.
• 自動点火: Electronic ignition system for convenience and safety.
• 3+1 Safety System: Enhanced safety features for user protection.
• 100% Copper Coil: Durable and efficient heat exchanger.
• Anti-Scale Technology: Helps prevent mineral buildup, extending unit lifespan.
• エネルギー効率: Up to 78% gas savings compared to traditional water heaters.
• German Technology: Engineered with precision and quality.

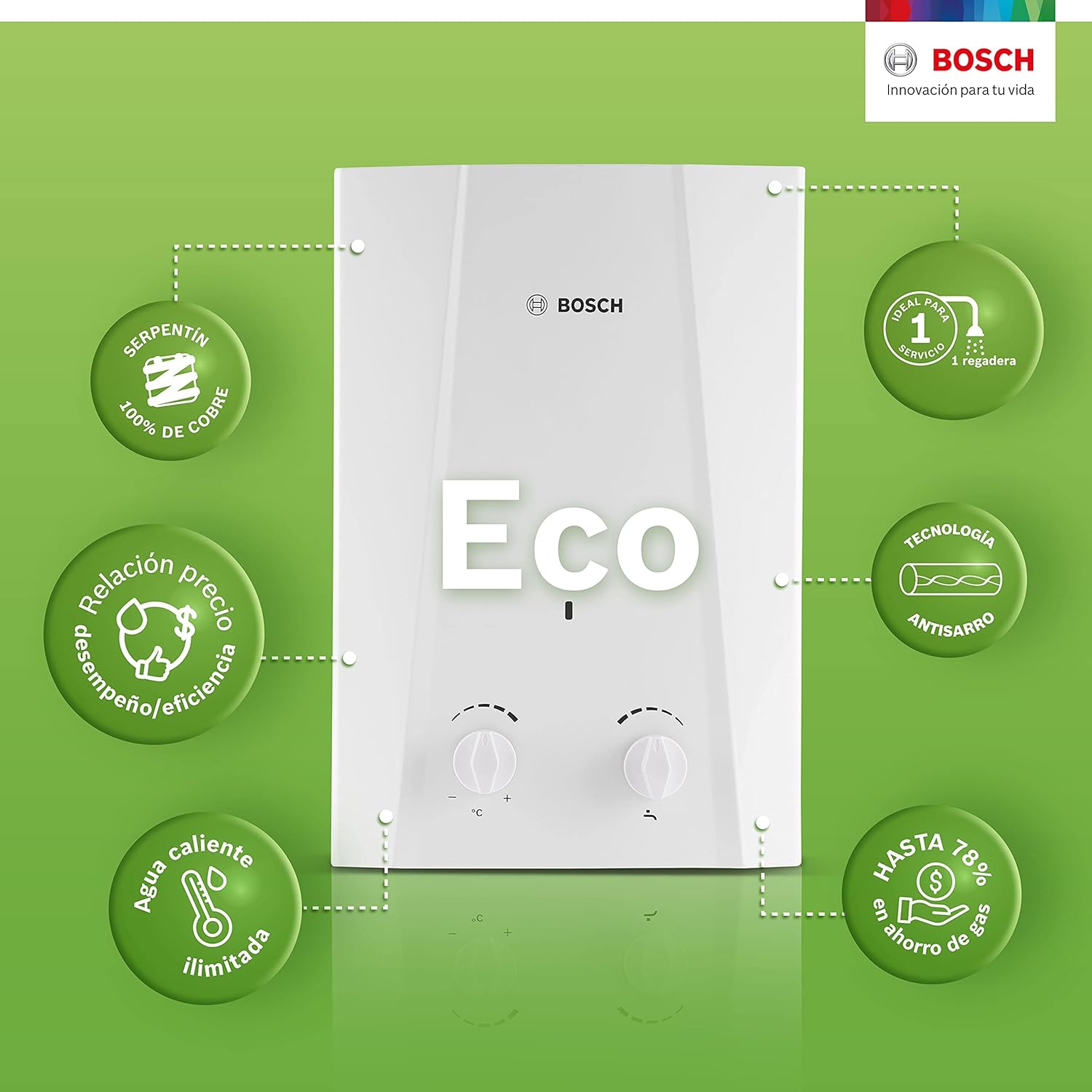

Figure 3.1: Key features of the Bosch Eco 6 water heater, including 100% copper coil, anti-scale technology, and energy savings.

4. 仕様

Figure 4.1: Dimensions of the Bosch Eco 6 water heater.

5. セットアップとインストール

Proper installation is crucial for the safe and efficient operation of your water heater. It is recommended to have a qualified professional perform the installation.

5.1 ユニットの取り付け

1. Select a suitable indoor location that is covered, well-ventilated, and not exposed to direct weather.
2. Drill an appropriate hole in the wall for mounting.
3. ドリルで開けた穴に壁アンカーを挿入します。
4. Place the mounting screw into the anchor, leaving enough space to hang the water heater.
5. Carefully hang the water heater vertically on the screw.

5.2 Connecting Water and Gas Lines

Ensure all valves are closed during installation. Use two adjustable wrenches to tighten connections to prevent other parts from loosening.

• ガス入口： Connect the gas line to the gas inlet, typically marked with a yellow tag.
• 温水出口: Connect the hot water line to the hot water outlet, typically marked with a red tag.
• 冷水入口: Connect the cold water line to the cold water inlet, typically marked with a blue tag.

5.3バッテリーの取り付け

The water heater requires 2 D-type alkaline batteries for its automatic ignition system.

1. Locate the battery compartment, usually on the right side of the unit's underside.
2. Insert two D-type alkaline batteries, ensuring correct polarity.
3. 電池ボックスのカバーを閉じます。
4. Activate the power switch, usually located near the battery compartment.

5.4 Checking for Gas Leaks

After connecting the gas line, it is essential to check for leaks.

1. ガス供給バルブを開きます。
2. Apply soapy water to all gas connections.
3. If bubbles appear, it indicates a leak. Tighten the connection with wrenches until no bubbles are visible.
4. Reapply soapy water to confirm the absence of leaks.

6. 操作手順

Your Bosch Eco 6 water heater is designed for simple and efficient operation.

6.1 Automatic Ignition

The water heater will automatically ignite when you open a hot water tap, and turn off when the tap is closed. The digital display will show the current water temperature.

6.2 温度と流量制御

The unit features two control knobs on the front panel:

• 温度ノブ： Adjusts the gas flow to control the water temperature. Turning it towards 'Alta' (High) increases temperature, while 'Baja' (Low) decreases it.
• 水流ノブ: Adjusts the water flow rate. Turning it towards 'Alto' (High) increases flow, while 'Bajo' (Low) decreases it.

図6.1: 前面 view of the Bosch Eco 6 water heater showing control knobs.

6.3 Optimal Settings for Temperature Control

The outlet hot water temperature depends on the relationship between the gas flow (temperature knob) and water flow (water flow knob). A higher water flow distributes heat better, allowing the unit to reach a wider temperature range.

• 快適温度： A comfortable water temperature is typically between 40°C and 55°C (104°F - 131°F), depending on personal preference.
• 冬モード: For colder incoming water, set the water flow to minimum and temperature to maximum. This restricts water passage, allowing it to absorb more heat from the flame.
• サマーモード: For warmer incoming water, set the water flow to maximum and temperature to minimum. This allows water to pass at maximum capacity, as the ambient temperature is sufficient for a comfortable range.

7. メンテナンス

定期的なメンテナンスにより、給湯器の寿命と効率が確保されます。

• クリーニング： 定期的にユニットの外側を柔らかくて乾いた布で拭いてください。amp 布。 研磨剤入りクリーナーは避けてください。
• 換気： 設置場所の換気が良好で障害物がないことを確認してください。
• バッテリー交換: Replace D-type alkaline batteries annually or when the ignition becomes inconsistent.
• 専門的な検査: It is recommended to have a qualified technician inspect the unit annually to check for wear, leaks, and proper operation of safety features.

8。 トラブルシューティング

If you encounter issues with your water heater, refer to the following common problems and solutions.

• お湯が出ない / 点火しない:
  • ガス供給が開いているか確認してください。
  • Ensure the water flow is sufficient.
  • Verify that the D-type alkaline batteries are correctly installed and have sufficient charge.
  • Check if the power switch is activated.
• Error Code 'EE' (Overheating):
  • This error indicates overheating. To resolve, set the water flow knob to maximum and the temperature knob to minimum.
  • Ensure adequate water pressure and flow to prevent the unit from overheating.
• ガス臭:
  • ただちにガスの供給を止めてください。
  • 換気を行ってください。
  • 電気スイッチや電化製品を操作しないでください。
  • Contact a qualified gas technician immediately.

9. Water Pressure Considerations

For optimal performance, adequate water pressure is essential. If your home experiences low water pressure, a booster pump may be necessary.

10. 保証とサポート

Your Bosch Eco 6 Instantaneous Water Heater comes with a comprehensive warranty and dedicated support services.

• 保証： The product includes a 2-year warranty. Please retain your proof of purchase for warranty claims.
• 技術サービス： Access to expert technical service for any installation, operation, or maintenance queries.
• Personalized Attention: Receive personalized support to ensure your satisfaction.

For further assistance, please refer to the contact information provided in your product packaging or visit the official Bosch webサイト。

Figure 10.1: Warranty and support information for the Bosch Eco 6 water heater.
