ジャブラ エボルブ 20

Jabra Evolve 20 MS Stereo Headset Instruction Manual

Model: Evolve 20 (GSA4999-823-109)

1. はじめに

The Jabra Evolve 20 MS Stereo Headset is a professional wired headset designed for clear communication and music listening. It features a noise-canceling microphone to reduce background distractions and an intuitive control unit for easy call management. This manual provides essential information for setting up, operating, and maintaining your headset.

2. パッケージ内容

パッケージに以下の項目が含まれているか確認してください。

3.製品オーバーview

3.1 ヘッドセットのコンポーネント

Jabra Evolve 20 MS ステレオヘッドセット

The Jabra Evolve 20 MS Stereo Headset features an adjustable headband, foam ear cushions for comfort, and a flexible microphone boom arm that can be positioned for optimal voice pickup.

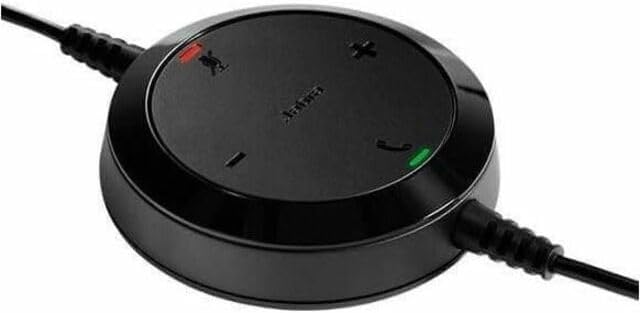

Jabra Evolve 20 MS Stereo Headset Control Unit

The inline control unit provides easy access to essential call management functions, including volume adjustment, microphone mute, and answer/end call buttons.

4. セットアップ

4.1 コンピュータへの接続

  1. コンピューター (デスクトップまたはラップトップ) 上の使用可能な USB ポートを見つけます。
  2. Plug the USB connector of the Jabra Evolve 20 headset into the USB port.
  3. コンピュータは必要なドライバを自動的に検出し、インストールします。これには数分かかる場合があります。
  4. Once installed, the headset will be ready for use. You may need to select the Jabra Evolve 20 as your default audio device (microphone and speaker) in your operating system's sound settings or your communication software (e.g., Microsoft Teams, Skype for Business).

5. 操作手順

5.1 ヘッドセットの装着

5.2 Using the Control Unit

6. メンテナンス

適切なメンテナンスを行うことで、ヘッドセットの寿命とパフォーマンスが保証されます。

7。 トラブルシューティング

If you encounter issues with your Jabra Evolve 20 headset, refer to the table below for common problems and solutions.

問題解決
ヘッドセットから音が出ない
  • USB コネクタがコンピューターのポートに完全に挿入されていることを確認します。
  • Check the volume settings on the headset's control unit and on your computer.
  • Verify that the Jabra Evolve 20 is selected as the default playback device in your computer's sound settings.
  • コンピュータを再起動します。
マイクが機能しない
  • Ensure the microphone is not muted on the control unit.
  • Check that the Jabra Evolve 20 is selected as the default recording device in your computer's sound settings.
  • Confirm the microphone boom arm is correctly positioned near your mouth.
  • Test the microphone with another application or device if possible.
通話制御ボタンが反応しない
  • ヘッドセットが正しく接続されていることを確認してください。
  • Verify that your communication software (e.g., Microsoft Teams, Skype for Business) is compatible with the headset's call control features.
  • Restart the communication software or your computer.

8. 仕様

Key technical specifications for the Jabra Evolve 20 MS Stereo Headset:

特徴説明
モデル名進化20
接続技術有線(USB)
騒音制御アクティブノイズキャンセリング、パッシブノイズキャンセリング
マイクロフォンノイズキャンセリング
耳の位置オーバーイヤー
フォームファクター耳に
Material (Ear Cushions)フォーム
アイテム重量4.6オンス(0.29ポンド)
製品寸法8 x 7 x 1.5インチ
対応デバイスDesktops, Laptops, Softphones, Web Clients, Desk Phones
コントローラータイプAnswer/End, Mute, Volume

9. 保証とサポート

For detailed warranty information, please refer to the warranty card included with your product or visit the official Jabra webサイトをご覧ください。保証条件は地域や販売店によって異なる場合があります。

For technical support, product registration, or to access additional resources, please visit the official Jabra support web購入サイトをご覧いただくか、カスタマーサービスに直接お問い合わせください。保証請求のために購入証明書を保管してください。
