KOHLER 1261404-VS 蛇口スプレーヘッド 取扱説明書

導入

This manual provides instructions for the installation, operation, and maintenance of your KOHLER 1261404-VS Faucet Spray Head. This genuine KOHLER part is designed to ensure optimal performance and longevity of your KOHLER kitchen faucet.

製品終了view

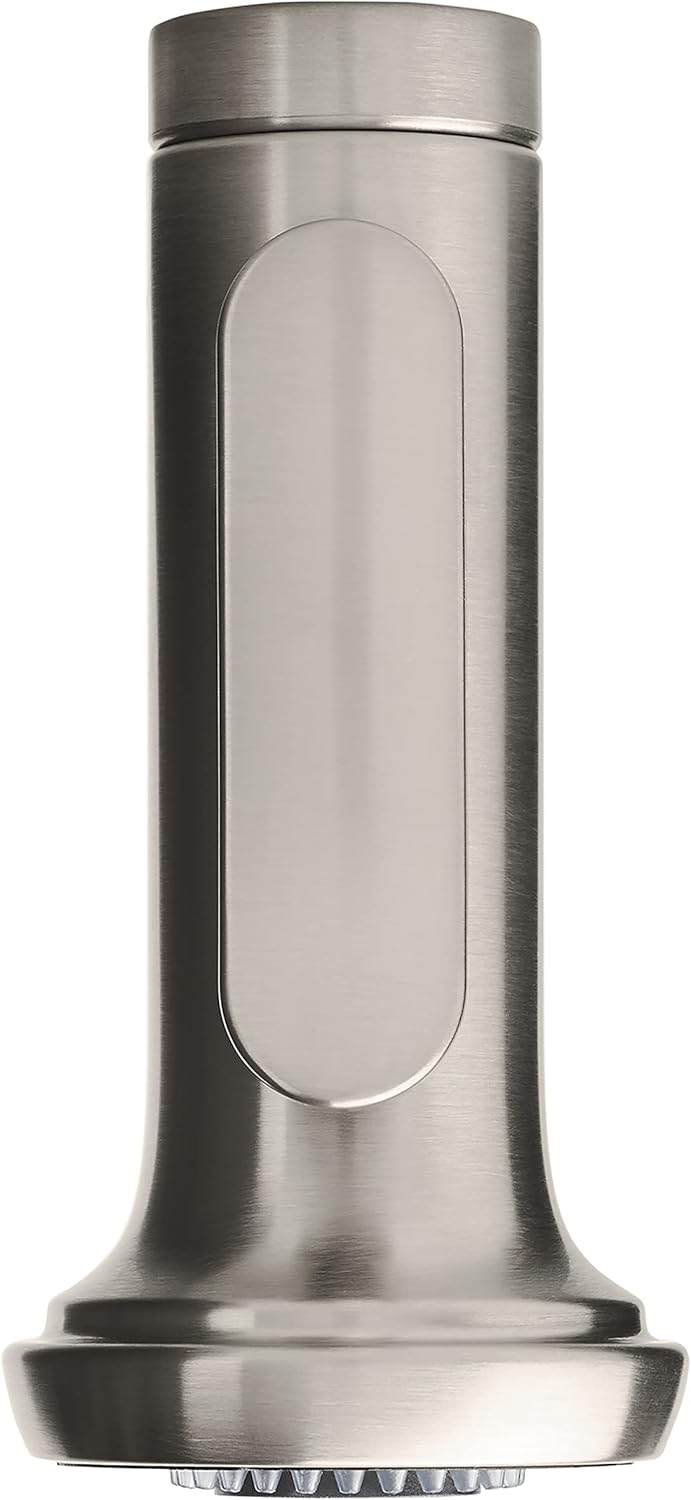

The KOHLER 1261404-VS is a genuine replacement spray head for compatible KOHLER kitchen faucets. It features a vibrant stainless steel finish and is engineered for durability and seamless integration.

主な特徴

• Genuine KOHLER part, ensuring compatibility and performance.
• Vibrant Stainless Steel finish for aesthetic appeal.
• 簡単に取り付けられるように設計されています。
• Constructed with premium materials for enhanced durability.

セットアップとインストール

This section provides general guidance for replacing your KOHLER faucet spray head. For detailed instructions specific to your faucet model, please refer to your original faucet manual or consult a qualified plumber.

必要なツール

• モンキーレンチまたはペンチ
• タオルまたは布

インストール手順

1. 給水を停止します: Locate the hot and cold water supply valves under your sink and turn them off completely.
2. Disconnect old spray head: Place a towel under the faucet to catch any drips. Unscrew the old spray head from the pull-down hose. This usually involves twisting counter-clockwise.
3. Prepare new spray head: Ensure the new KOHLER 1261404-VS spray head is clean and free of debris.
4. Attach new spray head: Carefully screw the new spray head onto the pull-down hose by turning clockwise. Hand-tighten first, then use an adjustable wrench or pliers for a final snug turn, being careful not to overtighten.
5. 漏れがないか確認する: Turn the water supply back on slowly. Check all connections for any leaks. If leaks occur, tighten the connection slightly more.
6. テスト操作: Turn on the faucet and test both the stream and spray functions of the new spray head.

操作手順

The KOHLER 1261404-VS Faucet Spray Head offers two primary water flow functions:

ストリームモード

To activate the steady stream of water, ensure the toggle button on the spray head is in the default position (usually flush with the body).

スプレーモード

To switch to the wide spray pattern, press the toggle button located on the side of the spray head. Press the button again to return to stream mode.

メンテナンス

Regular cleaning and maintenance will help prolong the life and performance of your spray head.

Cleaning the Spray Head

• To remove mineral buildup or debris from the spray nozzles, gently rub the rubber nozzles with your finger or a soft brush.
• For general cleaning, wipe the spray head with a soft, damp cloth and a mild soap solution. Avoid abrasive cleaners, scouring pads, or chemicals that could damage the finish.

Preventing Clogging

• Periodically remove the spray head and flush it with water to clear any internal debris.
• If water flow is significantly reduced, the aerator screen (if present) may need cleaning or replacement.

トラブルシューティング

水の流れの減少

• 詰まりがないか確認する: Inspect the spray nozzles and aerator for mineral buildup or debris. Clean as described in the Maintenance section.
• Verify water supply: 温水と冷水の供給バルブが完全に開いていることを確認してください。

接続点の漏れ

• Tighten connection: Gently tighten the connection between the spray head and the hose. Do not overtighten.
• Check washer/gasket: Ensure the rubber washer or gasket is properly seated and not damaged. Replace if necessary.

スプレーモードの切り替えが難しい

• Clean toggle button: Ensure the toggle button is free of debris or mineral buildup that might impede its movement.
• Internal issue: If cleaning does not resolve the issue, the internal mechanism may be worn. Consider replacing the spray head.

仕様

保証とサポート

As a genuine KOHLER part, this product is covered by KOHLER's standard warranty. For specific warranty details, please refer to the warranty information provided with your original KOHLER faucet or visit the official KOHLER webサイト。

For technical assistance or further support, please contact KOHLER customer service.
