HYPERLITE UFO LED High Bay Light 150W Instruction Manual

1. はじめに

Thank you for choosing the HYPERLITE UFO LED High Bay Light 150W. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read all instructions carefully before use and retain this manual for future reference.

Figure 1: HYPERLITE UFO LED High Bay Light 150W highlighting its 150W power, 5000K color temperature, 145 lm/W efficiency, 1-10V dimming, 120-277V input, and UL certification.

This 150W LED high bay light delivers 21,750 lumens with an efficiency of up to 145 lumens per watt, providing bright and clear illumination. It features a durable aluminum construction, IP65 waterproof and dustproof rating, and 1-10V dimmable functionality. Designed for commercial and industrial applications, it offers a long lifespan and easy installation.

2. 箱の中身

開梱時にすべてのコンポーネントが揃っていて損傷がないことを確認します。

• 150W 5000K UFO High Bay Light
• 5' Cable with 110V Plug
• 吊り下げフック
• 安全ロープ

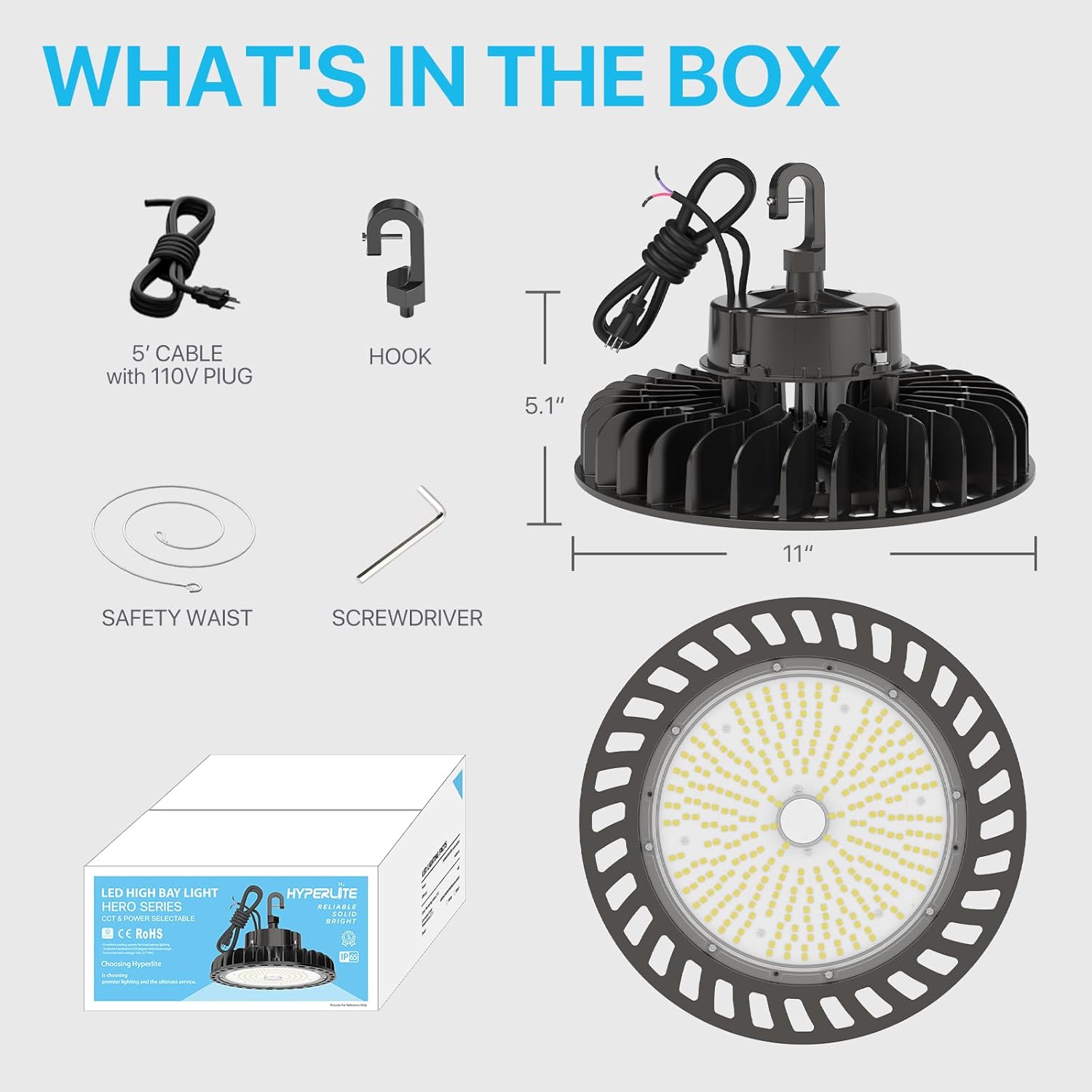

Figure 2: Included components: 150W UFO High Bay Light, 5' cable with 110V plug, hanging hook, and safety rope.

3. 安全情報

• 設置、メンテナンス、清掃の前に必ず電源を切ってください。
• 電源のボリュームを確認してくださいtage matches the fixture's requirements (100-277V AC).
• 設置は地域の電気規則に従って資格のある電気技師が行う必要があります。
• 器具が損傷している場合は操作しないでください。
• 点灯中は光源を直接目に当てないようにしてください。
• Use the provided safety rope to secure the fixture during installation to prevent accidental drops.
• Ensure the mounting structure can support the weight of the fixture.

4. セットアップとインストール

The HYPERLITE UFO LED High Bay Light is designed for quick and easy installation, typically within 3 minutes, using the included American hook and 5-foot power cord with a 110V plug.

1. 取り付け場所の準備: Identify a sturdy overhead structure (e.g., beam, truss) capable of supporting the fixture's weight. Ensure there is a suitable power outlet nearby.
2. Attach Hanging Hook: Securely screw the provided hanging hook into the designated threaded hole on top of the fixture.
3. 安全ロープを接続する: Attach one end of the safety rope to the fixture and the other end to a separate, secure point on the mounting structure. This provides an additional layer of security.
4. 器具を吊るす: Carefully lift the fixture and hang it from the prepared mounting point using the attached hook.
5. プラグイン電源: Connect the 5-foot power cord to a compatible 110V power outlet. For 1-10V dimming functionality, connect the dimming wires (purple and pink/gray) to a compatible 1-10V dimmer switch (sold separately).

Figure 3: The fixture features a 110V standard American plug for direct power supply and dual safety ropes for secure installation.

図 4: 分解 view showing the G-Hook, Driver, Aluminum Shell, LED Chips, Seal Ring, and PC Lens, highlighting the robust construction.

5. 操作手順

Once installed and powered, the light will illuminate instantly. The fixture is designed to be 1-10V dimmable, allowing for adjustable brightness levels from 10% to 100% when connected to a compatible dimmer switch.

• 標準操作： Simply plug the fixture into a switched outlet, or connect it to a standard wall switch for on/off control.
• 調光機能: To utilize the 1-10V dimming feature, connect the purple (DIM+) and pink/gray (DIM-) wires from the fixture to a compatible 1-10V dimmer switch. This allows you to adjust the light output to suit your specific needs.

Figure 5: The 1-10V dimmable feature allows for adjustable brightness, saving energy and costs, and providing comfortable lighting.

Figure 6: The 1-10V dimmer wires (purple and pink/gray) enable easy brightness adjustment from 10% to 100% (dimmer sold separately).

6. メンテナンス

The HYPERLITE UFO LED High Bay Light requires minimal maintenance due to its durable construction and long-lasting LED technology.

• クリーニング： 定期的に器具の外側を柔らかくて乾いた布で掃除してください。amp 布で埃やゴミを拭き取ってください。研磨剤入りの洗剤や溶剤は使用しないでください。
• 検査： Regularly inspect the power cord, hanging hook, and safety rope for any signs of wear or damage. Replace any damaged components immediately.
• 放熱: Ensure that the cooling fins on the back of the fixture are free from obstructions to maintain optimal heat dissipation and extend the product's lifespan.

Figure 7: Excellent heat dissipation is achieved through die-cast aluminum construction, thickened heat sink, premium driver, and rapid cooling design, extending component life.

7。 トラブルシューティング

If you encounter issues with your HYPERLITE UFO LED High Bay Light, refer to the following common troubleshooting steps:

• 光なし:
  • 電源コードが通電しているコンセントにしっかりと差し込まれているかどうかを確認してください。
  • Verify that the power switch (if any) is in the 'ON' position.
  • Inspect the circuit breaker for a tripped breaker.
• ちらつく光:
  • すべての電気接続が安全であることを確認してください。
  • If using a dimmer, ensure it is a compatible 1-10V dimmer and properly wired.
• 調光の問題:
  • Confirm the dimmer switch is a 1-10V compatible model.
  • Check the dimming wire connections (purple and pink/gray) for proper polarity and secure contact.

8. 仕様

9. 保証とサポート

HYPERLITE offers a 5-year service warranty for this product. We are committed to providing high-quality lighting solutions and excellent customer support.

• 保証範囲： The 5-year service covers fault issues. If any fault occurs, HYPERLITE will replace the product within 30 days.
• 返品規則： この製品は購入後30日以内であれば返金/交換が可能です。
• サポートへのお問い合わせ: For any questions, technical assistance, or warranty claims, please refer to the contact information provided on your purchase receipt or the official HYPERLITE webサイト。
