Qlima R4024TC Kerosene Heater User Manual

1.はじめにおよび安全情報

Thank you for choosing the Qlima R4024TC Kerosene Heater. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your heater. Please read all instructions carefully before use and retain this manual for future reference.

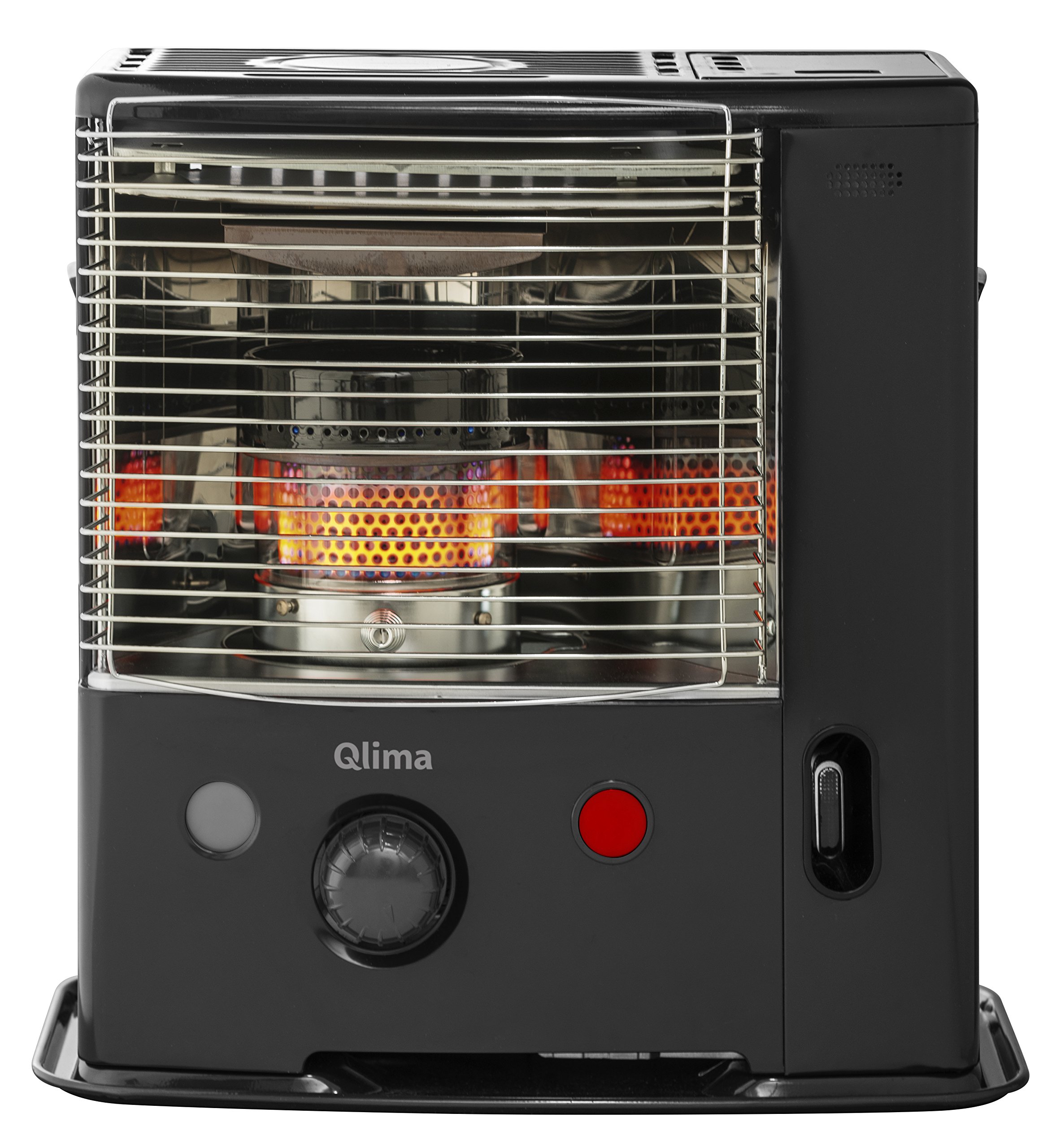

画像1.1：正面 view of the Qlima R4024TC Kerosene Heater. This image displays the compact design of the heater, featuring its main body, control knob, and fuel tank access. The heater is designed for efficient room heating.

重要な安全上の警告：

• 換気： Always ensure adequate ventilation when operating the heater to prevent carbon monoxide buildup. Do not use in unventilated spaces.
• 燃料タイプ: Use only pure kerosene (paraffin) fuel specifically designed for wick heaters. Never use gasoline, diesel, or other flammable liquids.
• 配置: Place the heater on a stable, level, non-combustible surface, away from curtains, furniture, and other flammable materials. Maintain a safe distance from walls and other objects.
• 子供とペット: Keep children and pets away from the heater during operation. The surface can become hot.
• 放置しないでください: Do not leave the heater operating unattended, especially overnight.
• 自動遮断： This heater is equipped with an automatic shut-off feature. Do not tamp安全装置を備えています。
• ヒーターの移動: Do not move the heater while it is operating or still hot. Allow it to cool down completely before relocating.

2. セットアップ

2.1 開梱

1. ヒーターをパッケージから慎重に取り出します。
2. 保護フィルムやテープなどの梱包材をすべて取り外します。
3. Inspect the heater for any signs of damage. If damaged, do not use and contact your retailer.

2.2 ヒーターへの燃料補給

The Qlima R4024TC operates on pure kerosene (paraffin) fuel. Using the correct fuel is crucial for safe and efficient operation.

1. Ensure the heater is turned off and completely cool before fueling.
2. Locate the fuel tank cap, usually on the top or side of the heater.
3. Carefully pour kerosene into the fuel tank using a funnel to prevent spills. Do not overfill; leave a small air gap at the top.
4. 燃料タンクキャップをしっかりと閉めてください。
5. こぼれた燃料はすぐに拭き取ってください。

注記： After initial fueling or refilling, allow approximately 60 minutes for the wick to fully saturate with kerosene before attempting to light the heater.

2.3 配置

• ヒーターは換気の良い場所に設置してください。
• Ensure a minimum clearance of 1 meter (3 feet) from walls, furniture, and other combustible materials.
• Do not place the heater near exits or in high-traffic areas where it could be accidentally knocked over.

3. 操作手順

3.1 ヒーターの始動

1. Ensure the fuel tank is adequately filled and the wick is saturated.
2. Turn the control knob to the "ON" or "IGNITE" position. This will typically lower the wick and activate the igniter.
3. Observe the flame through the viewing window. A proper flame should be blue at the base and yellow at the top, without excessive smoke.
4. If the heater does not ignite on the first attempt, wait a few minutes and try again. Do not repeatedly attempt to ignite without allowing fuel to flow.

3.2 熱出力の調整

The heat output is controlled by adjusting the wick height.

• Increase Heat: Turn the control knob to raise the wick.
• Decrease Heat: Turn the control knob to lower the wick.

注意： Do not raise the wick too high, as this can cause excessive flame, smoke, and soot. Do not lower the wick too much, as this can extinguish the flame or cause incomplete combustion.

3.3 ヒーターのシャットダウン

ヒーターをオフにするには:

1. Turn the control knob to the "OFF" position. This will automatically retract the wick and extinguish the flame.
2. ヒーターを移動または保管する前に、ヒーターが完全に冷めるまでお待ちください。

自動遮断： The Qlima R4024TC is equipped with an automatic shut-off mechanism that activates if the heater is accidentally knocked over or if carbon monoxide levels become unsafe. If this occurs, the heater will extinguish the flame and shut down. Investigate the cause before attempting to restart.

4. メンテナンス

4.1 Wick Maintenance and Replacement

The wick is a consumable part and will require periodic cleaning and eventual replacement for optimal performance.

• 毎日： After each use, allow the heater to cool. Briefly turn the wick up and down a few times to remove any carbon buildup.
• Monthly/As Needed: If the flame becomes uneven or produces excessive smoke, the wick may need cleaning or trimming. Consult the detailed wick replacement instructions provided with your replacement wick kit or contact Qlima support.
• 交換： Wicks typically last one heating season, depending on usage and fuel quality. Replace the wick when it no longer provides a consistent flame or cannot be adjusted properly.

4.2 クリーニング

• 外観： ヒーターの外側を柔らかくて乾いた布で拭いてください。amp 布で拭いてください。研磨剤や溶剤は使用しないでください。
• ほこり: Use a vacuum cleaner with a brush attachment to remove dust from air inlets and outlets.
• 燃料タンク: Periodically inspect the fuel tank for sediment. If present, drain the tank and clean it according to manufacturer guidelines.

4.3 ストレージ

When storing the heater for an extended period:

1. Ensure the heater is completely cool and clean.
2. タンクに残っている燃料を排出してください。
3. Store the heater in a dry, dust-free location, preferably in its original packaging.

5。 トラブルシューティング

This section addresses common issues you might encounter with your Qlima R4024TC heater. For problems not listed here, please contact customer support.

6. 仕様

Technical specifications for the Qlima R4024TC Kerosene Heater:

• ブランド： クリマ
• モデル番号: R4024TC
• 出力: 2400ワット（2.4kW）
• 寸法（長さ×幅×高さ）： 29.5 x 45.5 x 46 cm
• 製品重量: 8.6キロ
• 自動遮断： はい
• 燃料タイプ: Kerosene (Paraffin)
• Recommended Heating Area: Up to 85 cubic meters (85 mc)

7. 保証とサポート

Qlima products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Qlima webサイト。

For technical support, spare parts, or service inquiries, please contact your local Qlima dealer or visit www.qlima.com 連絡先情報。

When contacting support, please have your model number (R4024TC) and purchase date available.
