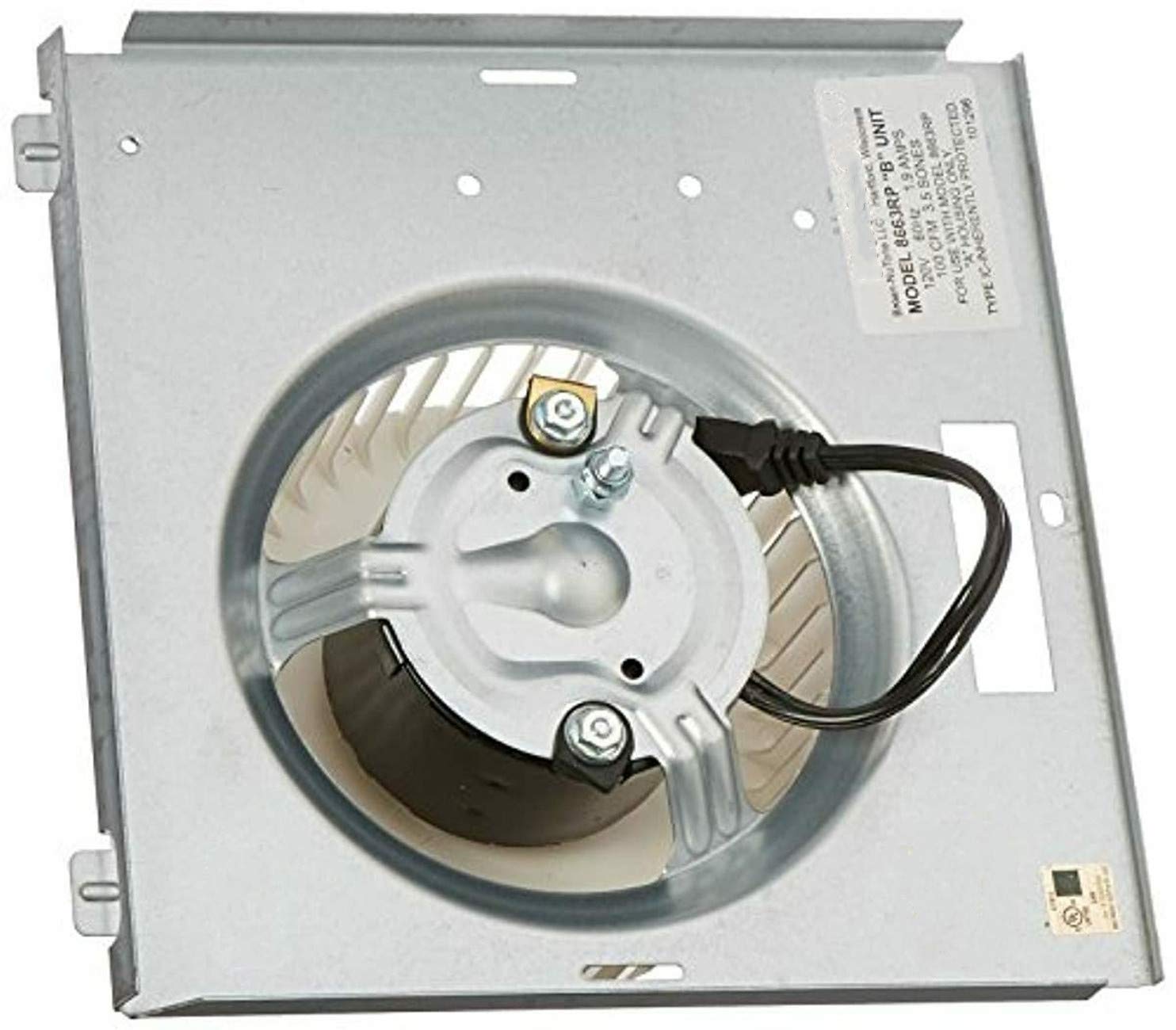

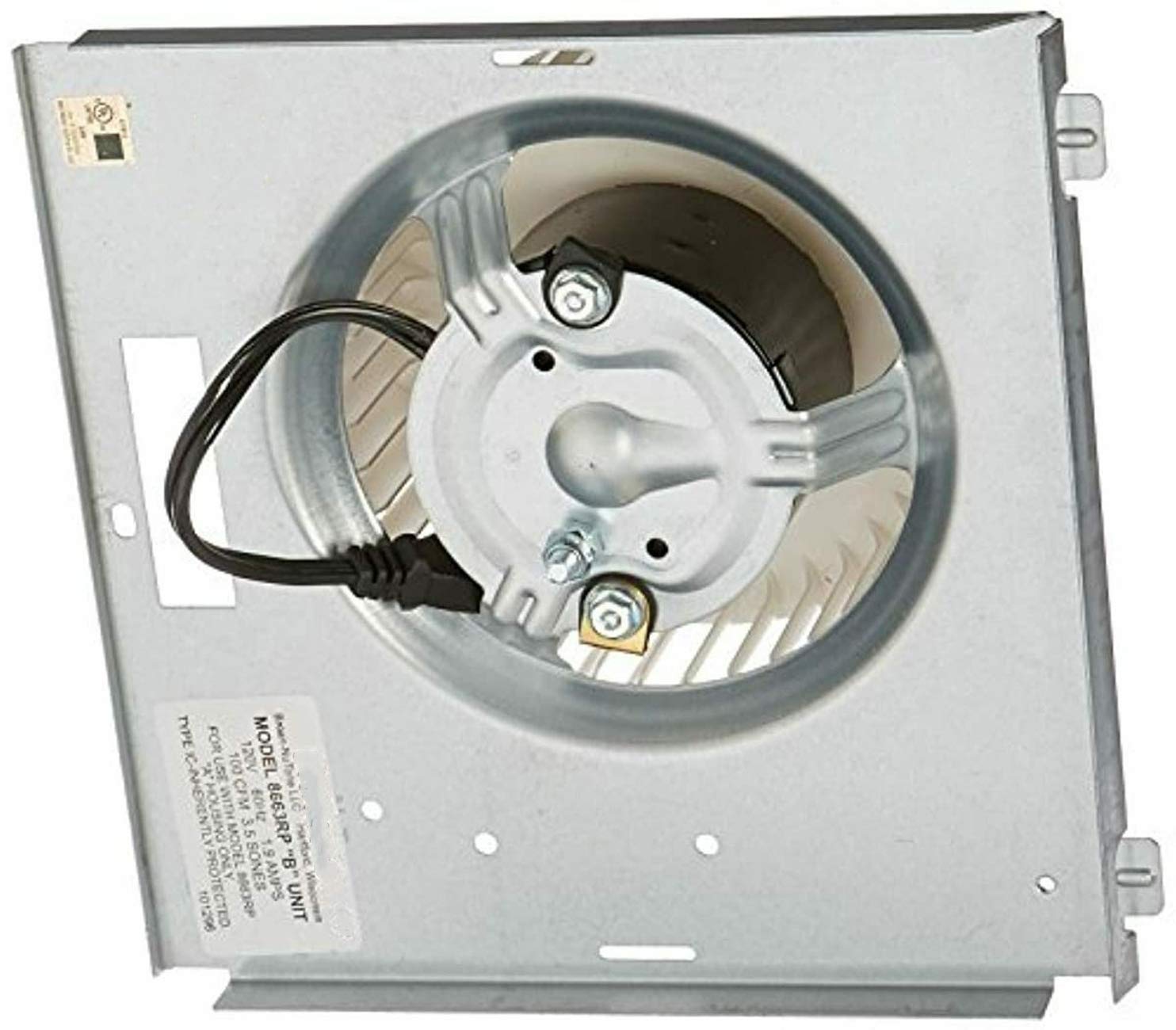

This document provides instructions for the Broan-NuTone 8663RP Motor Assembly, part number 97017705. This motor is designed as a replacement component for various NuTone and Broan ventilation fan models. It operates at 1550 RPM, 1.2 amps, and 115 volts, ensuring efficient air circulation.
主な特徴:
- Shaft: 1/4" x 1"
- Rotation: Counter-Clockwise (CCW)
- Motor Diameter: 3.3"
- Sheet Metal Dimensions: 8 15/16" x 8 15/16"
- Wheel Dimensions: 5.75" x 2"
- Mounting: 2 Studs Opposite Shaft End
- Motor Case Length: 1 15/16"
- Electrical Connection: 2-Prong 115 Volt plug
互換性
The Broan-NuTone 8663RP Motor Assembly is compatible with the following ventilation fan models:
- Broan: 750, 751, 752, N750
- NuTone: 8663RF, 8663RFT, 8663RLG, 8663RMAB, 8663RMBR, 8663RMS, 8673RP, 8663RMSA, 8663RP, 8664RP, 671R, 672R, VL3668RLG, VL3668RMAB, VL3668RMBR, VL3668RMSA, VL3668RP
仕様
| 属性 | 価値 |
|---|---|
| ブランド | ブロアン・ニュートーン |
| スピード | 1550 回転 |
| 巻tage | 115ボルト |
| 馬力 | 115ワット |
| 製品寸法 | 幅8.94インチ x 高さ8.94インチ |
| 材料 | 金属 |
| アイテム重量 | 3.74ポンド |
| メーカー | EAGLEGGO |
| 欧州連合 | 663001340782 |
| ASIN | B006IO918O |
| 商品型番 | CECOMINOD088831 |
| 初回利用可能日 | 21年2012月XNUMX日 |
インストール
安全第一: Before beginning any installation, ensure the power supply to the ventilation fan unit is completely disconnected at the circuit breaker. Failure to do so may result in electrical shock or injury.
- Access the Fan Housing: Remove the fan grille and any light covers to expose the existing motor assembly within the fan housing.
- 古いモーターを外す: Carefully unplug the old motor assembly from its electrical connection. Note the orientation and connection points.
- 古いモーターを取り外す: Unfasten any screws or clips securing the old motor assembly to the fan housing. Gently remove the old unit.
- 新しいモーターをインストールします: Position the new Broan-NuTone 8663RP motor assembly into the fan housing. Ensure the mounting studs align with the existing holes. Secure the new motor with the appropriate fasteners.
- 電気接続: Plug the 2-prong 115 Volt plug of the new motor into the fan's electrical receptacle. Ensure a secure connection.
- テスト操作: Temporarily restore power to the fan and test its operation. Verify that the motor runs smoothly and the fan blade rotates correctly.
- 組み立て直す: Once confirmed operational, disconnect power again. Reattach any light covers and the fan grille. Restore power to the unit.
Note: For detailed, model-specific installation instructions, always refer to the original instruction manual for your specific Broan or NuTone ventilation fan model.
手術
The Broan-NuTone 8663RP Motor Assembly is designed for continuous and reliable operation within compatible ventilation fan units. Once installed, the fan will operate according to the controls of your specific ventilation system (e.g., wall switch, timer).
- アクティベーション: Turn on the fan using its designated wall switch or control.
- 気流： The motor will drive the fan blade to exhaust air from the room.
- 非アクティブ化： Turn off the fan using its designated wall switch or control.
Ensure proper ventilation by operating the fan during and after activities that generate moisture or odors.
メンテナンス
Regular maintenance helps ensure the longevity and optimal performance of your ventilation fan motor assembly.
- 電源切断: メンテナンスを行う前に、必ず回路ブレーカーで電源を切ってください。
- ファングリルの清掃: Periodically remove and clean the fan grille with mild soap and water. Allow it to dry completely before reattaching.
- Clean Fan Blade: If accessible, gently wipe dust and debris from the fan blade using a soft cloth. Avoid bending the blades.
- モーターの検査: Visually inspect the motor for any signs of wear, loose connections, or unusual buildup.
- 潤滑: This motor assembly is typically designed for maintenance-free operation and does not require lubrication. Refer to your specific fan model's manual for any lubrication recommendations.
Do not use abrasive cleaners or solvents on any part of the fan or motor.
トラブルシューティング
If your ventilation fan is not operating as expected after installing the new motor assembly, consider the following common issues:
- ファンが作動しない:
- 回路ブレーカーが落ちていないか確認してください。
- Ensure the motor's electrical plug is securely connected.
- Verify the wall switch is functioning correctly.
- Fan Running Loudly or Vibrating:
- Ensure the motor assembly is securely mounted and all fasteners are tightened.
- Check for any obstructions around the fan blade.
- Inspect the fan blade for damage or imbalance.
- 空気の流れが悪い:
- Clean the fan grille and fan blade to remove dust and debris.
- Check for blockages in the exhaust ductwork.
If issues persist after basic troubleshooting, consult a qualified electrician or HVAC technician.
商品ビジュアル
このマニュアルに埋め込むための公式販売者ビデオはありませんでした。
安全情報
- ユニットの取り付け、保守、または清掃を行う前に、必ず電源を切ってください。
- 設置作業中は、手袋や目の保護具などの適切な個人用保護具 (PPE) を着用してください。
- すべての電気接続が安全であり、地域の電気規則に準拠していることを確認してください。
- Do not operate the fan if it is damaged or if any parts are missing.
- 設置およびメンテナンス中は、作業エリアに子供やペットを近づけないでください。
