1. はじめに
The DEWALT DW3511 is a 7-inch by 1/8-inch metal abrasive blade engineered for efficient and fast cutting of various metal materials. This blade is designed for use with compatible power tools such as angle grinders and worm drive saws. Its construction features an aluminum oxide grain for extended life and quick material removal, combined with a proprietary material mix to ensure durable, long-lasting performance. The diamond knockout arbor facilitates secure mounting on appropriate tools.
画像1.1：正面 view of the DEWALT DW3511 7-inch metal abrasive blade.
2. 安全情報
Always prioritize safety when operating power tools and using abrasive blades. Failure to follow safety guidelines can result in serious injury.
- 個人用保護具（PPE）： Always wear ANSI-approved safety glasses or a face shield, hearing protection, and heavy-duty gloves. A dust mask is recommended to avoid inhaling metal particles.
- ツールの互換性: Ensure the abrasive blade's maximum RPM rating is equal to or greater than the maximum RPM of your power tool. The DW3511 is compatible with angle grinders and worm drive saws.
- 刃の検査: Before each use, inspect the blade for any signs of damage, such as cracks, chips, or excessive wear. Never use a damaged blade.
- 安全なワークピース: Always secure the material being cut to prevent movement during operation. Use clampsまたは万力。
- 適切な取り付け: Ensure the blade is correctly installed and securely tightened on the tool's arbor. Refer to the tool's instruction manual for specific installation procedures.
- 切断技術: Apply steady, even pressure. Do not force the blade through the material. Allow the blade to do the cutting. Avoid side pressure, which can cause the blade to bind or shatter.
- Spark and Debris Control: Be aware that cutting metal produces sparks and hot debris. Ensure no flammable materials are in the vicinity.
- クリアエリアを維持: Keep hands, body, and loose clothing away from the rotating blade.
3. セットアップとインストール
Proper installation of the abrasive blade is crucial for safe and effective operation.
- 電源を切る: Always ensure your power tool is unplugged or its battery is removed before attempting to install or remove any accessories.
- ツールマニュアルを参照してください: Refer to your specific power tool's instruction manual for detailed blade installation procedures, as steps may vary slightly between models.
- 古いブレードを取り外します（該当する場合）: If replacing an existing blade, use the appropriate wrench or tool to loosen the arbor nut and carefully remove the old blade.
- クリーンアーバー： Ensure the tool's arbor and flanges are clean and free of debris or rust to allow for proper blade seating.
- ブレードを合わせる: Place the DEWALT DW3511 blade onto the arbor, ensuring the diamond knockout arbor hole aligns correctly with the tool's arbor. The blade should sit flush against the inner flange.
- セキュアブレード: Reinstall the outer flange and arbor nut. Tighten the arbor nut securely using the provided wrench. Do not overtighten.
- 回転をチェック: Verify that the blade is installed with the correct direction of rotation, usually indicated by an arrow on the blade and the tool.

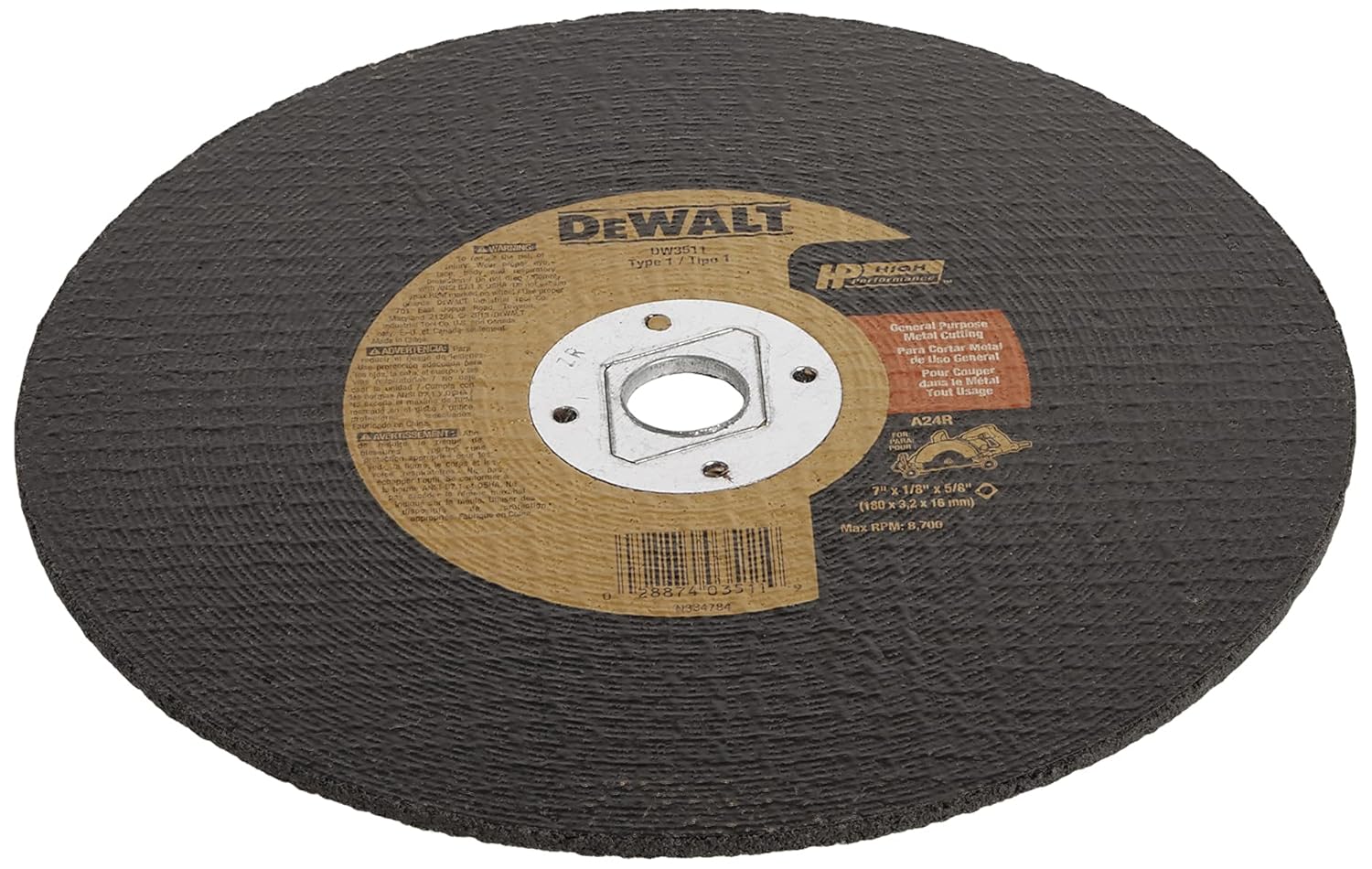

Image 3.1: Detail of the DEWALT DW3511 blade showing the label and diamond knockout arbor.
4. 操作手順
Follow these guidelines for effective and safe metal cutting with your DEWALT DW3511 abrasive blade.
- 作業エリアを準備する: 作業エリアが十分に明るく、障害物がなく、可燃性物質がないことを確認してください。
- 安全なワークピース: しっかりとamp the metal workpiece to a stable surface. Movement of the workpiece during cutting can lead to kickback or blade damage.
- Start Tool: Before making contact with the workpiece, start the power tool and allow the blade to reach full operating speed.
- カット開始: Gently bring the rotating blade into contact with the material. Apply steady, moderate pressure. Do not force the blade, as this can cause overheating, premature wear, or blade breakage.
- Maintain Cut: Guide the tool smoothly through the material, maintaining a consistent cutting line. Avoid twisting or bending the blade during the cut.
- 冷却を許可します: For prolonged cuts or thick materials, periodically lift the blade from the workpiece to allow it to cool. This helps extend blade life and prevents overheating.
- 完全カット： 切断が完了したら、刃の回転が完全に停止してからツールを下ろします。
5. メンテナンス
Proper maintenance ensures the longevity and safe performance of your abrasive blade.
- 定期点検: Before and after each use, visually inspect the blade for any signs of wear, cracks, chips, or discoloration. Discard any blade that shows damage.
- クリーニング： After use, gently brush off any accumulated metal dust or debris from the blade. Do not use harsh chemicals or solvents.
- ストレージ： Store abrasive blades in a dry, cool place, away from direct sunlight and moisture. Keep them in their original packaging or a protective container to prevent damage.
- 衝撃を避ける: Do not drop or strike the blade, as this can cause unseen damage that may lead to breakage during operation.
6。 トラブルシューティング
If you encounter issues while using your DEWALT DW3511 abrasive blade, consider the following:
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| Poor cutting performance / Slow cutting | Worn blade; Insufficient pressure; Incorrect blade for material | Replace blade; Increase pressure slightly; Ensure blade is suitable for metal cutting. |
| Excessive sparks / Overheating | Too much pressure; Blade binding; Incorrect RPM | Reduce pressure; Ensure workpiece is secure and cut path is clear; Verify tool RPM is within blade's rating. |
| Blade vibration / Instability | Improper installation; Damaged blade; Loose arbor nut | Re-install blade correctly; Inspect for damage and replace if necessary; Tighten arbor nut securely. |
| 刃の破損 | Side pressure; Dropped blade; Excessive force; Damaged blade | Always apply straight pressure; Handle blades carefully; Replace damaged blades immediately. |
7. 仕様
Key technical details for the DEWALT DW3511 Metal Abrasive Blade:
- モデル番号: DW3511
- ブレード直径: 7インチ（177.8 mm）
- 刃の厚さ: 1/8インチ（3.2mm）
- Arbor Type: Diamond Knockout
- グリット材質: 酸化アルミニウム
- グリットタイプ: 中くらい
- グリット番号: 80
- 建設タイプ： コーティング
- 対応デバイス: Angle Grinder, Worm Drive Saws
- 製品寸法: 長さ7インチ x 幅7インチ
- 商品の重量: 0.16オンス
- 国際コード: 028874035119

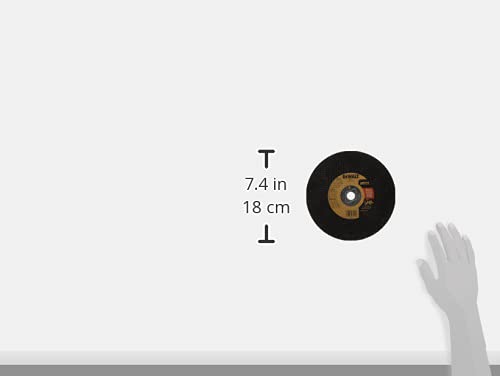

Image 7.1: DEWALT DW3511 blade illustrating its dimensions.
8. 保証とサポート
For information regarding product warranty, technical support, or service, please refer to the official DEWALT website or contact DEWALT customer service directly. Warranty terms and conditions may vary by region and purchase date.
You can visit the official DEWALT store for more product information and support: DEWALTストア
