導入
ご購入ありがとうございますasing the Seiko Wall Pendulum Clock, Model QXH041BLH. This clock features a classic design with Westminster and Whittington chimes, a pendulum, and a dark brown case. This manual provides detailed instructions for the proper setup, operation, and maintenance of your clock to ensure long-lasting enjoyment and accurate timekeeping.
重要な安全情報
- Always handle the clock with care to prevent damage to the glass crystal and internal mechanisms.
- Keep the clock away from direct sunlight, extreme temperatures, and high humidity to avoid discoloration or malfunction.
- Do not attempt to disassemble or repair the clock yourself. Refer to the troubleshooting section or contact customer support for assistance.
- 使用済みバッテリーは地域の規制に従って責任を持って廃棄してください。
パッケージ内容
パッケージにすべてのアイテムが揃っていることを確認してください:
- Seiko Wall Pendulum Clock (Model QXH041BLH)
- 振り子
- One 'C' Battery
- 取扱説明書（本書）
セットアップ手順
1. バッテリーの取り付け
- Carefully open the battery compartment cover located on the back of the clock.
- Insert the included 'C' battery, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- 電池カバーをしっかりと閉じてください。
2.時間を設定する
- Locate the time setting knob on the back of the clock mechanism.
- Gently turn the knob clockwise to advance the minute hand to the correct time. Do not turn counter-clockwise.
- Allow the clock to run for a few minutes to ensure proper operation.
3. Installing the Pendulum
- Unpack the pendulum carefully.
- Locate the pendulum hook inside the clock case, usually at the bottom of the movement.
- Gently hang the pendulum onto the hook. Ensure it swings freely.
4. 時計の取り付け
The clock is designed for wall mounting. Use appropriate hardware (not included) for your wall type to ensure secure installation.
- Choose a sturdy location on a wall, away from vibrations or drafts.
- Install a screw or hook into the wall, ensuring it can support the clock's weight (approximately 5.75 pounds).
- Hang the clock securely using the mounting slot on the back.

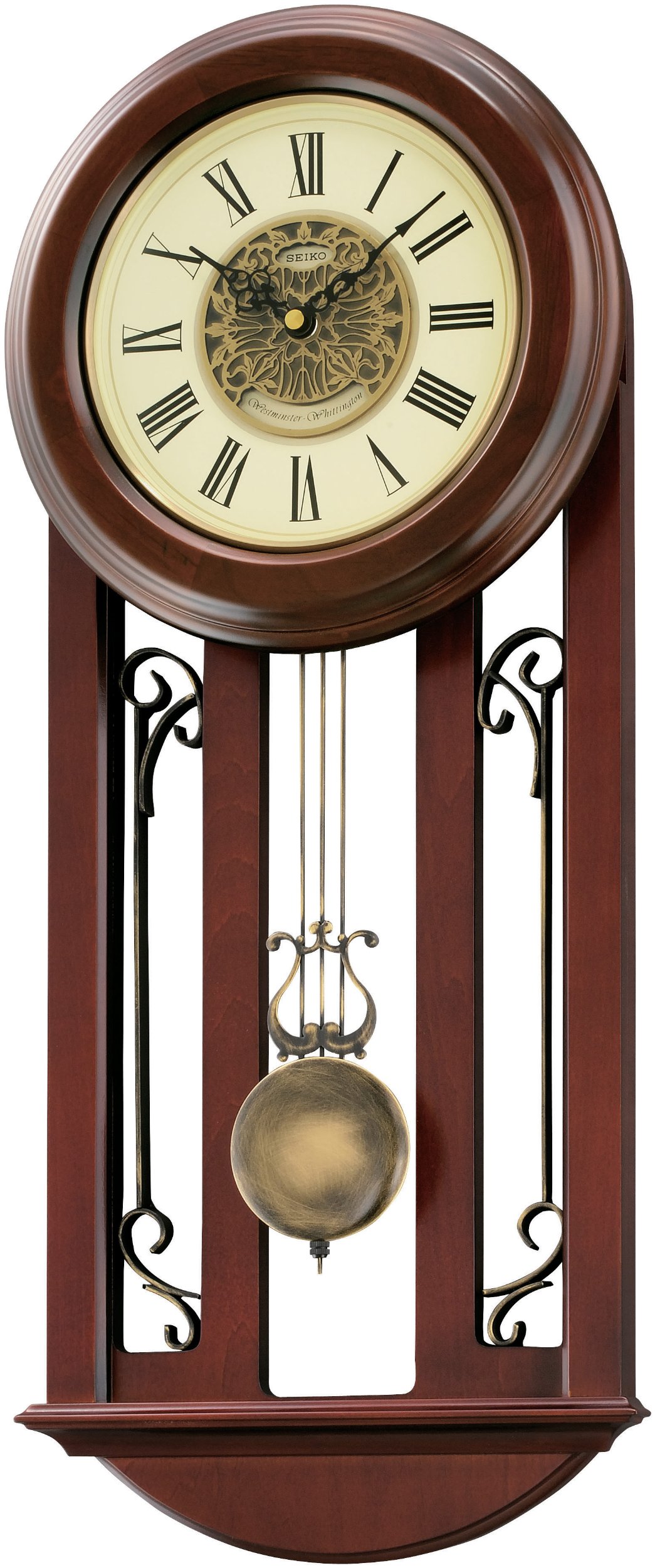

画像: 正面 view of the Seiko Wall Pendulum Clock, showcasing its dark brown case, glass crystal, and pendulum.
Operating Your Clock
1. チャイムの選択
Your Seiko Wall Pendulum Clock offers two classic chime melodies: Westminster and Whittington. A selector switch is located on the back or side of the clock mechanism.
- ウェストミンスターチャイム： Plays a melody every quarter hour and strikes the hour.
- ウィッティントンチャイム： Plays a different melody every quarter hour and strikes the hour.
Move the switch to your desired chime setting.
2. 音量コントロール
The clock features a volume control knob, typically located near the chime selector switch. Turn the knob to adjust the chime volume to your preference.
3. Nighttime Chime Silencer
For uninterrupted sleep, the clock includes a nighttime chime silencer feature. This function automatically silences the chimes during specific hours (e.g., 11:00 PM to 5:45 AM). Refer to the markings near the chime controls for the exact silencing period. Ensure the chime function is enabled for this feature to operate.
画像: サイド view of the Seiko Wall Pendulum Clock, showing the depth and dark brown finish.
メンテナンス
1. バッテリーの交換
When the clock's timekeeping becomes erratic, the chimes weaken, or the clock stops, it is time to replace the battery. Follow the battery installation steps in the Setup section. Always use a fresh 'C' battery.
2. 清掃
- Wipe the clock case with a soft, dry cloth. Do not use abrasive cleaners or chemical sprays, as these can damage the finish.
- For the glass crystal, use a soft, lint-free cloth and a mild glass cleaner if necessary, applied to the cloth first, not directly to the clock.
トラブルシューティング
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| Clock stops or runs slowly. | バッテリーが弱い。 | Replace with a fresh 'C' battery. |
| Chimes are not sounding. | Chime function turned off; volume too low; nighttime silencer active; weak battery. | Check chime selector switch; increase volume; verify time for nighttime silencer; replace battery. |
| Pendulum is not swinging. | 振り子が正しく取り付けられていないか、または妨げられています。 | Ensure pendulum is correctly hooked and swings freely without touching the case. |
仕様
- モデル： 製品番号
- ブランド： SEIKO
- ケースカラー: ダークブラウン
- 表示タイプ: アナログ
- 電源: 1 x 'C' Battery (included)
- チャイム： Westminster / Whittington (Quarter-hour chime, hourly strikes)
- 特徴： Volume control, Nighttime chime silencer, Pendulum
- ケース素材: 木材
- フレーム素材: ガラス
- 文字盤の色: ベージュ
- 取り付けタイプ: 壁掛け
- おおよその寸法： 24インチ（高さ）×10インチ（幅）×3インチ（奥行き）
- 商品の重量: 5.75ポンド
保証情報
This product is covered by a manufacturer's warranty. For specific details regarding warranty coverage, duration, and claims, please refer to the warranty documentation included with your purchase or contact the seller of record. Please retain your proof of purchase for any warranty claims.
カスタマーサポート
If you have any questions, require assistance with setup, or encounter issues not covered in this manual, please contact the retailer where you purchased the clock or visit the official Seiko webサポート リソースのサイト。
