Luqeeg Signal Generator Instruction Manual

Model: Luqeegbnay3rfesc

導入

The Luqeeg Signal Generator is a versatile device designed for generating DC voltage and current outputs, as well as PWM pulse square waves. It also features input measurement capabilities, making it suitable for a wide range of applications including PLC controller testing, LED calibration, and general electronic circuit analysis. This manual provides detailed instructions for the proper setup, operation, and maintenance of your signal generator.

1. セットアップと初期使用

1.1 開梱

すべての部品をパッケージから慎重に取り出してください。パッケージには以下のものが含まれています。

  • 1 x Signal Generator
  • 4 xクリップ
  • USBケーブル1本
  • ユーザーマニュアル (本書) x 1
Four yellow and black alligator clips connected to black wires.

図1.1: Included alligator clips for connections.

1.2デバイスオーバーview

Familiarize yourself with the main components of the signal generator:

Diagram of the signal generator with numbered labels pointing to its components.

図1.2: Signal Generator Component Diagram.

  1. Pluggable terminal block (3.81-9P)
  2. ターミナル記号
  3. 2 inch TFT color display screen
  4. 下矢印キー
  5. Digital encoder adjustment knob (with button, can be pressed)
  6. 左シフトキー
  7. 電源スイッチ
  8. 充電表示灯
  9. USBポート

1.3 電源オプション

The signal generator offers flexible power supply methods:

  • External 24VDC Terminal: Connect a 24VDC power source to the designated terminals.
  • USBタイプC: Use the provided USB Type-C cable to connect to a power adapter or computer.
  • Rechargeable Li Battery: The device supports an internal rechargeable lithium battery (not included). When a battery is installed, it can be charged via USB Type-C or external 24VDC while in use.
Signal generator connected to a wall charger via USB-C, with icons indicating battery and external DC power options.

図1.3: Multiple power supply methods for the signal generator.

1.4接続図

Refer to the following diagram for proper terminal connections. Terminal numbers are read from left to right (1-9).

Detailed connection diagram for the signal generator terminals, showing various input and output configurations.

図1.4: Terminal Connection Diagram.

  • GND(1): Power supply negative (input). This is the same as 9-GND and can be arbitrarily connected.
  • 24V(2): Power supply positive (input). External power input to power or charge the meter.
  • mA i (3): Current signal input positive.
  • Vi (4): 巻tage signal input positive.
  • LP+ (5): EXT 24V input (passive mode).
  • mA o (6): Current signal output positive. The current output is commonly used in active mode. The output of the meter 6-mAo 9-GND corresponds to positive and negative current input of the PLC.
  • Vo (7): 巻tage signal output positive. The voltage出力 7-Vo 9-GND corresponds to the positive and negative voltage input of the PLC, or it can be measured directly with a multimeter.
  • PWM (8): PWM output positive.
  • GND(9): Signal common ground (internal connect to ①-GND).

Current Sink Two-Wire Output: 接続する 24V +5-LP+ terminal of the meter head, and output from the 6-mAo terminal to control the current of the external 24V. The meter head is equivalent to a variable resistor, so it is called passive mode. Direct measurement cannot detect the current, and it can be directly replaced with a passive two-wire pressure/temperature sensor, etc.

2. 操作手順

2.1 ユーザーインターフェースとディスプレイ

The device features a 2.0-inch TFT color screen (320x240) that displays all values clearly on one screen. It supports both Chinese and English interface switching. The large digital encoder knob allows for easy and precise adjustments.

Close-up of the signal generator's color display showing output current, voltage, and PWM frequency settings.

図2.1: TFT Color Screen Display.

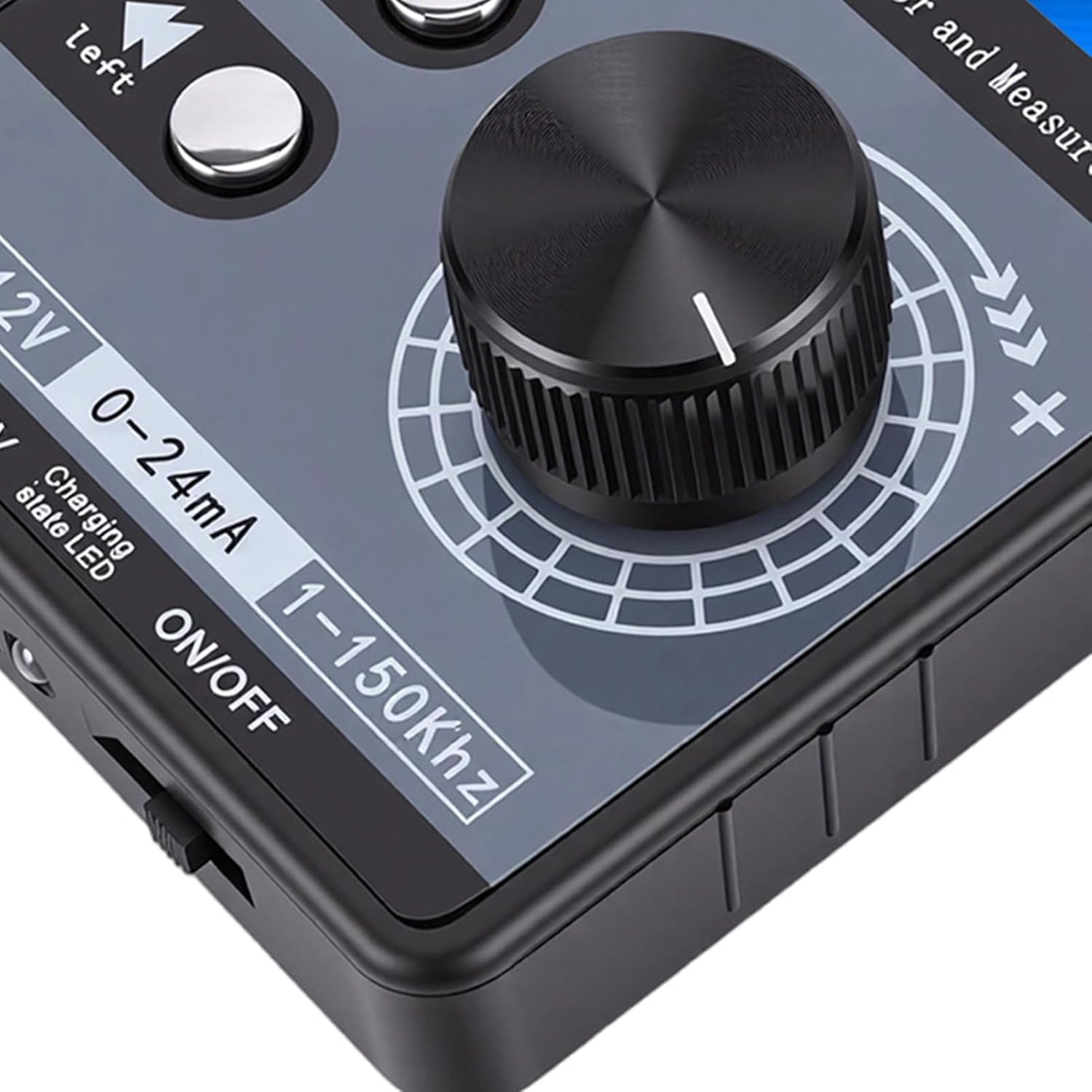

Close-up of the digital encoder adjustment knob on the signal generator.

図2.2: Digital Encoder Adjustment Knob.

2.2 DCVol。tageと電流出力

  • 巻tage DC Analog Output Range: ±12V (with short circuit protection).
  • Current DC Analog Output Range: 0-24mA (short circuit protected).
  • 出力調整: Users can freely set the output range, such as 0-20mA, 4-20mA, 0-10V, 0-5V, etc. The corresponding engineering display values can also be set.

2.3 PWM Pulse Square Wave Output

  • 調整可能な周波数: 1-150kHz。
  • Adjustable Duty Cycle: 0~100%。
  • 高いレベル: 5V。
  • 応用: PWM pulse output high level is 5V, low level is 0V. It can directly drive buzzers, LEDs, optocouplers, etc., or connect to 12V/24V systems through external level conversion modules.
Signal generator in use, showing its side profile with a terminal block connected, on a workbench with other electronic equipment.

図2.3: Signal generator connected and operating.

2.4 Input Measurement

  • 巻tage 測定範囲: ±50V。
  • 電流測定範囲: ±50mA.

3. メンテナンス

To ensure the longevity and optimal performance of your Luqeeg Signal Generator, follow these maintenance guidelines:

  • クリーニング: Use a soft, dry cloth to clean the device. Avoid using abrasive cleaners or solvents, which can damage the casing または画面。
  • ストレージ: デバイスは、直射日光、極端な温度、高湿度を避け、涼しく乾燥した場所に保管してください。
  • 取り扱い: Handle the device with care to prevent physical damage. Avoid dropping it or exposing it to strong impacts.
  • Battery Care (if installed): If using a rechargeable Li battery, ensure it is charged regularly, even if not in frequent use, to maintain battery health. Do not expose the battery to extreme heat or puncture it.
  • 保護フィルム: The surface protective film of the sticker can be peeled off for clearer viewing。

4。 トラブルシューティング

This section addresses common issues you might encounter with your signal generator.

  • デバイスの電源が入っていない:
    • 電源スイッチが「オン」の位置にあるかどうかを確認します。
    • Ensure the USB Type-C cable is securely connected and the power source is active.
    • If using external 24VDC, verify the power supply is connected correctly to the terminals and is providing the correct voltage.
    • If using a rechargeable battery, ensure it is charged.
  • 出力信号なし:
    • Verify that the output parameters (voltage, current, PWM frequency, duty cycle) are set correctly on the display.
    • Check all connections to the output terminals for proper contact.
    • デバイスの電源がオンになっていて機能していることを確認します。
  • Incorrect Output Readings:
    • Confirm that the measurement range is appropriate for the signal being measured.
    • Check the calibration settings if custom ranges have been configured.
    • すべての接続が安全であり、干渉がないことを確認してください。
  • PWM Output Compatibility:

    注記: The PWM output of this device is not suitable for 12V or 2V systems, as 5V is regarded as a low level in these systems. For such applications, an external level conversion module is required.

5. 技術仕様

特徴仕様
製品素材アブソリュート
巻tage DC Analog Output Range±12V (with Short Circuit Protection)
巻tag測定範囲±50V
Current DC Analog Output Range0-24mA (Short Circuit Protected)
現在の測定範囲±50mA
PWM Pulse Square Wave Output Frequency1-150kHz (Adjustable)
PWM Pulse Square Wave Output Duty Cycle0-100% (Adjustable)
PWM High Level5V
画面2.0 inch TFT color screen (320x240), supports Chinese and English
エンコーダDigital encoder, large knob adjustment
電源供給方法Terminal external 24VDC / USB Type-C / 1 x Rechargeable Li Battery (not included)
パッケージ寸法5.91 x 3.54 x 1.97インチ
アイテム重量7.8オンス
モデル番号Luqeegbnay3rfesc
ASINB0GDFZ67MF

6. 保証情報

Luqeeg products are manufactured to high quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or contact Luqeeg customer support for specific warranty terms and conditions. Keep your purchase receipt as proof of purchase for warranty claims.
