Generic G5 EDC Flashlight 1200 Lumens Instruction Manual

1. はじめに

This manual provides instructions for the safe and effective use of your G5 EDC Flashlight. This compact, rechargeable flashlight features a super bright 1200 lumen output, a 180-degree rotatable magnetic base, and multiple lighting modes, designed for various applications including outdoor emergencies, camping, and daily carry.

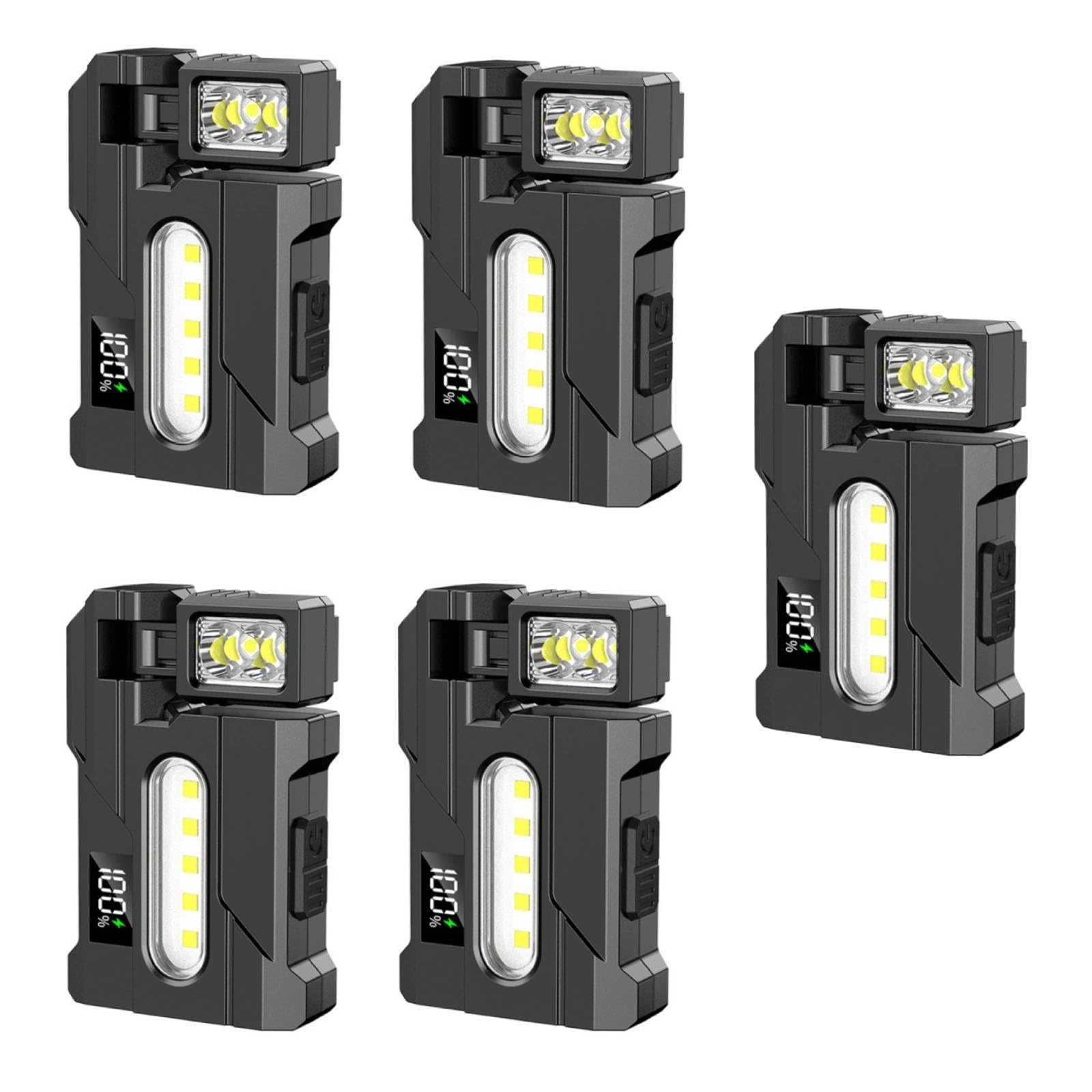

図1：以上view of the G5 EDC Flashlight.

2. セットアップ

2.1デバイスの充電

The G5 EDC Flashlight is equipped with a built-in 700mAh rechargeable battery. To charge, locate the USB charging port, typically covered by a protective flap. Connect the provided USB charging cable to the flashlight and a suitable USB power source. The digital display will indicate the charging status and battery percentage.

Figure 2: Charging the G5 EDC Flashlight via USB.

The flashlight features overcharge protection and an intelligent reminder system to ensure battery longevity.

2.2バッテリーレベルインジケーター

The integrated digital display provides real-time monitoring of the battery's charge level, allowing you to plan usage and avoid unexpected power loss.

Figure 3: Digital battery display showing remaining power.

3. 操作手順

3.1 電源のオン/オフとモードの選択

Press the power button located on the side of the flashlight to turn it on. Subsequent presses will cycle through the available lighting modes. The G5 EDC Flashlight features multiple modes, including a main spotlight and a side floodlight, offering versatility for different lighting needs.

3.2 Rotatable Head and Magnetic Base

The flashlight's head can be rotated 180 degrees, allowing for multi-angle illumination. This feature, combined with the strong magnetic base, enables hands-free operation by attaching the flashlight to metal surfaces. This is particularly useful for tasks requiring focused light in specific directions.

Figure 4: Multi-angle rotatable head for directional lighting.

Figure 5: Hands-free operation using the magnetic base.

3.3 Warning and Distress Lighting

In addition to standard illumination, the flashlight includes red and blue flashing warning lights. These can be activated to transmit distress signals in critical moments, enhancing safety during emergencies.

Figure 6: Red and blue flashing lights for warning and distress signals.

3.4 移植性

Its mini size and integrated clip allow the flashlight to be easily carried in a pocket or attached to a keychain, providing quick access to light whenever needed.

Figure 7: Flashlight clipped to a pocket for easy access.

3.5製品ビデオ

4. メンテナンス

4.1 防水

The G5 EDC Flashlight is designed with an IP68 waterproof rating, making it resistant to harsh weather conditions. Ensure the charging port cover is securely closed to maintain its waterproof integrity.

Figure 8: Flashlight demonstrating its waterproof design.

4.2一般的なケア

To ensure optimal performance and longevity, keep the flashlight clean and free from debris. Avoid exposing it to extreme temperatures or corrosive substances. Store in a cool, dry place when not in use.

5。 トラブルシューティング

5.1 ライトが点灯しない

• Check battery level: Ensure the flashlight is sufficiently charged. Refer to Section 2.1 for charging instructions.
• Verify button press: Ensure the power button is pressed firmly.

5.2 薄暗い光の出力

• Charge the battery: A low battery can result in reduced brightness.
• Clean the lens: Dust or dirt on the lens can obstruct light output. Gently wipe with a soft, clean cloth.

5.3 充電の問題

• Check cable and adapter: Ensure the USB cable and power adapter are functioning correctly. Try a different cable or adapter if available.
• Secure connection: Make sure the charging cable is fully inserted into the flashlight's port.

6. 仕様

Below are the technical specifications for the G5 EDC Flashlight:

Figure 9: G5 EDC Flashlight dimensions.

7. 保証とサポート

This product is covered by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the retailer. For technical support or inquiries, please reach out to the customer service department of the retailer or manufacturer.
