Garvee CF15E

Garvee 15L Portable Car Refrigerator/Warmer Instruction Manual

Model: CF15E

1. はじめに

This manual provides instructions for the safe and efficient operation of your Garvee 15L Portable Car Refrigerator/Warmer, Model CF15E. Please read this manual thoroughly before use and retain it for future reference.

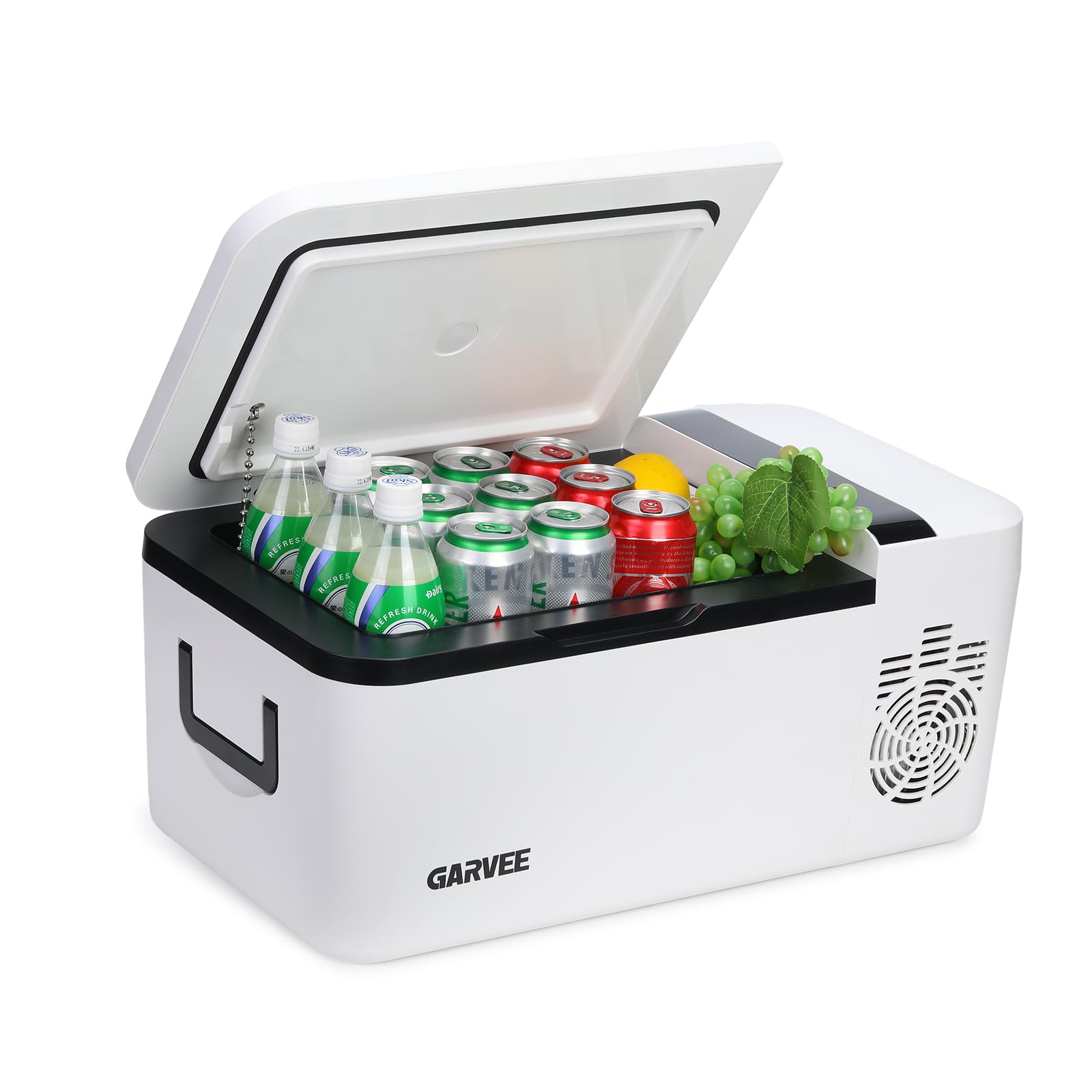

Garvee 15L portable car refrigerator/warmer unit with drinks and fruit on top, set outdoors on a campテーブルを作っています。
Image: Garvee 15L Portable Car Refrigerator/Warmer.

2. 安全情報

ご自身や他人への傷害、または機器の損傷を防ぐために、次の安全上の注意事項を守ってください。

  • 電源が製品ラベルに指定されている要件と一致していることを確認してください。
  • 濡れた手で機器を操作しないでください。
  • 機器を熱源や直射日光から遠ざけてください。
  • 通気口を塞がないでください。ユニット周囲に十分な空気の流れを確保してください。
  • When using in a vehicle, ensure the vehicle's voltage is stable. Unstable voltage can cause malfunctions.
  • After starting the engine, wait approximately 1 minute before connecting the appliance.
  • Avoid sudden acceleration or braking when the unit is connected in a vehicle.
  • Avoid simultaneous use with other high-power car-mounted equipment to prevent overloading the vehicle's electrical system.
  • This appliance uses R134a refrigerant. Do not attempt to repair or modify the refrigeration system yourself. Contact qualified service personnel.
  • Keep out of reach of children. The child lock feature can be activated by pressing the Up そして 下 ボタンを同時に約3秒間押します。

3. パッケージ内容

パッケージにすべてのアイテムが含まれていることを確認します。

  • Garvee 15L Portable Car Refrigerator/Warmer Unit
  • DC Power Cord (for 12V/24V car use)
  • ACアダプター
  • AC Power Cord (for 100V household use)
  • 取扱説明書
Image showing the Garvee 15L portable refrigerator unit, DC power cord, AC adapter, AC power cord, and instruction manual as included set contents.
Image: Included set contents of the Garvee 15L Portable Car Refrigerator/Warmer.

4 製品の特徴

  • All-Season Functionality: Capable of cooling, freezing, and warming. Temperature range from -20°C to 60°C, adjustable in 1°C increments. Automatically switches to warming mode when the set temperature exceeds 35°C.
  • コンパクトな15L容量: Designed for portability while offering significant storage. Can hold approximately 28 x 350ml cans, 14 x 550ml PET bottles, 8 x 750ml PET bottles, or 10kg of meat.
  • 3ウェイ電源互換性: Supports DC 12V/24V (car cigarette lighter), AC 100V (household outlet), and external generator/portable power supply (sold separately).
  • エコモード： Energy-saving mode for efficient operation. MAX mode is available for rapid temperature changes.
  • Battery Monitor Function: Prevents vehicle battery over-discharge by monitoring voltage and automatically controlling power ON/OFF.
  • 低騒音動作: Operates at approximately 45dB, ensuring a quiet environment.
  • 追加機能: Includes integrated drink holders on the lid, a fish measuring scale, and a Type-C output port for charging mobile devices.
Garvee 15L portable refrigerator showing its cooling, freezing, and warming capabilities with a temperature range from -20°C to 60°C.
画像: 上view of the refrigerator's temperature range and modes.
Garvee 15L portable refrigerator placed on a nightstand next to a sleeping person, illustrating its low noise level of 45dB.
Image: Low noise operation at 45dB.
Close-up of the Garvee 15L portable refrigerator's control panel showing child lock function, integrated drink holders, and a fish measuring scale on the lid.
Image: Detail of the control panel, drink holders, and measuring scale.

5. セットアップ

5.1 配置

Place the refrigerator on a flat, stable surface. Ensure there is adequate space around the unit for ventilation (at least 10 cm on all sides). Avoid placing it in direct sunlight or near heat sources.

5.2電源接続

Your Garvee refrigerator supports three power options:

  • AC 100V（家庭用）: Connect the AC power cord to the AC adapter, then plug the adapter into the refrigerator's AC input port and the power cord into a standard household outlet.
  • DC 12V/24V (Vehicle): DC 電源コードを冷蔵庫の DC 入力ポートに接続し、もう一方の端を車のシガレット ライター ソケットに差し込みます。
  • Portable Power Supply/Generator (Sold Separately): Connect the appropriate power cord (AC or DC, depending on the portable power supply) to the refrigerator.
Garvee 15L portable refrigerator showing connections for household AC power, car DC power, and an external portable power supply, along with a Type-C charging port.
Image: Various power connection methods and the Type-C charging port.

6. 操作手順

6.1 電源オン/オフ

Press the power button on the control panel to turn the unit on or off. The digital display will illuminate when powered on.

6.2 温度設定

使用 Up そして 下 arrow buttons to adjust the desired temperature. The temperature can be set between -20°C and 60°C in 1°C increments. The unit will automatically switch between cooling/freezing and warming modes based on the set temperature and ambient conditions. If the set temperature exceeds 35°C, the unit will operate in warming mode.

6.3 モード選択（MAX/ECO）

を押す モード MAXモードとECOモードを切り替えるボタン。

  • マックスモード： Provides rapid cooling or heating. Ideal when quick temperature changes are needed.
  • エコモード： Energy-saving mode for efficient operation. Recommended for prolonged use to conserve power.

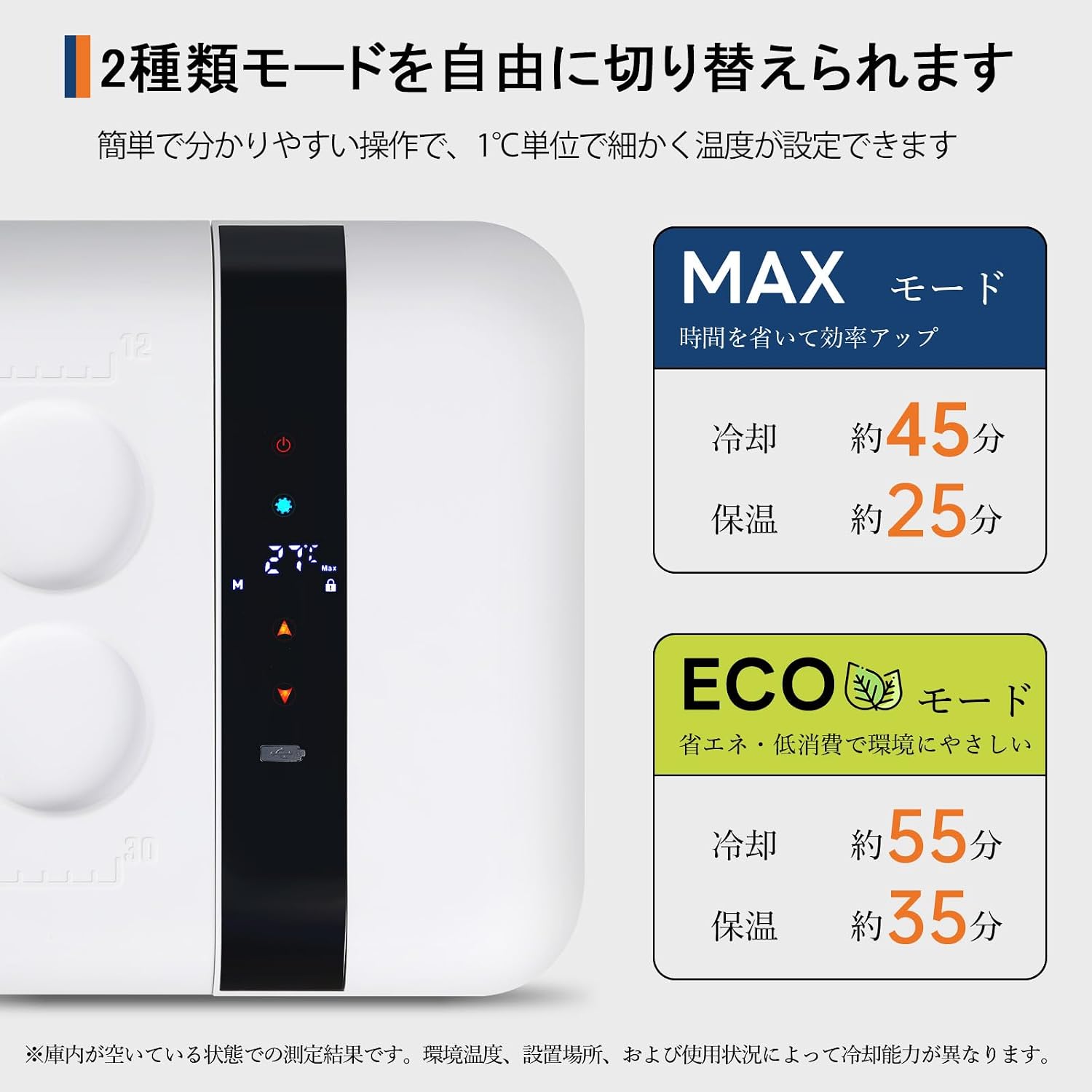

Control panel of the Garvee 15L portable refrigerator showing MAX and ECO modes with approximate cooling and warming times.
Image: MAX and ECO mode settings and their performance.

6.4チャイルドロック機能

To prevent accidental changes to settings or opening by children, activate the child lock. Press the Up そして 下 arrow buttons simultaneously for approximately 3 seconds to engage or disengage the child lock.

6.5 Battery Monitor Function

When connected to a vehicle's DC power, the unit monitors the battery voltage to prevent over-discharge. It will automatically turn off if the voltage drops below a safe level and restart when the voltage recovers. Refer to the table below for voltage thresholds:

巻tageタイプ カットオフVoltage 巻を再起動tage
12V Power Off Voltage 11.1V 12.4V
24V Power Off Voltage 24.3V 25.7V

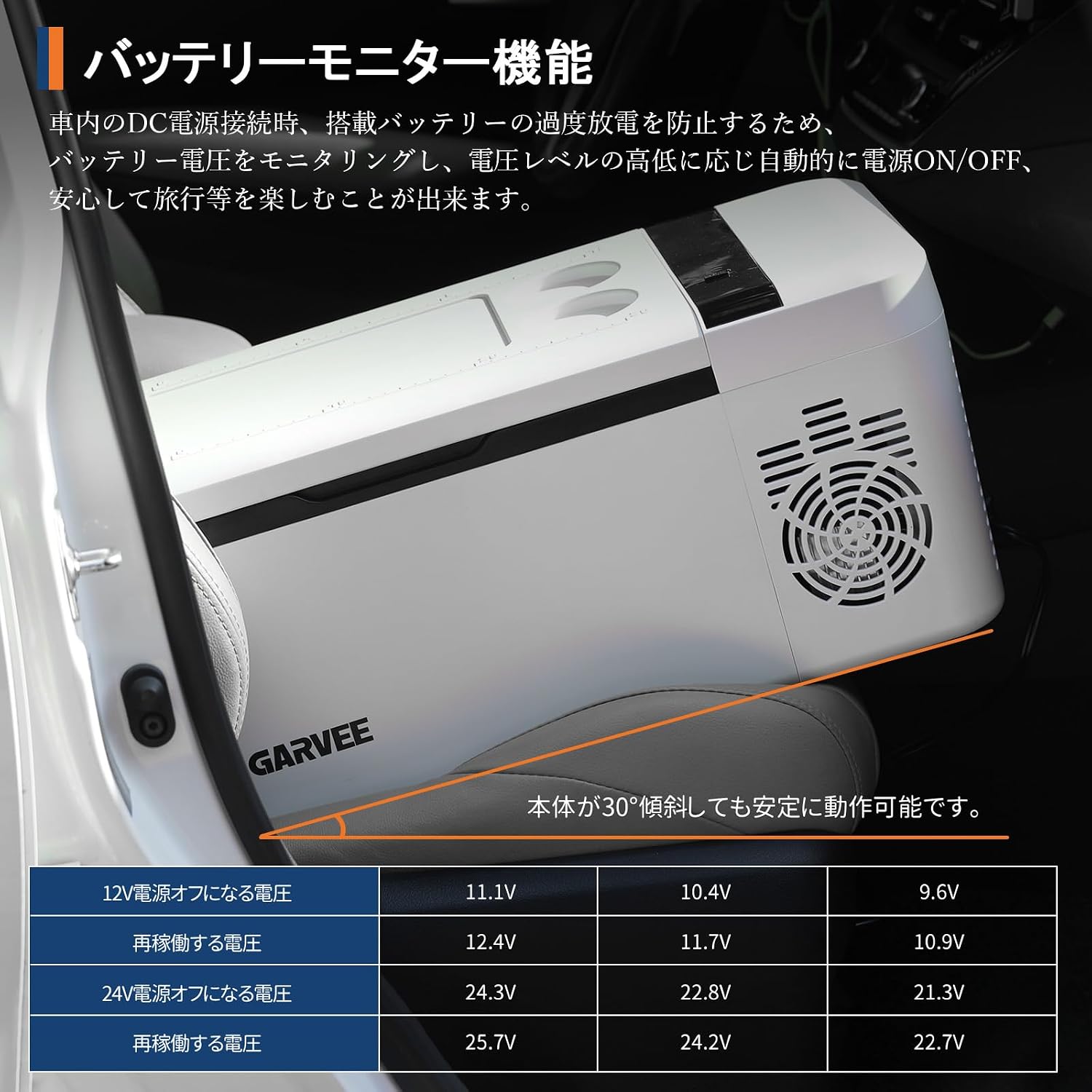

Garvee 15L portable refrigerator inside a car, illustrating the battery monitor function and a table of voltag12V および 24V システムのしきい値。
Image: Battery monitor function and voltage cut-off/restart levels.

7. メンテナンス

7.1 クリーニング

  • 清掃する前に必ずユニットのプラグを抜いてください。
  • 内側と外側の表面を広告で拭きますamp 布と中性洗剤を使用してください。
  • 研磨剤や溶剤は使用しないでください。
  • 再び差し込む前に、ユニットが完全に乾いていることを確認してください。

7.2 ストレージ

When not in use for extended periods, clean the unit thoroughly, leave the lid slightly ajar to prevent odors, and store it in a dry, well-ventilated area.

8。 トラブルシューティング

問題 考えられる原因 解決
ユニットの電源が入りません。 No power supply; faulty power cord; vehicle battery low (DC mode). Check power connection; try a different outlet/socket; check vehicle battery voltage.
冷却・加温が不十分。 Ventilation blocked; ambient temperature too high/low; lid not closed properly; MAX/ECO mode setting. Ensure clear ventilation; move to a cooler/warmer environment; close lid securely; switch to MAX mode if faster cooling/warming is needed.
異常なノイズ。 ユニットが平らな面に設置されていない、ファンが邪魔になっている。 Place on a stable, flat surface; check for obstructions around the fan.
ディスプレイにエラーコードが表示されます。 内部故障です。 より詳細なサービス マニュアルで特定のエラー コードを参照するか、カスタマー サポートにお問い合わせください。

9. 使用シナリオ

The Garvee 15L Portable Car Refrigerator/Warmer is versatile and suitable for various applications:

  • Camping & アウトドア: Keep food and drinks chilled or warm during outdoor adventures.
  • Road Trips & Driving: Maintain desired temperatures for beverages and snacks while traveling.
  • 家庭用: Provides extra cooling or warming capacity for parties or as a personal mini-fridge.
  • 釣り： Keep your catch fresh or your bait cool.
  • Emergency & Power Outages: A reliable solution for temporary food and medicine storage.
Collage of images showing the Garvee 15L portable refrigerator being used in various settings: camping, inside a car trunk, at home, during fishing, and during a power outage.
Image: Diverse usage scenarios for the portable refrigerator/warmer.

10. 仕様

特徴 詳細
モデル CF15E
容量 15リットル
温度範囲 -20°C ～ 60°C
電源入力 DC 12V/24V、AC 100V
定格出力 45W±20％
冷媒 R134a (Fluorine-free)
騒音レベル 約。 45dB
外形寸法（長さ×幅×高さ） 57.5cm×32cm×26cm
内寸（長さ x 幅 x 高さ） 34cm×24cm×18.5cm
重さ 10.5キロ
特集 Digital Temperature Control, ECO Mode, Battery Monitor, Child Lock, Drink Holders, Fish Measuring Scale, Type-C USB Output
Diagram showing the external and internal dimensions of the Garvee 15L portable refrigerator, along with a list of package contents and electrical specifications.
画像: 製品の寸法と主な仕様。

11. 保証とサポート

保証情報やテクニカルサポートについては、製品に付属の保証書をご参照いただくか、Garveeカスタマーサービスまでお問い合わせください。ご購入の証明として、ご購入時のレシートを保管してください。

メーカー: Garvee

原産国: 中国

© 2023 Garvee. 無断複写・転載を禁じます。
