導入
Thank you for choosing the EUREKA ERGONOMIC Height Adjustable Under Desk Keyboard Tray. This manual provides detailed instructions for the assembly, operation, and maintenance of your new keyboard tray. Designed for ergonomic comfort and space-saving efficiency, this 32-inch tray offers height, tilt, and swivel adjustments to optimize your workspace. Please read this manual thoroughly before installation and use to ensure proper function and safety.

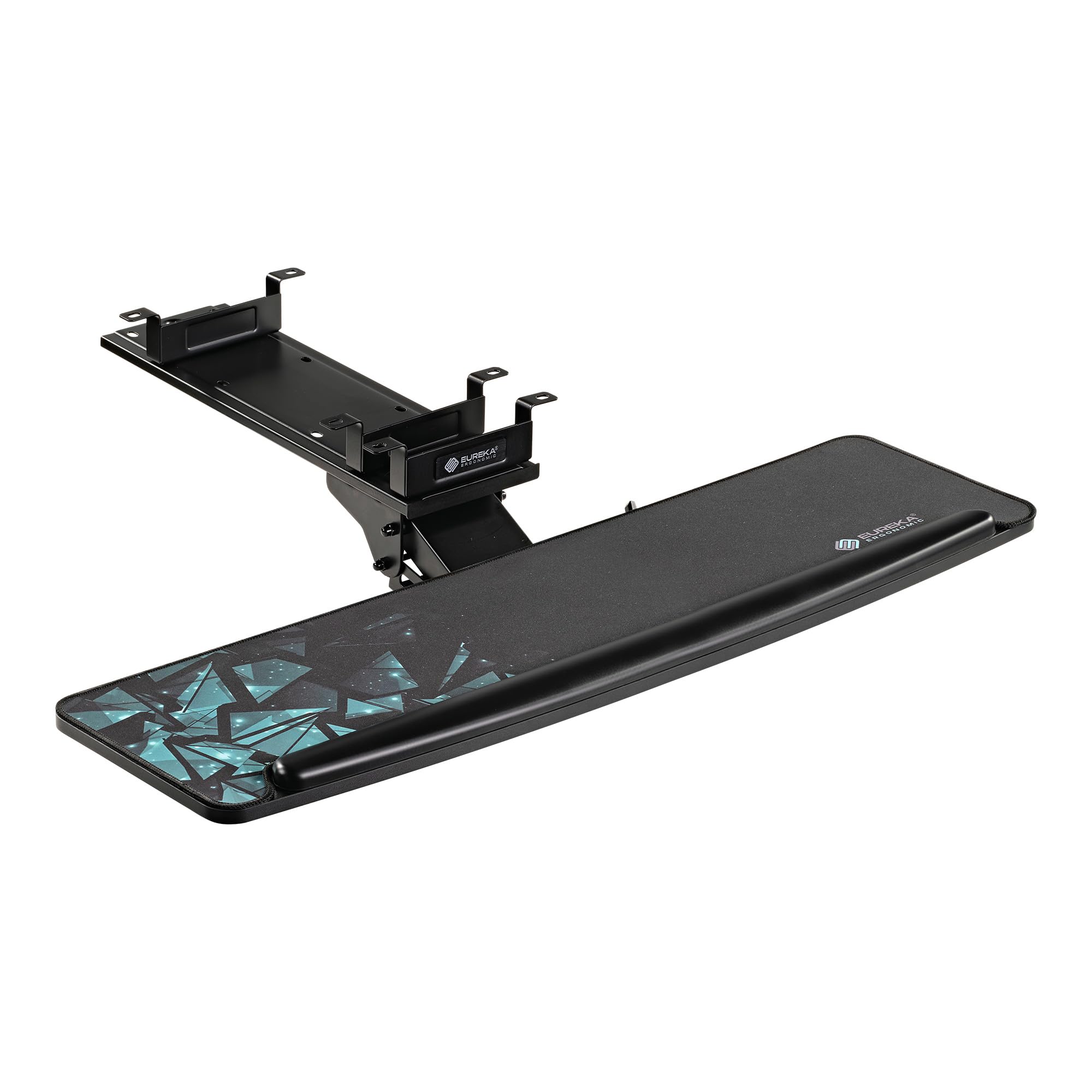

画像： The EUREKA ERGONOMIC 32-inch Height Adjustable Under Desk Keyboard Tray, showcasing its large surface and ergonomic design.
安全情報
- 使用前にすべてのコンポーネントがしっかりと固定されていることを確認してください。
- 最大重量容量 6.6 ポンド (3 kg) を超えないようにしてください。
- 挟まれないように、調整中は可動部分に手を近づけないでください。
- Verify desk compatibility and thickness (at least 0.71 inches) before drilling.
- Avoid placing hot liquids or heavy objects directly on the tray surface.
パッケージ内容
パッケージをチェックして、すべてのアイテムが揃っていることを確認してください。
- Keyboard Tray (32 inches)
- Mounting Brackets and Rail Assembly
- Hardware Kit (screws, washers, etc.)
- マウスパッド
- リストレスト
- ユーザーマニュアル（このドキュメント）
仕様
| 特徴 | 詳細 |
|---|---|
| モデル | 32-inch Height Adjustable Keyboard Tray |
| Dimensions (Tray) | 約32インチ（幅）×10.25インチ（奥行き） |
| 材料 | Carbon Steel, EPA TSCA Title VI and CARB Phrase II Particle Board with Carbon Fiber Finish |
| 重量容量 | 6.6ポンド（3kg） |
| 調整 | Height, 360° Swivel, 43° Tilt |
| 机の最小厚さ | 0.71インチ |
| Mounting Bracket Depth | 17.8インチ |
セットアップとインストール
Before beginning installation, ensure your desk is compatible. The tray is suitable for wood, MDF, or similar materials. Avoid plastic, stone, or glass desks. Your desktop thickness must be at least 0.71 inches. Ensure sufficient legroom and that the tray will not interfere with desk motors if applicable.
ステップ 1: ワークスペースを準備する
Clear the area under your desk. Measure your desk to confirm the 32-inch tray and its 17.8-inch mounting bracket depth will fit without obstruction.
Step 2: Attach Mounting Brackets to Desk
Position the mounting brackets under your desk. The rail assembly can be detached from the arm for easier installation. Use the provided screws to secure the brackets. It is recommended to pre-drill pilot holes to prevent wood splitting. Ensure the brackets are aligned and securely fastened.
画像： This image displays the mounting brackets and the underside of the keyboard tray, indicating key dimensions for installation such as the bracket's depth (17 13/16 inches) and width (10 3/4 inches), and the tray's overall width (31 1/2 inches) and depth (10 1/4 inches).
Step 3: Assemble Tray to Rail Mechanism
Attach the keyboard tray to the rail mechanism using the designated screws. Ensure it is centered and firmly attached.
Step 4: Attach Tray Assembly to Mounted Brackets
Slide the assembled keyboard tray and rail mechanism into the mounted brackets under your desk. Ensure it clicks into place or is secured according to the specific design of the sliding mechanism.
ステップ5: 最終チェック
Gently pull and push the tray to ensure smooth movement. Check all screws for tightness. Confirm the tray is level and stable.
操作手順
高さと傾きの調整
The keyboard tray features a single knob for adjusting both height and tilt. Locate the knob underneath the tray. Loosen the knob to allow for adjustment. Position the tray to your desired height and tilt angle (up to 43° vertically). Once in position, tighten the knob firmly to secure the tray. The tray also allows for limited negative tilt for ergonomic comfort.
スイベル機能
The tray can be rotated 360° horizontally. Simply apply gentle force to swivel the tray to your preferred angle. This allows for flexible positioning and easy access.
Sliding In and Out
To slide the tray forward or backward, gently lift the tray slightly to disengage the gravity self-locking mechanism, then push or pull. This mechanism prevents accidental movement, ensuring stability during use.
Using the Wrist Rest and Mouse Pad
The integrated lip acts as a wrist rest and prevents your keyboard from sliding off, especially when the tray is tilted. The smooth carbon fiber texture provides an ideal surface for your mouse.
メンテナンス
- クリーニング： トレイの表面を柔らかくて乾いた布で拭いてください。amp 布で拭いてください。研磨剤入りの洗剤や刺激の強い化学薬品は使用しないでください。
- 検査: すべてのネジと接続部がしっかりと締まっているか定期的に点検してください。必要に応じて締め直してください。
- 潤滑: The sliding mechanism is designed for smooth operation. If movement becomes stiff, a small amount of silicone-based lubricant can be applied to the rails, avoiding contact with the tray surface.
トラブルシューティング
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| Tray is difficult to slide in/out. | Gravity self-locking mechanism engaged; rails are dry or dirty. | Gently lift the tray before pushing/pulling. Clean rails and apply silicone lubricant if needed. |
| Tray feels unstable or wobbly. | Mounting screws are loose; tray not properly secured to rail. | Check and tighten all mounting screws under the desk and those connecting the tray to the mechanism. |
| Cannot adjust height or tilt. | 調整ノブがきつすぎます。 | Loosen the adjustment knob sufficiently before attempting to change position. |
保証とサポート
EUREKA ERGONOMIC products are designed for quality and durability. For any questions, concerns, or assistance with your keyboard tray, please contact our customer support team. Our local customer support team is always there to offer timely help.
Please refer to your purchase documentation or the EUREKA ERGONOMIC official web具体的な保証の詳細および連絡先情報については、サイトをご覧ください。
