Generic BRS-12A Multi-Fuel Campストーブ

導入

This manual provides essential instructions for the safe and efficient use of your Generic BRS-12A Multi-Fuel Camping Stove. Please read all instructions carefully before operating the stove to ensure proper function and safety.

Image: The BRS-12A Multi-Fuel Camping Stove, fully assembled and ready for use. This image provides an overview of the stove's compact design.

設定

1. 開梱： Carefully remove all components from the packaging. Ensure all parts are present.
2. ポジショニング: Place the stove on a stable, level, non-combustible surface. Ensure adequate ventilation.
3. 給油：
   • Ensure the valve is shut and the oil cap is screwed tight before pumping.
   • Pump gas into the fuel tank using the lever until pressure is felt. Do not over-pressurize.
   • The stove must be level while filling to prevent oil leakage.
   • Use clean gasoline 93# and above for optimal performance.

Image: A visual guide illustrating the steps for fueling the stove, including tightening the fuel cap and pumping the fuel.

Image: The stove's wide, stable base and serrated anti-slip design, which prevents cookware from sliding during use. This ensures stability during cooking.

Operation (Lighting Instructions)

1. 点火準備: Shut the valve and ensure the oil cap is tight. Pump gas into the tank until pressure is felt, but do not over-pressurize.
2. Initial Gas Release: Turn the valve lever counter-clockwise slightly to emit a small amount of gas, then shut it again.
3. 予熱: Use an open flame (e.g., a lighter or match) to ignite the burner for preheating. Allow approximately 30 seconds for gasoline fuel.
4. 点火： Once a 'whirring' sound is heard, steadily open the valve to achieve the desired flame intensity.
5. シャットダウン: After use, close the valve. When the flame becomes small enough, gently blow it out to keep the stove clean.

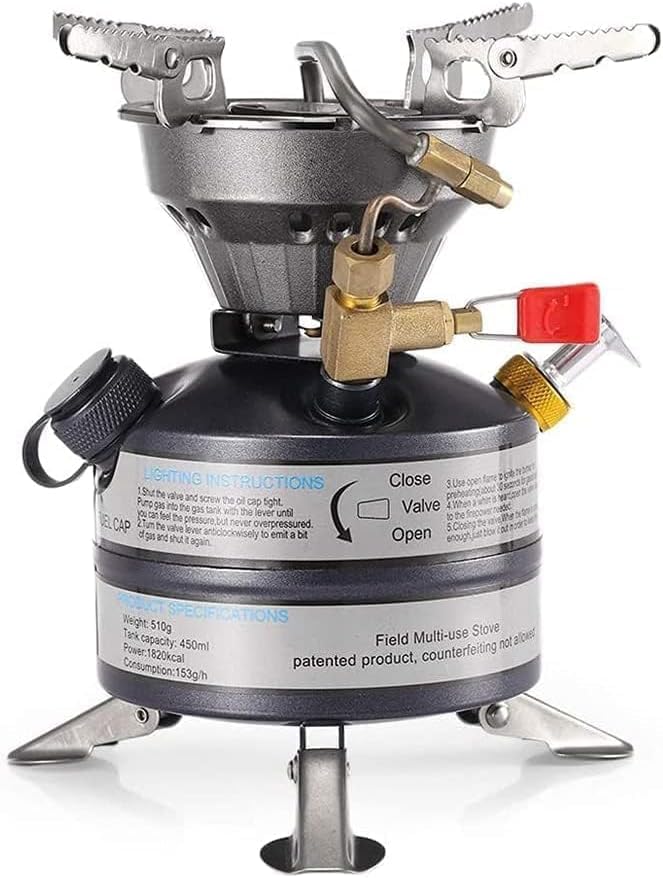

画像: クローズアップ view of the stove's fuel tank, showing the lighting instructions printed directly on the unit for quick reference.

メンテナンス

• クリーニング： After each use, ensure the stove is cool. When shutting down, allow the flame to diminish before blowing it out to minimize soot and keep the burner clean.
• ストレージ： Allow the stove to cool completely before storing. The foldable stove rack allows for compact storage.
• 含まれるツール: Use the provided funnel for clean fueling and the wrench for any necessary adjustments or cleaning of components.

Image: An illustration of the maintenance tools included with the stove, such as a funnel, wrench, and oil bottle, designed to assist with upkeep.

安全上の警告

• 燃料補給の安全性: Fill the stove outdoors, more than 5 meters away from any open flame. Never loosen the oil cap while the stove body is hot or still burning.
• 漏れ検出: If any oil leak is detected, immediately stop using the stove.
• 換気： Never use the stove in an unventilated or enclosed area.
• Heat and Combustibles: Keep the stove away from anything combustible, including fuel tanks and oil bottles. Avoid using in direct sunlight or other high-temperature environments.
• Windproofer Use: If using a windproofer, ensure the flame is at least 25cm away from it to prevent the fuel tank from overheating.
• 子供たち： お子様の手の届かない場所に保管してください。
• 使用目的: Never use this product as a space heater.
• 給油： Only add fuel or disconnect components when the flame is completely out and the stove has cooled down.

Image: A diagram highlighting the stove's safety features, including an automatic overpressure shutoff and an explosion-proof design for enhanced user safety.

仕様

サポート

For any questions, concerns, or assistance with your Generic BRS-12A Multi-Fuel Camping Stove, please refer to the seller's contact information or customer service channels where you purchased the product. We are committed to providing reliable after-sales support.
