Ridstar Q20 Electric Fat Tire Bike User Manual

1. 重要な安全情報

Before operating your Ridstar Q20 Electric Fat Tire Bike, please read this manual thoroughly. Failure to follow instructions and safety guidelines may result in serious injury or property damage. Always wear a helmet and appropriate safety gear. Familiarize yourself with local laws and regulations regarding electric bicycles.

• Always perform a pre-ride inspection: check brakes, tire pressure, battery charge, and all connections.
• アルコールや薬物の影響下で自転車を運転しないでください。
• 大雨、雪、氷などの悪天候での乗車は避けてください。
• Ensure the front tires are securely installed. Self-modification may pose safety risks. Contact support if needed.

2.製品オーバーview

The Ridstar Q20 is a versatile electric fat tire bike designed for adults, offering robust performance across various terrains including mountains, snow, sand, and urban roads. It combines a powerful motor with a long-range battery and a comprehensive suspension system for a comfortable and exhilarating riding experience.

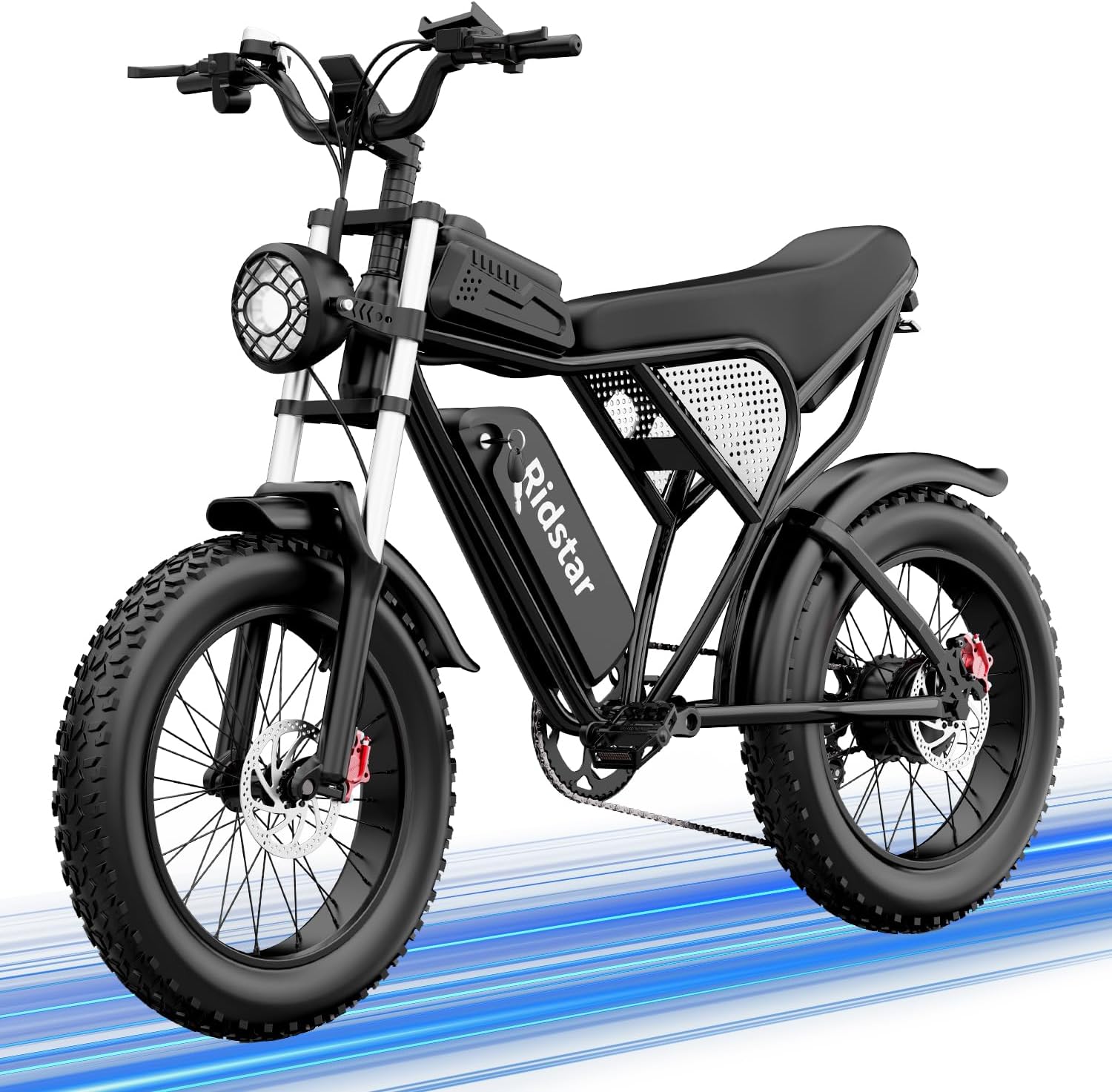

Figure 2.1: The Ridstar Q20 Electric Fat Tire Bike, showcasin頑丈なデザインと太いタイヤが特徴です。

主な特徴:

• 強力なモーター: 1500W brushless hub motor, capable of speeds up to 33 mph and climbing gradients up to 35 degrees.
• 長距離バッテリー: Detachable 20AH UL certified battery, providing up to 35 miles in electric-only mode and 80 miles in pedal-assist mode. Charges in 4-6 hours and has an IP54 waterproof rating.
• 高度なサスペンション： Full 5-level suspension system, including strong front fork shock absorbers and a seat shock absorber for a smooth ride.
• 信頼性の高いブレーキ： Hydraulic dual disc brakes with EABS system, reducing braking distance by 50% in wet conditions.
• 全地形タイヤ: Puncture-resistant 20"x4" fat tires designed for stability and traction on diverse surfaces.
• 複数のライディングモード: Pure Electric Mode, Pedal Assist Mode, and Normal Biking Mode for customizable riding.
• 便利な機能: Integrated 7.2-inch phone holder with USB charging port and a spacious storage box.
• 可視性: Equipped with a bright ebike headlight and taillight for enhanced safety during night rides.

3. セットアップと組み立て

The Ridstar Q20 electric bike is delivered 90% pre-assembled. The remaining assembly steps are straightforward and can be completed using the included tools and instructional videos.

組み立て手順:

1. Unpack the bicycle and all components carefully.
2. Attach the front wheel, ensuring it is securely fastened.
3. Install the handlebars and adjust them to a comfortable riding position.
4. ペダルを取り付けます。ペダルには通常、左用は「L」、右用は「R」と表示されています。
5. Install the seat and adjust its height.
6. Mount the headlight and taillight if not already installed.
7. Connect the battery and ensure it is fully charged before the first ride.
8. Perform a thorough safety check of all bolts, nuts, and quick releases.

For detailed visual guidance, refer to the official instructional videos provided by Ridstar.

4. 操作手順

4.1 ライディングモード

The Ridstar Q20 offers three distinct riding modes:

• 純電気モード: Engages the motor fully, allowing you to ride without pedaling. Ideal for quick commutes or when you need a break from pedaling.
• ペダルアシストモード（PAS）： Provides motor assistance as you pedal. This mode extends battery life and is suitable for longer rides, climbing hills, or riding against wind. The level of assistance can usually be adjusted via the display.
• Normal Biking Mode: The motor is disengaged, and the bike operates like a traditional bicycle, relying solely on pedal power.

4.2 ディスプレイとコントロール

図4.1：以上view of the Ridstar Q20's features, including the LCD display, phone holder, and lighting.

The 3.5-inch LCD display provides real-time information:

• 現在の速度
• バッテリーレベル
• ライディングモード（PASレベル）
• 走行距離計/トリップ距離

Controls for power, mode selection, and light activation are typically located on the handlebars. Refer to the detailed manual for specific button functions.

4.3 Gears and Braking

The bike is equipped with a Shimano 7-speed gear system. Use the twist grip shifter to change gears, adapting to terrain and desired effort. The hydraulic dual disc brakes provide strong and reliable stopping power. Always apply both brakes simultaneously for optimal control.

4.4 バッテリーの充電とお手入れ

To charge the detachable 20AH battery, connect the charger to the battery port and a standard power outlet. A full charge typically takes 4-6 hours. Avoid overcharging and store the battery in a cool, dry place. The battery has an IP54 waterproof rating, but avoid submerging it in water.

4.5 Lights and Accessories

Activate the bright ebike headlight and taillight for improved visibility, especially during low-light conditions or night riding. The integrated 7.2-inch phone holder includes a USB charging port, allowing you to power your devices on the go. A storage box is also available for small items.

5. メンテナンス

Regular maintenance ensures the longevity and safe operation of your Ridstar Q20 electric bike.

• タイヤ: 毎回乗る前にタイヤの空気圧を確認してください。最適なパフォーマンスとパンク防止のため、推奨空気圧を維持してください。
• ブレーキ： ブレーキパッドの摩耗を定期的に点検し、ブレーキレバーの反応を確認してください。必要に応じて調整または交換してください。
• 鎖： スムーズなギアチェンジを実現し、錆を防ぐために、チェーンを清潔に保ち、潤滑してください。
• バッテリー： Store the battery in a moderate temperature range and charge it regularly, even if not in use, to maintain its health.
• フレームとコンポーネント: Periodically check all bolts, nuts, and connections for tightness. Clean the bike regularly with a damp cloth and mild detergent, avoiding direct water spray on electrical components.

6。 トラブルシューティング

If you encounter issues with your Ridstar Q20, consider the following common troubleshooting steps:

• バイクの電源が入らない: Check if the battery is properly seated and charged. Ensure all electrical connections are secure.
• モーターがアシストしない: Verify that Pedal Assist Mode is active and the battery has sufficient charge. Check for any error codes on the LCD display.
• ブレーキが弱いように感じる: Inspect brake pads for wear. Ensure brake cables (if mechanical) are taut or hydraulic fluid levels are adequate (if hydraulic).
• 異常なノイズ: Identify the source of the noise. It could be loose components, a dry chain, or issues with the motor or wheels.

For persistent issues or complex repairs, contact Ridstar customer support.

7. 仕様

Figure 7.1: Detailed dimensions and rider suitability for the Ridstar Q20 Electric Fat Tire Bike.

8. 保証とサポート

The Ridstar Q20 Electric Fat Tire Bike is backed by a 1-year manufacturer warranty covering ebike components. Additionally, Ridstar provides lifetime technical support to assist with any questions or issues you may encounter.

For warranty claims, technical assistance, or any other inquiries, please contact Ridstar customer support through the official channels provided at the time of purchase or on the Ridstar webサイト。
