1. はじめに
This manual provides essential information for the safe and effective use of your SSCYHT 14.4V 3000mAh Li-ion Battery. This replacement battery is designed for use with various vacuum cleaners and motors requiring a 14.4V power source. Please read this manual thoroughly before installation and operation.
2. 安全情報
Observe the following safety precautions to prevent injury or damage to the battery and connected devices:
- 分解しないでください: Attempting to disassemble the battery can lead to electric shock, fire, or explosion.
- 火中に廃棄しないでください: Exposure to fire can cause the battery to explode.
- 60°C (140°F) を超える温度で保管しないでください。 高温になるとバッテリーの性能が低下し、安全上のリスクが生じる可能性があります。
- バッテリーを水や湿気から遠ざけてください。
- Use only the specified charger (16.8V 2A) for this battery.
- お子様の手の届かない場所に保管してください。
Image 1: SSCYHT 14.4V Li-ion Battery showing product label with safety warnings.
3.製品オーバーview
The SSCYHT 14.4V Li-ion Battery is designed for reliable power delivery to compatible devices, such as vacuum cleaners and motors ranging from 30W to 200W. It features a robust construction and integrated protection mechanisms.
主な特徴:
- 巻tag容量: 14.4V定格容量tage with 3000mAh rated capacity.
- 内蔵BMS: Equipped with a 10A Battery Management System (BMS) for protection against over-charge, over-current, over-discharge, and temperature fluctuations.
- 耐久性Casing: The shell is constructed from sturdy PC + ABS materials for enhanced protection.
- 充電可能: Designed for multiple charge cycles, offering long-term use.
- Clasp Design: Features a battery clasp for secure installation in compatible devices.

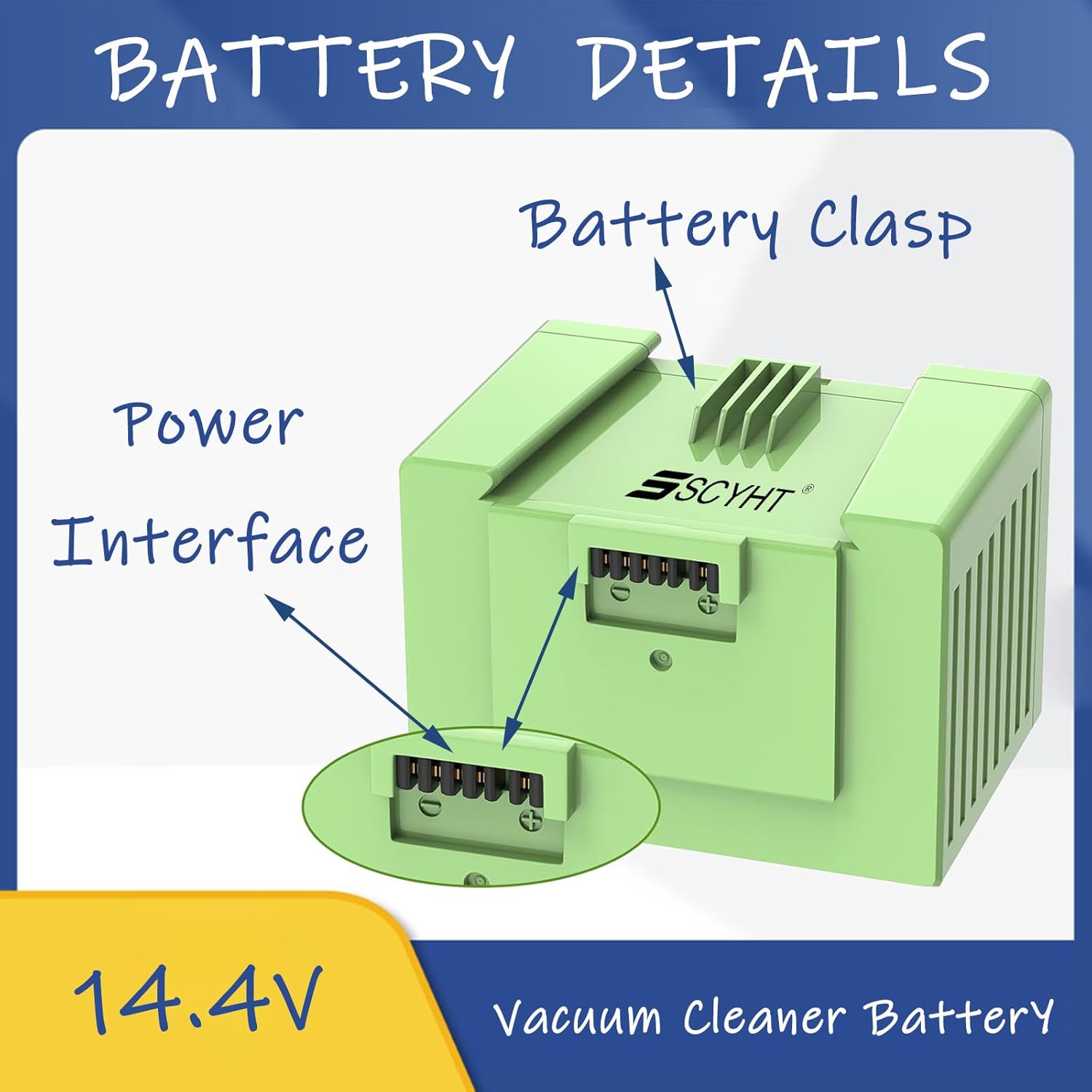

画像2: 詳細 view of the battery, highlighting the power interface and battery clasp.
Image 3: The battery's exterior, illustrating the durable ABS+PC protective shell.
Image 4: Diagram showing the battery's core protection functions, including over-charge, over-current, over-discharge, and temperature protection.
4. セットアップとインストール
This battery is designed for easy installation into compatible devices, such as vacuum cleaners. Ensure the device is powered off before attempting installation.
- デバイスのバッテリー コンパートメントを見つけます。
- Align the battery with the compartment, ensuring the clasp and power interface match the device's connectors.
- Gently push the battery into place until it clicks securely, indicating the clasp has engaged.
- バッテリーがしっかりと固定され、ぐらつかないことを確認します。
Image 5: Visual guide demonstrating the installation process of the battery into a compatible device.
5. 操作
バッテリーの充電:
To charge the SSCYHT 14.4V Li-ion Battery, use a 16.8V 2A充電器. Charging typically takes 3-4 hours for a full charge. Always ensure the charger is compatible and in good working condition.
放電中:
The battery supports a continuous discharge current of up to 10A, managed by its internal BMS. It is suitable for motors with power requirements between 30W and 200W.
6. メンテナンス
Proper maintenance extends the lifespan and performance of your battery.
- ストレージ： Store the battery in a cool, dry place with a temperature range of 0°C to 50°C (32°F to 122°F). Avoid extreme temperatures.
- 通常充電: If storing for extended periods, charge the battery to approximately 50% capacity every 3-6 months to prevent deep discharge.
- クリーニング： Keep the battery terminals clean and free from dust or debris. Use a dry cloth for cleaning.
- サイクル寿命: The battery is designed for approximately 500-600 charge cycles. Performance may gradually decrease after this period.
7。 トラブルシューティング
バッテリーに問題が発生した場合は、次の点を考慮してください。
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| バッテリーが充電されない | Incorrect charger, loose connection, charger malfunction, battery fault. | Ensure you are using a 16.8V 2A charger. Check all connections. Test the charger with another device if possible. |
| 短い稼働時間 | Battery not fully charged, aged battery, high power consumption by device. | Ensure battery is fully charged (3-4 hours). If battery is old, its capacity may have diminished. |
| バッテリーがデバイスに適合しない | Incompatible device model. | Verify device compatibility with the battery dimensions and voltag要件。 |
If problems persist, please contact SSCYHT customer support for further assistance.
8. 仕様
| 特徴 | 詳細 |
|---|---|
| ブランド | SSCYHT |
| モデル番号 | 66449578-14.4V3000MAH |
| 電池のタイプ | Liイオン（リチウムイオン） |
| 定格巻tage | 14.4V |
| 定格容量 | 3000mAh |
| 連続放電電流 | 10A（BMS） |
| 推奨充電器 | 16.8V 2A |
| 充電時間 | 3～4時間 |
| Compatible Motor Wattage | 30W～200W |
| 寸法（長さ×幅×高さ） | 73 x 46 x 51mm（2.87 x 1.81 x 2.01 inches） |
| 重さ | Approximately 300-500g (1.06 ounces for this specific variant) |
| シェル素材 | PC + ABS |
| サイクル寿命 | 500-600回 |
| 保管温度 | 0°C - 50°C (32°F - 122°F) |

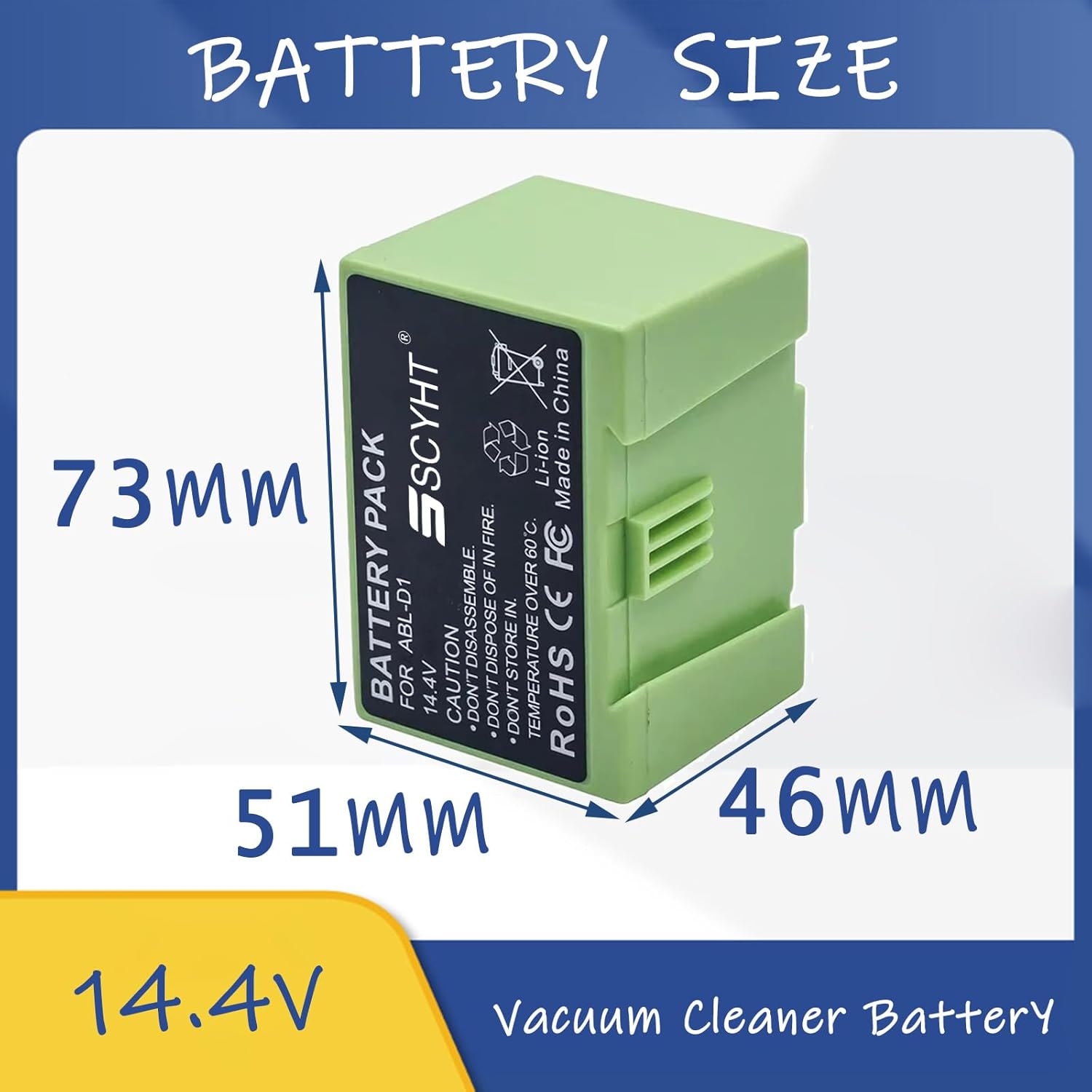

Image 6: Battery dimensions (73mm length, 46mm width, 51mm height).
9. 保証とサポート
SSCYHT maintains a strict quality management policy, ensuring that every lithium battery undergoes QC appearance and function tests before shipment. While specific warranty terms are not detailed in this manual, please retain your proof of purchase.
For product support, technical assistance, or warranty inquiries, please contact your retailer or the manufacturer directly through their official channels.
図7: 例ample of SSCYHT Lithium Ion Battery packaging.
