KECOOLKE 2.2 L Sonic Cleaner User Manual

1. はじめに

Thank you for choosing the KECOOLKE 2.2 L Sonic Cleaner. This professional-grade ultrasonic cleaner is designed to provide thorough and efficient cleaning for a wide range of items, including jewelry, tools, glasses, and more. Utilizing advanced ultrasonic technology with heating and precise time settings, it effectively removes dirt, grime, and contaminants from hard-to-reach areas. Please read this manual carefully before operation to ensure safe and optimal performance of your device.

Figure 1.1: KECOOOLKE 2.2 L Sonic Cleaner with its main components.

2. 安全情報

Please read and understand all safety warnings and instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not power on the device before filling the tank with water.
• Do not keep the device heated after emptying the tank.
• Please power off the device and wait for the water to return to room temperature before draining the water from the tank.
• ユニットが安定した、水平で乾燥した表面に設置されていることを常に確認してください。
• 本体を水などの液体に浸さないでください。
• お子様の手の届かない場所に保管してください。
• ユニットをご自身で分解したり修理したりしないでください。資格のあるサービス担当者にご連絡ください。
• Use only appropriate cleaning solutions. Avoid flammable or corrosive liquids.
• 使用しないときや掃除をする前に、電源コンセントからユニットのプラグを抜いてください。

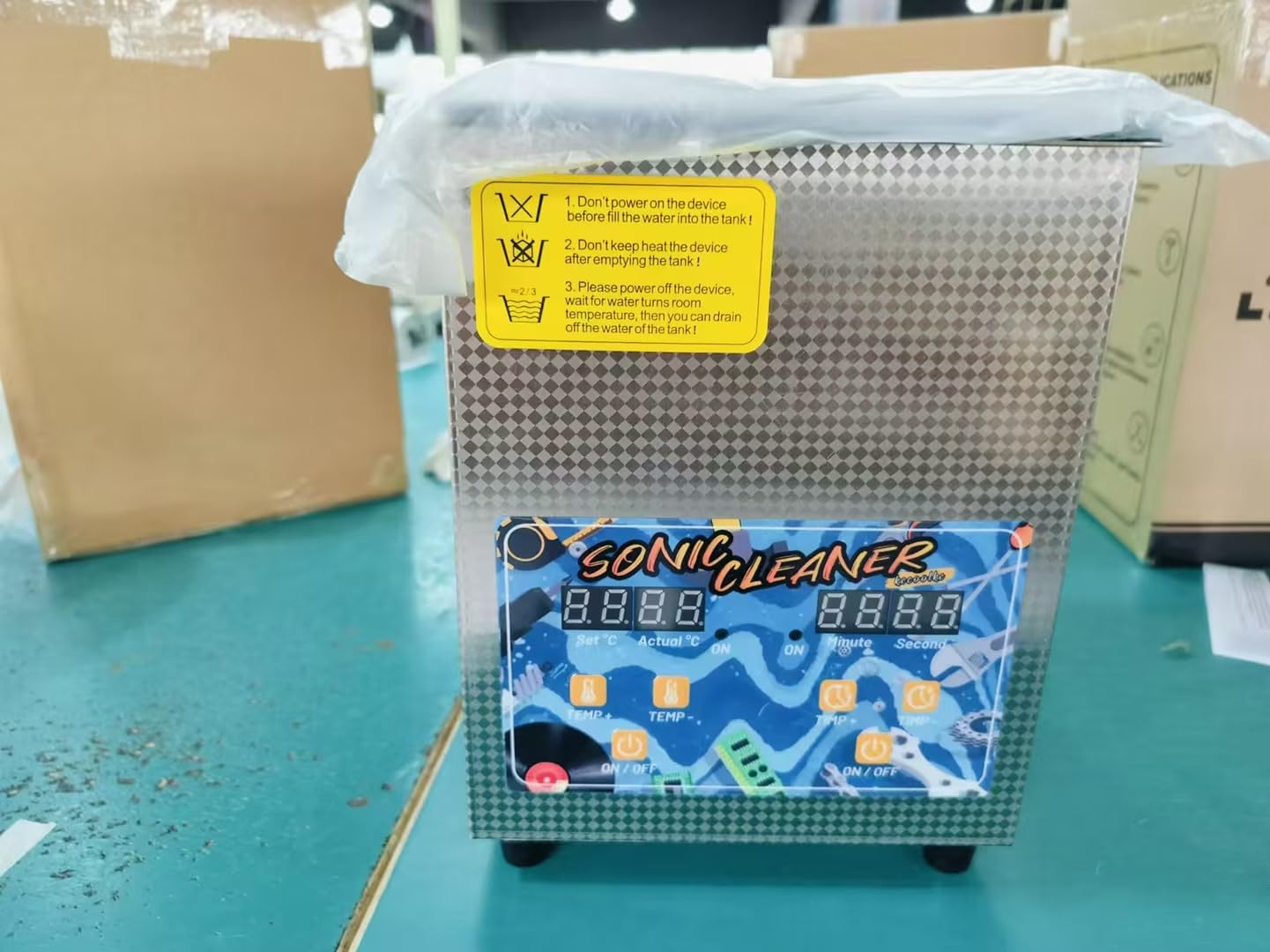

Figure 2.1: Important warning labels on the device.

3.製品オーバーview

3.1 主な特徴

• 高度なトランスデューサー技術: Industrial powerful transducer for fast decontamination with 40kHz vibration frequency and 42,000 times vibration per second, ensuring high energy conversion efficiency.
• 大容量: 2.2 L stainless steel tank (304 stainless steel for inner basket and tank).
• 加熱機能: Adjustable temperature from 68°F to 140°F (20°C to 60°C) for enhanced cleaning.
• デジタルコントロールパネル： Intuitive interface for setting temperature and timer (1 to 30 minutes).
• 耐久性のある構造: Non-skid rubber feet and two built-in fuses for protection against power surges.
• 幅広い用途: Suitable for jewelry, utensils, children's toys, glasses, tools, and more.

3.2 コンポーネント

• メイン超音波洗浄機ユニット
• Stainless Steel Tank (Integrated)
• 蓋
• クリーニングバスケット
• 電源コード

Figure 3.1: Premium Quality construction details, including SUS 304 liner and protection layers.

Figure 3.2: Well-designed details of the unit, including the portable handle, heat dissipation holes, double fuses, and rubber feet.

Figure 3.3: Included accessories: a cleaning basket to reduce friction and a jewelry cleaning ball for small items.

4. セットアップ

1. 開梱： Carefully remove the ultrasonic cleaner and all accessories from the packaging. Retain packaging for future storage or transport.
2. 配置: Place the unit on a firm, level, and dry surface, away from heat sources and direct sunlight. Ensure there is adequate ventilation around the unit.
3. 充填タンク： Open the lid and fill the stainless steel tank with water. The water level should be between the 'MIN' and 'MAX' indicators inside the tank. For optimal cleaning, use distilled or deionized water.
4. 洗浄液を追加する（オプション）: If desired, add a small amount of appropriate non-flammable, non-corrosive cleaning solution to the water. Follow the cleaning solution manufacturer's instructions for dilution ratios.
5. 接続電源： 電源コードをアース付きコンセントに差し込みます。デジタルディスプレイが点灯します。

5. 操作

1. アイテムを配置する: Place the items to be cleaned into the cleaning basket. Ensure items are fully submerged in the water/solution but do not overcrowd the basket. Lower the basket into the tank.
2. 温度設定（オプション）: Use the 'TEMP+' and 'TEMP-' buttons on the control panel to set the desired water temperature (between 68°F and 140°F / 20°C and 60°C). The unit will begin heating to the set temperature.
3. タイマーの設定： Use the 'TIMP+' and 'TIMP-' buttons to set the desired cleaning time (from 1 to 30 minutes).
4. クリーニングを開始します: Press the 'ON/OFF' button (for ultrasonic function) to start the cleaning cycle. The ultrasonic cavitation will begin, and the timer will count down.
5. 進捗状況を監視する: The digital display will show the remaining time and actual temperature. You may observe small bubbles and a gentle buzzing sound, which is normal during ultrasonic operation.
6. サイクルの終了: Once the set time has elapsed, the unit will automatically stop the ultrasonic cleaning.
7. アイテムを削除: Carefully lift the cleaning basket out of the tank. Rinse the cleaned items under clean running water to remove any loosened debris or cleaning solution residue.
8. 電源を切る： Press the 'ON/OFF' button to turn off the unit if it's still running, then unplug the power cord.

5.1 Cleaning Effectiveness

The ultrasonic cleaner works by generating high-frequency sound waves that create microscopic bubbles in the liquid. These bubbles rapidly collapse (cavitation), creating tiny vacuum pockets that dislodge dirt and contaminants from the surface of the items. This process is highly effective for cleaning intricate items with crevices and hard-to-reach areas.

Figure 5.1: Illustration of advanced transducer technology and cavitation process.

図5.2：例amples of items before and after ultrasonic cleaning, demonstrating effective dirt removal.

Figure 5.3: Multiple scenes and applications for the sonic cleaner, including jewelry, lab equipment, circuit boards, dental devices, and more.

6. メンテナンス

Regular maintenance ensures the longevity and optimal performance of your KECOOLKE Sonic Cleaner.

1. タンクを空にして洗浄する: After each use, especially if using cleaning solutions, unplug the unit and allow the water to cool to room temperature. Carefully pour out the dirty water. Wipe the inside of the stainless steel tank with a soft cloth. Do not use abrasive cleaners or scourers.
2. 外装清掃: 本体の外側を柔らかい布で拭いてください。amp cloth. Do not use harsh chemicals or immerse the unit.
3. ストレージ： 使用しないときは、涼しく乾燥した場所に保管してください。保管する前に、タンクが完全に乾いていることを確認してください。

7。 トラブルシューティング

8. 仕様

9. 保証とサポート

KECOOLKE provides intimate customer service for life. If you have any questions or problems regarding your sonic cleaner, please do not hesitate to contact us. We are committed to providing you with the best solution within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official KECOOLKE store on Amazon: KECOOLKE Store.
