導入
This manual provides essential information for the safe assembly, operation, and maintenance of your Generico Kangqiling Retractable Freestanding Awning. Please read these instructions carefully before installation and use, and retain them for future reference.
安全に関する注意事項
- 組み立て前に、すべての部品が揃っていて損傷がないことを確認してください。部品が不足または損傷している場合は、組み立てを続行しないでください。
- 組み立てには少なくとも大人 2 人が必要です。
- Always use appropriate tools and safety equipment during assembly.
- Do not use the awning in strong winds, heavy rain, or snow. Retract the awning immediately under such weather conditions to prevent damage.
- Regularly inspect the awning for wear and tear, especially the fabric, frame, and operating mechanism.
- 作動中は子供やペットをオーニングに近づけないでください。
- Do not hang objects from the awning frame.
パッケージ内容
パッケージに次のすべてのコンポーネントが含まれていることを確認します。
- Awning fabric (100% polyester with PU coating)
- Aluminum frame components (powder-coated)
- Support pole(s)
- ベースプレート
- 手動操作用クランクハンドル
- 組み立て用ハードウェア（ボルト、ナット、ワッシャーなど）
- 取扱説明書（本書）
セットアップと組み立て
Assembly is required for this freestanding awning. Follow these steps carefully:
- コンポーネントを解凍します: すべての部品をパッケージから慎重に取り出し、清潔で平らな場所に広げてください。パッケージの内容物リストと照らし合わせてご確認ください。
- メインフレームを組み立てる: Connect the horizontal and vertical aluminum frame sections according to the diagrams. Ensure all connections are secure.
- Attach the Awning Fabric: Carefully slide the awning fabric into the designated channels on the main frame. Ensure the fabric is evenly distributed and taut.
- Install Support Pole(s): Attach the support pole(s) to the main frame and secure them to the base plate(s). The robust base can be rotated 360 degrees for optimal positioning.
- Mount the Crank Mechanism: Secure the manual crank mechanism to the designated point on the frame.
- 最終チェック: Before first use, ensure all bolts and fasteners are tightened. Verify that the awning extends and retracts smoothly.
画像: 詳細 view of the awning's frame and fabric connection, illustrating the robust construction.
Image: The awning's base with a '360°' icon, indicating its ability to rotate for flexible positioning.
操作手順
Your awning is designed for manual operation, offering flexibility in shade coverage.
- オーニングの延長： Insert the crank handle into the designated loop or hook on the awning mechanism. Turn the handle clockwise to extend the awning fabric. Continue turning until the desired extension is reached. Do not over-extend.
- オーニングの収納： To retract the awning, turn the crank handle counter-clockwise. Ensure the fabric retracts smoothly and completely into its housing.
- 角度と高さの調整: The awning's angle and height can be adjusted to meet specific shading needs. Refer to the frame adjustment points and secure them firmly after adjustment.

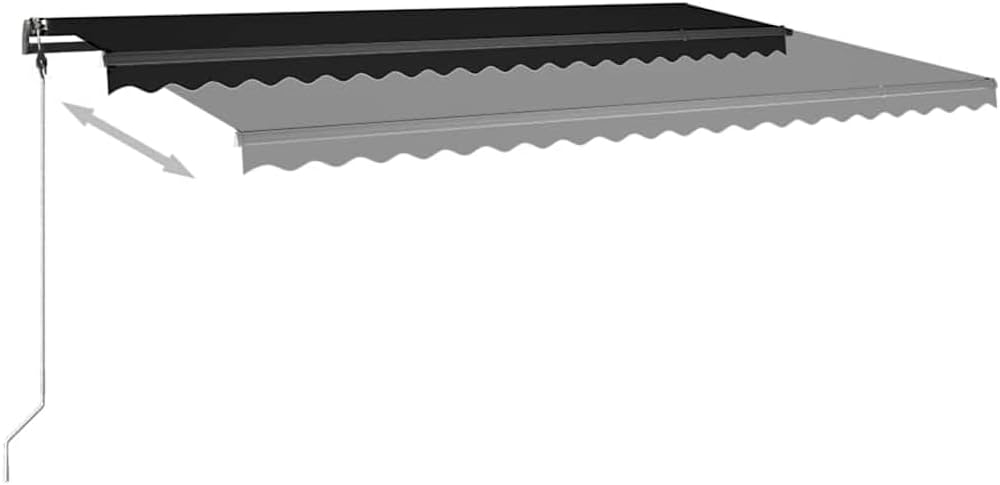

Image: An illustration demonstrating the manual extension and retraction of the awning, with a double-headed arrow indicating the range of motion.

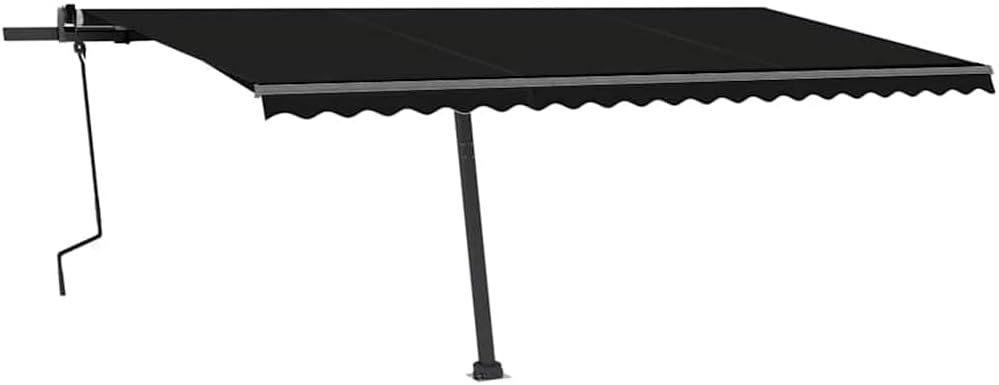

Image: The awning fully extended, showcasing its freestanding design and anthracite fabric.
メンテナンス
Proper maintenance will prolong the life and appearance of your awning.
- 布地のクリーニング: Clean the awning fabric regularly with mild soap and water. Use a soft brush or sponge. Rinse thoroughly and allow to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
- フレームのクリーニング: アルミフレームを広告で拭くamp 汚れやほこりを取り除く布。
- 潤滑: Periodically lubricate moving parts of the retraction mechanism with a silicone-based spray to ensure smooth operation.
- 検査： Regularly check all bolts, screws, and connections for tightness. Tighten if necessary. Inspect the fabric for any tears or damage.
- 冬の保管： In areas with harsh winters, it is recommended to retract the awning completely and, if possible, cover it or store it indoors to protect it from extreme weather conditions.
トラブルシューティング
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| オーニングがスムーズに伸縮しません。 | Mechanism is dirty or dry; fabric is misaligned. | Clean and lubricate the moving parts. Check fabric alignment in the channels. |
| Awning sags or appears loose. | Frame connections are loose; fabric tension is incorrect. | Tighten all frame bolts. Adjust fabric tension if possible (refer to assembly instructions). |
| オーニングの動作中に異常な音がします。 | 潤滑不足、部品の緩み。 | Lubricate moving parts. Inspect and tighten all fasteners. |
仕様
| ブランド | ジェネリコ |
| モデル番号 | 3069779 |
| Overall Dimensions (L x D) | 500 x 300 cm (5P x 3l meters) |
| Pole Dimensions (L x H) | 450 x 245 cm (approximate, based on description) |
| 生地の色 | 無煙炭 |
| フレームカラー | 無煙炭 |
| 材料 | Powder-coated aluminum frame, 100% polyester fabric with PU coating |
| UV and Water Resistance | はい（PUコーティング） |
| 組み立てが必要 | はい |
| 重さ | 65340.0グラム（65.34 kg） |
保証とサポート
保証範囲や技術サポートに関する情報については、販売店またはメーカーの公式ウェブサイトをご覧ください。 website where this product was purchased. Keep your proof of purchase for any warranty claims.
