tectake Clamp オーニング取扱説明書

1.はじめにおよび安全情報

Thank you for choosing the tectake Clamp Awning. This manual provides essential instructions for the safe and efficient assembly, operation, and maintenance of your awning. Please read it thoroughly before installation and keep it for future reference.

1.1重要な安全上の警告

• 安全なアンカー： Ensure the awning is securely anchored to prevent detachment during adverse weather conditions. Failure to do so may result in injury or damage.
• 気象条件: Exercise extreme caution when using the awning in windy or rainy conditions. Retract the awning during strong winds, heavy rain, or snow to prevent damage.
• 組み立て： Assembly should ideally be performed by two adults. Follow all steps carefully.
• 子供とペット: Keep children and pets away from the awning during assembly and operation.
• 検査： Regularly inspect all components for wear, damage, or loose connections. Do not use the awning if any parts are damaged.

1.2 パッケージ内容

組み立てを始める前に、すべてのコンポーネントが揃っていることを確認してください。

• Awning Fabric (1)
• 垂直支柱（2本）
• Horizontal Support Arms (2)
• Crank Handle (1)
• 取り付けハードウェア（ネジ、クランプamps, footpads)
• 取扱説明書（1）

2. セットアップとインストール

The tectake Clamp Awning is designed for quick and easy installation without the need for drilling. Follow these steps for a secure setup.

2.1インストールの準備

• Choose a suitable location on your balcony or terrace with a stable ceiling and floor.
• Ensure the installation area has a minimum clearance height of 211 cm and a maximum of 304 cm.
• Unpack all components and lay them out to ensure nothing is missing.

2.2組み立て手順

1. Assemble the Vertical Support Poles: Connect the pole sections as per the diagram. The telescopic design allows for height adjustment.
2. フットパッドを取り付ける: Secure the plastic footpads to the bottom of the vertical poles. These provide stability and prevent slipping.
3. Mount the Awning Fabric: Carefully attach the awning fabric to the main horizontal bar and the support arms. Ensure the fabric is correctly oriented.
4. Position the Awning: Place the assembled awning in the desired location. Extend the vertical poles using the telescopic mechanism until they firmly clamp between the floor and ceiling. Adjust the height using the screw feet for maximum stability.
5. Attach the Crank Mechanism: Install the crank handle mechanism to the designated side of the awning frame. It can be mounted on either side for convenience.

3. 操作手順

Your tectake Clamp Awning offers adjustable shade and privacy with simple manual operation.

3.1 オーニングの伸縮

• Insert the crank handle into the designated loop on the awning mechanism.
• クランクハンドルを時計回りに回してオーニング生地を伸ばします。
• Turn the crank handle counter-clockwise to retract the awning fabric.
• Extend or retract the awning to your desired projection, up to 250 cm.

3.2 傾斜角度の調整

The awning's inclination can be adjusted to provide optimal shade throughout the day.

• Locate the tilt adjustment mechanism on the support arms.
• Loosen the adjustment knobs or levers.
• Adjust the angle of the awning from diagonal to completely vertical, as needed.
• Tighten the adjustment knobs or levers to secure the desired tilt angle.

4. メンテナンス

Proper maintenance will extend the lifespan of your tectake Clamp オーニング。

4.1 生地のクリーニング

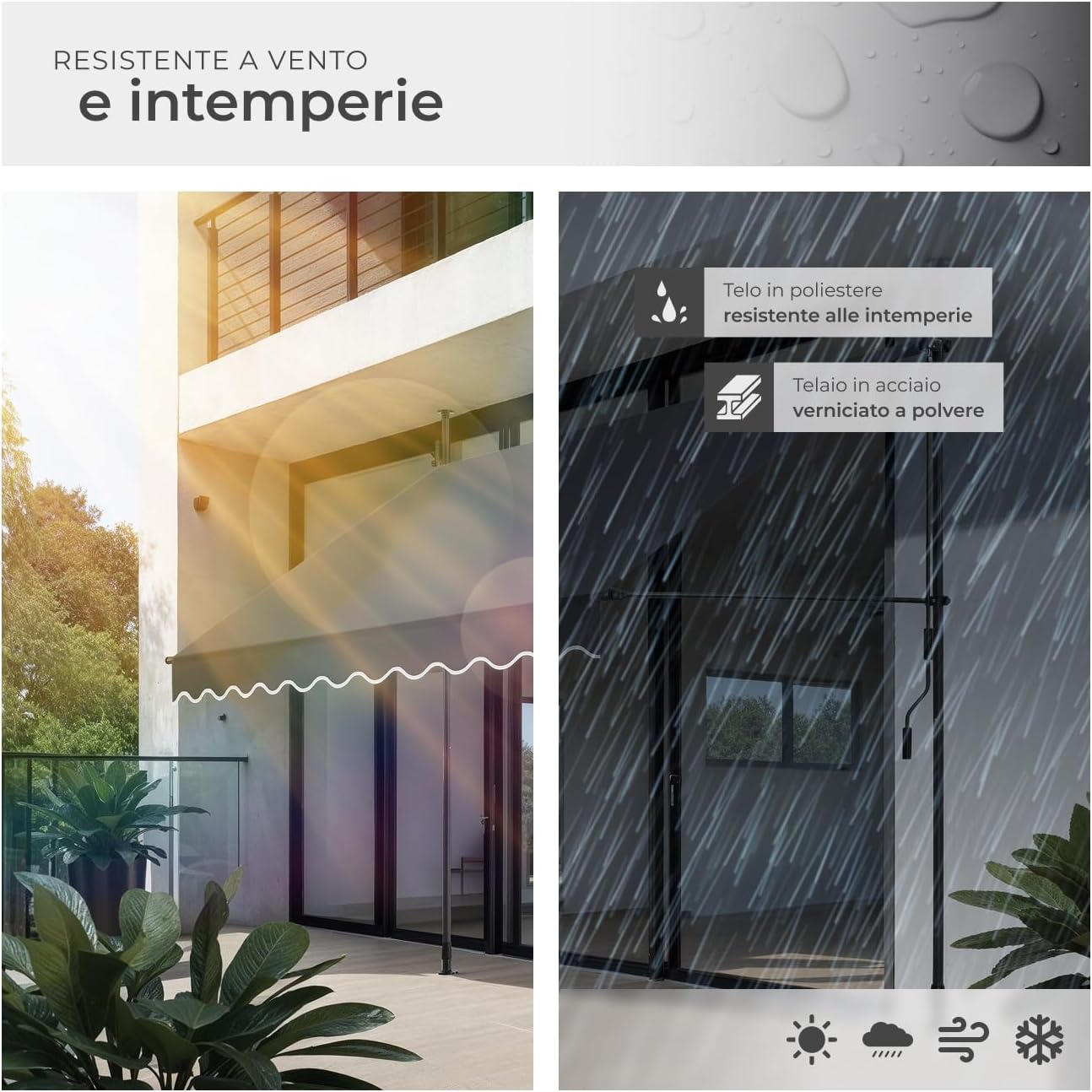

• The awning fabric is made of 100% polyester, which is waterproof and UV resistant.
• Clean the fabric regularly with a soft brush or cloth to remove loose dirt and debris.
• For stubborn stains, use a mild soap solution and lukewarm water. Rinse thoroughly with clean water and allow to air dry completely before retracting.
• Do not use harsh chemicals, abrasive cleaners, or high-pressure washers, as these can damage the fabric's protective coating.

4.2 フレームのケア

• The frame is constructed from powder-coated steel and aluminum. Wipe down the frame periodically with a damp cloth to remove dirt and prevent corrosion.
• Check all screws and connections regularly and tighten if necessary.

4.3 季節保管

If you plan to store the awning for an extended period, especially during winter or severe weather:

• Ensure the fabric is completely clean and dry to prevent mold and mildew.
• Retract the awning fully.
• If possible, disassemble and store in a dry, protected area.

5。 トラブルシューティング

発生する可能性のある一般的な問題に対する解決策は次のとおりです。

5.1 Awning Not Extending/Retracting Smoothly

• 障害物の確認: Ensure there are no objects blocking the awning's path or interfering with the crank mechanism.
• Inspect Crank Handle: Verify the crank handle is properly inserted and not damaged.
• 潤滑: If the mechanism feels stiff, apply a silicone-based lubricant to moving parts (avoiding fabric).

5.2 Awning Feels Unstable

• Re-adjust Poles: Ensure the vertical support poles are fully extended and firmly clamped between the floor and ceiling. Tighten the screw feet for maximum tension.
• 表面をチェック: Verify that the floor and ceiling surfaces are flat and sturdy enough to support the awning.
• 気象条件: Retract the awning immediately during strong winds. This awning is not designed for extreme weather.

5.3 Water Accumulation on Fabric

• 傾きを調整: Increase the tilt angle of the awning to allow water to run off more effectively.
• Fabric Tension: Ensure the fabric is taut when extended to prevent sagging.

6. 仕様

7. 保証とサポート

tectake products are manufactured with quality and durability in mind. While specific warranty details may vary by region and retailer, we recommend retaining your proof of purchase.

For any questions, missing parts, or support needs, please contact your retailer or the tectake customer service directly. Contact information can usually be found on the product packaging or the retailer's webサイト。

モデル番号（404962-1サポートに連絡する際には、電話番号 (0120-000-000) と購入日を用意してください。
