1. はじめに
This manual provides essential instructions for the safe and effective use, setup, operation, and maintenance of your SSCYHT 36V Lithium Battery. This battery is designed for various applications, including 50W to 250W motor kits, and is available in 4.4Ah, 5.2Ah, and 6.6Ah capacities. Please read this manual thoroughly before using the product to ensure optimal performance and safety.
画像1.1: 以上view of the SSCYHT 36V Lithium Battery with XT60 connector.
2. 安全情報
お客様の安全は最優先です。以下の注意事項をお守りください。
- 充電環境: Only charge the battery within a temperature range of 0℃ to 50℃ (32°F to 122°F).
- Discharging Environment: Only discharge the battery within a temperature range of -10℃ to 50℃ (14°F to 122°F).
- 充電器の互換性: のみを使用してください 42V 2A充電器 specifically designed for 36V lithium-ion batteries. Using an incompatible charger can cause damage, overheating, or fire.
- 物理的保護: The battery's outer layer is made of low water permeability PVC material, which is insulating, corrosion-resistant, and wear-resistant. For extended service life and protection, it is recommended to place the battery in a protective bag or box during use.
- ダメージを避ける: Do not puncture, drop, crush, or disassemble the battery. Avoid exposing it to direct sunlight, high temperatures, or fire.
- 水への露出: While the battery has low water permeability, avoid submerging it in water or exposing it to excessive moisture.
- ストレージ： Store the battery in a cool, dry place away from flammable materials and direct heat sources.
- 廃棄： バッテリーは、リチウムイオンバッテリーに関する地方自治体の規制に従って廃棄してください。家庭ごみと一緒に廃棄しないでください。

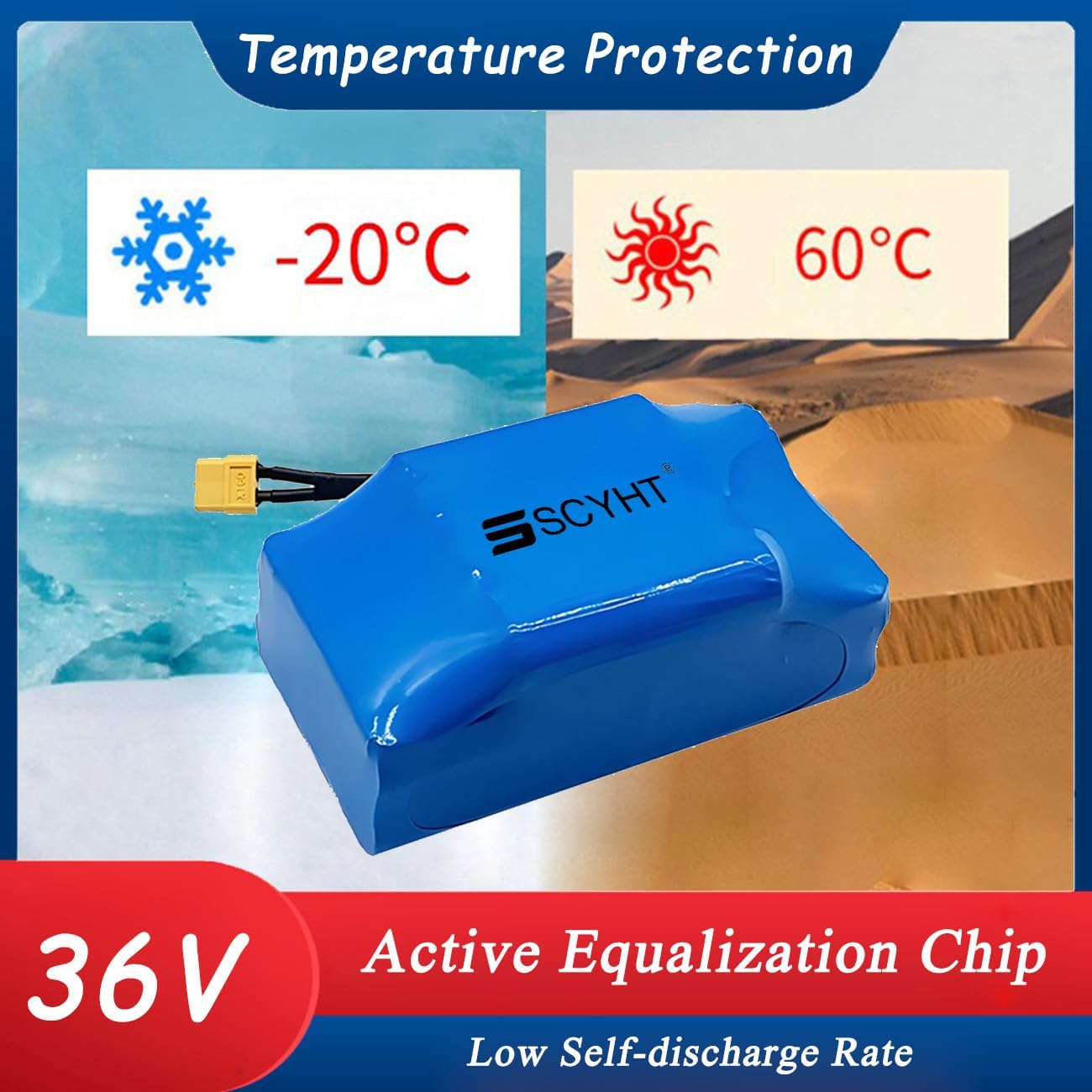

Image 2.1: Illustration of the battery's operating temperature range for charging and discharging.
3. セットアップとインストール
Before installing your new SSCYHT 36V Lithium Battery, please confirm its compatibility with your equipment:
- Confirm Appearance: Ensure the replacement battery has a similar appearance to your old battery, if applicable.
- Confirm Size: Carefully check the dimensions of the battery to ensure it fits into your equipment's battery compartment. Refer to the specifications section for detailed measurements.
- Confirm Plugs: Verify that the battery's XT60 discharge connector is compatible with your equipment. If the plugs differ, adapters may be purchased separately to ensure compatibility.

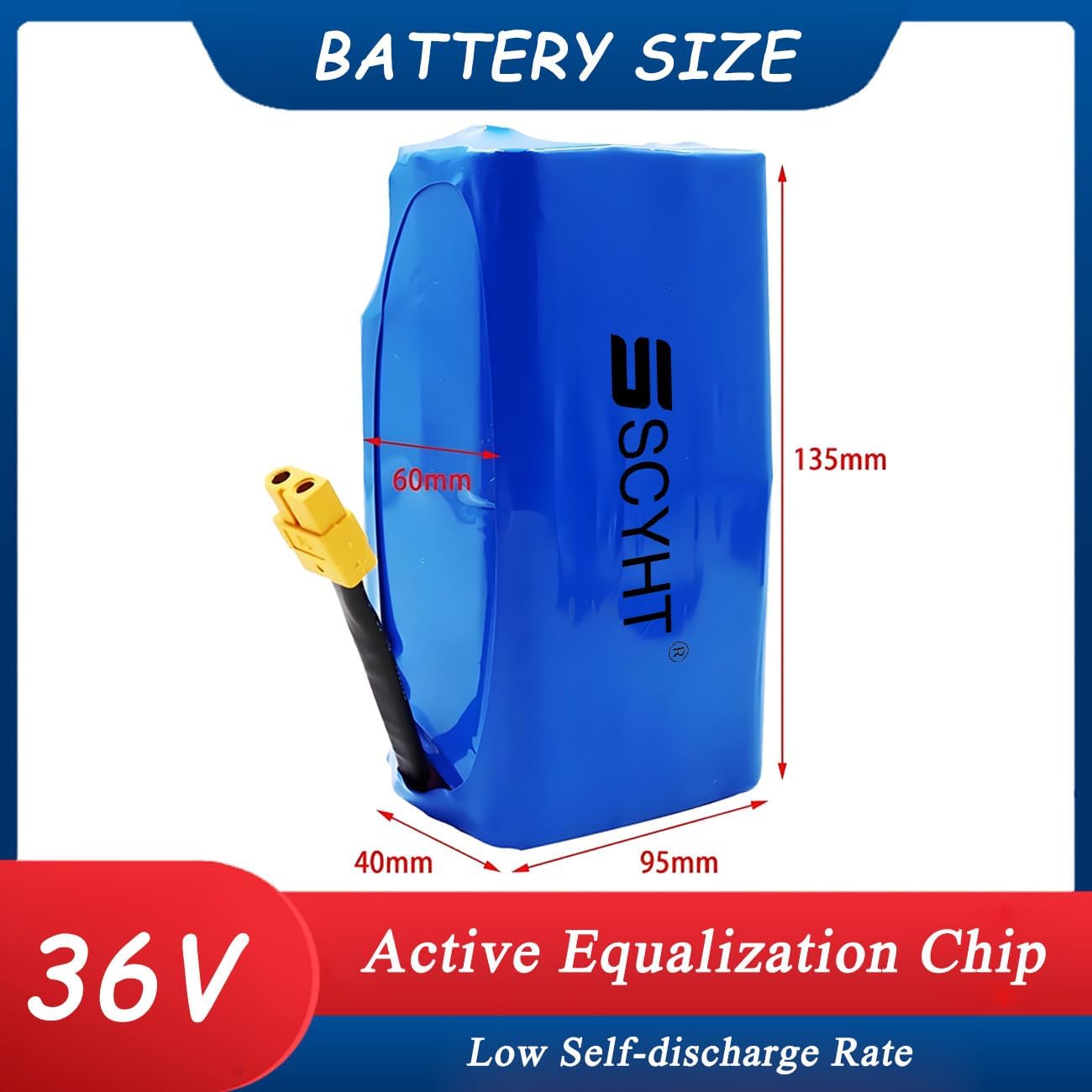

Image 3.1: Detailed dimensions of the SSCYHT 36V Lithium Battery.
Image 3.2: Close-up of the XT60 discharge connector.
Once compatibility is confirmed, connect the battery to your equipment's motor kit. This battery is suitable for motor kits ranging from 50W to 250W.
図3.3: 例amples of equipment where the battery can be applied, such as electric scooters and hoverboards.
4. 操作手順
4.1. バッテリーの充電
To charge your SSCYHT 36V Lithium Battery:
- Ensure the battery is disconnected from any load.
- 接続する 42V 2A充電器 to the battery's charging port.
- 充電器を標準の壁のコンセントに差し込みます。
- Monitor the charger's indicator light (if available) to determine charging status.
- Once fully charged, disconnect the charger from the battery and the wall outlet.
Important: Only use a 42V 2A charger for charging this battery. Using other chargers may damage the battery or pose a safety risk.
4.2. バッテリー管理システム（BMS）
The battery is equipped with a modular Battery Management System (BMS) that provides essential protections for enhanced safety and performance:
- 過充電保護: バッテリーが安全電圧を超えて充電されるのを防ぎますtage制限。
- 過放電保護: バッテリーが安全電圧以下に放電されるのを防ぎますtage limit, extending its lifespan.
- 過電流保護: Protects against excessive current draw during operation. The maximum constant discharge current is 20A.
- 過熱保護: Monitors battery temperature and prevents operation outside safe thermal limits.
Image 4.1: Visual representation of the core BMS protection functions.
5.メンテナンスと保管
Proper maintenance and storage will prolong the life and performance of your battery:
- 通常充電: For optimal lifespan, avoid completely draining the battery. Recharge it regularly, especially after use.
- 長期保存庫： If storing the battery for an extended period, charge it to approximately 50-60% capacity. Store it in a cool, dry place, ideally between 10℃ and 25℃ (50°F and 77°F).
- Periodic Recharging: During long-term storage, check the battery every 3-6 months and recharge it to 50-60% if the voltage has dropped significantly.
- クリーニング： Keep the battery clean and dry. Use a soft, dry cloth to wipe off any dust or dirt. Do not use solvents or abrasive cleaners.
- 期待寿命： The battery is designed for 700-800 charge cycles, retaining approximately 70% of its original capacity after 500 cycles.

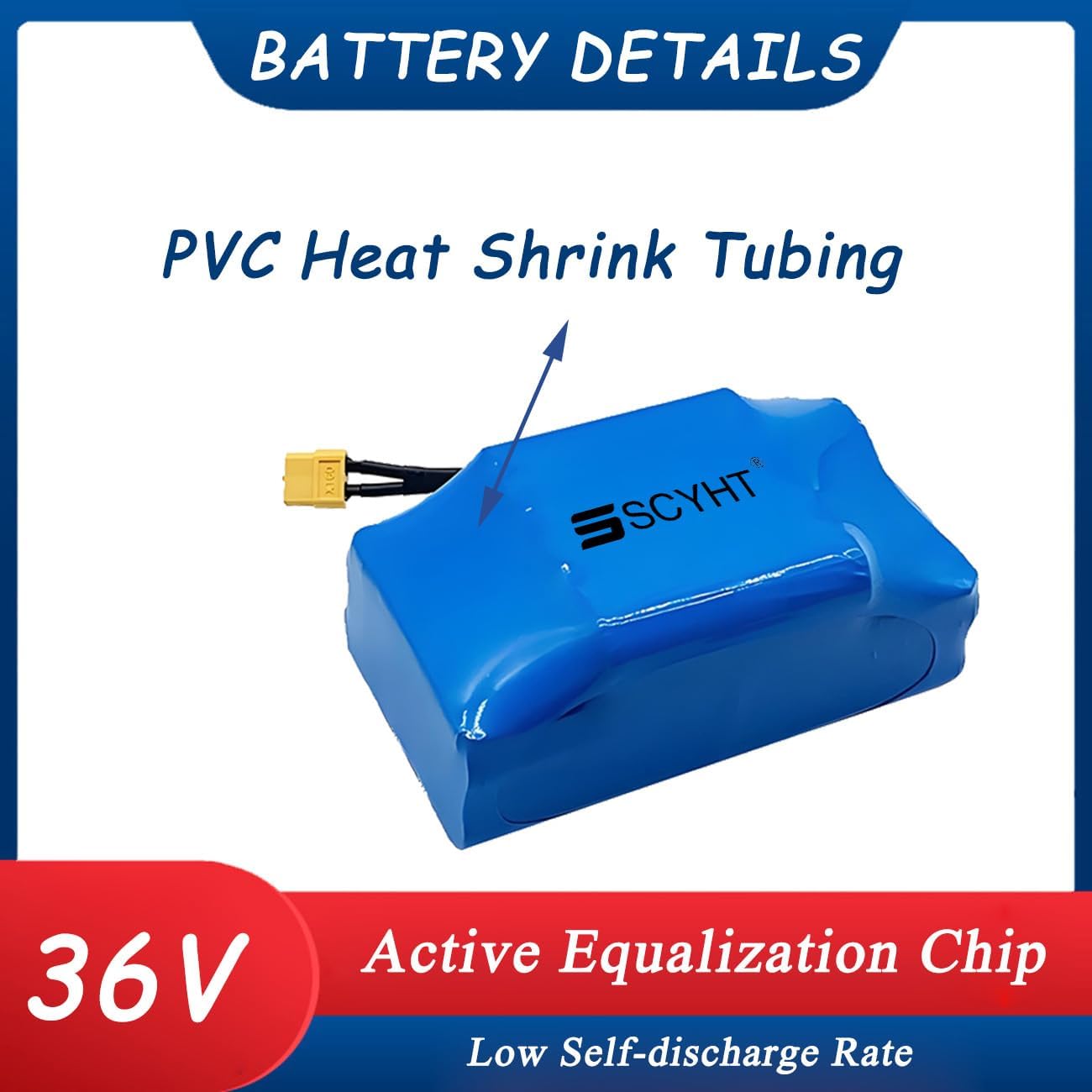

Image 5.1: The battery's PVC heat shrink tubing provides insulation and protection.
6。 トラブルシューティング
If you encounter issues with your SSCYHT 36V Lithium Battery, consider the following general troubleshooting steps:
- バッテリーが充電されていません:
- 充電器がバッテリーと電源コンセントの両方に正しく接続されていることを確認してください。
- 電源コンセントが機能していることを確認します。
- Confirm you are using the correct 42V 2A charger.
- Check for any visible damage to the charging port or charger cable.
- Battery Not Providing Power:
- バッテリーが完全に充電されていることを確認します。
- Verify that the XT60 connector is securely attached to your equipment.
- Check your equipment for any internal faults or disconnections.
- Reduced Performance/Run Time:
- Battery capacity naturally degrades over time and with charge cycles.
- 使用する前にバッテリーが完全に充電されていることを確認してください。
- Operating in extreme temperatures (too cold or too hot) can temporarily reduce performance.
これらの手順を実行しても問題が解決しない場合は、カスタマー サポートに問い合わせて、さらにサポートを受けてください。
7. 仕様
| 特徴 | 詳細 |
|---|---|
| ブランド | SSCYHT |
| タイプ | 充電式リチウムイオン電池 |
| 定格巻tage | 36V |
| Rated Capacity Options | 4.4Ah、5.2Ah、6.6Ah |
| Applicable Motor Kit | 50W～250W |
| 寸法（長さ×幅×高さ） | 95mm x 60mm x 135mm（3.74 x 2.36 x 5.31インチ） |
| 重さ | 約1 kg（2.2ポンド） |
| 推奨充電器 | 42V 2A |
| Maximum Constant Discharge Current (BMS) | 20A |
| 耐用年数 | 700-800 cycles (70% capacity after 500 cycles) |
| 充電動作温度 | 0℃～50℃（32°F～122°F） |
| Discharging Operating Temperature | -10℃～50℃（14°F～122°F） |
| 商品型番 | 66373811-36V4.4AH (Specific to 4.4Ah variant) |
8. 保証とサポート
SSCYHT is committed to ensuring customer satisfaction. While specific warranty details are not provided in this manual, we encourage you to refer to your purchase documentation or contact the seller for warranty information.
For technical support, troubleshooting assistance, or any questions regarding your SSCYHT 36V Lithium Battery, please contact our customer service team. We are dedicated to providing enthusiastic support to ensure you are satisfied with our products and services.
図8.1: 例ample of the thickened carton packaging used for the battery.
