VDCYAOFZ IM220 Ice Maker Swing Gear Transmission Motor Instruction Manual

1. はじめに

This manual provides essential information for the proper installation, operation, and maintenance of the VDCYAOFZ IM220 Ice Maker Swing Gear Transmission Motor. Please read this manual thoroughly before attempting any installation or service to ensure safe and efficient use of the product. This motor is designed as a replacement or accessory component for compatible ice makers, facilitating the ice dispensing or harvesting mechanism.

2. 安全情報

警告： Electrical components can cause injury or death. Always disconnect power to the ice maker before installing, servicing, or performing any maintenance on this motor. Installation should only be performed by qualified personnel familiar with electrical systems and appliance repair. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Ensure the ice maker is unplugged from the power source before beginning work.
• 安全メガネや手袋などの適切な個人用保護具 (PPE) を着用してください。
• Handle the motor carefully to avoid damage to its components or wiring.
• 電源を復旧する前に、すべての接続が安全かつ正しいことを確認してください。

3.製品オーバーview

The VDCYAOFZ IM220 is a synchronous gear motor designed for ice maker applications, specifically for swing or transmission mechanisms. It operates at a low RPM, providing the necessary torque for moving ice components within the machine. The motor features a compact design with integrated wiring and connectors for ease of installation.

図1: フロント view of the IM220 motor, showing the main body and the label with electrical specifications. This view highlights the compact design and integrated wiring.

図2: 底 view of the IM220 motor, illustrating the gear mechanism and the mounting plate. This perspective shows how the motor interfaces with the ice maker's internal components.

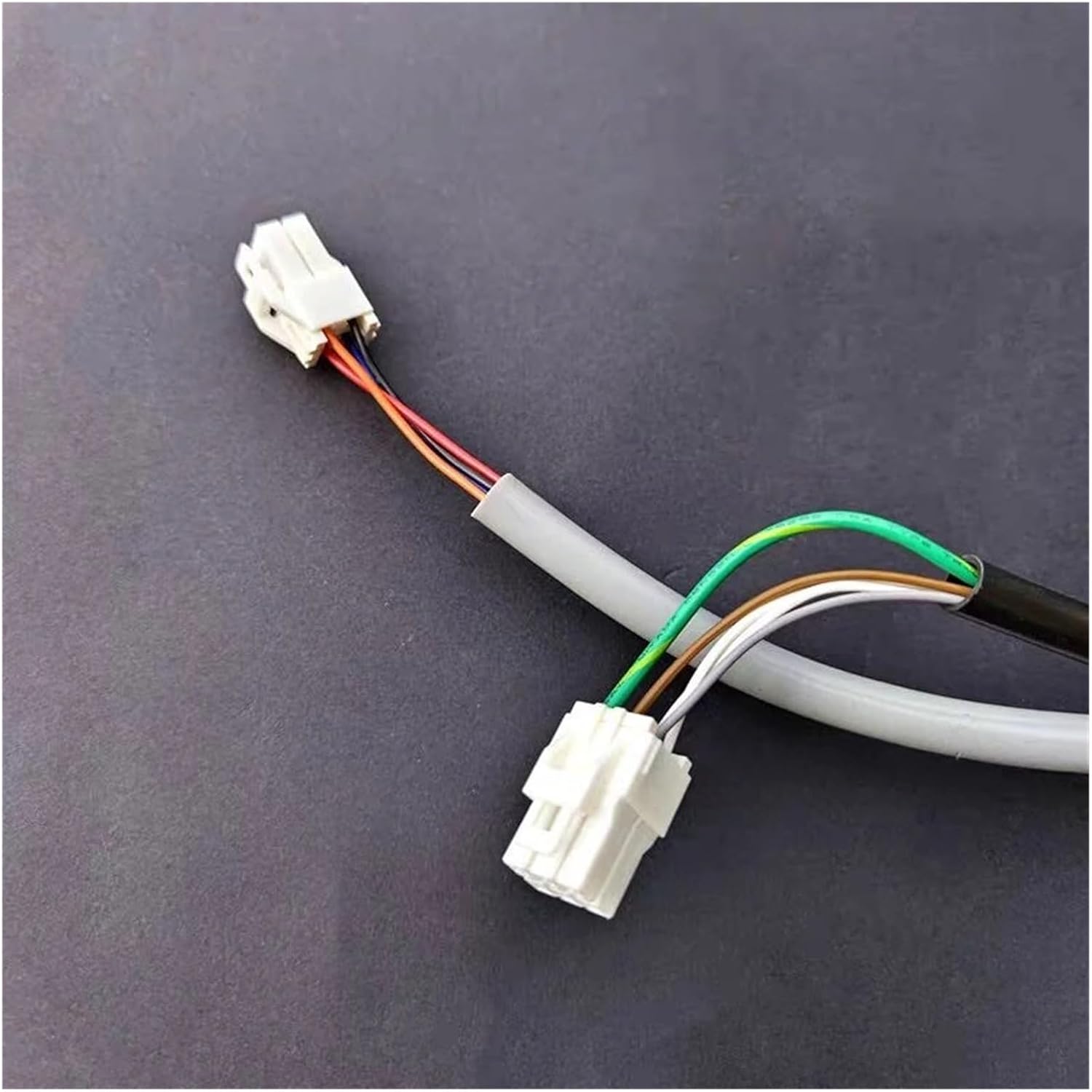

図3: 詳細 view of the electrical connectors for the IM220 motor. These connectors ensure a secure and proper electrical connection to the ice maker's control system.

4. セットアップとインストール

This motor is a replacement part. Installation procedures vary depending on the specific ice maker model. Always refer to your ice maker's service manual for detailed, model-specific instructions. The following are general guidelines:

1. 電源を切る: Ensure the ice maker is completely disconnected from its power source.
2. アクセスモーター: Carefully open the ice maker's housing to gain access to the existing swing or transmission motor. This may involve removing panels or other components.
3. 古いモーターを取り外す: Disconnect the electrical connectors from the old motor. Note the orientation and connection points. Remove any mounting screws or clips securing the old motor.
4. 新しいモーターをインストールします: Position the VDCYAOFZ IM220 motor in the same location and orientation as the old motor. Secure it using the original mounting hardware.
5. 配線を接続: Connect the electrical wires from the ice maker to the new motor's connectors. Ensure a firm and correct connection. Refer to the ice maker's wiring diagram if available.
6. 組み立て直す: Carefully reassemble any panels or components that were removed. Ensure no wires are pinched.
7. テスト： Restore power to the ice maker and observe the motor's operation. Verify that the ice-making or dispensing mechanism functions correctly.

5. 操作手順

The VDCYAOFZ IM220 motor operates automatically as part of the ice maker's internal cycle. Once installed correctly, it will engage when the ice maker's control board signals it to perform its function, such as swinging an ice tray or driving an auger for ice dispensing. No direct user interaction is required for the motor's operation.

6. メンテナンス

The IM220 motor is designed for minimal maintenance. However, periodic inspection can help ensure its longevity and proper function:

• 目視検査: Periodically inspect the motor and its wiring for any signs of wear, damage, or corrosion. Ensure all connections remain secure.
• 清潔さ: Keep the area around the motor free from ice buildup, dust, or debris that could impede its movement or cause overheating. Disconnect power before cleaning.
• 潤滑: The motor is factory-lubricated and typically does not require additional lubrication. Do not apply lubricants unless specifically instructed by the ice maker's manufacturer.

7。 トラブルシューティング

If the ice maker is not functioning correctly after motor installation, consider the following troubleshooting steps:

• モーターが作動しない:
  • Check if the ice maker is receiving power.
  • Verify all electrical connections to the motor are secure and correctly wired.
  • Consult the ice maker's service manual for diagnostic procedures related to the motor circuit.
• 異常なノイズ:
  • Ensure the motor is securely mounted and not vibrating against other components.
  • Check for any obstructions around the motor or its gear mechanism.
• 誤った動き:
  • Verify the motor's shaft or gear is properly engaged with the ice maker's mechanism.
  • Ensure the motor is the correct replacement part for your specific ice maker model.

If issues persist, it is recommended to contact a qualified appliance repair technician.

8. 仕様

9. 保証とサポート

Specific warranty information for this VDCYAOFZ IM220 motor is not provided in this document. Please refer to the original purchase documentation or contact the retailer for details regarding warranty coverage. For technical support or further inquiries, please contact VDCYAOFZ customer service through their official channels.
