Fuers H.265+ 8-Channel 5MP Lite Hybrid DVR with 500GB HDD User Manual

1. はじめに

This manual provides comprehensive instructions for the Fuers H.265+ 8-Channel 5MP Lite Hybrid DVR with 500GB HDD. This DVR is designed for surveillance systems, offering compatibility with various camera types and advanced features for reliable security monitoring.

主な機能は次のとおりです。

• 6-in-1 Hybrid Capability: Supports TVI, AHD, CVI, XVI, CVBS, and IP cameras.
• H.265+ビデオ圧縮: Efficiently records, plays back, and stores footage, saving up to 50% storage space compared to H.264.
• AI人間検出: Advanced algorithms detect unusual activity and send real-time notifications.
• リモート監視: Access your system via a mobile app for live viewing と再生。
• Pre-installed 500GB HDD: すぐに録音できます。

2.製品オーバーview

2.1 パッケージ内容

パッケージにすべてのアイテムが含まれていることを確認します。

• 1x A6908-5MP 8CH DVR
• 1x 500G Hard Drive (Pre-installed on DVR)
• 1x DVR Power Supply
• USBマウス x 1
• ユーザーマニュアル x 1

Figure 2.1: What's in the Box? The image displays the DVR unit, a 500GB hard drive, a power supply, a USB mouse, and the user manual, illustrating all components included with the product.

2.2 DVR Interfaces

Familiarize yourself with the ports and indicators on your DVR unit:

• ビデオ入力（BNC）： 最大 8 台の監視カメラを接続できます。
• オーディオ入力/出力（RCA）： オーディオの入出力用。
• VGA出力: Connect to a PC monitor.
• HDMI出力: Connect to a TV or monitor for high-definition display.
• USB ポート: For connecting the USB mouse and external storage.
• ネットワーク（RJ45）： インターネットアクセスとリモートアクセスのためにルーターに接続します viewing。
• DC 12V電源入力： Connect the DVR power supply.
• フロントパネルのコントロール： Power, Alarm, Record, Quad, Esc, Menu, OK buttons.

Figure 2.2: DVR Introduction. This image provides a detailed view of the DVR's front and rear panels, labeling all connection points and control buttons for easy identification.

3. セットアップ

3.1 ハードウェアの初期接続

DVR システムを接続するには、次の手順に従ってください。

1. Connect the HDMI or VGA cable from the DVR to your monitor or TV.
2. USB マウスを DVR の USB ポートの 1 つに接続します。
3. Connect your surveillance cameras to the BNC video input ports on the DVR. Ensure proper connections for both video and power (camera cables are not included).
4. Connect the DVR power supply to the DC 12V input and plug it into a power outlet.
5. The system will power on and display the startup wizard on your monitor.

3.2 Network Connection and Remote Access

リモートを有効にするには viewing and alerts, connect your DVR to the internet:

1. DVR のネットワーク ポートからルーターにイーサネット ケーブルを接続します。
2. Download the iCSee mobile application on your smartphone. You can find the app on the Google Playストア Android用または Apple Appストア iOS用。
3. Open the iCSee app and follow the instructions to add your DVR. This typically involves scanning a QR code displayed on the DVR's monitor (Main Menu > Info > Version).
4. 接続すると、次のことができます view ライブfootage, play back recordings, and receive alerts directly on your mobile device.

Figure 3.1: Mobile Remote Access. This image illustrates the process of connecting the DVR to a network and setting up the iCSee mobile application for remote monitoring.

4. 操作手順

4.1 DVRインターフェースナビゲーション

Use the included USB mouse to navigate the DVR's graphical user interface (GUI). The main menu provides access to various settings and functions, including recording configuration, alarm settings, system information, and network services.

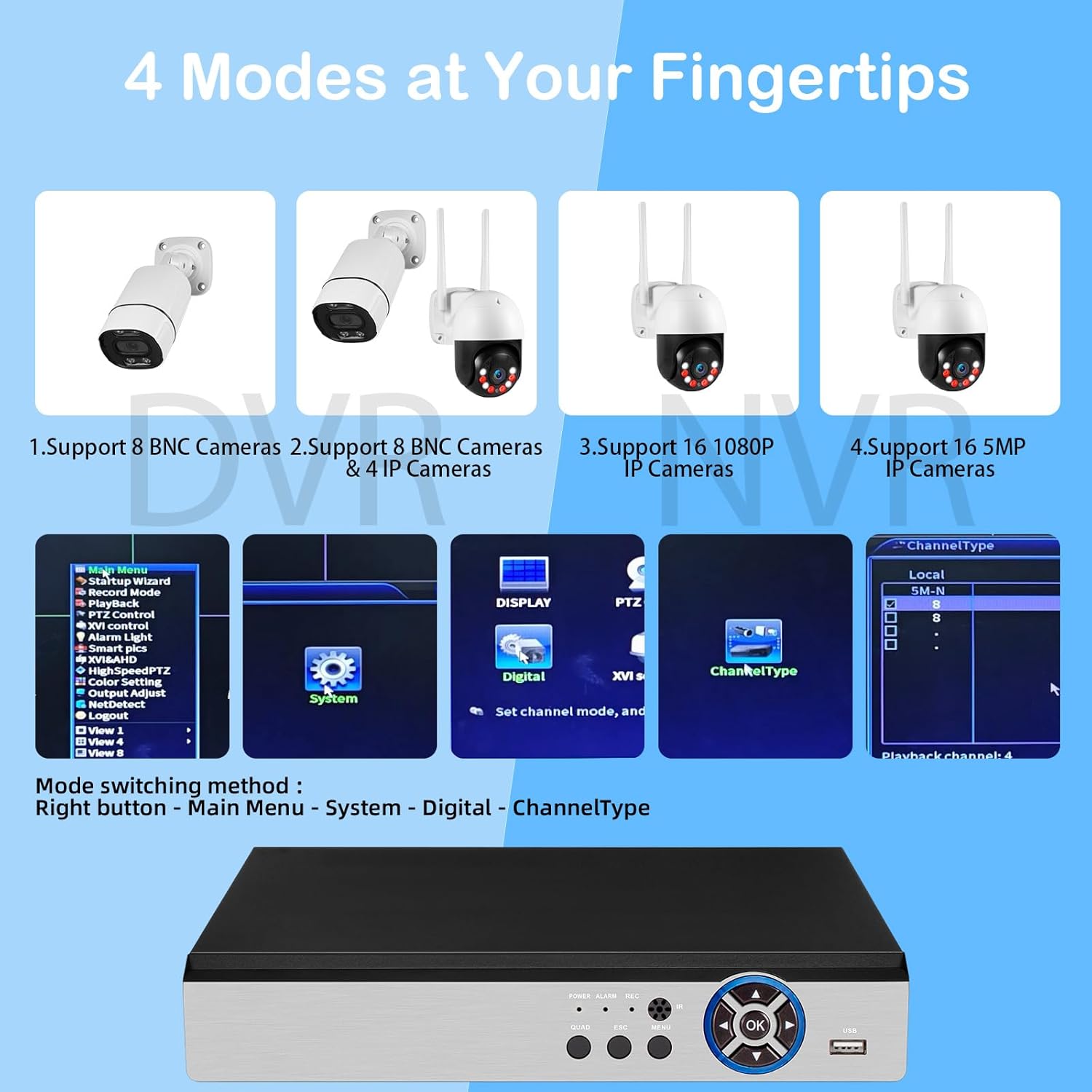

Figure 4.1: 4 Modes at Your Fingertips. This image displays the DVR's menu for switching between different camera input modes, such as 8 BNC cameras, 8 BNC + 4 IP cameras, 16 1080P IP cameras, or 16 5MP IP cameras.

4.2 Camera Compatibility and Modes

The DVR supports a 6-in-1 hybrid capability, allowing connection of various camera types:

• CVBS (アナログ)
• AHD (Analog High Definition)
• TVI (Transport Video Interface)
• CVI (Composite Video Interface)
• XVI (Extended Video Interface)
• IP (Internet Protocol) cameras

The DVR can operate in different modes to accommodate various camera configurations. To switch modes, right-click on the interface, go to Main Menu > System > Digital > ChannelType.

Figure 4.2: Hybrid Capability 6-in-1 DVR. This image visually represents the DVR's ability to connect with six different types of security cameras, offering versatile surveillance options.

4.3 ビデオ録画と再生

The DVR utilizes H.265+ video compression, which provides significant advantages:

• ストレージ容量の削減: Saves up to 50% of storage space compared to H.264, allowing for longer recording times on the 500GB HDD.
• よりスムーズに Viewing: Enables fast and smooth streaming without latency.
• Faster Downloads: Improves efficiency when accessing recorded footage.

To access recordings, navigate to Main Menu > Record > Playback. You can search for motion-triggered events, images, or specific dates and times to review ビデオ。

Figure 4.3: Advanced H.265+ Video Compression. This image compares H.265+ and H.264 compression, demonstrating the superior efficiency of H.265+ in terms of storage and bandwidth usage.

4.4 AIによる人間検知とアラート

Configure the DVR to detect human movement and send alerts:

1. Access the alarm settings via Main Menu > Alarm > Human Detect.
2. Define specific detection zones and sensitivity levels for each camera.
3. When motion events are detected, the system will push real-time app notifications and email alerts with snapshots to your configured devices.

Figure 4.4: DIY Motion Detection. This image demonstrates how users can define specific motion detection zones to minimize false alarms and focus on critical areas.

4.5 Internet-Free Operation

The DVR system can function for local recording and viewing even without an internet connection. Internet access is only required for remote viewing, app notifications, and email alerts.

Figure 4.5: No Monthly Fee, DVR Work Even without Internet. This image highlights the DVR's capability to operate locally without an internet connection, ensuring continuous recording and viewing without recurring fees.

5. メンテナンス

5.1 ハードドライブ管理

The pre-installed 500GB Hard Disk Drive (HDD) automatically overwrites older recordings with new ones once its storage capacity is full. This ensures continuous recording without manual intervention. The DVR supports expandable storage up to 14TB, though a higher power supply may be required for larger drives.

Figure 5.1: Pre-installed 500G HDD. This image illustrates the DVR's pre-installed 500GB hard drive and its capability to expand storage up to 14TB for extended recording.

6。 トラブルシューティング

If you encounter any issues with your DVR security camera system, please refer to the following common solutions or contact customer support.

6.1 Camera Compatibility Issues

Ensure your cameras are compatible with the DVR's specifications. The DVR supports the following parameters:

• Default 5M-N: Supports 8* 5MN@12fps (6-in-1) cameras with frame rates not exceeding 12fps and resolutions not exceeding 5MN.
• 4MN: Supports 8* 4MN@15fps (6-in-1) cameras with frame rates not exceeding 15fps and resolutions not exceeding 4MN.
• 1080P: Supports 8* 1080P@15fps (XVI) cameras with frame rates not exceeding 15fps and resolutions not exceeding 1080P.

If your camera does not display video, verify its resolution and frame rate against these specifications.

6.2 ビデオ出力なし

• Check all cable connections (HDMI/VGA, camera BNC, power).
• モニターの電源がオンになっており、正しい入力ソースに設定されていることを確認します。
• Verify that the DVR is powered on (check power indicator lights).

6.3 リモートアクセスの問題

• Confirm the DVR is connected to your router via an Ethernet cable and has internet access.
• スマートフォンのインターネット接続が安定していることを確認してください。
• Re-scan the DVR's QR code in the iCSee app to re-establish the connection.
• Check your router settings for any firewall or port forwarding configurations that might block the connection.

7. 仕様

8. 保証とサポート

For any quality problems, installation assistance, or connection issues, please contact Fuers customer support. Refer to your purchase documentation for specific warranty details and contact information.
