導入
This manual provides detailed instructions for the assembly, operation, and maintenance of your Domi 12' x 20' Lean-to Gazebo. Designed to extend your outdoor living space, this gazebo features a durable aluminum frame, a galvanized steel sloping roof, and includes both mosquito netting and privacy curtains. Please read all instructions carefully before beginning assembly or use.

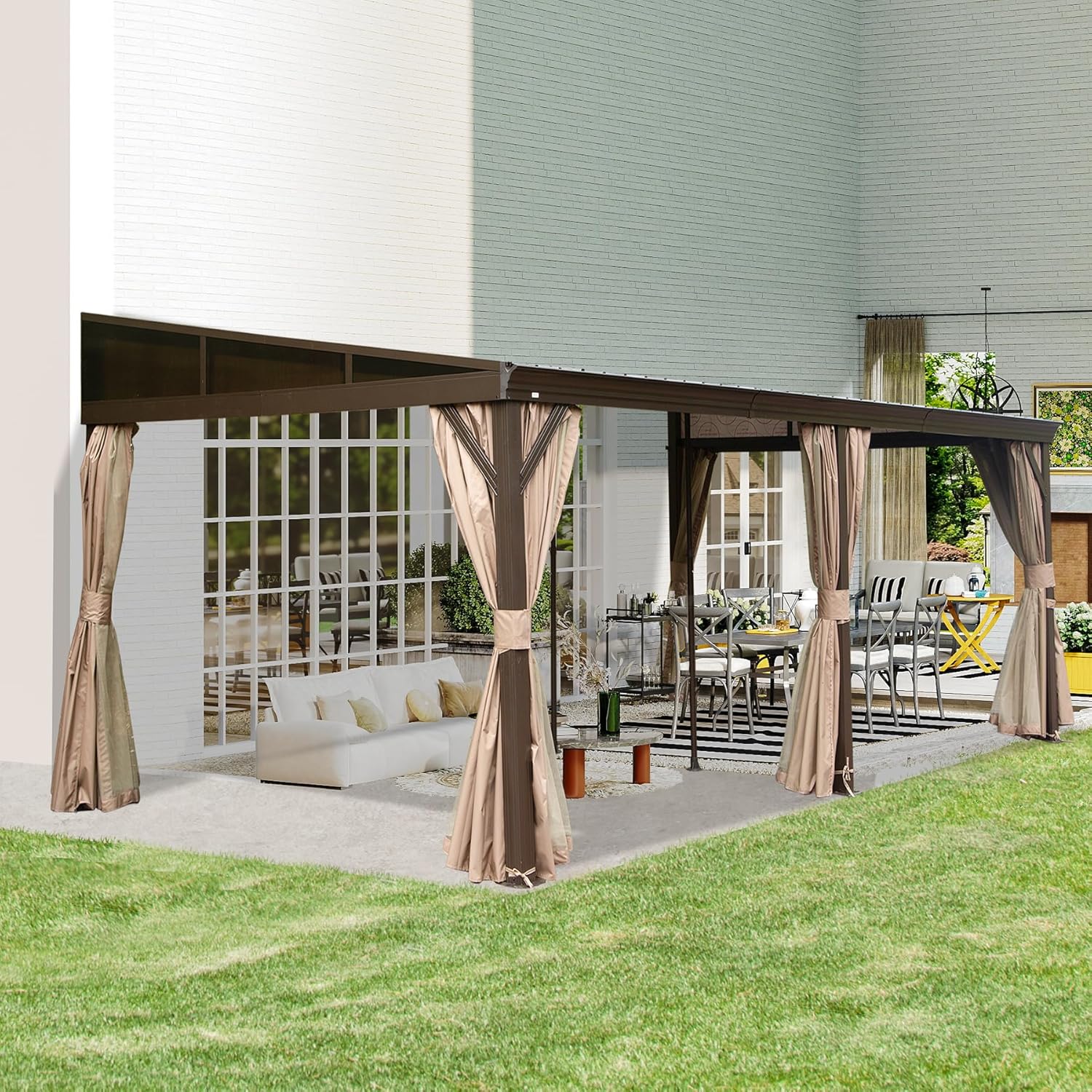

Image: The fully assembled Domi 12' x 20' Lean-to Gazebo, showcasing its integration with a residential building and providing an extended outdoor area.
セットアップと組み立て
Proper site preparation is crucial for the stability and longevity of your gazebo. Ensure the installation area is level and clear of obstructions. This gazebo is designed for wall-mounted installation, requiring secure attachment to a suitable structure.
組み立て終了view
Assembly typically requires two or more people due to the size and weight of components. Follow the step-by-step instructions provided in the separate assembly guide included with your product. Ensure all parts are accounted for before beginning. Tools required are generally basic hand tools, though some steps may benefit from power tools (e.g., a drill with a clutch).
画像: クローズアップ view demonstrating the secure attachment of the gazebo's bracket to a wall using screws, highlighting the wall-mounted design.
組み立てビデオガイド
Video: An official product video from Domi Outdoor Living demonstrating the assembly process and key features of the wall-mounted gazebo.
ガゼボの操作
カーテンとネット
The gazebo features a double-track design for both mosquito netting and privacy curtains. The netting can be used during warmer months to provide ventilation while protecting against insects. The privacy curtains offer shade and a secluded space, ideal for cooler weather or when privacy is desired. Both can be easily opened and secured when not in use.
Image: A visual representation of the detachable curtain and netting system, illustrating options for full openness, ventilation with netting, and full privacy with curtains.
Roof and Drainage System
The galvanized steel sloping roof is designed with slopes and flutes to facilitate rapid drainage of rainwater and snowmelt. Water flows along the integrated gutter system to the poles, ensuring that the area beneath the gazebo remains dry. The polycarbonate side panel offers partial sun blockage and protection from light rain while allowing natural light to filter through.
画像: 詳細な view of the galvanized steel sloping roof, showing water effectively draining along its surface, highlighting the efficient drainage system.
Image: The polycarbonate side panel, illustrating its translucent quality, anti-UV protection, and ability to allow natural light into the gazebo.
製品機能ビデオ
Video: An official product video from Domi Outdoor Living highlighting the sleek design and sturdy construction of the lean-to gazebo.
メンテナンス
定期的なメンテナンスを行うことで、ガゼボの寿命と外観を保つことができます。
クリーニング
- Clean the aluminum frame and steel roof with a mild soap and water solution. Rinse thoroughly with clean water.
- For curtains and netting, follow care instructions on the fabric tags. Generally, spot clean with mild soap and water.
- Avoid using abrasive cleaners or harsh chemicals that could damage the materials.
季節ごとのケア
The gazebo's aluminum frame and galvanized steel roof are designed for durability. For areas experiencing heavy snowfall, the two extra support poles can be installed to increase the weight-bearing capacity of the roof, providing additional stability during winter conditions. Ensure all connections remain tight and inspect for any signs of wear or damage periodically.

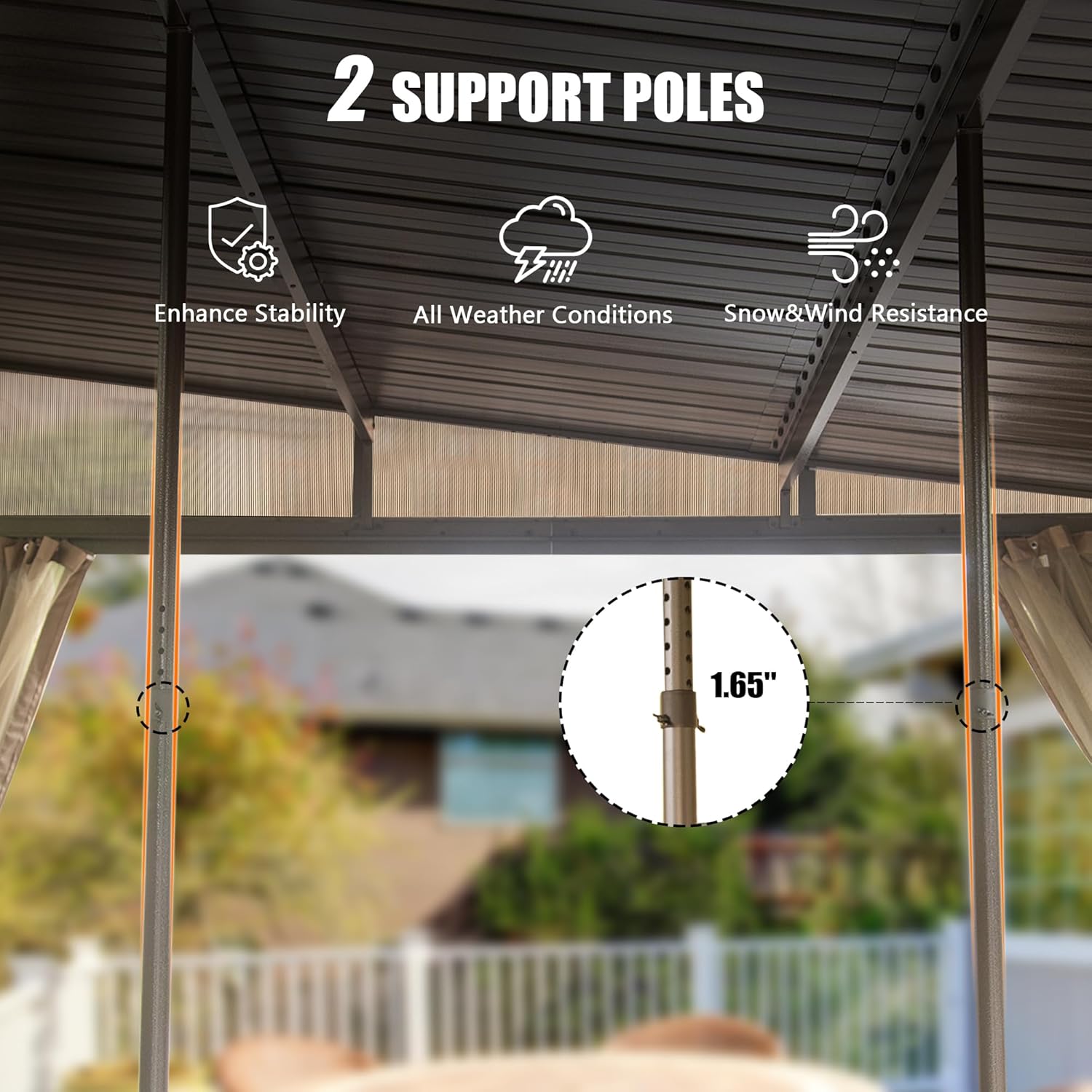

Image: A diagram illustrating the two adjustable support poles, emphasizing their role in enhancing stability and resistance to snow and wind.
Image: Visual details of the gazebo's sturdy construction, including the triangular structure, reinforced roof, pre-drilled wall studs, and pre-drilled base holes for secure installation.
トラブルシューティング
If you encounter any issues with your gazebo, please refer to the following common solutions:
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| 水漏れ | Improper sealing during assembly or damaged roof panels. | Inspect all roof panel seams and connections. Apply additional sealant if necessary. Ensure roof panels are correctly overlapped and secured. |
| ガゼボの不安定性 | 留め具が緩んでいるか、固定が不十分です。 | Check and tighten all bolts and screws. Ensure the gazebo is properly anchored to the ground or wall as per assembly instructions. Verify the squareness of the four corner posts. |
| Curtains/Netting Not Moving Smoothly | Debris in tracks or damaged runners. | Clean tracks of any dirt or debris. Inspect runners for damage and replace if necessary. |
For issues not listed here or if solutions do not resolve the problem, please contact Domi Outdoor Living customer support.
仕様
Key specifications for your Domi 12' x 20' Lean-to Gazebo:

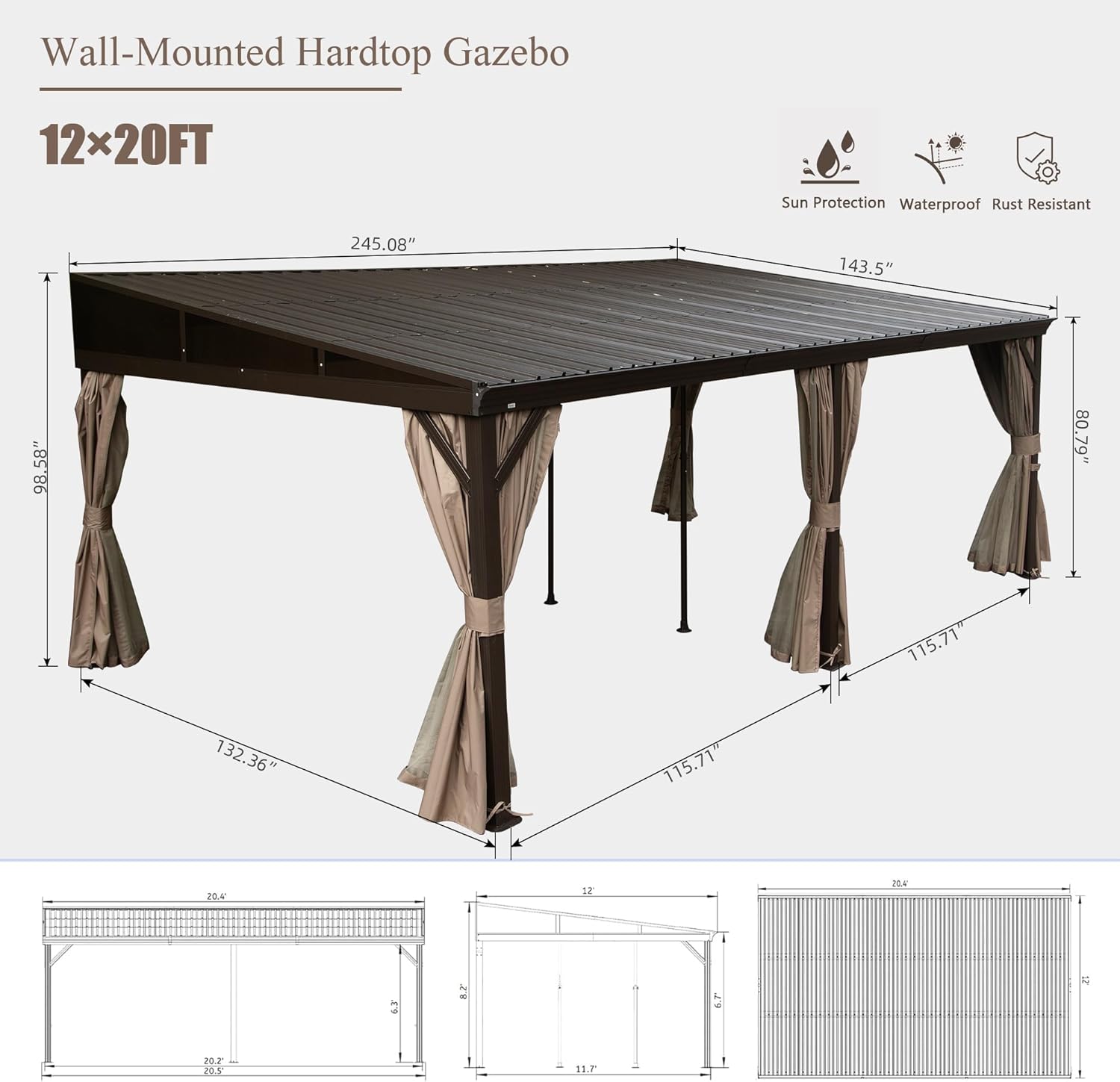

Image: A detailed diagram illustrating the overall dimensions of the 12' x 20' wall-mounted hardtop gazebo, including height, length, and width measurements.
| 特徴 | 詳細 |
|---|---|
| ブランド | ドミ アウトドア リビング |
| モデル番号 | LGMF1676 |
| 製品寸法 | 長さ244.8インチ x 幅140.4インチ x 高さ98.4インチ |
| アイテム重量 | 233.3 ポンド |
| フレーム素材 | アルミニウム |
| 屋根材 | スチールルーフ |
| 耐水性レベル | 防水 |
| UV保護 | 紫外線対策 |
| 組み立てが必要 | はい |
| 床面積 | 237.5平方フィート |
保証とサポート
For information regarding product warranty, please refer to the documentation included with your purchase or contact Domi Outdoor Living customer support directly. Keep your proof of purchase for any warranty claims.
カスタマーサポート
If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact our customer support team. Contact details can typically be found on the product packaging or the official Domi Outdoor Living webサイト。
