Homdox Cordless Pressure Washer User Manual

1. はじめに

Thank you for choosing the Homdox Upgraded 1300 PSI Cordless Pressure Washer. This portable and powerful cleaning device is designed to make your outdoor cleaning tasks easier and more efficient. With its 40V battery and versatile 6-in-1 nozzle, you can tackle a wide range of applications, from washing vehicles to cleaning patios and garden furniture. Please read this manual thoroughly before operation to ensure safe and optimal performance of your pressure washer.

2. 安全情報

火災、感電、および人身傷害のリスクを軽減するために、電気製品を使用するときは常に基本的な安全上の注意事項を守ってください。

一般的な安全上の注意：

• 機器を使用する前にすべての説明書をお読みください。
• Do not operate the pressure washer if the trigger gun safety lock is not functioning correctly.
• 手術エリアから子供やペットを遠ざけてください。
• 操作中は安全メガネなどの適切な個人用保護具を着用してください。
• ジェット噴射を人、動物、電気機器、またはユニット自体に向けないでください。
• ユニットを起動する前に、すべての接続が安全であることを確認してください。

バッテリーの安全性:

• Use only the specified charger for the 40V battery.
• Do not expose the battery to water, heat, or direct sunlight.
• Remove the battery from the pressure washer after each use to prevent discharge and wear.
• バッテリーは涼しく乾燥した場所に保管してください。

3. パッケージ内容

Carefully unpack all items and ensure you have received all components listed below. If any parts are missing or damaged, please contact customer support.

Image: All components included in the Homdox Cordless Pressure Washer package.

• 1 x Pressure Washer Spray Gun
• 1 x Extension Lance
• 1 x 6-in-1 Multi-Function Nozzle
• 40Vリチウム電池1個
• 1 xバッテリー充電器
• 1 x Soap Container
• 1 x Inlet Pipe (20-foot hose)
• ユーザーマニュアル x 1

4.製品コンポーネント

Familiarize yourself with the different parts of your Homdox Cordless Pressure Washer.

Image: Labeled diagram of the Homdox Cordless Pressure Washer, showing the 6-in-1 multi-function nozzle, pipe interface, trigger, trigger lock, and 40V Lithium battery.

• 6-in-1多機能ノズル: Adjustable spray patterns for various cleaning needs.
• Pipe Interface: Connection point for the inlet pipe.
• トリガー： Activates the water flow.
• トリガーロック： Safety mechanism to prevent accidental operation.
• 40Vリチウムバッテリー： Provides cordless power to the unit.

5. セットアップ

高圧洗浄機を組み立てて使用できるようにするには、次の手順に従ってください。

組み立て：

1. Insert the extension lance into the main spray gun body until it clicks securely into place.
2. Attach the 6-in-1 multi-function nozzle to the end of the extension lance.
3. Connect the soap container to the designated port if you plan to use detergent.
4. Ensure the 40V Lithium battery is fully charged before first use. Insert the charged battery into the battery slot on the bottom of the spray gun handle until it locks.

Image: Visual guide demonstrating the simple assembly process of the pressure washer components.

Connecting Water Source:

Your Homdox pressure washer offers two convenient ways to draw water:

• 蛇口から: Connect the inlet pipe to a standard garden faucet. (Note: A water pipe adapter may be required and is not included).
• From a Static Water Source (Self-Priming): Place the filtered end of the inlet pipe into a bucket, pool, lake, or any other clean water source. The pressure washer has a self-priming function to draw water.

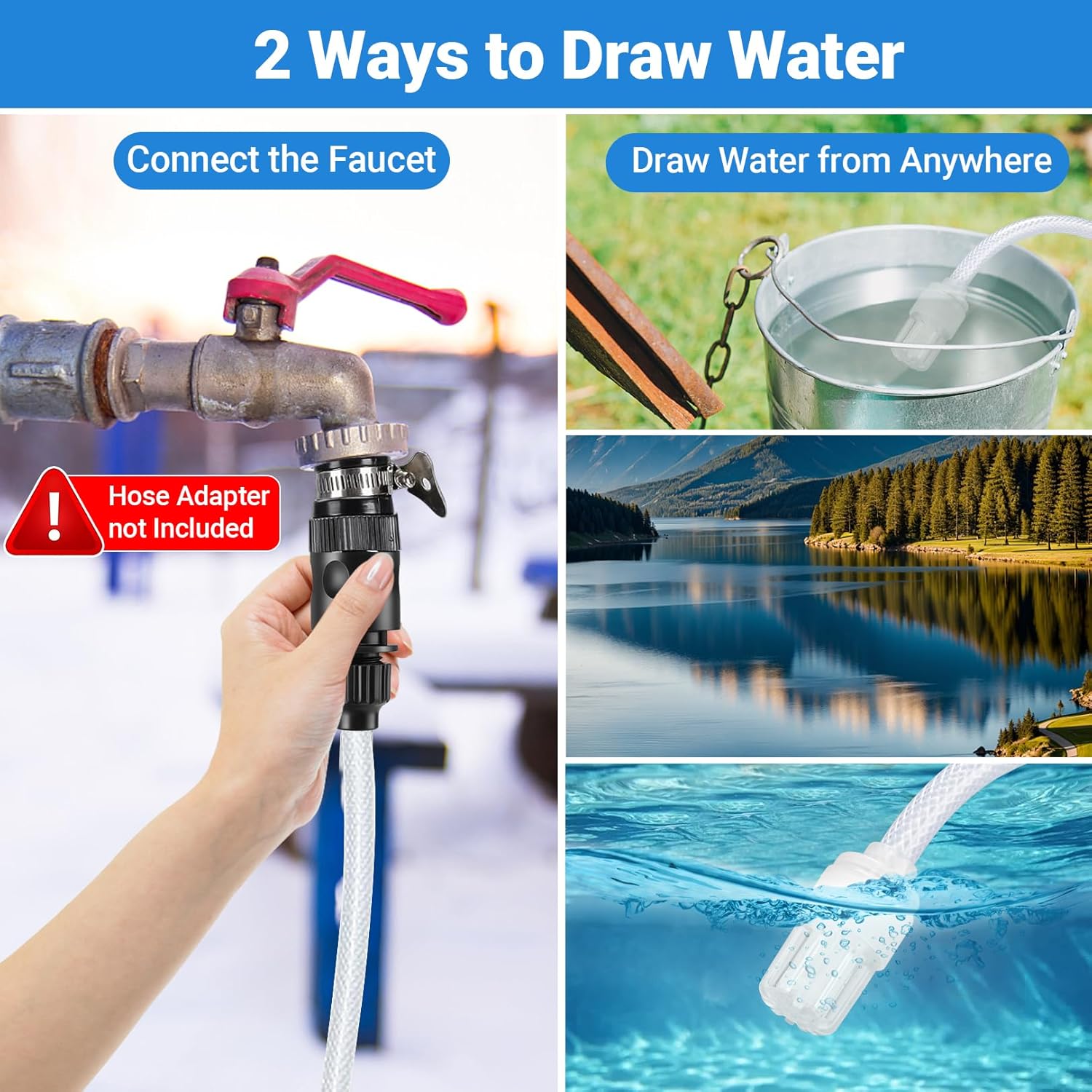

Image: Illustration of connecting the pressure washer to a faucet and drawing water from a bucket or natural water body.

Image: The self-priming feature in action, drawing water from a bucket and a river for car washing.

画像: クローズアップ view of the water suction filter, designed to prevent impurities from entering the machine.

6. 操作手順

Once assembled and connected to a water source, your pressure washer is ready for operation.

6-in-1 ノズルの使用:

The 6-in-1 multi-function nozzle allows you to easily switch between different spray patterns by rotating the nozzle head. Select the appropriate spray pattern for your cleaning task:

• 0°（ペンシルジェット）: For concentrated, powerful cleaning on tough stains.
• 15° (Narrow Fan): For intense cleaning of smaller areas.
• 25° (Medium Fan): General cleaning for various surfaces.
• 40° (Wide Fan): For gentle cleaning and rinsing of larger areas.
• フォームモード: For applying soap or detergent.
• シャワーモード: 植物を優しくすすいだり、水やりしたりするのに。

Image: The 6-in-1 nozzle demonstrating its various spray patterns, including 0°, 20° (slant direction), 40°, foam jetting, and shower mode.

Applying Detergent with Soap Container:

To use detergent, fill the soap container with your desired cleaning solution. Attach it to the pressure washer and select the 'Foam Mode' on the 6-in-1 nozzle. The unit will mix the detergent with water to create a rich foam for effective cleaning.

Image: A user demonstrating car washing with the pressure washer, utilizing the foam mode for effective cleaning.

代表的な用途:

The Homdox Cordless Pressure Washer is versatile for many tasks:

• Washing vehicles (cars, bicycles, boats)
• Cleaning patios, decks, and driveways
• Washing outdoor furniture and fences
• Cleaning windows and siding
• Gentle spray watering for plants

画像: コラージュショーasing diverse applications of the pressure washer, including wall washing, floor washing, window washing, chair washing, car washing, and spray watering.

7. メンテナンス

適切なメンテナンスを行うことで、高圧洗浄機の寿命が長くなり、最適なパフォーマンスが確保されます。

クリーニング：

• After each use, disconnect the water source and remove the battery.
• Run the pressure washer for a few seconds to clear any remaining water from the pump and hose.
• ユニットの外側を広告で掃除するamp 布で拭いてください。強い化学薬品は使用しないでください。
• 詰まりを防ぐために、定期的に給水フィルターを点検し、清掃してください。

バッテリーのケア：

• 使用後は必ずバッテリーを取り外してください。
• 長期間保管する前にバッテリーを完全に充電してください。
• バッテリーは直射日光や極端な温度を避け、涼しく乾燥した場所に保管してください。

ストレージ：

• 高圧洗浄機は乾燥した霜の降りない環境に保管してください。
• Protect the unit from direct sunlight and extreme temperatures.
• Keep all components organized to prevent loss or damage.

8。 トラブルシューティング

高圧洗浄機で問題が発生した場合は、以下の表で一般的な問題と解決策を参照してください。

9. 仕様

Technical specifications for the Homdox Cordless Pressure Washer.

Image: Comparison highlighting the features of the 40V powerful battery, including voltage, charging time, and charging current.

10. 保証とサポート

Homdox products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Homdox webサイトでご確認ください。保証請求の際に必要となりますので、購入証明書を保管してください。
