1. はじめに

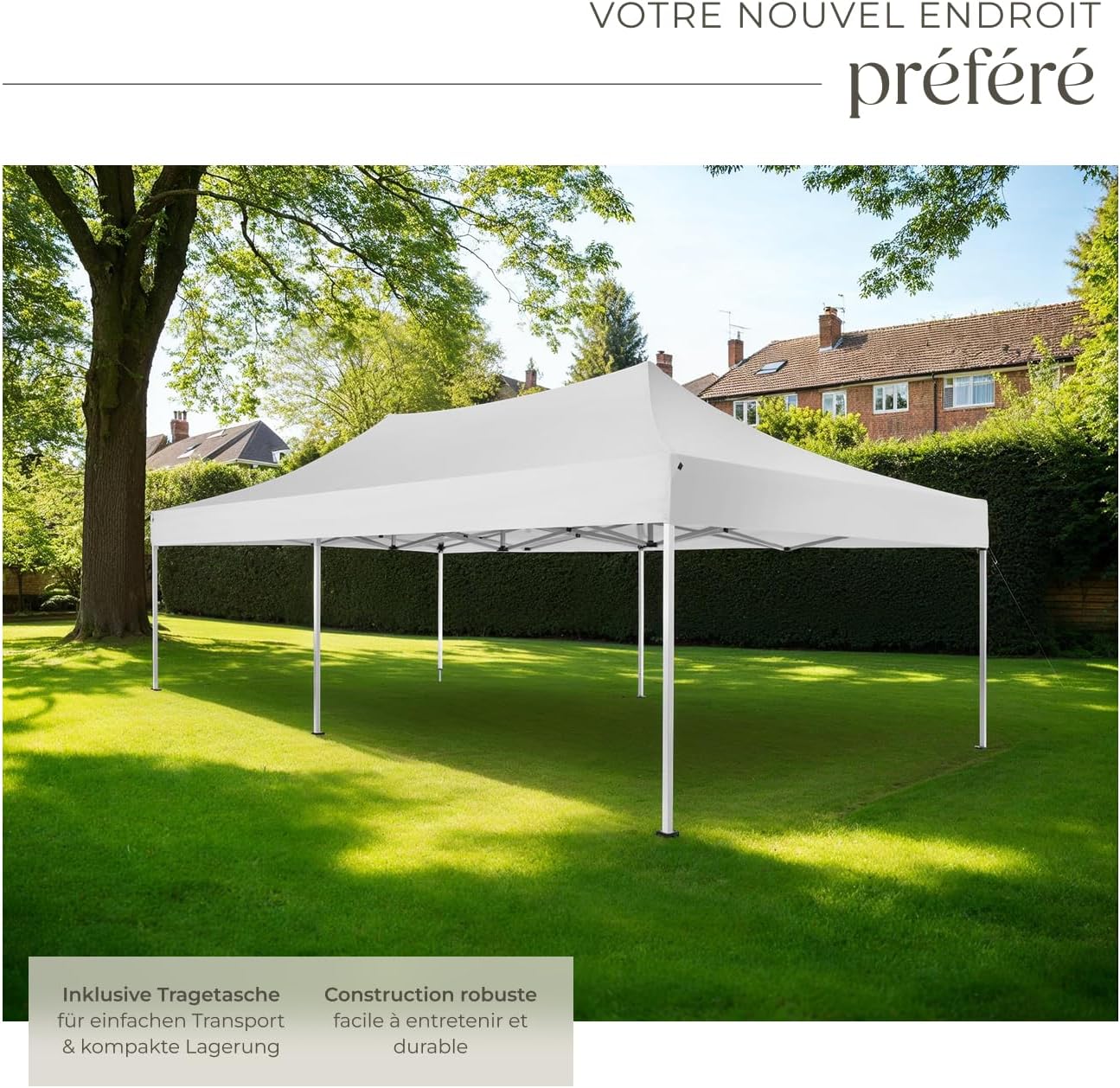

This manual provides essential information for the safe and correct assembly, operation, and maintenance of your tectake Garden Gazebo 6 x 3 m. Please read these instructions carefully before use and retain them for future reference. This gazebo is designed to provide temporary shelter from sun, light rain, and wind for outdoor events.
2. 安全ガイドライン
- 気象条件: Do not use the gazebo in severe weather conditions, including strong winds, heavy rain, thunderstorms, or snow.
- ストレージ： Always dismantle and store the gazebo in its transport bag during strong winds or heavy rain to prevent potential damage to the structure or injury.
- アンカー: Ensure the gazebo is properly anchored to the ground using all provided pegs and tension cables to maintain stability.
- 組み立て： Assembly should be performed by at least two adults. Follow all steps carefully to ensure structural integrity.
- クリアランス： 熱源、裸火、電線から十分な距離を確保してください。
3. パッケージ内容
組み立てを始める前に、以下にリストされているすべてのコンポーネントが揃っていることを確認してください。
- 1x Gazebo Frame (pre-assembled folding mechanism)
- 1x Roof Canopy (polyester with PVC coating)
- 2x Side Panels with Windows
- 4x Tension Cables
- グラウンドペグ10個
- 輸送用バッグ1個
- 取扱説明書 (本書) x 1
4. 仕様
| 特徴 | 仕様 |
|---|---|
| 全体の寸法（長さ x 幅 x 高さ） | Approx. 600 x 300 x 280 - 310 cm |
| 折りたたみ時の寸法（長さ x 幅 x 高さ） | 約148 x 30 x 35 cm |
| Window Dimensions (W x H) | 約236 x 100 cm |
| Tube Dimensions (L x W) | 約2.5 x 2.5 cm |
| Foot Dimensions (L x W) | 約6.5 x 6.5 cm |
| Height Under Tent | 約170～200cm（調節可能） |
| Roof Fabric Thickness | 240 g/m² |
| UV保護 | 40以上 |
| 重さ | 約27.9kg |
| 材料 | Aluminum frame, Polyester with PVC coating |
| 色 | 白 |
すべての測定値は概算です。
5. セットアップ手順
Follow these steps for proper assembly of your garden gazebo:
- コンポーネントを解凍します: Carefully remove all parts from the transport bag and lay them out on a clean, flat surface.
- フレームを展開する: With assistance, gently pull the folding frame outwards from opposite corners until it is partially open.
- ルーフキャノピーを取り付けます。 Place the roof canopy over the partially opened frame. Ensure the canopy is correctly oriented and secured at all four corners.
- フレームを完全に伸ばす： Continue to pull the frame outwards until it is fully extended and the click system on each leg locks into place.
- 高さの調整: Press the release buttons on each leg and extend the telescopic legs to your desired height (4 adjustable levels). Ensure all legs are set to the same height for stability. Each foot angle should securely click into place.
- サイドパネルを取り付ける: If desired, attach the two side panels with windows. These panels are fixed using hooks and hook-and-loop fasteners along the top and sides of the frame.
- ガゼボを固定する: Secure the gazebo to the ground using the provided ground pegs and tension cables. Insert pegs through the footplates and into the ground. Attach tension cables to the top corners and stake them firmly into the ground at an angle.
6. 操作手順
Your tectake Garden Gazebo is designed for temporary outdoor use.
- 一般的な用途: The gazebo provides shade and protection from light rain and wind. It is suitable for garden parties, outdoor events, or as a temporary shelter.
- 高さ調整: The gazebo's height can be adjusted to four different levels. To adjust, ensure the area is clear, then press the release buttons on each leg and slide the inner leg to the desired position until it clicks securely. Always adjust all legs evenly.
- サイドパネル： The two included side panels with windows can be attached or removed as needed to provide additional protection from wind or for privacy. They attach via hooks and hook-and-loop fasteners.
7. メンテナンス
- クリーニング： Clean the canopy and side panels with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. Allow all fabric parts to dry completely before folding and storing to prevent mildew.
- フレームのお手入れ: アルミフレームを広告で拭くamp cloth to remove dirt. Inspect the frame for any damage or loose connections periodically.
- ストレージ： When not in use, especially during adverse weather, dismantle the gazebo and store all components in the provided transport bag in a dry, cool place. Ensure the fabric is completely dry before storage.

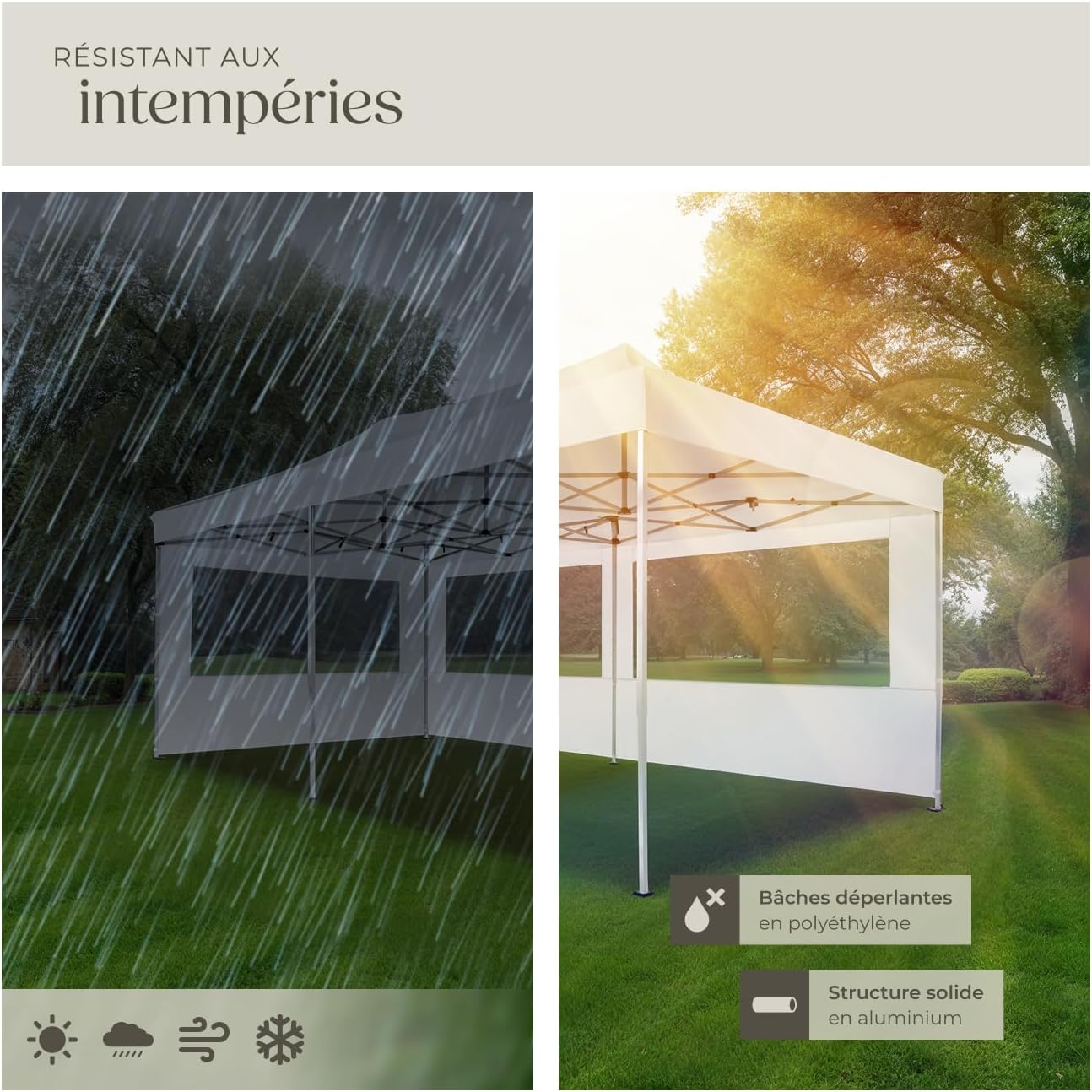

- 天候に関する注意事項: As stated in the safety guidelines, always dismantle and store the gazebo in case of strong winds, heavy rain, or other severe weather conditions. The waterproof fabric is designed for light rain, but not prolonged exposure to heavy precipitation.
8。 トラブルシューティング
- Gazebo は不安定です: Ensure all legs are fully extended and locked into place. Verify that all ground pegs and tension cables are securely fastened. Check that the height adjustment is even on all legs.
- Difficulty unfolding/folding: Ensure no parts are obstructed or bent. Apply gentle, even pressure. If the frame is stiff, check for dirt or debris in the joints.
- 屋根に水が溜まっている: Ensure the roof canopy is taut and properly secured to the frame. Adjust the height if necessary to create sufficient slope for water runoff.
- Side panels not attaching securely: Check that the hook-and-loop fasteners are clean and free of debris. Ensure the hooks are correctly engaged with the frame.
9. 保証とサポート
For warranty information or technical support, please refer to your purchase documentation or contact the seller/manufacturer directly. Keep your proof of purchase for any warranty claims.
メーカー: TecTake GmbH
