KINETICO K12561 Pre-Filter String Instruction Manual

導入

The KINETICO K12561 Pre-Filter String is designed to effectively filter out sediment and other solid materials from your water supply. This pre-filter plays a crucial role in protecting your Kinetico water softener, ensuring its optimal performance and extending its lifespan. This manual provides essential information for the proper installation, operation, and maintenance of your K12561 Pre-Filter String.

安全情報

• 設置やメンテナンスを行う前に、必ず主給水を停止してください。
• Depressurize the water system before opening any filter housing.
• 漏れを防ぐために、すべての接続が確実に固定されていることを確認してください。
• いずれかの手順について不明な点がある場合は、資格のある配管工に相談してください。

パッケージ内容

パッケージには次のアイテムが含まれています。

• 1 x KINETICO K12561 Pre-Filter String

インストール手順

Follow these steps to install or replace your KINETICO K12561 Pre-Filter String:

1. 給水を止める: Locate the main water shut-off valve for your home or the specific valve leading to your Kinetico water softener system and turn it off.
2. 減圧システム: Open a nearby faucet to release any pressure in the water lines. Allow water to drain until the flow stops.
3. フィルターハウジングを開く: Using the appropriate filter wrench (if required), carefully unscrew and remove the filter housing. Be prepared for some residual water to spill.
4. 古いフィルターを削除: Discard the old filter cartridge. Clean the inside of the filter housing with a mild soap and water solution, then rinse thoroughly. Inspect the O-ring for any damage and replace if necessary.
5. 新しいフィルターを挿入: Carefully insert the new KINETICO K12561 Pre-Filter String into the housing. Ensure it is seated correctly in the center standpipe.
6. Close Filter Housing: Screw the filter housing back onto the cap, hand-tightening it first, then using the filter wrench for a snug fit. 締めすぎないでください。
7. 給水復旧: 給水元バルブをゆっくり開けます。
8. 漏れがないか確認する: Monitor the filter housing for any signs of leaks. If leaks occur, turn off the water, depressurize, and re-tighten the housing.
9. フラッシュシステム: Open a cold water faucet and let the water run for several minutes to flush out any air and fine particles.

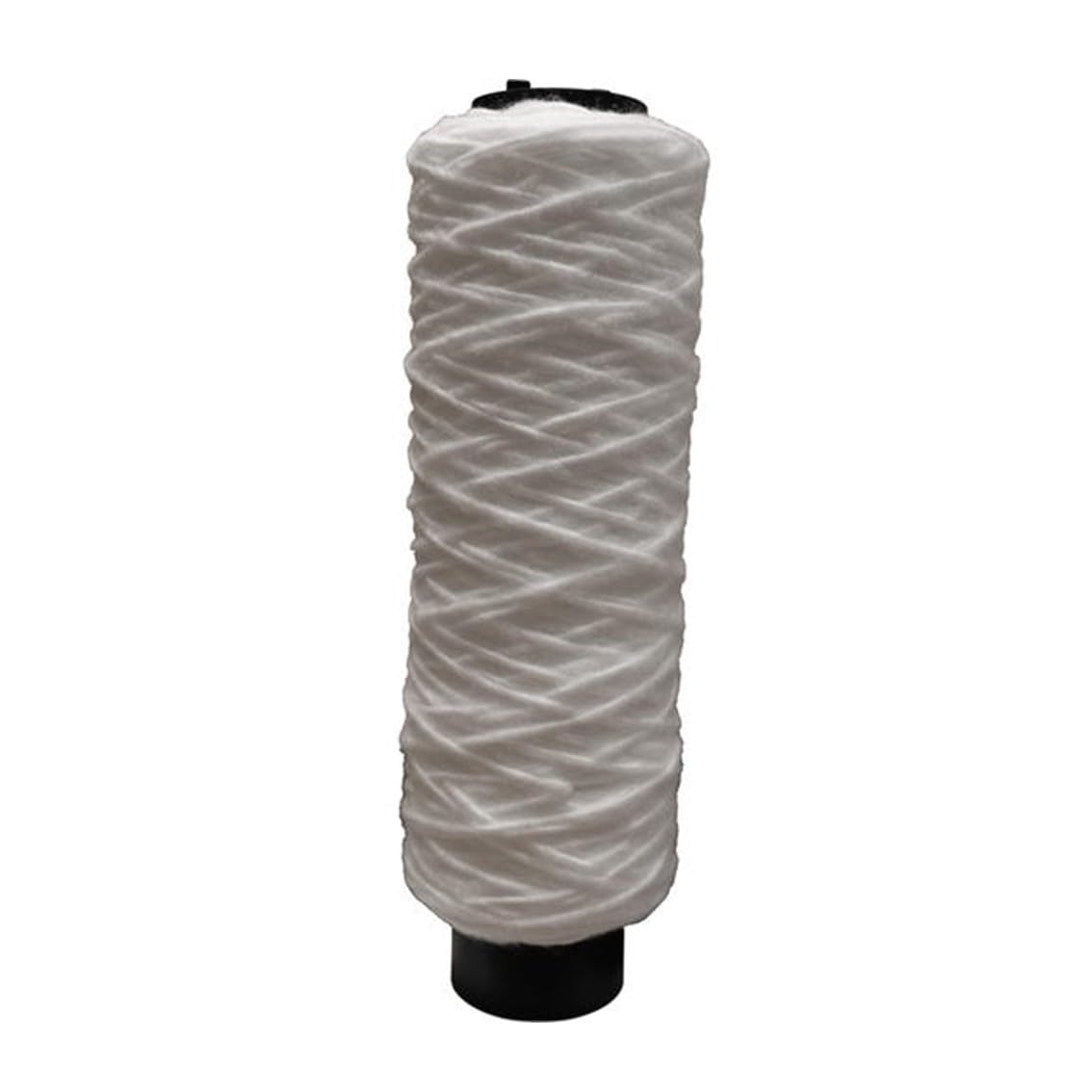

Image: The KINETICO K12561 Pre-Filter String, a white string-wound filter cartridge. This image illustrates the physical appearance of the filter for identification during installation.

手術

Once installed, the KINETICO K12561 Pre-Filter String operates passively as water flows through your system. It continuously filters out sediment and particulate matter, providing cleaner water to your Kinetico water softener and other household appliances. No further user interaction is required during normal operation.

メンテナンス

The KINETICO K12561 Pre-Filter String is a disposable filter cartridge and requires periodic replacement to maintain optimal performance. The replacement frequency depends on your water quality and usage.

• 交換スケジュール: It is generally recommended to replace sediment pre-filters every 3 to 6 months, or sooner if you notice a significant drop in water pressure or visible discoloration of the filter.
• 交換手順： 参照 インストール手順 section for detailed steps on how to replace the filter cartridge.

トラブルシューティング

仕様

保証とサポート

For specific warranty information or technical support regarding your KINETICO K12561 Pre-Filter String, please refer to the documentation provided with your Kinetico water softener system or contact Kinetico customer service directly. Contact details can typically be found on the official Kinetico website or on your original purchase receipt.
