Fuers 8-Channel 5MP Hybrid 6-in-1 Security DVR Recorder (Model A670901) User Manual

Model: A670901 | Brand: Fuers

1. はじめに

This manual provides detailed instructions for the installation, operation, and maintenance of your Fuers 8-Channel 5MP Hybrid 6-in-1 Security DVR Recorder. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

Fuers 8-Channel 5MP Hybrid DVR Recorder, front and back views, with a 500GB hard drive and a smartphone displaying the remote viewing アプリ。

画像: 前面と背面 view of the Fuers DVR, illustrating its compact design and various connection ports. Also shown are the included 500GB hard drive and a smartphone demonstrating the remote viewing アプリケーション。

The Fuers 8-Channel 5MP Hybrid DVR is designed for comprehensive surveillance, supporting various camera types including AHD, TVI, XVI, CVI, CVBS, and IP cameras. It features 5MP recording capability, human detection, 24/7 recording, and remote monitoring via a dedicated application. A 500GB hard drive is pre-installed for immediate use.

Screenshot showing the DVR system in use, displaying multiple camera feeds on a monitor, with icons indicating no monthly fees, internet optional, 8-channel, 5MP, H.265+, motion detection, remote view, and 500GB HDD.

Image: Visual representation of the DVR system's capabilities, including multi-channel display, key features like motion detection and H.265+ compression, and the benefit of no monthly fees.

2. 箱の中身

パッケージにすべてのアイテムが揃っていることを確認します。

  • 1x 5MP 8CH DVR
  • 1x 500GB Hard Drive (Pre-installed on DVR)
  • 1 X DVR Power Supply
  • 1 X USB Mouse
  • ユーザーマニュアル x 1
Contents of the product box, including the 8-channel DVR, 500GB hard drive, power supply, USB mouse, and user manual, with dimensions of the DVR shown.

Image: An illustration detailing the components included in the package, along with the physical dimensions of the DVR unit.

3.製品オーバーview

3.1フロントパネル

The front panel of the DVR features indicator lights and control buttons for basic operation and status monitoring.

  • 力： 電源インジケータライト。
  • 警報： アラームステータスインジケーター。
  • REC： Recording status indicator.
  • IR: 赤外線リモコン受信機。
  • クアッド: Display multiple camera feeds.
  • ESC： メニューを終了するか、操作をキャンセルします。
  • メニュー： メインメニューにアクセスします。
  • OK： 選択を確認します。
  • USBポート: USBマウスや外部ストレージを接続します。

3.2 背面パネル

The rear panel provides all necessary connection ports for cameras, display, audio, network, and power.

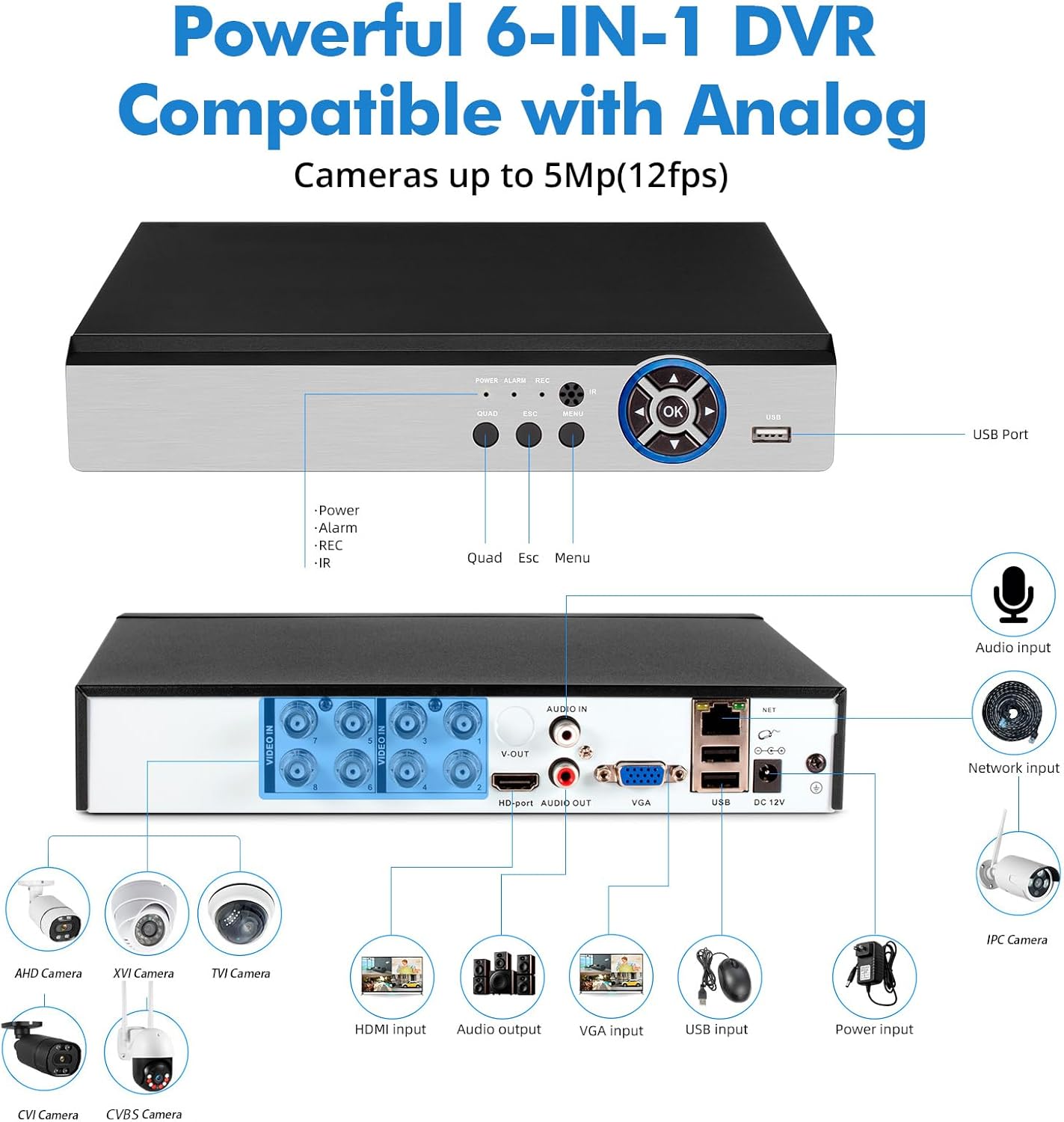

Detailed diagram of the DVR's rear panel showing all input and output ports, including BNC video inputs, audio input/output, VGA, HDMI, USB, Ethernet, and power input. Various compatible camera types are also illustrated.

画像: 包括的な view of the DVR's rear panel, highlighting each port and its function, along with examples of compatible camera types such as AHD, XVI, TVI, CVI, CVBS, and IP cameras.

  • VIDEO IN (1-8): BNC connectors for analog cameras (AHD, TVI, XVI, CVI, CVBS).
  • オーディオ入力/出力: RCA connectors for audio input and output.
  • V-OUT: BNC video output.
  • VGA： VGA output for connecting to a monitor.
  • HD-port (HDMI): HDMI output for connecting to a TV or monitor.
  • ネット： ネットワーク接続用の RJ45 イーサネット ポート。
  • USB： USB ports for mouse and external devices.
  • DC 12V： DVR の電源入力。

The DVR supports a 6-in-1 hybrid input, allowing compatibility with TVI, AHD, CVBS, CVI, XVI, and IP cameras. Note that it is not compatible with SDI/PoE cameras.

4.セットアップガイド

4.1 初期接続

  1. カメラを接続する: Connect your surveillance cameras to the "VIDEO IN" BNC ports on the rear panel of the DVR.
  2. ディスプレイを接続する: VGA ポートまたは HDMI ポートを使用して、モニターまたはテレビを DVR に接続します。
  3. USBマウスを接続します: 付属の USB マウスを DVR の USB ポートの 1 つに接続します。
  4. ネットワークに接続（オプション）: For remote access, connect an Ethernet cable from your router to the "NET" port on the DVR.
  5. 接続電源： Connect the DVR power supply to the "DC 12V" input and then plug it into a power outlet. The DVR will power on automatically.

Upon first power-on, the system will guide you through initial setup steps, including setting the date, time, and administrator password.

4.2 Remote Access Setup (iCSee App)

に view your surveillance system remotely on a smartphone or tablet, download the iCSee application.

Step-by-step guide for mobile remote access, showing how to connect the CCTV system, connect the DVR to the network, download the iCSee app via QR codes for Android and iOS, and enjoy live view.

Image: Instructions for setting up remote access, including physical connections, network setup, and downloading the iCSee mobile application using provided QR codes for both Android and iOS devices.

  1. DVR がイーサネット ケーブル経由でネットワークに接続されていることを確認します。
  2. Download the iCSee app:
  3. Open the app and follow the on-screen instructions to add your DVR device. This typically involves scanning a QR code displayed on the DVR's monitor or manually entering the device ID.
  4. 追加したら、 view ライブフィードと録画された動画の再生tagモバイルデバイスから。

5. 操作手順

5.1 ライブ View と再生

After successful setup, the DVR will display live video feeds from connected cameras on the connected monitor. Use the USB mouse to navigate the on-screen menu.

  • ライブ View: The default display shows multiple camera channels. You can switch between single-channel view and multi-channel view using the menu options or dedicated buttons on the front panel.
  • 再生： 再生メニューにアクセスしてview 記録されたfootage. 日付、時刻、イベントの種類（例：モーション検出）で検索できます。
A laptop and a smartphone displaying live video feeds from a security camera, illustrating local storage and remote playback capabilities.

Image: Demonstration of accessing live and recorded video feeds through both a local monitor (laptop) and a remote mobile device, highlighting the flexibility of the system.

5.2 録音モード

The DVR supports continuous 24/7 recording and event-triggered recording.

  • 連続記録： レコードfootage constantly, overwriting the oldest data when the hard drive is full.
  • 動き検出記録： Records only when motion is detected by the cameras. This conserves storage space.
  • 人間の検出： The system features AI-powered human detection, which can differentiate human shapes from other moving objects, reducing false alarms. This feature requires compatible cameras.
An image showing a person walking past an elevator, with a blue box highlighting the person and a notification bubble indicating 'iCSee Detect the presence of a Human'.

Image: Illustration of the human detection feature, where the system identifies and highlights a human figure, triggering an alert via the iCSee application.

5.3 アラートと通知

Configure the DVR to send alerts when specific events occur.

  • メールアラート: Receive email notifications with snapshots when motion or other events are detected.
  • アプリのプッシュ通知: Get instant alerts on your smartphone via the iCSee app.

6. メンテナンス

6.1 ハードドライブ管理

The DVR comes with a pre-installed 500GB hard drive. The system automatically manages storage by overwriting the oldest footage when the drive is full. You can configure recording settings to optimize storage usage.

The DVR supports H.265+ video compression, which significantly reduces storage requirements compared to H.264, saving approximately 50% of storage space while maintaining video quality.

Comparison of H.265+ and H.264 video compression, showing H.265+ offers smoother viewing, faster downloads, and reduced storage (50% less storage space, bandwidth resources, and 100% loading speed compared to H.264).

Image: A visual comparison highlighting the benefits of H.265+ video compression over H.264, specifically in terms of storage efficiency and streaming performance.

The DVR's storage capacity can be expanded up to 14TB. Replacing the hard drive may require a higher power supply.

6.2 システムアップデート

定期的にメーカーの website or the iCSee app for firmware updates to ensure optimal performance and access to new features.

6.3 クリーニング

Clean the exterior of the DVR with a soft, dry cloth. Do not use liquid cleaners or aerosols. Ensure ventilation openings are free from dust to prevent overheating.

7。 トラブルシューティング

問題考えられる原因解決
モニターにビデオが表示されません。
  • 電源ケーブルが外れています。
  • Monitor cable loose or incorrect port.
  • Incorrect input source selected on monitor.
  • Camera not powered or connected.
  • Check power connection to DVR and outlet.
  • Ensure VGA/HDMI cable is securely connected to both DVR and monitor.
  • Select correct input source (VGA/HDMI) on your monitor.
  • Verify camera power and BNC connections.
Cannot access DVR remotely via app.
  • DVR not connected to the internet.
  • ネットワーク設定が正しくありません。
  • App not configured correctly.
  • Check Ethernet cable connection to DVR and router.
  • Verify DVR network settings (IP address, gateway, DNS).
  • Ensure the DVR is added correctly in the iCSee app.
  • DVRとルーターを再起動します。
録画なしまたは欠落tage.
  • Hard drive full or not initialized.
  • Recording schedule not set.
  • Motion detection sensitivity too low.
  • Check hard drive status in DVR menu; format if necessary (this will erase all data).
  • Configure recording schedule for continuous or event-based recording.
  • Adjust motion detection sensitivity in camera settings.
ビデオ品質が低い。
  • Incompatible camera resolution.
  • ケーブルの品質の問題。
  • Camera lens dirty or out of focus.
  • Ensure cameras are compatible with the DVR's supported resolutions (up to 5MP).
  • Check BNC cable connections and cable quality.
  • Clean camera lenses and adjust focus if applicable.

これらの解決策を試しても問題が解決しない場合は、カスタマー サポートにお問い合わせください。

8. 仕様

モデル番号A670901
ビデオ入力8 Channels (BNC)
ビデオ圧縮H.265 +
サポートされているカメラの種類AHD, TVI, XVI, CVI, CVBS, IP (Hybrid 6-in-1)
最大解像度5MP (12fps)
ハードドライブ容量500GB (Pre-installed), Expandable up to 14TB
ビデオ出力HDMI, VGA, BNC (V-OUT)
オーディオ入力/出力RCA Audio In, RCA Audio Out
ネットワーク·インタフェースRJ45 イーサネット
USBインターフェースMultiple USB ports for mouse and external devices
電源DC12V
製品寸法7.3 x 7 x 1.5 インチ (18.5 x 17.8 x 3.8 cm)
アイテム重量3.39ポンド（1.54kg）

9. 保証とサポート

9.1 保証情報

This product is covered by a limited warranty against defects in materials and workmanship. Please refer to the warranty card included in your package or contact customer support for specific warranty terms and conditions.

9.2 カスタマーサポート

For technical assistance, troubleshooting, or any questions regarding your Fuers DVR, please contact our customer support team. Contact information can typically be found on the manufacturer's webサイトまたは製品のパッケージ内。

When contacting support, please have your product model number (A670901) and purchase details ready.
