Black Shark FunCooler 3 Pro ユーザーマニュアル
Model: BS 3 Pro
ブランド: ブラックシャーク
1. はじめに
The Black Shark FunCooler 3 Pro is an advanced semiconductor heatsink cooling device designed to maintain optimal performance for your iOS and Android smartphones. It features powerful cooling capabilities, smart fan speed settings, and app control, ensuring your device remains cool during intensive use, such as gaming or live streaming.
Image: The Black Shark FunCooler 3 Pro, a sleek black device with purple accents and a central fan, designed to attach to a smartphone for cooling.
2. パッケージ内容
パッケージにすべてのアイテムが含まれていることを確認してください。
- Black Shark Phone Cooler 3 Pro
- 1.5m Type-C Fast Charging Cable
- 取扱説明書
- Magnetic Sheet (for magnetic attachment, if applicable to your model)
Image: The package contents laid out, including the FunCooler 3 Pro device, a USB-C cable, and documentation.
3. セットアップ
3.1 Attaching the Cooler to Your Smartphone
The Black Shark FunCooler 3 Pro is designed to fit smartphones with a width between 67mm and 88mm (2.63-3.46 inches). Ensure your phone is within this range for a secure fit.
- Gently extend the cooler's clamps to accommodate your phone's width.
- Position the cooler on the back of your smartphone, ensuring the cooling plate makes direct contact with the phone's surface, ideally near the processor area for maximum efficiency.
- clを解放するamps to securely grip the phone.
Image: A diagram illustrating the adjustable width of the cooler, showing it can fit various smartphone models from 67mm to 88mm.
3.2電源接続
Connect the provided 1.5m Type-C fast charging cable to the cooler's Type-C port and plug the other end into a power adapter (not included). For optimal cooling performance, a 25W or higher power adapter is recommended.
4. 操作手順
4.1 基本操作
Once connected to power, the cooler will automatically begin operating. The fan will spin, and the RGB lighting effects will activate. The device is designed for rapid cooling, achieving significant temperature drops within seconds.
Video: An official Black Shark video demonstrating the rapid cooling capabilities of the FunCooler 3 Pro, showing temperature drop and freezing progress.
4.2 App Control (Shark Arsenal)
For advanced control and customization, download the "Shark Arsenal" app from your device's app store. Connect the FunCooler 3 Pro via Bluetooth to unlock additional features:
- インテリジェント温度制御: Adjusts fan speed based on the phone's temperature.
- 手動温度制御： Allows manual regulation of fan speed.
- RGB Efficacy: Customize the colorful LED lighting effects.
- Timer Off Functions: Set a timer for the cooler to automatically shut off.

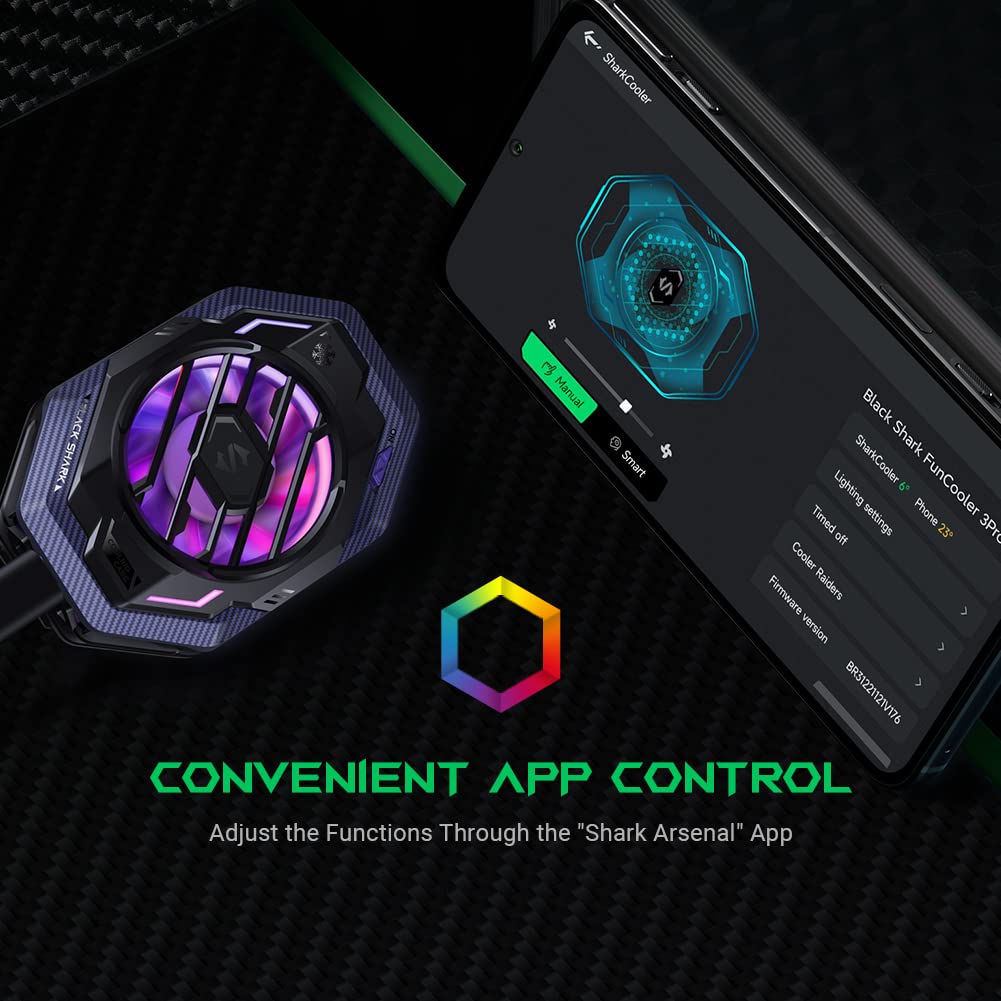

Image: A visual representation of the Black Shark FunCooler 3 Pro connected to a smartphone displaying the "Shark Arsenal" app interface, highlighting customizable settings.
Image: A detailed graphic showing the app's interface for temperature control (manual and intelligent) and light effect settings (streamer, breathe, flow, flicker).
4.3使用シナリオ
The FunCooler 3 Pro is ideal for various scenarios where smartphone overheating is a concern:
- モバイルゲーム: Prevents performance throttling and ensures smooth gameplay.
- ライブストリーミング: Maintains device stability during extended streaming sessions.
- Mobile Navigation: Keeps phone cool during prolonged GPS use in vehicles.
Image: Three panels depicting the phone cooler in use: during mobile live streaming, mobile navigation in a car, and while playing games.
5. メンテナンス
- Keep the cooling plate clean and free of dust or debris to ensure efficient heat transfer.
- Avoid prolonged operation in high humidity environments without active cooling, as this may lead to condensation on the cooling plate.
- デバイスを使用しないときは、涼しく乾燥した場所に保管してください。
6。 トラブルシューティング
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| クーラーがオンになりません。 | 電源が供給されていないか、電源が不足しています。 | Ensure the Type-C cable is securely connected to both the cooler and a power source. Use a 25W or higher power adapter. |
| 冷却性能が悪い。 | Poor contact with phone, dust on cooling plate, or low power. | Ensure the cooler is firmly attached and the cooling plate makes full contact. Clean the cooling plate. Verify power supply meets requirements. |
| Condensation on phone/cooler. | High humidity environment combined with low cooling temperature. | This is normal in humid conditions. Wipe away condensation. Avoid running for extended periods when not actively gaming to prevent excessive condensation inside the phone. |
| アプリの接続の問題。 | Bluetoothが有効になっていないか、アプリが更新されていません。 | Ensure Bluetooth is enabled on your phone. Restart the app and cooler. Check for app updates. |
7. 仕様
| 特徴 | 詳細 |
|---|---|
| モデル番号 | BS 3 Pro |
| 冷却力 | 20W |
| Cooling Chip Area | 1404mm² |
| 互換性のある電話の幅 | 67mm - 88mm (2.63 - 3.46インチ) |
| 製品寸法 | 長さ3.8インチ x 幅1.8インチ x 高さ5.7インチ (9.65cm x 4.57cm x 14.48cm) |
| アイテム重量 | 150グラム（5.29オンス） |
| 材料 | プラスチック |
| 電源入力 | USB Type-C (25W or higher adapter recommended) |
| 特徴 | Vertical Air Outlet, App Control (Intelligent/Manual Temp, RGB, Timer), Silent Operation |
画像: 爆発した view diagram illustrating the internal components of the FunCooler 3 Pro, including the 7-blade high-speed fan, heat sink, and 1404mm² cooling wafer.
8. 保証とサポート
For warranty information and customer support, please refer to the official Black Shark web公式サイトをご覧いただくか、カスタマーサービスに直接お問い合わせください。保証請求のために購入時のレシートを保管してください。
注記： 一部のユーザーはviews indicate a 15-day warranty period. Please confirm the exact warranty terms with the manufacturer or seller at the time of purchase.
さらにサポートが必要な場合は、次のサイトを参照してください。 AmazonのBlack Sharkストア.
