Smad XC-60G 3-Way RV Refrigerator User Manual

1. はじめにview

This manual provides essential information for the safe and efficient operation of your Smad XC-60G 3-Way RV Refrigerator. Designed for versatility, this 2.1 cu.ft absorption refrigerator offers flexible power options (12V, 110V, and LPG) making it ideal for RVs, campers, vans, and off-grid use. Its silent operation and compact design ensure convenience and comfort in various settings.

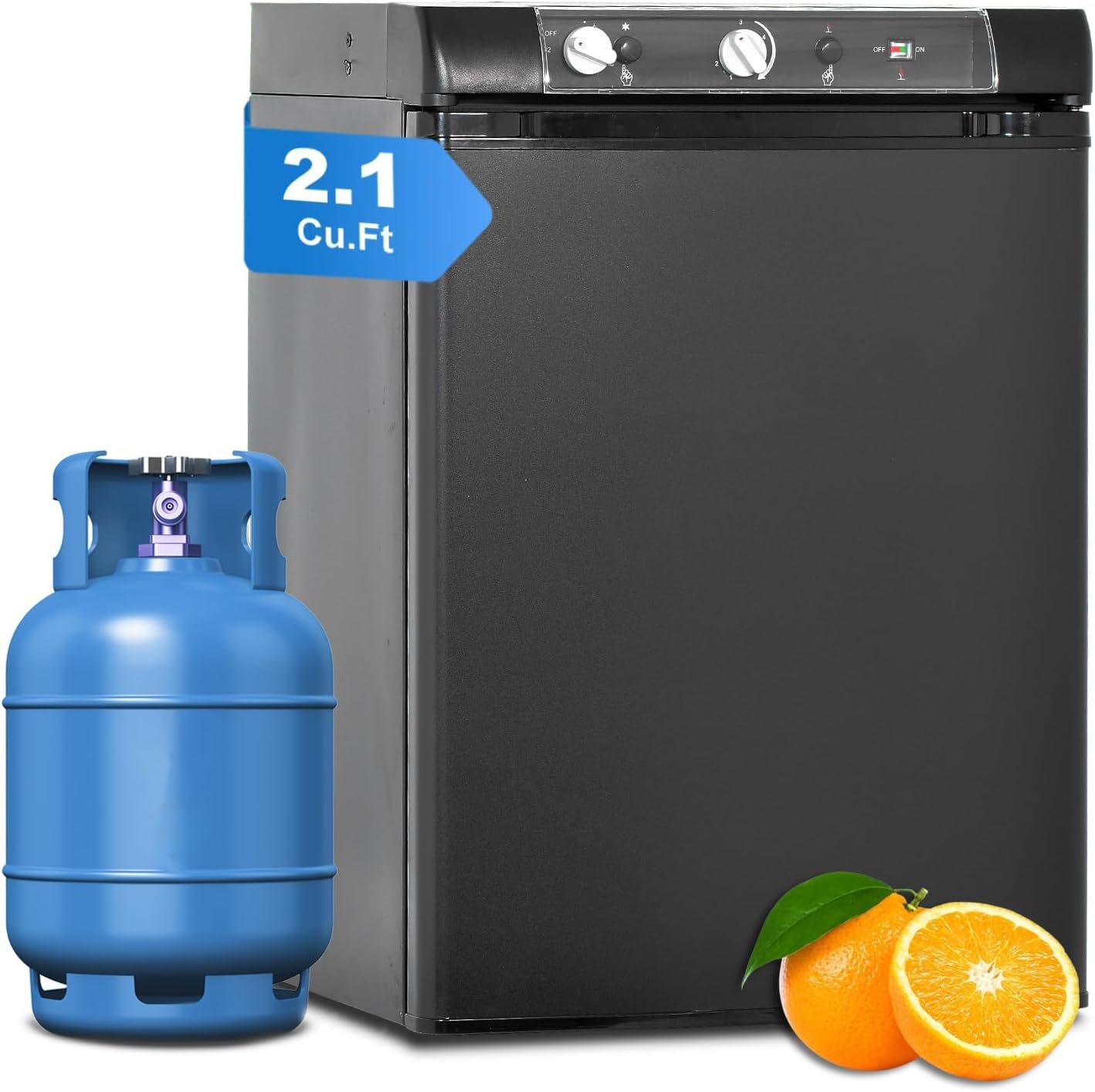

Image: The Smad XC-60G 3-Way RV Refrigerator, showcasing its compact size and 2.1 cubic feet capacity, alongside a propane tank and fresh produce, illustrating its intended use for mobile and off-grid environments.

2. パッケージ内容

開梱時にパッケージの内容を確認し、すべてのアイテムが揃っていて損傷がないことを確認してください。

• 1 x Smad XC-60G 3-Way RV Refrigerator
• 1 x Door Bin
• ユーザーマニュアル（このドキュメント）

3. 主な特徴

• Versatile 3-Way Power: Operates on 12V DC, 110V AC, or LPG (Liquefied Petroleum Gas), offering flexibility for various power sources, especially useful for off-grid applications. Note: LPG gas pressure must be 2.8mbar.
• コンパクトで持ち運びに便利: With 2.1 cu.ft of storage and adjustable shelves, it's designed for efficient space utilization in RVs, campers, and small living areas. The door features a lock and protective frame to secure contents during travel.
• 効率的な冷却: Maintains a temperature range of 32 to 50℉ (0 to 10℃), suitable for keeping fruits, vegetables, and beverages fresh.
• 超静かな動作: Utilizes an advanced absorption refrigeration system, operating at 0dB, ensuring no disturbance to your environment.
• Durable and Low Maintenance: The absorption system minimizes moving parts, reducing wear and tear and lowering maintenance requirements. It is designed for reliability in outdoor and mobile conditions.

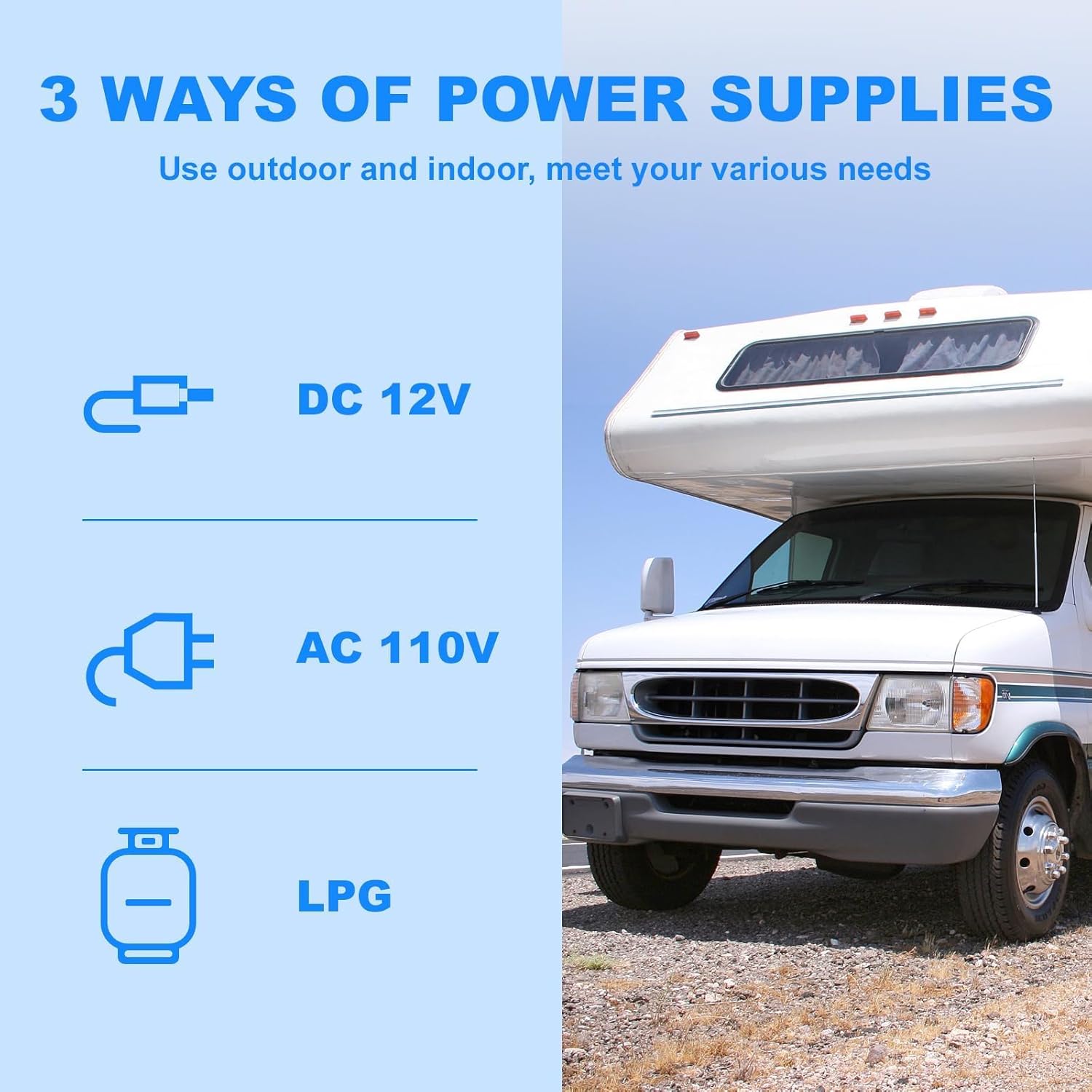

Image: An illustration highlighting the three power supply options for the refrigerator: DC 12V, AC 110V, and LPG, emphasizing its adaptability for both outdoor and indoor use, with an RV parked in a natural setting.

Image: The refrigerator placed in a living room next to a sofa, with a person and a dog, illustrating its quiet operation (0dB) and energy efficiency (estimated $0.1 per day), ensuring it does not disturb daily activities.

4. セットアップとインストール

Proper setup and installation are crucial for the refrigerator's optimal performance and safety. Ensure the unit is placed on a stable, level surface with adequate ventilation around it, especially for the absorption cooling system.

4.1 配置に関する考慮事項

• Ensure sufficient clearance around the back and sides for proper airflow.
• Avoid direct sunlight or heat sources, which can reduce cooling efficiency.
• For RV or mobile installations, secure the unit to prevent movement during transit.

4.2電源接続

Connect the refrigerator to your desired power source:

• 12V DC： Connect to a compatible 12V power supply in your vehicle or off-grid system.
• 110V AC： Plug into a standard 110V household outlet.
• LPG： Connect to a propane gas supply. Ensure the gas pressure is 2.8mbar. Always check for gas leaks after connection using a soapy water solution.

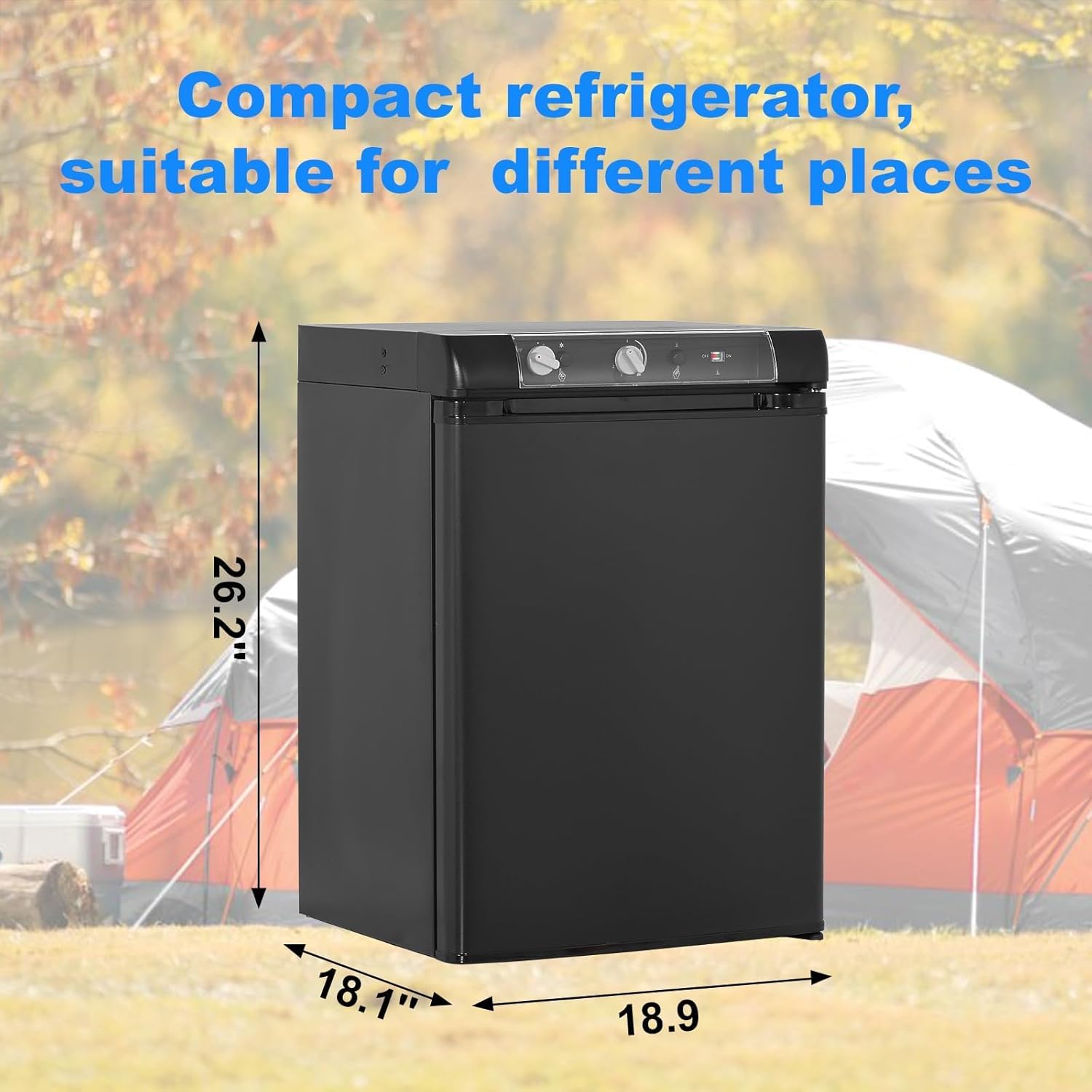

Image: The compact refrigerator with its dimensions clearly marked (18.1" D x 18.9" W x 26.2" H), illustrating its suitability for various spaces, including outdoor and camp環境。

5. 操作手順

The Smad XC-60G features a user-friendly top-mounted control panel for easy operation.

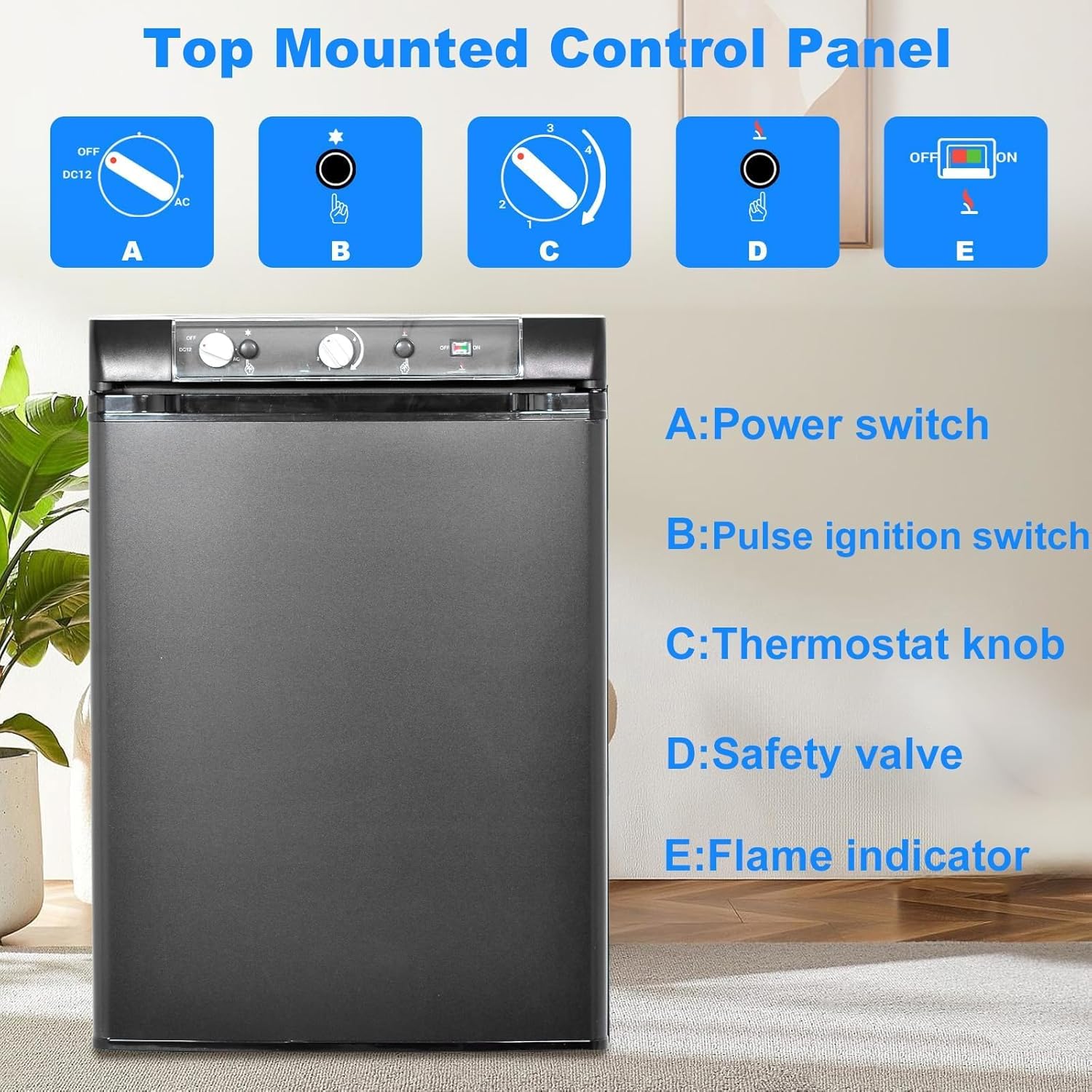

画像: クローズアップ view of the refrigerator's top-mounted control panel, with each component clearly labeled for identification and operational guidance.

5.1 コントロールパネル機能

1. 電源スイッチ（A）： Selects the power source (OFF, DC12V, AC). Turn to the desired power mode.
2. Pulse Ignition Switch (B): Used to ignite the LPG burner when operating on gas. Press and hold while turning the thermostat knob.
3. Thermostat Knob (C): Adjusts the cooling temperature. Turn clockwise for colder settings (higher numbers).
4. Safety Valve (D): A safety mechanism, typically integrated with the gas supply.
5. Flame Indicator (E): Illuminates when the LPG flame is active, indicating successful gas operation.

5.2初期操作

1. Ensure the refrigerator is properly connected to a power source (12V, 110V, or LPG).
2. を回す 電源スイッチ(A) to the desired mode (DC12V, AC).
3. If using LPG, turn the 電源スイッチ(A) to the LPG setting. Press and hold the Pulse Ignition Switch (B) while simultaneously turning the Thermostat Knob (C) to a desired setting. Observe the Flame Indicator (E) to confirm ignition. Release the ignition switch after the flame is stable.
4. 設定する Thermostat Knob (C) to your preferred cooling level. Allow several hours for the refrigerator to reach its optimal temperature.

5.3 Door Lock Mechanism

The refrigerator door is equipped with a lock and protective frame to prevent accidental opening and spills during travel. Ensure the door is securely latched before moving the unit.

6. メンテナンス

定期的なメンテナンスにより、冷蔵庫の寿命が長くなり、効率的に動作することが保証されます。

6.1 クリーニング

• Unplug the refrigerator or turn off the gas supply before cleaning.
• Clean the interior with a mild detergent and warm water. Wipe dry with a soft cloth.
• For the exterior, use a damp 布で拭いてください。研磨剤入りの洗剤や溶剤は使用しないでください。
• Periodically clean the ventilation grilles at the back to ensure unobstructed airflow.

6.2 解凍

This refrigerator features a Frost Free defrost system, minimizing ice buildup. However, if any frost accumulates, turn off the unit and allow it to melt naturally. Wipe away excess water.

6.3 Absorption System Care

The absorption system is designed for durability with fewer moving parts. Ensure the unit remains level during operation to maintain optimal performance of the absorption cycle.

7。 トラブルシューティング

If you encounter issues with your refrigerator, refer to the following common problems and solutions before contacting customer service.

8. 仕様

9. 保証とサポート

For detailed warranty information, technical assistance, or to purchase replacement parts, please contact Smad customer service. Keep your purchase receipt and model number handy for faster service.

Smad Customer Service: Refer to the contact information provided with your product packaging or visit the official Smad webサイト。
