SENIX 60V 18-inch Cordless Chainsaw

1. 重要な安全情報

Always read and understand all safety warnings and instructions before operating this chainsaw. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

General Chainsaw Safety

• 適切な個人用保護具（PPE）を着用してください。 This includes a helmet, eye protection, hearing protection, heavy-duty gloves, chainsaw protective trousers, and safety boots.
• しっかりと握ってください。 Always hold the chainsaw with both hands, with thumbs and fingers encircling the chainsaw handles.
• キックバックに注意してください: Kickback can occur when the moving chain at the tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Avoid the kickback zone.
• 障害物のない場所で作業してください: Ensure no bystanders, children, or pets are in the work area. Maintain a safe distance from others.
• 使用する前にチェーンソーを点検してください。 Check for loose parts, damage, or wear. Ensure the chain brake is functional.
• 濡れた状態で操作しないでください。 Avoid using the chainsaw in rain or damp 感電を防ぐための環境。

バッテリーの安全性

• このツールには指定されたバッテリー パックと充電器のみを使用してください。
• Do not expose battery packs to water or excessive heat.
• バッテリーは直射日光を避け、涼しく乾燥した場所に保管してください。
• If the battery is damaged, do not use it. Contact customer support for replacement.

2.製品オーバーview

The SENIX 60V 18-inch Cordless Chainsaw (Model CSX6-M1) is a battery-powered tool designed for tree pruning, branch trimming, and cutting firewood. It features a brushless motor for extended runtime and an 18-inch Oregon bar and chain for efficient cutting.

主な特徴

• 60Vブラシレスモーター： Provides powerful, gas-like performance with increased efficiency and longer tool life.
• 18-inch Oregon Bar & Chain: High-quality cutting components for effective and precise cuts.
• 工具不要のチェーン張力調整: 追加のツールなしでチェーンを素早く簡単に調整できます。
• 自動給油システム: Ensures continuous lubrication of the bar and chain for smooth operation and extended lifespan.
• エコモード： Optimizes energy efficiency for lighter tasks, extending battery runtime.
• On-Board Battery Gauge: 現在のバッテリー充電レベルを表示します。
• Safety Brake Signal: Indicates the status of the chain brake for enhanced safety.

3. セットアップ

開梱と初期検査

Carefully remove all components from the packaging. Verify that all items listed in the 'What's Included' section are present and undamaged. If any parts are missing or damaged, do not assemble or operate the chainsaw; contact customer support.

バッテリーの充電と設置

1. Insert the 60V 4.0Ah battery into the provided charger.
2. Plug the charger into a standard electrical outlet. The charger indicator light will show the charging status.
3. 完全に充電されたら、充電器を外し、バッテリーを取り外します。
4. Align the charged battery with the battery compartment on the chainsaw and slide it in until it clicks securely into place. Ensure the battery gauge is visible and functional.

Chain and Bar Assembly (if not pre-assembled)

1. 安全のため、バッテリーが取り外されていることを確認してください。
2. Place the guide bar onto the chainsaw studs.
3. Carefully loop the chain around the sprocket and guide bar, ensuring the cutting edges face the correct direction (refer to chain markings).
4. Replace the side cover and hand-tighten the tensioning knob.

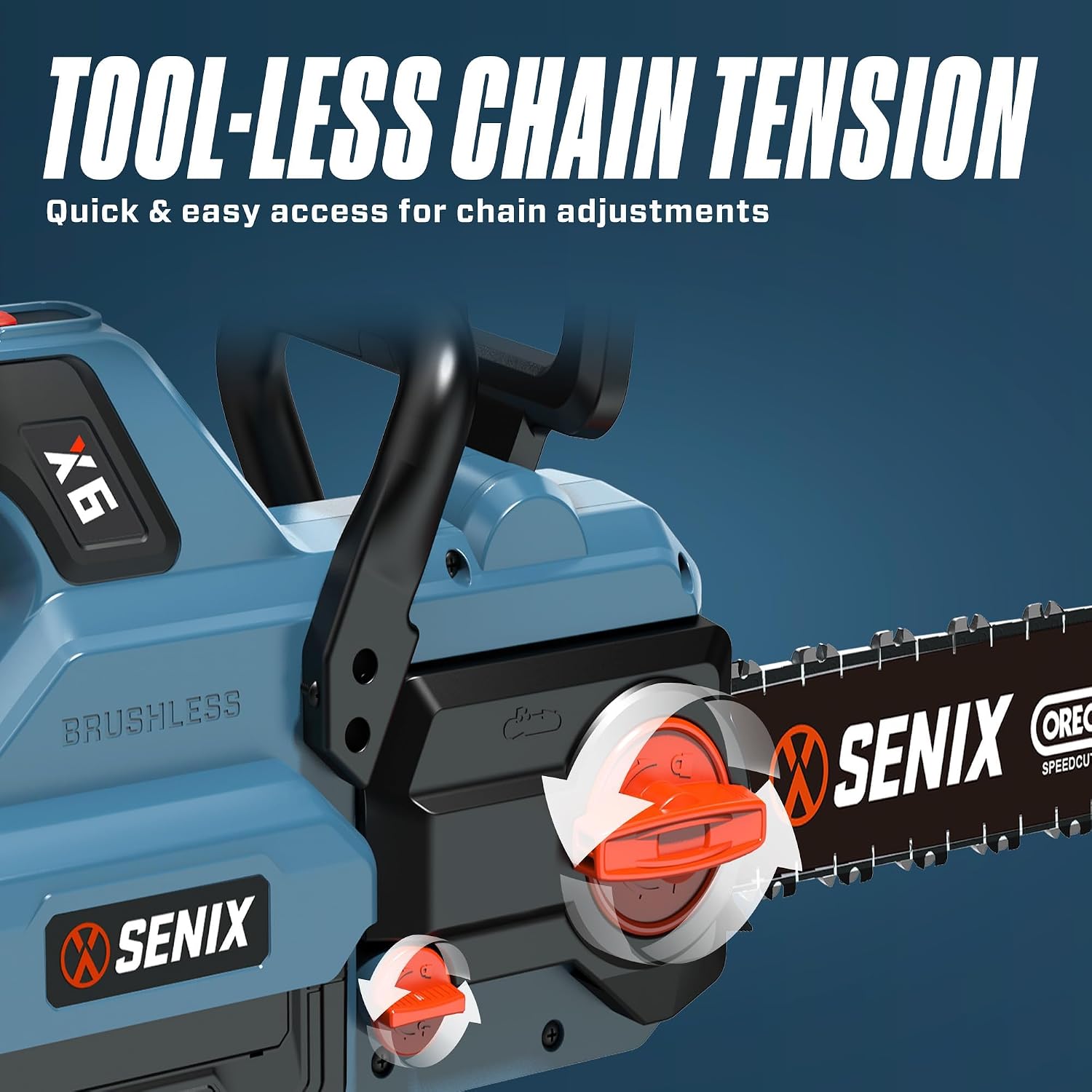

チェーンの張力

The SENIX chainsaw features tool-free chain tensioning.

1. With the battery removed, loosen the side cover knob slightly.
2. Turn the chain tensioning dial (usually a red or orange knob) clockwise to increase tension or counter-clockwise to decrease tension.
3. Proper tension allows the chain to be pulled away from the guide bar by about 1/8 to 1/4 inch (3-6 mm) at the center, but the drive links should not come out of the guide bar groove.
4. Once tension is correct, firmly tighten the side cover knob.

バーとチェーンオイルの追加

The chainsaw features an automatic oiling system. It is crucial to keep the oil reservoir filled.

1. バッテリーが取り外されていることを確認してください。
2. チェーンソー本体のオイルキャップを見つけます。
3. Unscrew the cap and fill the reservoir with high-quality bar and chain oil. Do not use waste oil or motor oil.
4. キャップは確実に取り付けてください。

4. 操作手順

チェーンソーを始動する

1. バッテリーが完全に充電され、しっかりと取り付けられていることを確認してください。
2. フロントハンドガードをカチッと音がするまで前方に押して、チェーンブレーキを作動させます。
3. チェーンソーは両手でしっかりと保持してください。
4. Press the safety lock-out button (usually on the top handle) and then squeeze the trigger switch to start the motor.
5. Release the chain brake by pulling the front hand guard back towards the handle. The chain will begin to move.

切断技術

• 伐採： For felling small trees, make a notch cut on the side of the tree in the direction of the fall, then make a felling cut from the opposite side, slightly above the notch.
• リンビング： Remove branches from a fallen tree. Work from the bottom up, supporting the branch to prevent pinching.
• 抵抗する： Cutting a fallen log into sections. Use a sawhorse or support the log to prevent the chain from pinching.
• Always maintain a balanced stance and keep the chainsaw close to your body for better control.
• 木材を切る前にチェーンソーが最高速度に達するまで待ちます。

エコモード

The ECO Mode can be activated by pressing the dedicated button on the chainsaw. This mode reduces power output, optimizing battery life for lighter cutting tasks such as small branch trimming or extended runtime needs.

5. メンテナンス

Regular maintenance ensures the longevity and safe operation of your SENIX chainsaw. Always remove the battery before performing any maintenance.

クリーニング

• After each use, clean sawdust and debris from the chainsaw body, guide bar, and chain.
• Use a brush or compressed air to clear the cooling vents and motor housing.
• 広告で表面を拭き取るamp 布で拭いてください。強い化学薬品は使用しないでください。

チェーン砥ぎ

A sharp chain is essential for safe and efficient cutting. Sharpen the chain regularly or replace it when dull. Refer to the Oregon chain specifications for correct sharpening angles and file サイズ。

ガイドバーのメンテナンス

• Periodically clean the guide bar groove to remove accumulated sawdust and debris.
• Flip the guide bar regularly to ensure even wear on both sides.
• ガイドバーレールのバリを確認し、 file 存在する場合は滑らかにします。

Oil Reservoir Check

Always check the bar and chain oil level before each use and refill as necessary. The automatic oiling system requires a constant supply of oil.

ストレージ

• Store the chainsaw with the battery removed, in a dry, secure location out of reach of children.
• Ensure the chain is covered with the scabbard to prevent accidental contact and protect the chain.
• バッテリーは涼しく乾燥した場所に保管してください。

6。 トラブルシューティング

7. 仕様

8. 保証情報

SENIX provides the following limited warranties for the CSX6-M1 Cordless Chainsaw:

• ツールの保証: 5年間の限定保証。
• バッテリーと充電器の保証: 3年間の限定保証。

This warranty covers defects in materials and workmanship under normal use. For full terms and conditions, or to make a warranty claim, please refer to the official SENIX warranty documentation or contact customer support.

9. カスタマーサポート

For technical assistance, replacement parts, or warranty inquiries, please contact SENIX customer support.

• オンライン： 公式SENIXをご覧ください webFAQ とサポート リソースのサイト。
• 接触： Refer to your product packaging or the SENIX web現在の連絡先情報（電話番号、電子メール）のサイト。

When contacting support, please have your product model number (CSX6-M1) and serial number available.
