ECD Germany 2.5T Hydraulic Car Jack (Model IP-2150) Instruction Manual

導入

This manual provides essential instructions for the safe and effective use, maintenance, and troubleshooting of your ECD Germany 2.5T Hydraulic Car Jack. Please read this manual thoroughly before operation to ensure proper handling and to prevent personal injury or damage to property.

重要な安全上の注意事項

警告： Failure to follow these instructions may result in serious injury or death. Always prioritize safety when operating lifting equipment.

• Read Entire Manual: Understand all instructions and warnings before using this jack.
• 定格容量: Do not exceed the jack's rated capacity of 2.5 tons (2500 kg).
• 安定した表面： ジャッキは必ず硬く、平らで、安定した地面で使用してください。柔らかい地面や傾斜地では使用しないでください。
• 車両の安定性: Ensure the vehicle is in park (P), the ignition is off, and the parking brake is engaged. Block wheels that are not being lifted.
• Proper Lift Points: Only lift the vehicle at manufacturer-recommended lift points. Use the provided rubber pads to protect the vehicle's chassis.
• サポートスタンド: After lifting, immediately support the vehicle with appropriate jack stands. Never work under a vehicle supported only by a hydraulic jack.
• クリアエリア： Keep hands, feet, and other body parts clear of moving parts and the area under the vehicle.
• Lowering Slowly: Lower the vehicle slowly and carefully.
• 検査： 使用する前に、ジャックに損傷や漏れがないか点検してください。損傷がある場合は使用しないでください。
• 子供と傍観者: 作業エリアに子供や許可されていない人を近づけないでください。

パッケージ内容

開梱時にすべてのコンポーネントが揃っていて損傷がないことを確認します。

• 1 x ECD Germany 2.5T Hydraulic Car Jack
• 2 x Rubber Pads (for scratch and slip protection)
• 1 x SUV Adapter (for increased lift height)
• 1 x Pump Lever (operating handle)

Image: The hydraulic jack shown with its pump lever, two rubber pads, and an SUV adapter, as included in the package.

仕様

Image: Detailed dimensions of the hydraulic jack, illustrating its minimum and maximum lift heights, and overall length.

セットアップと準備

1. 開梱： Carefully remove the jack and all accessories from the packaging.
2. 検査: Check the jack for any signs of damage or oil leaks that may have occurred during shipping. Do not use if damaged.
3. ハンドルの組み立て: Insert the pump lever into the handle socket. Ensure it is securely seated.
4. Bleed Air (First Use): Before first use, it is recommended to bleed any air from the hydraulic system.
   • リリースバルブを反時計回りに回して完全に開きます。
   • Pump the handle several times to expel any trapped air.
   • リリースバルブを時計回りに回して閉じます。
5. 付属品を取り付ける: Place a rubber pad on the saddle of the jack. If lifting an SUV or a vehicle requiring extra height, attach the SUV adapter on top of the rubber pad.

Image: Illustration of attaching the rubber pad and SUV adapter to the jack's saddle for proper vehicle contact and protection.

操作手順

Lifting a Vehicle:

1. 車両の準備: Park the vehicle on a firm, level surface. Engage the parking brake and place the transmission in "Park" (automatic) or a low gear (manual). Block the wheels that will remain on the ground.
2. ポジションジャック: Locate the vehicle manufacturer's recommended lifting points. Position the jack directly under the designated lift point, ensuring the saddle with the rubber pad (and SUV adapter if needed) is centered and making full contact.
3. リリースバルブを閉じる: Turn the pump lever clockwise until the release valve is fully closed. This prepares the jack for lifting.
4. リフト車両: Pump the handle up and down to raise the vehicle to the desired height. Lift only high enough to perform the necessary work.
5. ジャッキスタンドで固定します: Immediately place appropriately rated jack stands under the vehicle's designated support points. Lower the vehicle slowly until it rests securely on the jack stands. Never rely solely on the hydraulic jack for support.
6. ジャックを削除: Once the vehicle is safely supported by jack stands, you can remove the hydraulic jack.

Image: The hydraulic jack correctly placed under a vehicle's designated lifting point, demonstrating proper positioning before lifting.

Lowering a Vehicle:

1. 少し上げる: If the vehicle is on jack stands, pump the jack handle a few times to slightly raise the vehicle off the jack stands.
2. ジャッキスタンドを取り外す: ジャッキスタンドを車両の下から慎重に取り外します。
3. 下部車両: Slowly turn the pump lever counter-clockwise to open the release valve. The vehicle will begin to lower. Control the lowering speed by adjusting how much you open the valve.
4. 完全に下げる: Once the vehicle is fully lowered and resting on the ground, remove the jack from underneath.

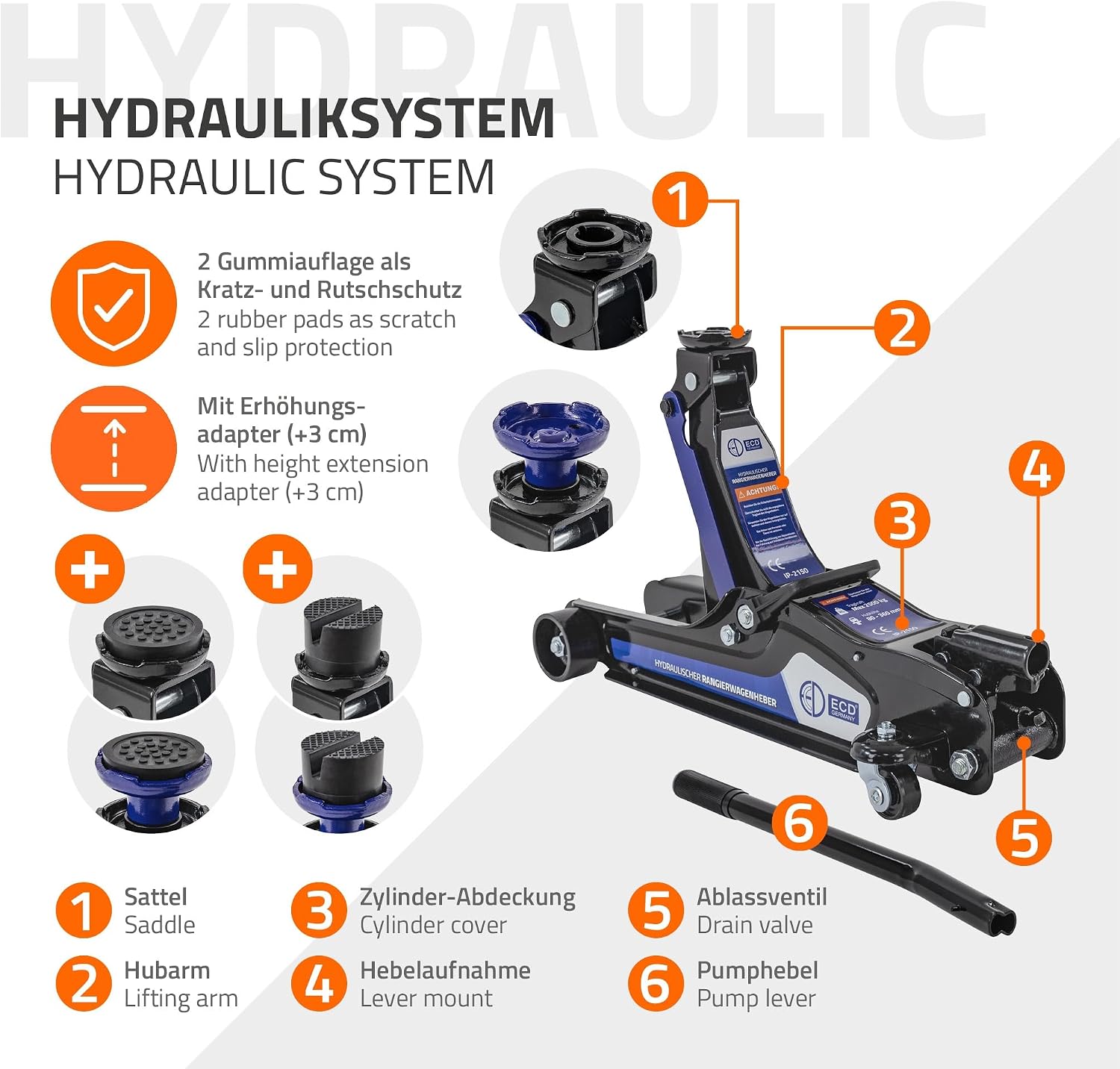

Image: A visual guide to the jack's lifting and lowering mechanism, including how to insert the lever and open the drain valve for controlled descent.

メンテナンス

• 潤滑: すべての可動部品に軽質機械油を定期的に注油してください。
• 油圧オイル： Check the hydraulic oil level regularly. If low, refill with high-quality hydraulic jack oil. Do not use brake fluid or other fluids.
• クリーニング： ジャッキを清潔に保ち、汚れ、グリース、ゴミなどが付かないようにしてください。
• ストレージ： Store the jack in a dry, clean place with the ram fully retracted to prevent corrosion and seal damage.
• 検査： Regularly inspect for wear, damage, or leaks. Any damaged parts must be replaced by qualified personnel.

トラブルシューティング

保証情報

The manufacturer provides a warranty for this product. Please refer to the warranty card included with your purchase or visit the official ECD Germany web保証条件の詳細については、ウェブサイトをご覧ください。保証請求の際は、購入証明書を保管してください。

The product specifications indicate that a manufacturer's warranty is provided.

カスタマーサポート

For technical assistance, spare parts, or warranty inquiries, please contact ECD Germany customer service. You can find contact information on the official ECD Germany webサイトまたは小売店を通じてご購入いただけます。

オンラインリソース: Visit the ECD Germany Store on Amazon
