Aiho WR410-Y-1 5-Piece Patio Furniture Set Instruction Manual

導入

This manual provides detailed instructions for the assembly, operation, and maintenance of your Aiho WR410-Y-1 5-Piece Patio Furniture Set. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your furniture.

パッケージ内容

Your Aiho 5-Piece Patio Furniture Set is delivered in two packages and includes the following components:

• コーナーチェア2脚
• 1 x Armless Chair
• 1 x Ottoman Chair
• 1 x Glass Coffee Table
• Cushions and pillows for all seating units
• 組み立て用ハードウェアとツール

図1：以上view of the 5-piece set with dimensions and packaging details. The set includes two corner chairs, one armless chair, one ottoman chair, and one glass coffee table, delivered in two separate packages.

セットアップと組み立て

Assembly instructions are provided and are designed to be easy to follow. While assembly can be completed by one person, having two people is recommended for ease and speed.

組み立てビデオガイド

ステップバイステップの組み立て

1. コンポーネントを解凍します: Carefully remove all pieces from the two boxes. Verify that all parts and hardware are present according to the included parts list. Each piece is numbered for easy identification.
2. 座席ユニットを組み立てる: For each chair (corner, armless, ottoman), connect the side panels to the base and backrest using the provided screws and tools. Ensure all connections are secure.
3. コーヒーテーブルの組み立て: Connect the side panels of the coffee table to its base. Place the tempered glass top securely on the table frame.
4. Connect Units (Optional): Use the included plastic clips to attach the individual seating units together at the bottom. This prevents them from sliding apart and helps maintain your desired configuration.
5. クッションを追加: Place the seat and back cushions onto the assembled seating units.

Figure 2: Assembly diagram showing the connection points for the furniture panels.

Figure 3: Plastic clips are provided to secure individual furniture pieces together, preventing movement.

Operating Instructions: Reconfiguration

The Aiho Patio Furniture Set is designed for versatility, allowing multiple configurations to suit your space and needs. The individual pieces can be arranged in various layouts, such as an L-shape sectional, separate chairs, or a sofa with ottomans.

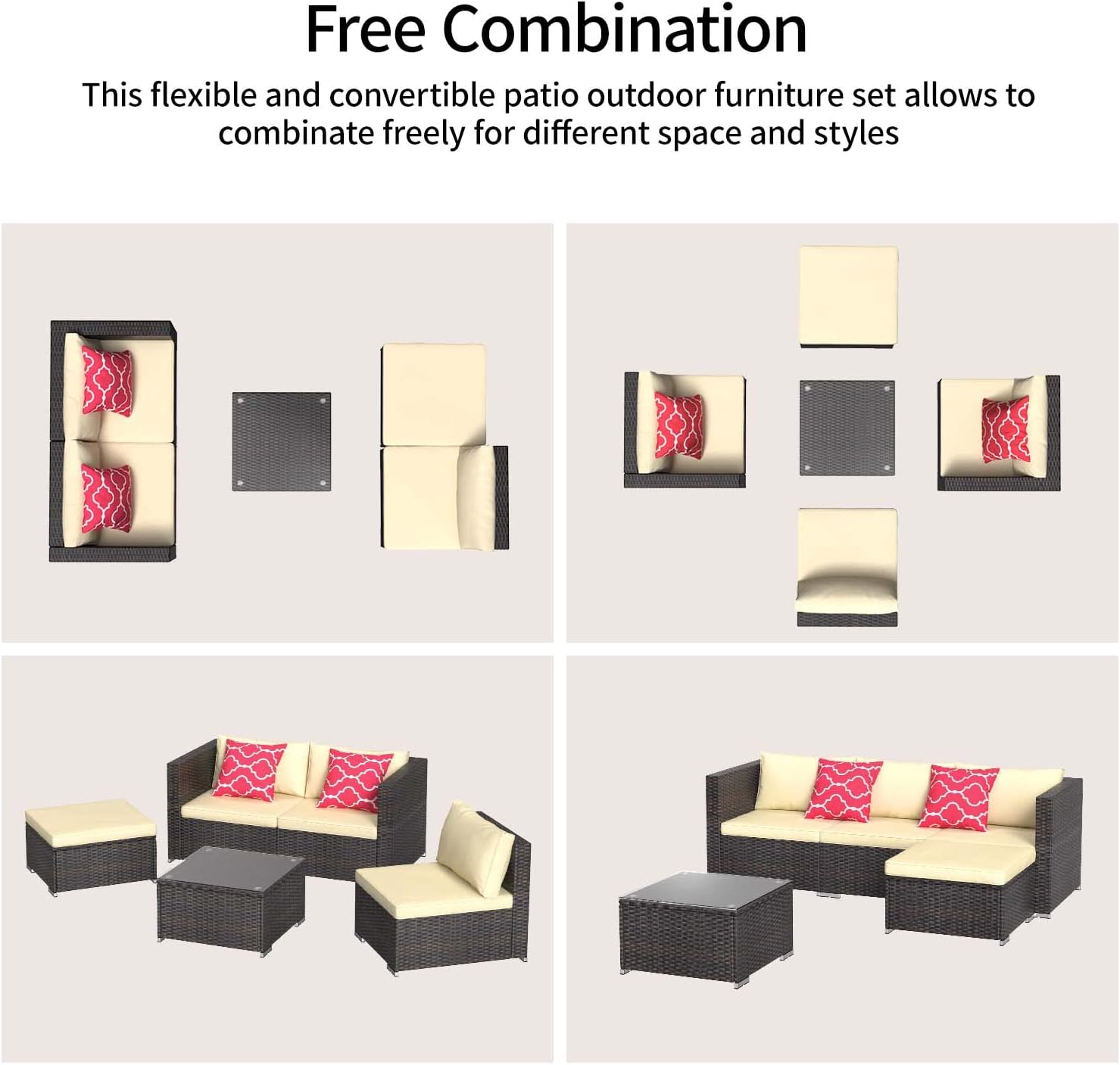

図4：例amples of different furniture arrangements, demonstrating the modularity of the set.

図 5: 元ample configuration of the furniture set in an L-shape, suitable for balconies or smaller patios.

メンテナンスとケア

適切な手入れをすると、パティオ家具セットの寿命と外観が長くなります。

• クリーニングフレーム: Wipe the rattan and metal frame with a damp 布で拭いてください。頑固な汚れには、中性洗剤を薄めた溶液を使用し、きれいな水で洗い流して完全に乾かしてください。
• クッションのお手入れ： The covers of the cushions and pillows are removable and washable. Follow the care instructions on the label for best results. Allow cushions to dry completely before re-attaching or storing.
• Glass Table Top: The tempered glass coffee table top is resistant to high temperatures and easy to clean. Use a glass cleaner and a soft cloth for streak-free cleaning.
• 天候保護: While the PE rattan is all-weather, it is recommended to cover the furniture during prolonged periods of harsh weather or when not in use to maximize its lifespan.

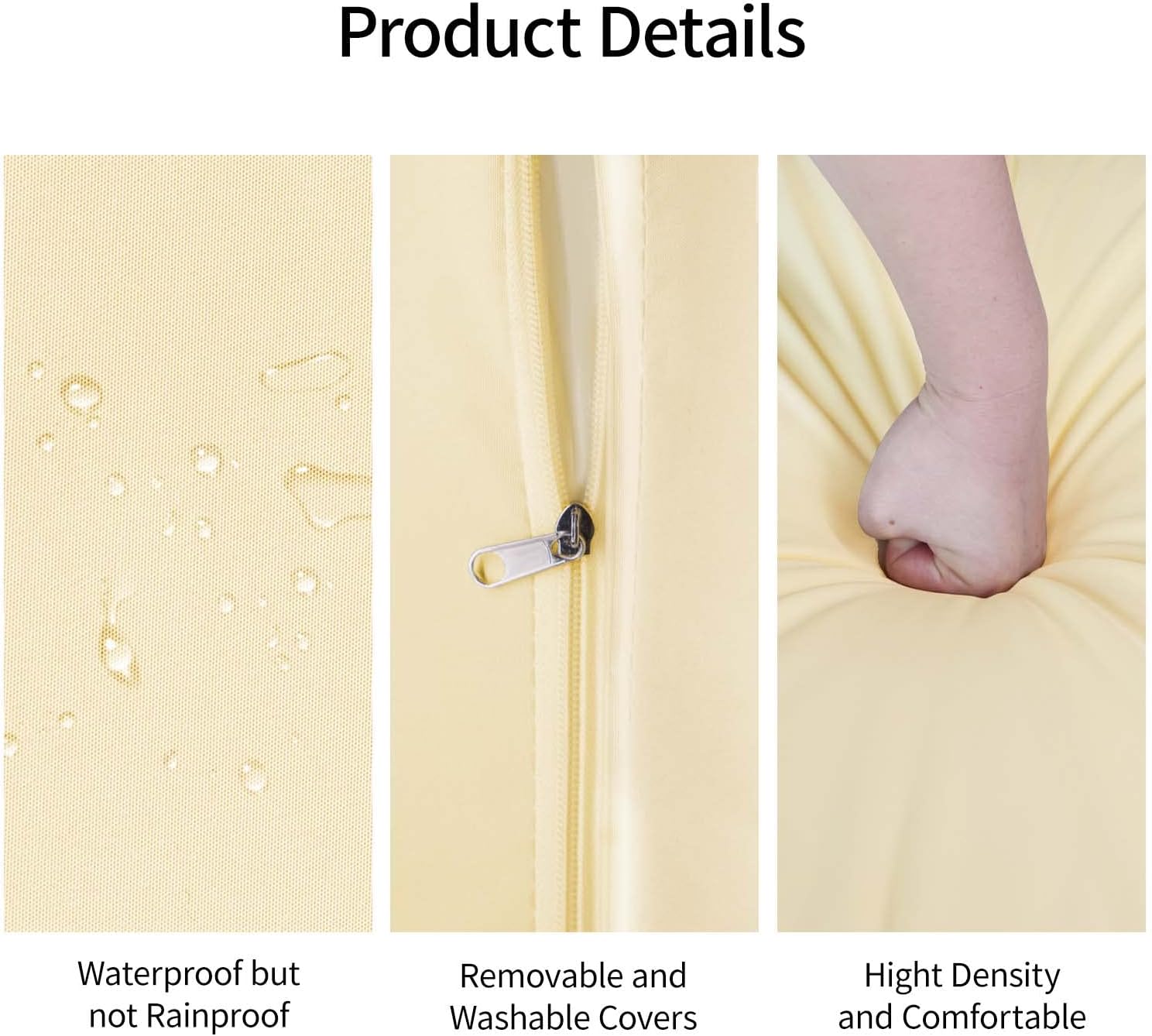

Figure 6: The cushion fabric is designed to be water-resistant, though not fully rainproof.

Figure 7: Cushions feature zippers for easy removal and washing of covers.

安全情報

次の安全ガイドラインを遵守してください。

• Ensure proper assembly and handling of all furniture components.
• The rattan material may provide coolness in summer but is not recommended for use in extreme temperatures.
• Always supervise children and pets around this furniture to prevent accidents.
• Do not place excessively heavy items on the coffee table.

仕様

トラブルシューティング

組み立て中または使用中に問題が発生した場合は、次の一般的な解決策を参照してください。

• 不足している部品: Double-check all packaging materials. If parts are still missing, contact customer support.
• 組み立て難易度: Ensure all pieces are correctly oriented as per the diagrams. Do not overtighten screws until all connections are loosely made, then tighten them fully. Refer to the assembly video for visual guidance.
• Unstable Units: Verify that all screws are tightened securely. Use the provided plastic clips to connect adjacent seating units for added stability.

保証とサポート

Your Aiho Patio Furniture Set is backed by a return policy allowing for refunds or replacements within 30 days of purchase. For further assistance, product support, or to inquire about replacement parts, please contact Aiho Direct customer service.

You can visit the official Aiho store for more information and products: Aiho Store on Amazon
