FASDUNT Bathroom Exhaust Fan with LED Light User Manual

導入

This manual provides comprehensive instructions for the installation, operation, and maintenance of your FASDUNT Bathroom Exhaust Fan with LED Light, Model EF3. This unit is designed to effectively remove moisture and odors from your bathroom, contributing to a healthier indoor environment. Please read this manual thoroughly before installation and use, and retain it for future reference.

重要な安全上の注意事項

火災、感電、または人への傷害のリスクを軽減するために、次の点に注意してください。

• このファンを取り付けたり、メンテナンスを行う前に、すべての手順をお読みください。
• ユニットの配線やメンテナンスを行う前に、必ずサービス パネルの電源を切断してください。
• All wiring must be performed by a qualified electrician in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
• この装置は一般的な換気用途のみを目的としています。危険物や爆発性物質、蒸気の排出には使用しないでください。
• モーター ベアリングの損傷や騒音の多いインペラーや不均衡なインペラーを避けるために、乾式壁スプレー、建設用粉塵などを電源ユニットから離してください。
• 浴槽やシャワーから手が届く場所にスイッチを設置しないでください。
• This product is designed for ceiling installation only.
• Ensure the power supply is 110 Volts, 60 Hz.

パッケージ内容

インストールを開始する前に、すべてのコンポーネントが揃っていることを確認してください。

• FASDUNT Bathroom Exhaust Fan with LED Light (Main Unit)
• 取り付けハードウェア（ネジ、ワイヤコネクタ）
• インストールマニュアル（このドキュメント）

仕様

インストール手順

Proper installation is crucial for the optimal performance and safety of your exhaust fan. It is recommended that installation be performed by a qualified professional.

1. インストール前の考慮事項

• 位置： Choose a ceiling location that allows for proper ducting to the outside. Avoid installing directly over a shower or tub unless specifically rated for such use and protected by a GFCI circuit.
• ダクト: Ensure you have appropriate ductwork (typically 4-inch round) available to connect the fan to an exterior vent cap.
• 配線： Confirm that a 110V AC power supply is available at the installation site.

2. Mounting the Fan Housing

1. Turn off power at the circuit breaker before starting any work.
2. Cut an opening in the ceiling according to the fan's rough-in dimensions (refer to product specifications for exact measurements).
3. Secure the fan housing to the ceiling joists using appropriate mounting hardware. Ensure the housing is level and securely fastened.

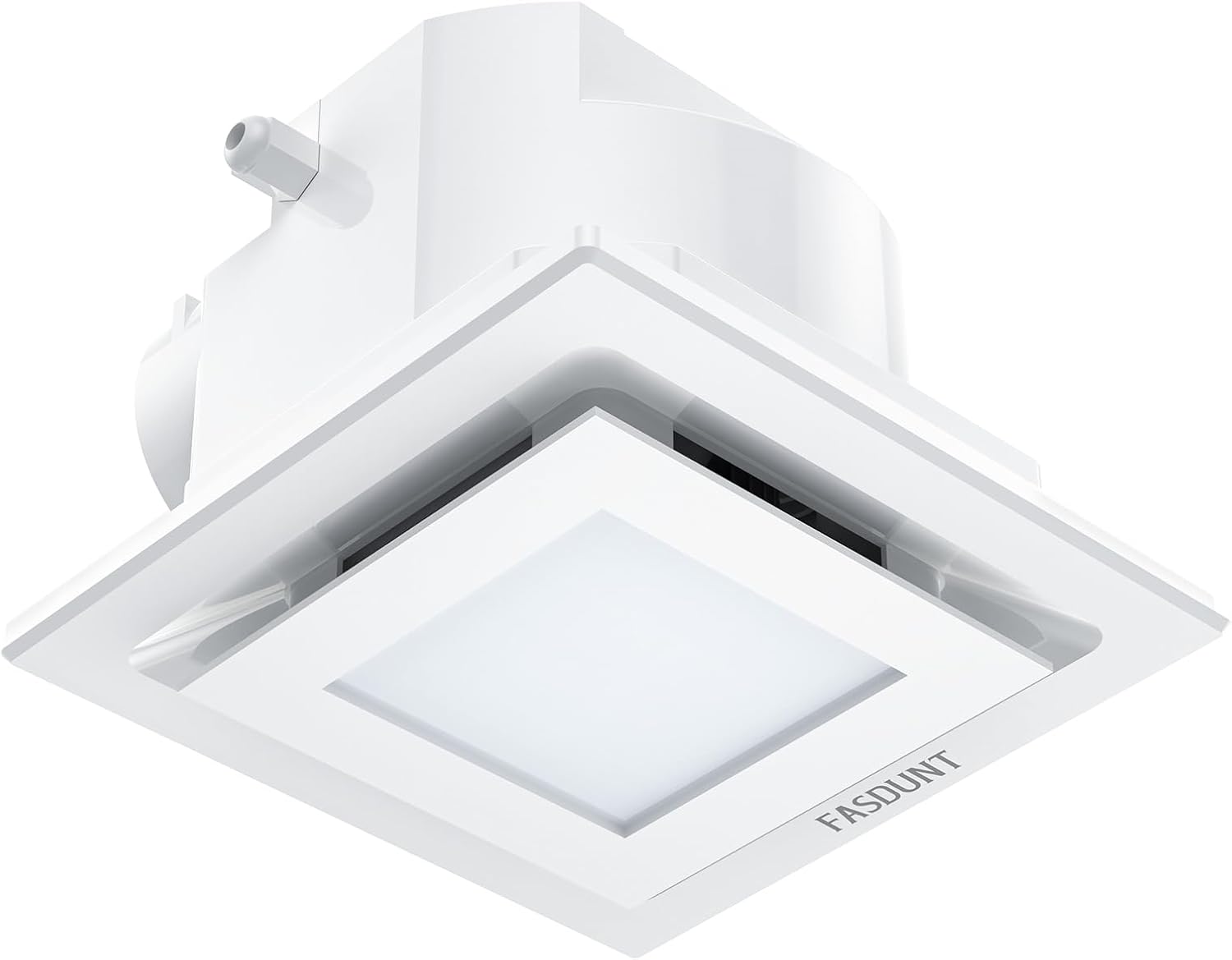

Figure 1: Main unit of the FASDUNT Bathroom Exhaust Fan with LED light, showing its compact design for ceiling installation.

3.ダクト接続

4. Connect the appropriate size ductwork (typically 4-inch round) to the fan's exhaust collar.
5. Secure the ductwork with duct tape or clamps to ensure an airtight seal.
6. Route the ductwork to the exterior vent cap, ensuring minimal bends for optimal airflow.

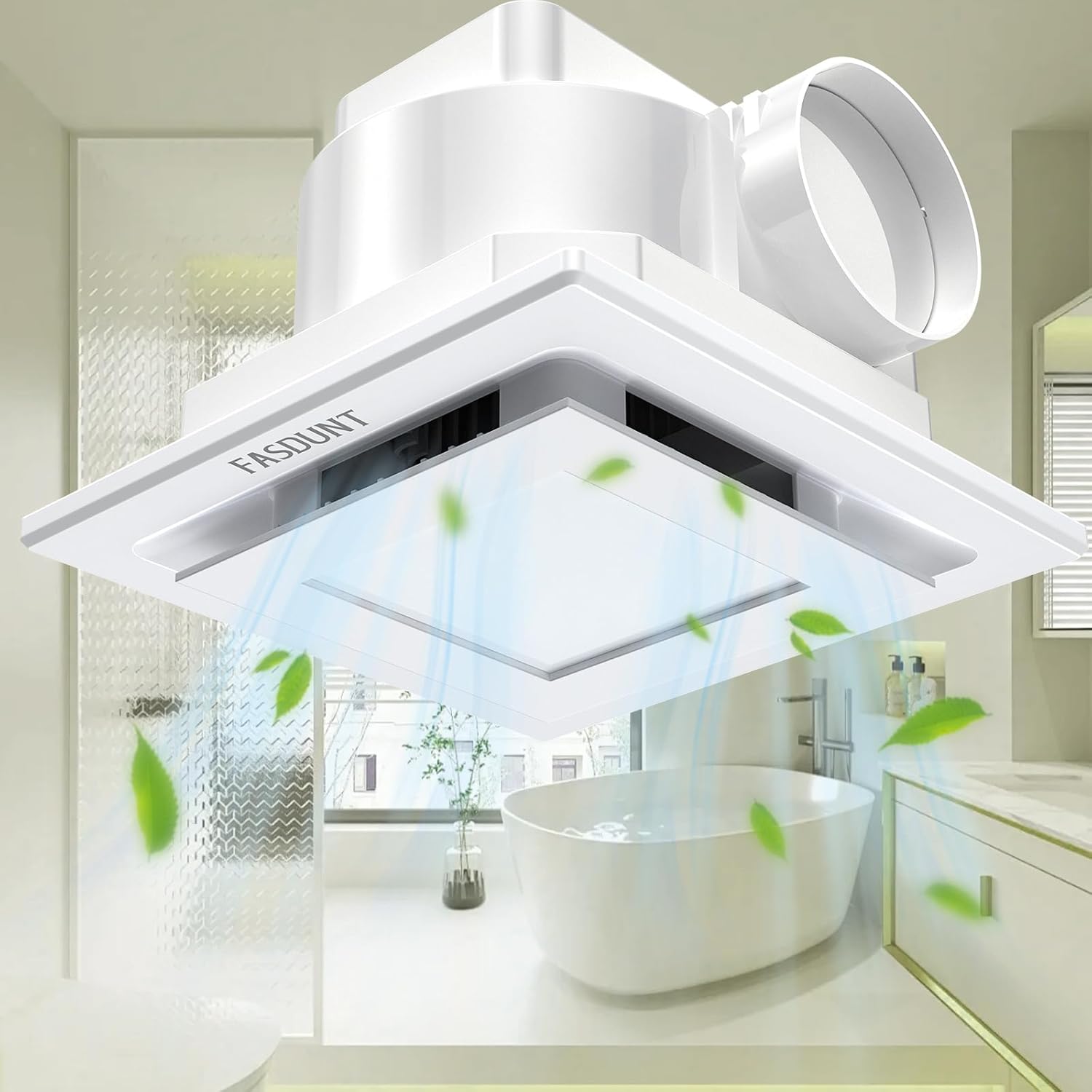

Figure 2: The exhaust fan installed in a bathroom ceiling, illustrating the direction of air extraction and ventilation.

4. 電気配線

7. 配線室のカバーを取り外します。
8. Connect the household wiring to the fan's wiring according to the wiring diagram provided inside the fan's junction box. Typically, this involves connecting:
• Black (Live) to Black (Fan/Light Live)
• White (Neutral) to White (Fan/Light Neutral)
• Green/Bare (Ground) to Green (Fan/Light Ground)
9. すべての配線接続を承認された配線コネクタで固定します。
10. 配線コンパートメントカバーを交換してください。

5. グリルの取り付け

10. Once the ceiling is finished, insert the grille mounting springs into the slots in the fan housing.
11. Push the grille firmly against the ceiling until it is flush.

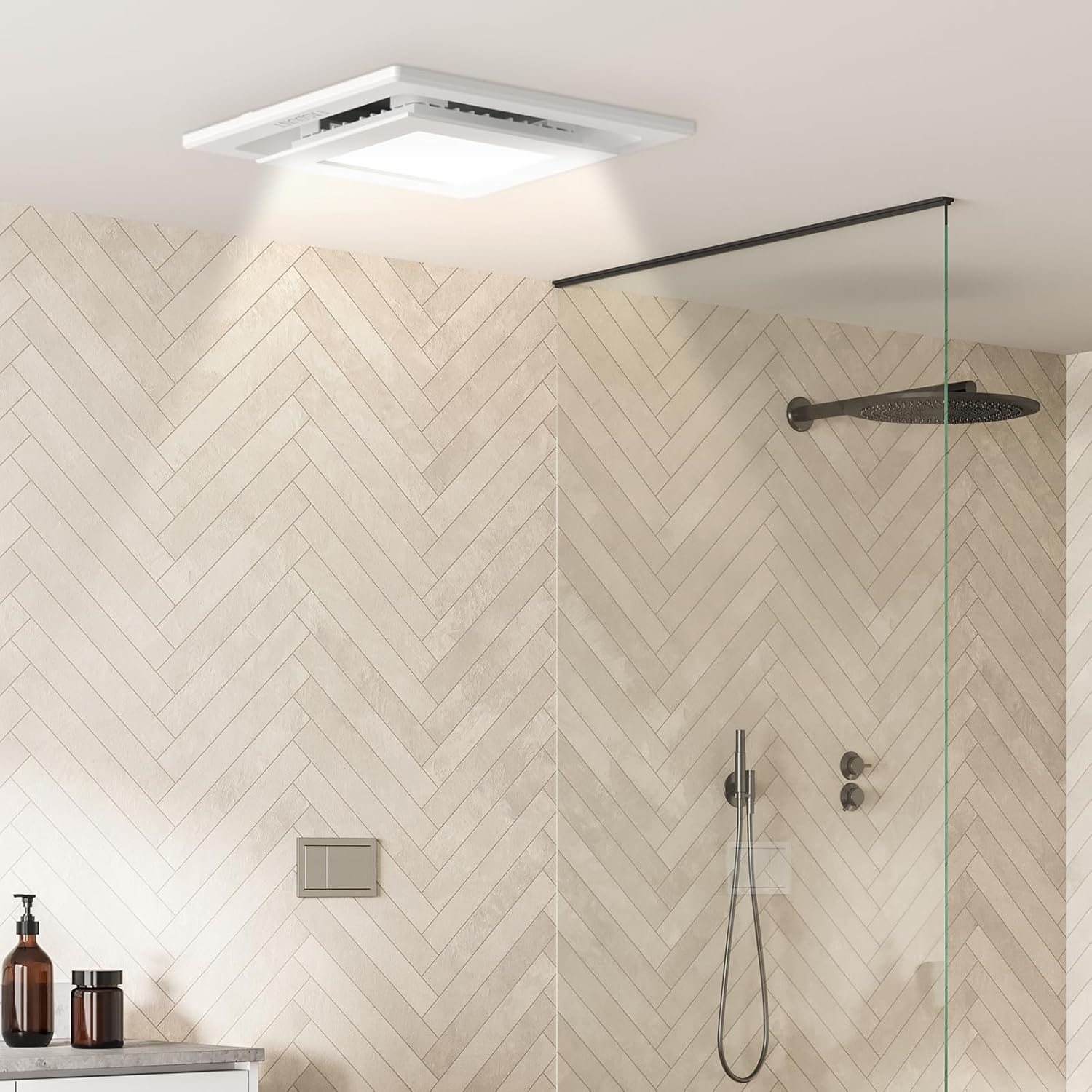

Figure 3: The exhaust fan with integrated LED light seamlessly installed in a contemporary shower room ceiling, providing both ventilation and illumination.

手術

The FASDUNT Bathroom Exhaust Fan with LED Light operates via standard wall switches. Depending on your wiring configuration, you may have separate switches for the fan and the light, or a single switch controlling both.

• ファン操作： Flip the designated wall switch to turn the exhaust fan ON or OFF. For effective moisture and odor removal, operate the fan during and after showering or bathing for at least 15-20 minutes.
• 軽い操作: Flip the designated wall switch to turn the LED light ON or OFF. The 5000K LED provides bright, daylight-like illumination.

Figure 4: Visual representation of the fan's effectiveness in reducing humidity and fogging on a bathroom mirror, demonstrating improved air quality.

メンテナンス

Regular cleaning and maintenance will ensure your exhaust fan operates efficiently and extends its lifespan.

Cleaning the Grille and Light Cover

1. 清掃する前にブレーカーで電源をオフにしてください。
2. Gently pull down the grille to disengage the mounting springs from the housing.
3. Wash the grille and light cover in warm, soapy water. Rinse thoroughly and dry completely before reinstallation.
4. Wipe the LED light surface with a soft, damp 布で拭いてください。研磨剤入りの洗剤は使用しないでください。
5. Reinstall the grille by pushing the mounting springs back into the housing slots until it is flush with the ceiling.

Cleaning the Fan Motor and Impeller

This procedure should only be performed by a qualified technician if necessary. Do not attempt to lubricate the motor as it is permanently lubricated.

6. ブレーカーで電源をオフにします。
7. Remove the grille as described above.
8. Carefully disconnect the fan motor assembly from the housing (refer to installation diagrams if available).
9. Use a vacuum cleaner with a brush attachment or a soft cloth to remove dust and debris from the motor and impeller blades.
10. Reassemble the fan motor and grille. Restore power.

トラブルシューティング

カスタマーサポートにお問い合わせいただく前に、view 次の一般的な問題とその解決策:

保証とカスタマーサポート

FASDUNT products are manufactured to high-quality standards. For warranty information, technical assistance, or to report any issues with your product, please contact FASDUNT customer support directly. Please have your model number (EF3) and purchase date available when contacting support.

Contact information can typically be found on the FASDUNT official webサイトまたは製品パッケージに記載されています。
