1. はじめに
This manual provides instructions for the installation, operation, and maintenance of your Wokyo Electric Sofa Remote Hand Control Replacement. This remote is designed for use with power recliners and lift chairs that utilize a 5-pin connector system. Please read this manual thoroughly before use to ensure proper function and safety.

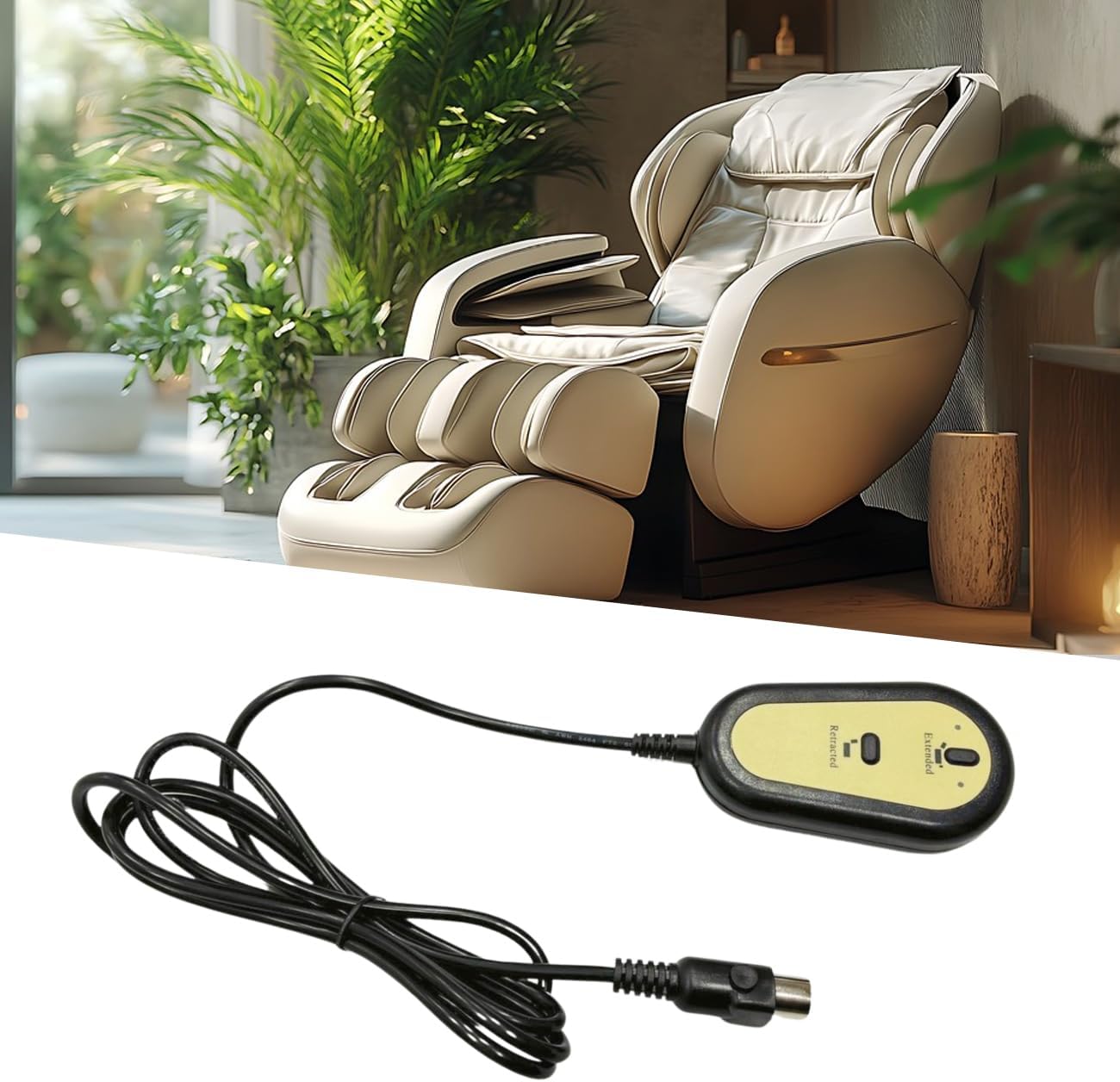

Image 1.1: Wokyo Electric Sofa Remote Hand Control with a power recliner in the background.
2. 安全情報
- Ensure the power supply to the furniture is disconnected before installation or maintenance.
- リモコンを水や過度の湿気にさらさないでください。
- リモコンを落としたり、強い衝撃を与えたりしないでください。
- 誤操作を防ぐため、お子様の手の届かないところに保管してください。
- If the cable or connector is damaged, discontinue use and replace the unit.
3.製品オーバーview
The Wokyo Electric Sofa Remote Hand Control features a simple two-button design for extending and retracting your furniture, along with a convenient USB charging port. It is compatible with various brands of power recliners and lift chairs that use a round 5-pin connector.

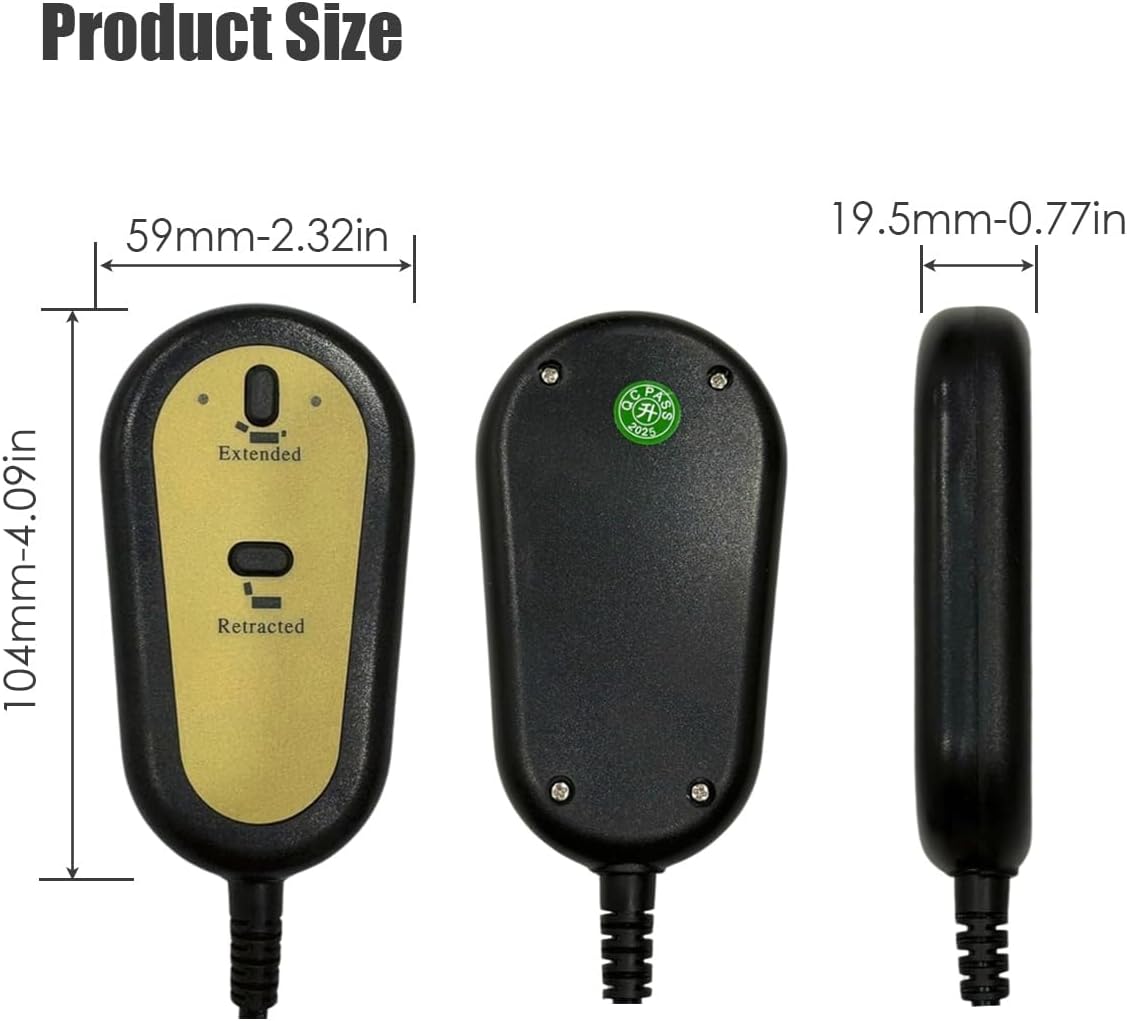

画像3.1: 前面、背面、側面 views of the Wokyo Electric Sofa Remote Hand Control, showing dimensions.
主な特徴:
- ユニバーサル互換性： Designed for brands with a round 5-pin connector and 2-button (up/down) function.
- 統合されたUSBポート: モバイル機器の充電が便利に行えます。
- 耐久性のある構造: Made from high-quality ABS material for safety and longevity.
- プラグ＆プレイ： 複雑な配線なしで簡単に設置できます。
Image 3.2: Close-up details of the Wokyo remote, highlighting the 5-pin plug, two control buttons, and thick cable.
4. セットアップ
- 電源を切る: Before beginning, ensure the power cord of your recliner or lift chair is unplugged from the wall outlet.
- Locate Existing Connector: Identify the existing remote control cable and its 5-pin connector, typically located near the motor or control box under the furniture.
- Remove Old Remote (if applicable): Carefully disconnect the old remote by pulling the 5-pin connector straight out. Do not twist or force it.
- Connect New Remote: Align the 5-pin connector of the Wokyo replacement remote with the corresponding port on your furniture's control system. Push firmly until it clicks into place. Ensure the connection is secure.
- 電力を回復する： Once the new remote is securely connected, plug your furniture's power cord back into the wall outlet.
The remote is now ready for use.
画像4.1: 詳細 view of the 5-pin straight head connector, control buttons, and cable length of the Wokyo remote.
5. 操作手順
The Wokyo Electric Sofa Remote Hand Control features two primary buttons for operation:
- "Extended" Button: Press and hold this button to extend the recliner or lift the chair. Release the button to stop movement at the desired position.
- "Retracted" Button: Press and hold this button to retract the recliner or lower the chair. Release the button to stop movement at the desired position.
USB充電ポート：
The integrated USB port allows you to charge compatible devices. Simply plug your device's USB charging cable into the port on the remote control. Charging functionality is active when the furniture is powered on.
Image 5.1: Wokyo remote control showing 'Extended' and 'Retracted' buttons next to a recliner chair, illustrating adjustable positions.
6. メンテナンス
- クリーニング： リモコンは柔らかく乾いた布で拭いてください。研磨剤入りの洗剤や溶剤は使用しないでください。
- ケーブル検査: Periodically check the cable for any signs of wear, cuts, or damage. If damage is found, replace the remote immediately.
- コネクタのチェック: Ensure the 5-pin connector remains securely plugged into the furniture's control system.
7。 トラブルシューティング
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| リモコンが応答しません。 | No power to furniture. Loose or disconnected 5-pin connector. Damaged remote or cable. | Check if furniture is plugged into a working outlet. Ensure 5-pin connector is fully inserted. Inspect cable for damage; replace remote if necessary. |
| USBポートが充電されません。 | Furniture not powered on. Device charging cable is faulty. USB port on remote is damaged. | Ensure furniture is plugged in and powered on. 別の USB ケーブルまたはデバイスを試してください。 Contact support if the port is damaged. |
| Furniture moves intermittently. | 5ピン接続が緩んでいます。 Internal wiring issue in furniture. | Securely re-insert the 5-pin connector. Consult your furniture's manual or a professional technician. |
8. 仕様
| 特徴 | 詳細 |
|---|---|
| ブランド | ウォキョー |
| モデル番号 | d9199f4f-3b67-4c4f-bb63-de9201f3bc28 |
| コネクタタイプ | 5 Pin, Straight Head |
| ボタン | 2 (Extended, Retracted) |
| 追加機能 | USB充電ポート |
| 材料 | ABS（アクリロニトリルブタジエンスチレン） |
| 製品寸法（長さ x 幅 x 高さ） | 7.87×2.76×1.97インチ（約） |
| アイテム重量 | 0.66ポンド（約） |
9. 保証とサポート
Wokyo provides a 60日間の返金ポリシー そして 12ヶ月保証 for this product. If you encounter any issues or have questions regarding your Electric Sofa Remote Hand Control, please contact our customer support for assistance.
For support, please refer to the contact information provided with your purchase or visit the official Wokyo store on Amazon.
