GOYOJO 600W セラミックホットプレート 取扱説明書

1. はじめに

This manual provides essential information for the safe and effective operation, setup, and maintenance of your GOYOJO 600W Ceramic Hot Plate (Model SH-4A). This device is designed for heating solutions, reagents, and reactions in laboratory environments, including chemical, pharmaceutical, industrial, and educational settings. It features a powerful 600W heating element, a ceramic-coated heating plate, and an adjustable thermostat for precise temperature control up to 380°C.

主な機能は次のとおりです。

• Powerful 600W heating element for rapid heating up to 380°C.
• Continuous heating mode for uninterrupted operation during prolonged processes.
• Precise temperature control via an adjustable thermostat dial.
• Compact 320 x 190 mm footprint to conserve benchtop space.
• Quiet induction motor for vibration-free heating.

2. 安全に関する注意事項

Read all safety warnings and instructions carefully before operating this device. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

• 電気安全: 電源がボリュームと一致していることを確認してくださいtage requirements of the hot plate. Do not operate with a damaged power cord or plug. Avoid using extension cords unless absolutely necessary and ensure they are rated for the device's power. Disconnect power before cleaning or maintenance.
• 熱に対する安全性: The ceramic plate and surrounding surfaces become extremely hot during operation and remain hot for a period after shutdown. Always use appropriate personal protective equipment (PPE), such as heat-resistant gloves. Never touch the heating surface directly.
• 可燃性物質: Do not heat flammable or combustible materials directly on the hot plate. Ensure adequate ventilation when heating any substances that may produce fumes. Keep flammable liquids and gases away from the hot plate.
• 適切な配置: Place the hot plate on a stable, level, non-combustible surface, away from walls or other equipment to allow for proper ventilation.
• 監督： Never leave the hot plate unattended during operation, especially when heating substances.
• 液体のこぼれ: Prevent liquids from spilling onto the control panel or into the internal components. In case of a spill, immediately disconnect power and allow the unit to cool before cleaning.
• 使用目的: Use this device only for its intended purpose as a laboratory heating plate. Do not modify the unit or use it for purposes other than those described in this manual.
• 子供および許可されていない人物: Keep the hot plate out of reach of children and ensure only trained personnel operate the device.

3.製品オーバーview

Familiarize yourself with the components of your GOYOJO Ceramic Hot Plate.

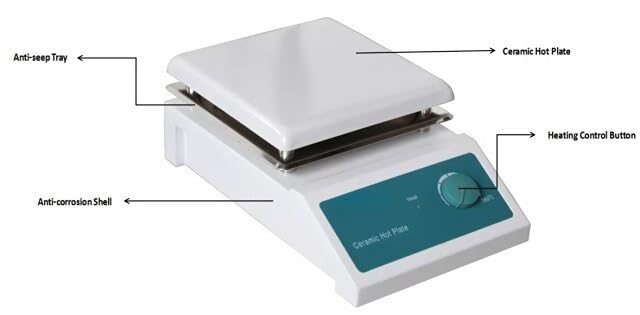

図3.1: Diagram illustrating the key components of the hot plate: Anti-seep Tray, Ceramic Hot Plate, Heating Control Button, and Anti-corrosion Shell.

• Ceramic Hot Plate: The primary heating surface, coated for durability and even heat distribution.
• Anti-seep Tray: Located beneath the ceramic plate, designed to catch minor spills and prevent them from entering the internal components.
• Heating Control Button: An adjustable thermostat dial used to set the desired heating temperature.
• Anti-corrosion Shell: 頑丈な外側のcasing designed to withstand harsh laboratory environments.
• 電源スイッチ： Located on the side/rear of the unit, used to turn the main power ON/OFF.
• 電源入力: Socket for connecting the power cord.

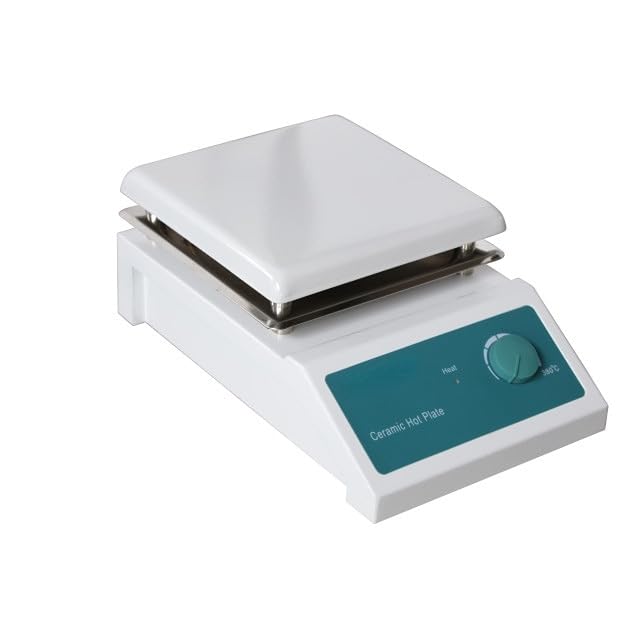

図3.2: 前面 view of the GOYOJO 600W Ceramic Hot Plate, showing the white housing, ceramic heating surface, and control dial.

図3.3: Rear-side perspective of the hot plate, highlighting the main power switch and the power cord input socket.

4. セットアップ

1. 開梱: Carefully remove the hot plate from its packaging. Inspect the unit for any signs of damage incurred during shipping. If damage is found, do not operate the device and contact your supplier.
2. 配置: Place the hot plate on a stable, level, heat-resistant, and non-combustible surface. Ensure there is adequate clearance around the unit for proper ventilation (at least 15 cm from walls or other equipment). Avoid placing it near flammable materials or in areas with excessive moisture.
3. 電源接続: Ensure the power switch on the hot plate is in the OFF position. Connect the provided power cord to the power input socket on the hot plate, then plug the other end into a grounded electrical outlet that matches the device's voltag要件。
4. Optional Support Rod (if applicable): If using a support rod for holding glassware, securely attach it to the designated mounting point on the hot plate.

図4.1: The GOYOJO 600W Ceramic Hot Plate equipped with an optional support rod and clamp, suitable for holding laboratory glassware or sensors.

5. 操作手順

Follow these steps for safe and effective operation of your hot plate:

1. 準備： Place the vessel containing the substance to be heated directly onto the center of the ceramic heating plate. Ensure the vessel is heat-resistant and suitable for the intended temperature.
2. 電源オン: Turn the main power switch to the ON position. The hot plate is now ready for operation.
3. 設定温度: Rotate the Heating Control Button (thermostat dial) clockwise to increase the temperature or counter-clockwise to decrease it. The dial is marked with temperature indicators up to 380°C. Adjust the dial to your desired heating temperature. The hot plate will begin to heat.
4. 加熱プロセス: Monitor the heating process. The hot plate will maintain the set temperature through its adjustable thermostat. The continuous heating mode allows for prolonged operation without interruption.
5. 完了： Once heating is complete, rotate the Heating Control Button counter-clockwise to its minimum setting.
6. 電源を切る： 主電源スイッチをオフの位置にします。
7. クールダウン： Allow the hot plate to cool down completely before handling or cleaning. The ceramic plate will remain hot for a significant period after being turned off. Use caution and appropriate PPE.

6. メンテナンス

Regular maintenance ensures the longevity and optimal performance of your hot plate.

• Cleaning the Ceramic Plate: After each use, and once the unit has completely cooled, wipe the ceramic heating plate with a damp cloth and a mild detergent if necessary. Avoid abrasive cleaners or scouring pads that could scratch the surface. Ensure no liquid enters the control panel or internal components.
• 外装の清掃: Wipe the anti-corrosion shell and control panel with a soft, damp 布で拭いてください。強い化学薬品や溶剤は使用しないでください。
• こぼれ： In case of spills, immediately turn off the hot plate and disconnect it from power. Allow it to cool, then carefully clean the spill. For significant spills, especially into the internal components, discontinue use and seek professional inspection.
• ストレージ： When not in use, store the hot plate in a clean, dry, and dust-free environment.
• ユーザーが修理可能な部品はありません: The hot plate contains no user-serviceable parts. Do not attempt to open or repair the unit yourself. Refer all servicing to qualified personnel.

7。 トラブルシューティング

If you encounter issues with your hot plate, refer to the following common problems and solutions:

If the problem cannot be resolved using the troubleshooting guide, or if you suspect a serious malfunction, discontinue use and contact qualified service personnel or your supplier for assistance.

8. 仕様
