TALLPOWER Portable Power Station V2400 User Manual

1. はじめに

Thank you for choosing the TALLPOWER V2400 Portable Power Station. This device is a high-capacity, high-output portable power solution designed for various applications, including outdoor activities, emergency backup, and professional use. Featuring a 2160Wh LiFePO4 battery and 2400W AC output, it provides reliable power for a wide range of electronic devices and appliances.

図1: 前面 view of the TALLPOWER V2400 Portable Power Station, showcasinディスプレイと各種ポート。

2. 安全に関する注意事項

Please read and understand all safety instructions before operating the TALLPOWER V2400. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• ユニットを分解、修理、改造しないでください。
• ユニットを火気、水、極端な温度から遠ざけてください。
• Do not use the unit in environments with high humidity or corrosive substances.
• 過熱を防ぐため、使用中は適切な換気を確保してください。
• お子様やペットの手の届かない場所に保管してください。
• 承認されたアクセサリと充電ケーブルのみを使用してください。
• In case of malfunction, immediately disconnect the unit and contact customer support.

3.製品オーバーview

The TALLPOWER V2400 is equipped with multiple input and output ports to accommodate various devices. Refer to the diagram below for a detailed layout of the ports and controls.

Figure 2: Detailed diagram illustrating the 16 output ports and control panel of the TALLPOWER V2400. This includes AC outlets, USB ports, DC ports, and the main display.

3.1 主要コンポーネント

• メインディスプレイ: リアルタイムの入力/出力電力、バッテリーレベル、ステータスインジケーターを表示します。
• 電源ボタン: ユニットのオン/オフを切り替えます。
• AC出力ポート: 標準的な家庭用電化製品に電力を供給します。
• USB ポート (USB-A、USB-C): For charging mobile devices, laptops, and other USB-powered electronics.
• DC Output Ports (Car, XT-60, DC5521): For various DC-powered devices.
• 入力ポート： AC、太陽光、車の充電に。
• LED照明: 照明用のライトを内蔵。

4. セットアップ

4.1 開梱と初期検査

Upon receiving your TALLPOWER V2400, carefully unbox the unit and inspect it for any signs of damage. Ensure all accessories listed in the package contents are present:

• TALLPOWER V2400 ポータブル電源
• AC充電ケーブル
• 車用充電ケーブル
• ソーラー充電ケーブル
• ユーザーマニュアル

4.2 初期充電

Before first use, it is recommended to fully charge the TALLPOWER V2400. Connect the AC charging cable to a wall outlet and to the AC input port on the power station. The display will indicate the charging status. A full charge via AC input takes approximately 2 hours. Combining AC input with solar charging can reduce this time to about 1.5 hours.

Figure 3: The TALLPOWER V2400 connected to an AC outlet for rapid charging, illustrating its 1.5-hour fast charge capability.

5. 操作手順

5.1 電源のオン/オフ

Press and hold the main power button for a few seconds to turn the unit on or off. The display will illuminate when the unit is active.

5.2 充電装置

The TALLPOWER V2400 offers a versatile array of 13 output ports:

• 3つのACコンセント
• 4 USB-C ports (3x 20W, 1x 100W)
• 2 USB-A ports (QC 3.0)
• 1 DC car charging port (12V/10A)
• 1 XT-60 connection (12V/25A)
• 2 DC5521 connections (12V/3A)

To charge a device, connect it to the appropriate output port. Ensure the specific output group (AC, DC, USB) is activated via its dedicated button if available. Each interface is protected by a silicone cover to prevent dust and moisture ingress.

Figure 4: The TALLPOWER V2400 providing power for various outdoor devices, demonstrating its versatility for campingおよびその他の活動。

5.3 High-Power Appliance Usage

With a 2400W output (and up to 4800W peak), the V2400 can power demanding appliances such as electric ovens, microwaves, and refrigerators. Always check the power requirements of your appliance to ensure it does not exceed the power station's capacity.

Figure 5: The TALLPOWER V2400 connected to and powering high-wattage kitchen appliances, highlighting its robust output capabilities.

5.4 無停電電源装置（UPS）機能

The V2400 features an Uninterruptible Power Supply (UPS) function. When connected to an AC wall outlet and simultaneously powering devices, it acts as a pass-through power source. In the event of a power outage, it automatically switches to battery power within 0.008 seconds, ensuring continuous operation for connected devices. This feature is crucial for protecting sensitive electronics and critical data.

5.5 Intelligent Input Current Adjustment

The TALLPOWER V2400 includes an intelligent input current adjustment button, allowing users to select input power levels of 300W, 500W, 700W, 900W, or 1100W. This feature provides control over charging speed and helps maintain stable input voltage, protecting the unit and connected devices from voltag不安定。

6. メンテナンス

6.1バッテリーケア

The V2400 is equipped with a high-security LiFePO4 battery, similar to those used in electric vehicles. This battery technology provides over 3500 charge and discharge cycles, offering an estimated lifespan of 10 years under optimal conditions.

• 直射日光を避け、涼しく乾燥した場所に保管してください。
• 長期保管の場合は、バッテリーの状態を維持するために、3 ～ 6 か月ごとにユニットを約 50 ～ 80% まで充電してください。
• バッテリーの全体的な寿命が短くなる可能性があるため、頻繁にバッテリーを完全に放電することは避けてください。

6.2バッテリー管理システム（BMS）

An advanced Battery Management System (BMS) is integrated into the V2400. This system provides comprehensive protection against:

• 過充電保護
• 過負荷保護
• 過電流保護
• 過放電保護
• 短絡保護
• 過熱保護
• 低温保護
• 低容量tag電子保護

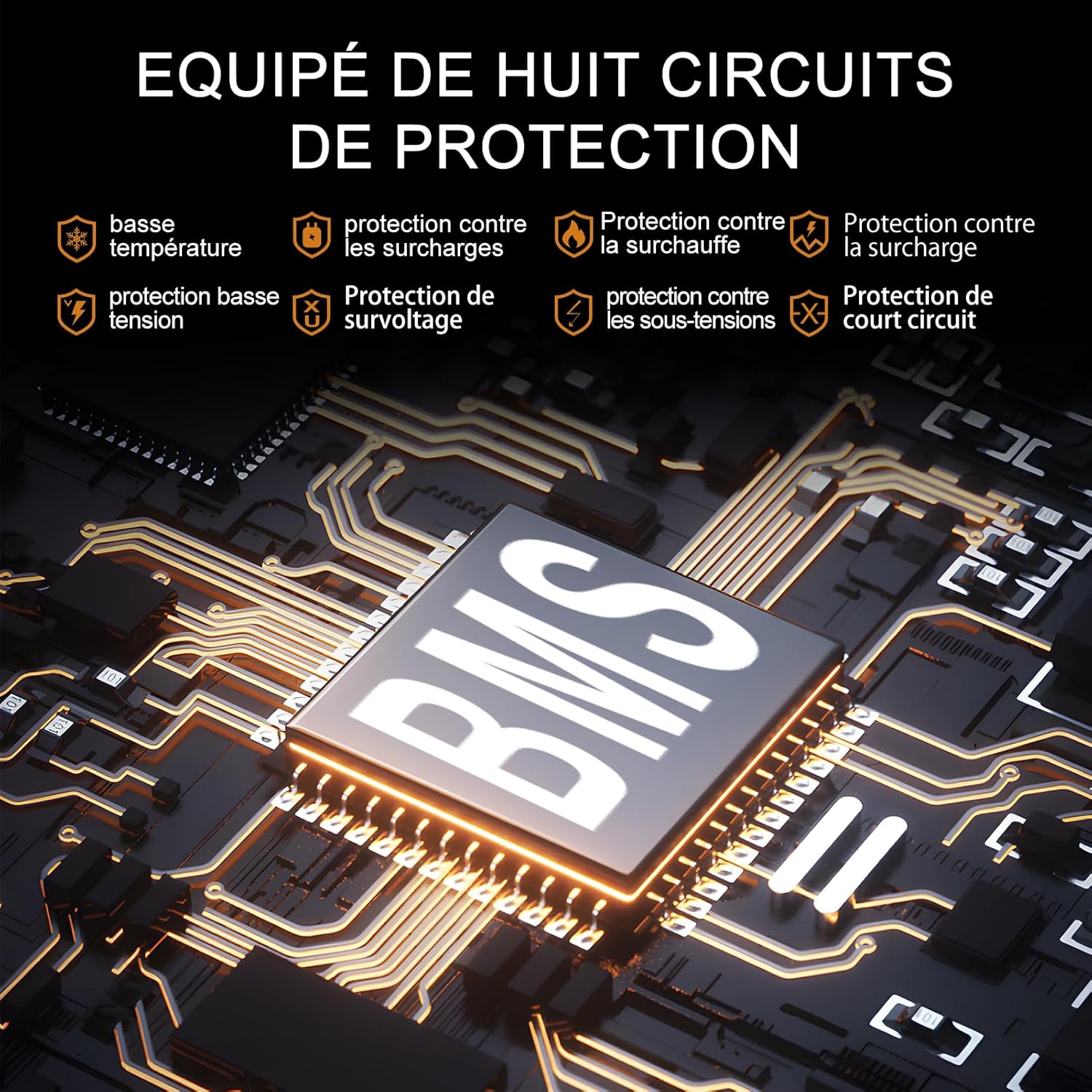

Figure 6: Illustration of the eight protection circuits provided by the advanced Battery Management System (BMS) within the TALLPOWER V2400.

7。 トラブルシューティング

If you encounter any issues with your TALLPOWER V2400, please refer to the following common troubleshooting steps:

• ユニットの電源が入らない: バッテリーが充電されていることを確認してください。電源ボタンを数秒間しっかりと押し続けます。
• ポートからの出力はありません: Check if the specific output group (AC, DC, USB) is activated. Ensure the connected device is within the power station's output limits.
• ゆっくり充電中: Verify that the input cable is securely connected. Check the selected input current setting using the adjustment button. Ensure solar panels (if used) are receiving adequate sunlight.
• 過負荷警告: Disconnect some devices to reduce the total power draw. The unit will automatically recover once the load is reduced.
• 過熱警告: Ensure the unit has proper ventilation and is not exposed to direct sunlight or high ambient temperatures. Allow it to cool down.

If the problem persists after attempting these steps, please contact TALLPOWER customer support for further assistance.

8. 仕様

9. 保証とサポート

The TALLPOWER V2400 Portable Power Station comes with a three-year warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use.

For any questions, technical support, or warranty claims, please do not hesitate to contact TALLPOWER customer support. We are committed to responding to your inquiries within 48 hours.

保証を有効にするために購入証明書を保管してください。
