Dolinvo Contemporary Waterfall Faucet
Dolinvo Black Waterfall Bathroom Faucet
ユーザーマニュアル
Model: Contemporary Waterfall Faucet (ASIN: B0BRB35LLF)
製品終了view
The Dolinvo Black Waterfall Bathroom Faucet is designed to provide a modern and elegant touch to your bathroom. Featuring a unique waterfall spout and a single lever for hot and cold water control, this faucet combines aesthetics with functionality. It is constructed from durable stainless steel and includes a high-quality ceramic valve for long-lasting performance.

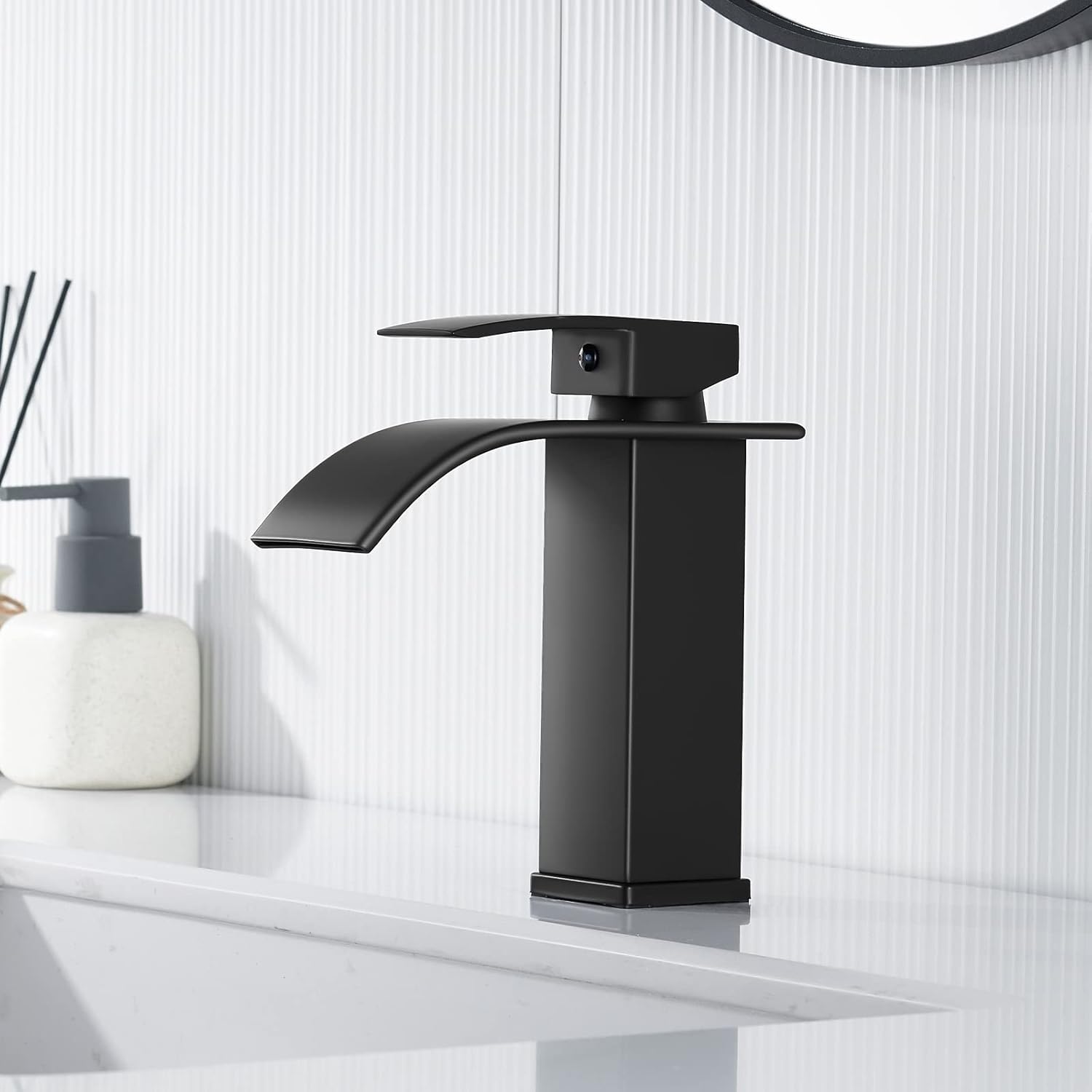

画像: 正面 view of the Dolinvo Black Waterfall Bathroom Faucet, showcasin洗練されたデザインとマットブラック仕上げが特徴です。
セットアップとインストール
This faucet is designed for single-hole installation. Ensure you have all the necessary tools and components before beginning the installation process. The package includes the faucet unit and two G3/8 connection hoses.
含まれるコンポーネント:
- 蛇口本体
- Mounting hardware (nut, washer, gasket)
- Two G3/8 connection hoses (600mm / 23.6 inches long)
Image: All components included in the faucet package, laid out on a surface, including the faucet body, mounting hardware, and two flexible hoses.
設置寸法:
Refer to the diagram below for detailed dimensions and required hole size for installation. The recommended hole diameter for mounting is between 32-40mm (1.26-1.58 inches).
Image: Technical diagram showing the dimensions of the Dolinvo faucet in millimeters and inches, including height, spout reach, and base measurements, along with the recommended mounting hole diameter.
操作手順
The Dolinvo faucet features a single lever for easy control of water flow and temperature. The waterfall spout provides a gentle and wide stream of water.
水の流れと温度制御:
- To turn on the water, lift the lever upwards.
- To increase water flow, lift the lever further.
- To control temperature, move the lever left for hot water and right for cold water.
Image: Close-up of the faucet handle, illustrating the hot (red droplet, turn left) and cold (blue snowflake, turn right) water indicators for temperature adjustment.
Image: The Dolinvo faucet in operation, showing the wide, gentle waterfall stream of water filling a glass in a bathroom sink.
メンテナンス
Regular maintenance will ensure the longevity and optimal performance of your Dolinvo faucet.
クリーニング：
Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish. Rinse thoroughly with water after cleaning and dry with a soft cloth to prevent water spots.
Ceramic Valve Element:
The faucet is equipped with a high-quality ceramic valve element, designed for durability and leak-free operation. This component is tested for 1,000,000 cycles, offering anti-oxidation, anti-aging, and heat resistance properties.
画像: 分解図 view of the ceramic valve cartridge, highlighting its internal components, which contribute to the faucet's durability and water-saving features.
トラブルシューティング
蛇口に問題が発生した場合は、以下の一般的な問題と解決策を参照してください。
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| Water splashing excessively from the spout. | High water pressure or faucet design interacting with sink shape. | Reduce the main water supply pressure to the faucet. Ensure the faucet is compatible with your sink's depth and design. |
| Water flow is uneven or deviates to one side. | Possible debris in the spout or issues with internal components. | Check the spout for any obstructions. If the issue persists, consult a qualified plumber. |
| 水が出ない、または水の流れが悪い。 | Water supply turned off, clogged hoses, or issues with the ceramic valve. | Ensure water supply valves are fully open. Check hoses for kinks or blockages. If suspected valve issue, professional assistance may be required. |
仕様
| 特徴 | 詳細 |
|---|---|
| ブランド | ドリンヴォ |
| モデル名 | Contemporary Waterfall Faucet |
| メーカー | ドリンヴォ |
| 製品寸法（長さ x 幅 x 高さ） | 28 x 20.5 x 7.8 cm（11.02 x 8.07 x 3.07インチ） |
| 重さ | 1.1キログラム（2.43ポンド） |
| 材料 | ステンレス鋼 |
| インストール方法 | シングルホール |
| ハンドル数 | 1 |
| ハンドル材質 | ステンレス鋼 |
| 特集 | 鉛フリー |
| バルブタイプ | ディスクバルブ（セラミック） |
保証とサポート
Specific warranty details and direct support contact information are not provided within this manual. For warranty claims or technical assistance, please refer to the product packaging or contact the retailer/manufacturer directly through their official channels.
You may also visit the Dolinvo brand page on Amazon for additional information or to contact customer service.
