EVAJOY Inflatable Top Ring Swimming Pool User Manual

導入

Thank you for choosing the EVAJOY Inflatable Top Ring Swimming Pool. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your new pool. Please read it thoroughly before assembly and keep it for future reference.

This extra-large family swimming pool is designed for backyard use by kids and adults, offering a refreshing and enjoyable experience.

安全情報

WARNING: Drowning Hazard. Children, especially children under five years, are at high risk of drowning. Closely watch children who are in or near this pool. Empty or secure pool when not in use.

• プールの中や周囲に子供を放置しないでください。
• 必ず大人の監督を受けてください。
• Keep children away from the pool cover to prevent entanglement.
• プールに飛び込んだり飛び込んだりしないでください。
• プールの崩壊を防ぐため、プールが水平な場所に設置されていることを確認してください。
• Keep electrical devices away from the pool.
• この製品には、カリフォルニア州でがんや先天性欠損症、その他の生殖障害を引き起こすことが知られている化学物質が含まれています。

パッケージ内容

Please verify that all components listed below are present and undamaged before beginning assembly.

図1: 含まれるコンポーネント

This image displays the complete set of items included with your EVAJOY Inflatable Top Ring Swimming Pool. It shows the main pool body, the 2000-gallon filter pump, a 3.9ft ladder, a protective ground cloth, and a pool cover.

• 1 x EVAJOY Inflatable Top Ring Swimming Pool (18ft x 48in)
• 2000ガロンフィルターポンプ1個
• 1 x 3.9ft Ladder
• 1 x Ground Cloth
• 1 x Pool Cover
• ユーザーマニュアル（このドキュメント）

セットアップ手順

Follow these steps for quick and easy pool setup. An air pump is required but not included.

1. サイトの選択: Choose a flat, level ground surface for pool placement. Ensure the area is free of sharp objects, debris, and is capable of supporting the weight of the filled pool (approximately 5596 gallons of water plus occupants).
2. グランドクロスの配置: Spread the included ground cloth evenly on the selected site. This provides an additional layer of protection for the pool's bottom.
3. Pool Unfolding: Carefully unfold the EVAJOY Inflatable Top Ring Swimming Pool on top of the ground cloth, ensuring the bottom is flat and wrinkle-free.

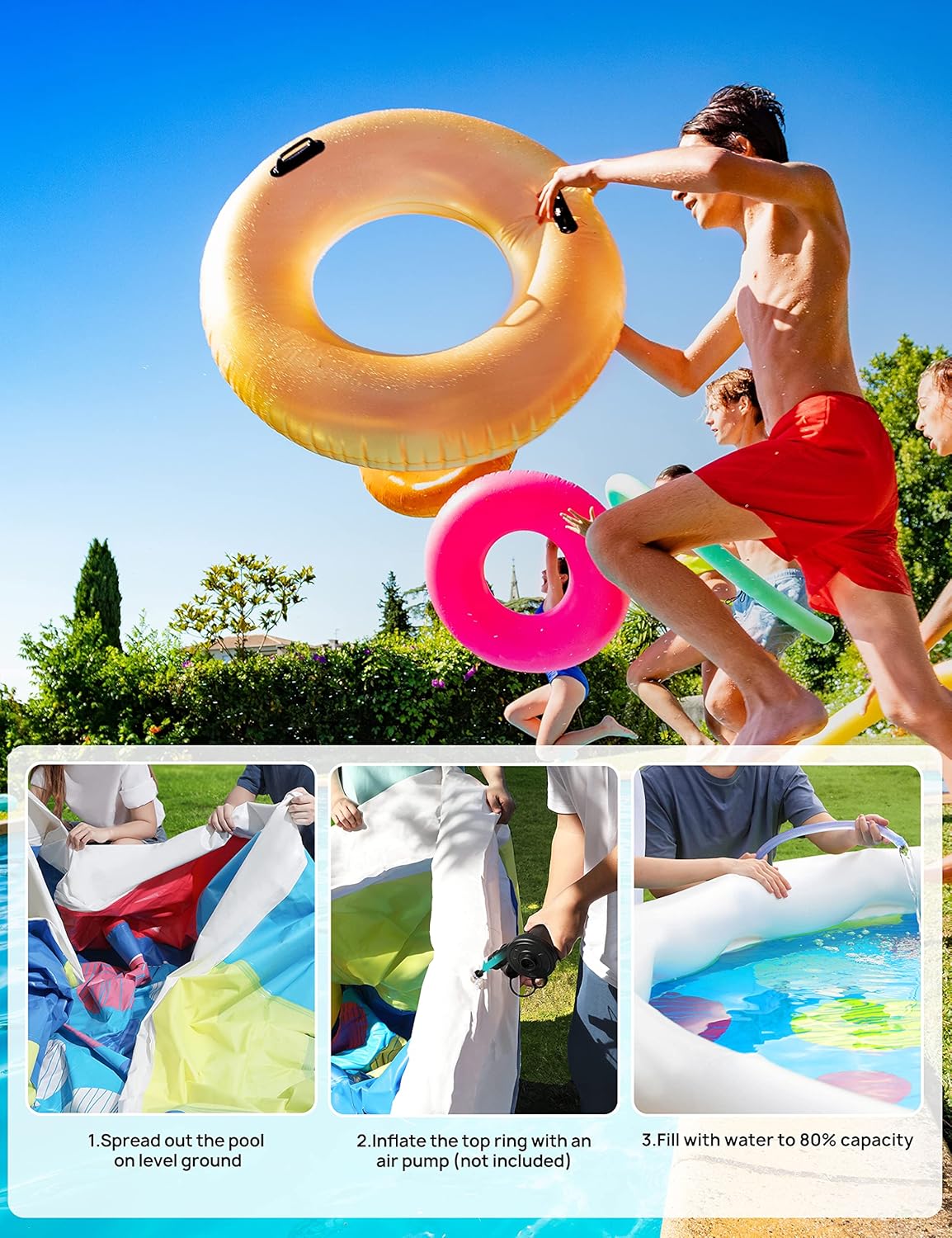

   Figure 2: Pool Setup Steps

   This image illustrates the three primary steps for setting up your inflatable pool: 1. Spreading out the pool on level ground. 2. Inflating the top ring using an air pump (not included). 3. Filling the pool with water to 80% capacity.
4. トップリングを膨らませる: Locate the air valve on the top inflatable ring. Using an air pump (not included), inflate the top ring until it is firm but not overinflated. Do not use high-pressure air compressors.
5. 水で満たします: Begin filling the pool with water. As the water level rises, the pool walls will naturally rise and take shape. Fill the pool to approximately 80% capacity, or up to the fill line indicated on the pool wall. Do not overfill.
6. Filter Pump Installation: Refer to the separate filter pump manual for detailed installation instructions. Connect the pump to the designated inlet and outlet ports on the pool. Ensure all connections are secure and leak-free.

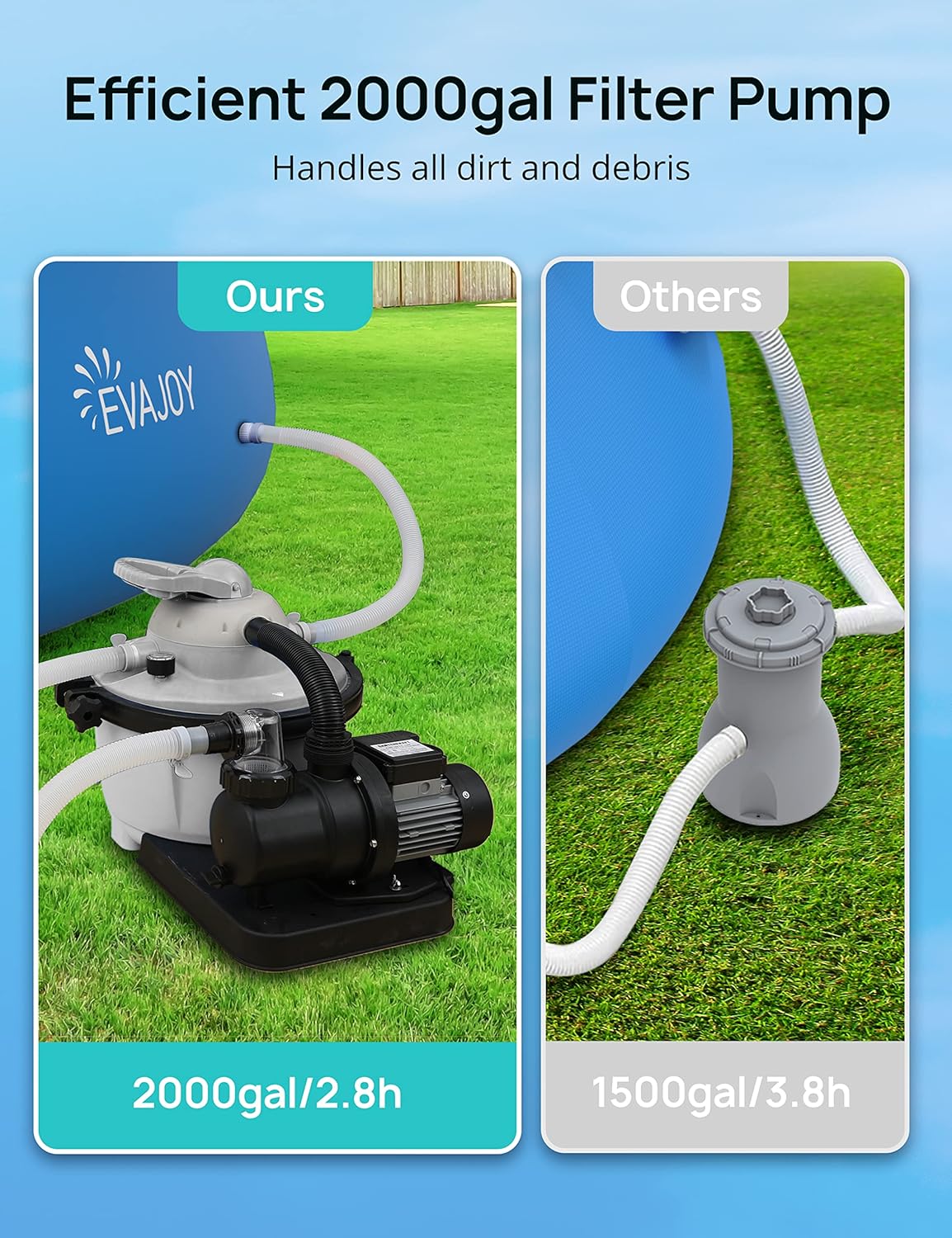

   Figure 3: Efficient Filter Pump

   This image highlights the efficient 2000-gallon filter pump included with your EVAJOY pool, designed to handle dirt and debris effectively.

7. はしごの組み立て: Assemble the 3.9ft ladder according to its specific instructions. Place the ladder securely against the pool wall for safe entry and exit.

操作手順

• 水位: Maintain the water level between the minimum and maximum fill lines. Regularly check the water level, especially during hot weather or after heavy use, and refill as needed.
• フィルターポンプの操作: Operate the filter pump daily to ensure proper water circulation and filtration. The duration of operation depends on pool usage and water quality, but typically 4-6 hours per day is recommended. Refer to the filter pump manual for specific operating instructions and filter cleaning/replacement schedules.
• 水処理: Use appropriate pool chemicals (not included) to maintain water hygiene and balance. Test water regularly for pH, chlorine, and alkalinity levels. Follow chemical manufacturer's instructions carefully.
• 入場と退場: Always use the provided ladder for safe entry and exit from the pool. Do not jump over the inflatable ring.

メンテナンス

• クリーニング： Regularly remove debris from the pool surface using a skimmer net. Brush the pool walls and bottom to prevent algae buildup.
• フィルターの清掃/交換: Clean or replace the filter cartridge/sand in the filter pump as recommended by the pump's manual to ensure efficient filtration.
• プールカバーの使用法: When the pool is not in use, cover it with the included pool cover to prevent debris from entering and to reduce water evaporation.


  Figure 4: Pool Cover in Use

  This image shows the blue pool cover properly installed over the inflatable pool, demonstrating how it helps protect the water from debris and maintain cleanliness.
• 漏れ検出: Periodically inspect the pool for any signs of leaks or punctures. The durable PVC material is designed to be puncture-proof and leak-proof, but accidental damage can occur. Repair small punctures using a vinyl repair kit (not included).

トラブルシューティング

仕様

Figure 5: Robust PVC Construction

This image illustrates the multi-layered, robust PVC construction of the pool, emphasizing its leak-proof and puncture-proof qualities. It details the 0.4mm 6P PVC, 18x12 grid, and 0.65mm net clamping cloth layers.

ストレージ

When not in use for extended periods, or during off-season, proper storage will prolong the life of your pool:

1. 水を抜きます： Completely drain all water from the pool.
2. 清潔で乾燥している: Thoroughly clean the pool interior and exterior. Ensure the pool is completely dry before folding to prevent mold and mildew.
3. 収縮： 上部のリングとその他の膨張可能な部分の空気を抜きます。
4. 折りたたんで保管: Fold the pool neatly and store it in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it away from rodents and insects.

保証とサポート

Your EVAJOY Inflatable Top Ring Swimming Pool comes with a 30-day easy return policy. For any product-related inquiries, technical assistance, or warranty claims, please contact customer support.

• カスタマーサポート: Refer to the contact information provided on the product packaging or the official Evajoy webカスタマー サービスの詳細については、サイトをご覧ください。
• 戻り値: Products are eligible for 30-day easy returns. Please retain your proof of purchase for any return or warranty claims.
