Fresh 65L Electric Oven with Grill and Fan

1. はじめに

This manual provides essential information for the safe and efficient operation of your Fresh 65L Electric Oven. Please read all instructions carefully before using the appliance and retain this manual for future reference.

1.1 安全情報

• Ensure the oven is placed on a stable, heat-resistant surface.
• Do not operate the oven near flammable materials.
• Always use oven mitts when handling hot items or surfaces.
• 操作中は子供をアプライアンスに近づけないでください。
• Unplug the oven from the power outlet when not in use or before cleaning.
• 機器、コード、プラグを水やその他の液体に浸さないでください。

2.製品オーバーview

Familiarize yourself with the components of your Fresh 65L Electric Oven.

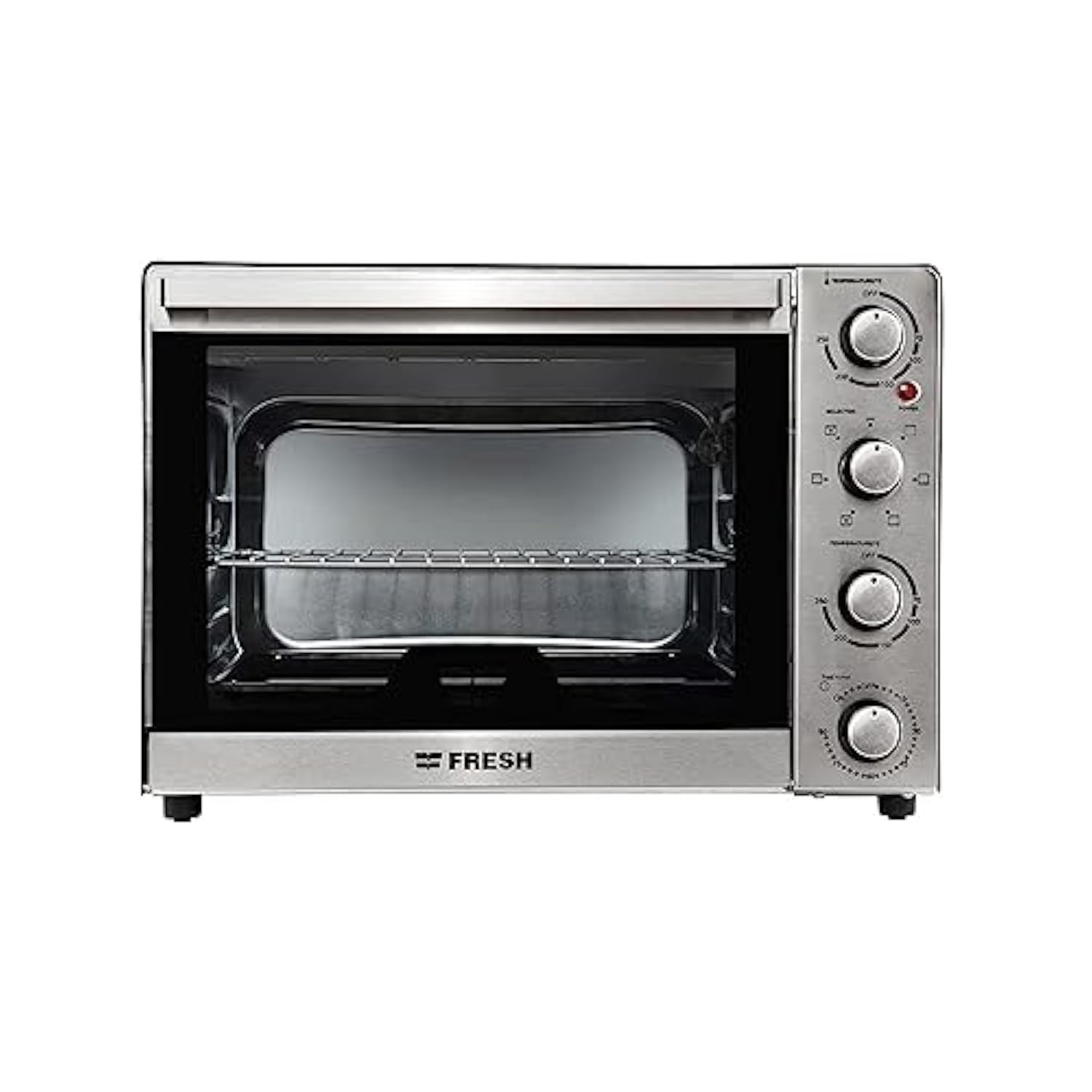

図1: 前面 view of the Fresh 65L Electric Oven, showcasing its silver finish and compact design.

2.1 コントロールパネル

Figure 2: Detail of the control panel, featuring temperature, function, and timer knobs.

• 温度調節ノブ: 調理温度を100℃～250℃に調節します。
• 機能セレクターノブ: Selects heating elements (top, bottom, both), grill, or fan convection.
• タイマーノブ： Sets the cooking time up to 90 minutes. An alarm bell rings when the time expires.
• インジケーターライト: Illuminates when the oven is heating and turns off when the set temperature is reached.

2.2 含まれるコンポーネント

• 長方形トレイ
• ステンレス鋼の棚
• グリルフォーク

Figure 3: Standard accessories provided with the oven.

3. セットアップ

3.1 開梱と設置

1. オーブンと梱包材をすべて慎重に取り外します。
2. Place the oven on a flat, stable, and heat-resistant surface. Ensure there is adequate clearance (at least 10 cm) on all sides for proper ventilation.
3. Do not place the oven directly against a wall or under cabinets that are not heat-resistant.

3.2最初の使用

Before first use, perform the following steps to remove any manufacturing residues:

1. Wash the rectangular tray, stainless steel shelf, and grill fork with warm, soapy water, then rinse and dry thoroughly.
2. オーブンをアース付きコンセントに差し込みます。
3. Set the temperature control to 250°C and the function selector to both top and bottom heating elements.
4. Set the timer for 15 minutes. A slight odor or smoke may be observed during this initial heating; this is normal.
5. After 15 minutes, turn off the oven and allow it to cool completely.

4. 操作手順

4.1 基本操作

1. Place food on the rectangular tray or stainless steel shelf.
2. オーブンのドアを閉めてください。
3. Set the desired temperature using the Temperature Control Knob.
4. Select the desired cooking function (e.g., top heat, bottom heat, both, grill, fan) using the Function Selector Knob.
5. タイマーノブを使って調理時間を設定します。オーブンが加熱を開始します。
6. The indicator light will turn off once the set temperature is reached. It will cycle on and off during cooking to maintain temperature.
7. When the timer expires, an alarm bell will ring, and the oven will turn off automatically.

4.2 グリル機能の使用

To use the grill function, select the grill setting on the Function Selector Knob. The top heating elements will activate. This is suitable for browning or toasting.

4.3 Using the Fan (Convection) Function

The fan function (convection) circulates hot air inside the oven, ensuring more even cooking and faster results. Select the fan setting on the Function Selector Knob. This can be used in conjunction with other heating elements.

5. メンテナンスと清掃

定期的に清掃することで、最適なパフォーマンスが確保され、オーブンの寿命が延びます。

5.1 外装清掃

1. オーブンの電源プラグが抜かれ、完全に冷えていることを確認してください。
2. 外側の表面を柔らかい布で拭きます。amp 布。 研磨クリーナーや研磨パッドは使用しないでください。

5.2 車内清掃

1. オーブンの電源プラグが抜かれ、完全に冷えていることを確認してください。
2. Remove the rectangular tray, stainless steel shelf, and grill fork. Wash them in warm, soapy water.
3. 広告で内壁を拭くamp cloth and mild detergent. For stubborn stains, a non-abrasive oven cleaner designed for conventional ovens can be used, following the product instructions.
4. Do not spray cleaning solutions directly onto heating elements or the interior light.
5. 清潔な布で拭いて乾かしてください。

6。 トラブルシューティング

7. 仕様

8. 保証とサポート

This Fresh Electric Oven is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. For technical support, service, or spare parts, please contact Fresh customer service through the details provided on your warranty documentation or the official Fresh webサイト。

ご自身で機器を修理しないでください。無許可での修理は保証の対象外となり、安全上のリスクが生じる可能性があります。
