Opticron Explorer WA ED-R 10x42 Monocular User Manual

Brand: Opticron | Model: 30786

導入

The Opticron Explorer WA ED-R 10x42 Monocular is a compact, high-quality field instrument designed for clear and vibrant observation. It features wide-field ED optics and advanced multi-coatings to enhance light transmission and color contrast, making it ideal for various outdoor activities.

安全情報

  • Do not look directly at the sun through the monocular, as this can cause severe and permanent eye damage.
  • Keep the monocular away from extreme temperatures and direct sunlight for prolonged periods to prevent damage to optical components.
  • Store the monocular in its protective case when not in use to prevent scratches and impacts.
  • 小さな部品を誤って飲み込まないように、小さなお子様の手の届かないところに保管してください。

箱の中身

  • Opticron Explorer WA ED-R 10x42 Monocular
  • 保護ケース
  • ネックストラップ
  • レンズカバー

製品終了view およびコンポーネント

The Opticron Explorer WA ED-R 10x42 Monocular is engineered for durability and optical performance. Key features include a high-quality roof prism design with ED glass objective and PC phase corrected prism with R-type high light transmission multi-coating for superior image clarity and color fidelity. The monocular is also nitrogen waterproof, ensuring reliable performance in various weather conditions.

Opticron Explorer WA ED-R 10x42 Monocular, front view.
フロント view of the Opticron Explorer WA ED-R 10x42 Monocular, highlighting its compact design and objective lens.

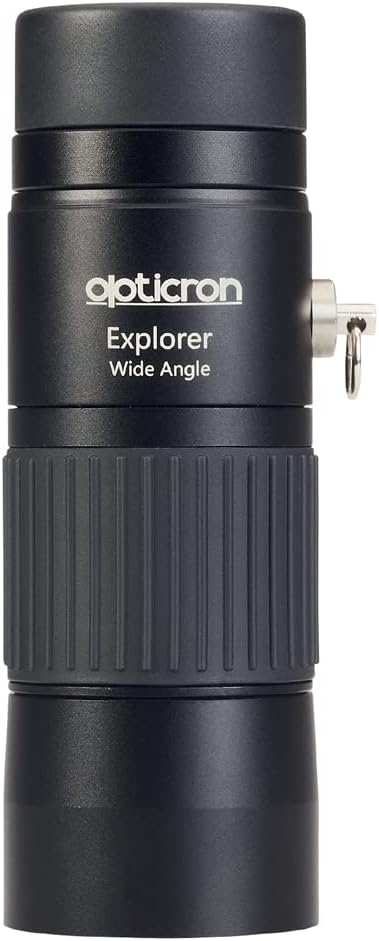

Opticron Explorer WA ED-R 10x42 Monocular, side view with branding.
側 view of the monocular, showing the 'Opticron Explorer Wide Angle' branding and textured grip area.
Opticron Explorer WA ED-R 10x42 Monocular, angled view showing eyepiece.
角度付き view of the monocular, focusing on the eyepiece and its multi-stage retractable eyecup.

設定

  1. 開梱: 単眼鏡とすべての付属品をパッケージから慎重に取り出します。
  2. ネックストラップを取り付ける: Securely attach the provided neck strap to the monocular's strap loops.
  3. アイカップ調整: The monocular features a multi-stage retractable eyecup. Rotate or pull the eyecup to the desired position for comfortable viewing. If you wear spectacles, you may prefer to keep the eyecup fully retracted to utilize the long eye relief.
  4. レンズカバーを取り外す: Remove the objective lens cover and the eyepiece cover before use.

操作手順

Using your Opticron Explorer monocular is straightforward. Follow these steps for optimal viewing:

  1. Holding the Monocular: Hold the monocular firmly in one hand. For increased stability, brace your arm against your body or a stable surface.
  2. 目的: Point the objective lens (the larger lens) towards the object you wish to observe.
  3. フォーカス: Look through the eyepiece (the smaller lens). Rotate the smooth action wide wheel focusing mechanism until the image appears sharp and clear. The monocular offers close focus down to 1.9m (6.2ft).
  4. アイカップの位置: Adjust the multi-stage retractable eyecup to achieve a full field of view without vignetting. Spectacle wearers will benefit from the long eye relief by keeping the eyecup retracted.
A person using the Opticron Explorer WA ED-R 10x42 Monocular outdoors, looking at a distant landscape.
A user observing a distant landscape with the Opticron Explorer WA ED-R 10x42 Monocular, demonstrating typical usage.

メンテナンスとケア

  • レンズのクリーニング: Use a soft, lint-free cloth specifically designed for optical lenses. For stubborn smudges, a small amount of lens cleaning fluid can be applied to the cloth, not directly to the lens.
  • クリーニングボディ: 単眼鏡の本体を柔らかくて乾いた布で拭いてください。amp 布で拭いてください。研磨剤や溶剤の使用は避けてください。
  • 防水機能: The monocular is nitrogen waterproof. While it can withstand exposure to water, it is recommended to wipe it dry after contact with moisture to prevent water spots and maintain its appearance.
  • ストレージ： Store the monocular in its protective case in a cool, dry place when not in use. Avoid storing in areas with high humidity or extreme temperature fluctuations.
  • 衝撃を避ける: Protect the monocular from drops and impacts, which can damage the internal optical components.
Opticron Explorer WA ED-R 10x42 Monocular partially submerged in clear water, demonstrating its waterproof design.
The monocular shown partially submerged in water, illustrating its nitrogen waterproof construction.

トラブルシューティング

問題考えられる原因解決
ぼやけた画像焦点が正しくない、レンズが汚れている。Adjust the focus wheel. Clean the objective and eyepiece lenses with a proper lens cloth.
Dark or Obstructed ViewLens caps still on; eyecup not adjusted correctly.Ensure both lens caps are removed. Adjust the multi-stage eyecup to the correct position for your eye.
Image Appears ShakyUnsteady hand.Brace your arm against your body or a stable surface. For prolonged viewing, consider using a tripod (monocular has tripod mount capability).
内部の曇りRapid temperature change (unlikely due to nitrogen purging, but possible if seal is compromised).Allow the monocular to acclimate to the ambient temperature. If fogging persists, contact customer support.

仕様

特徴詳細
ブランドオプティクロン
モデル名Explorer WA ED-R 10x42
商品型番30786
製品寸法1.9 x 2.1 x 5.4 インチ (4.8 x 5.3 x 13.7 cm)
アイテム重量11.3オンス（320グラム）
対物レンズ径42ミリメートル
接眼レンズの説明Wide-angle eyepiece with multi-stage retractable eyecup
フォーカスタイプFixed Focus (Note: Refers to objective lens, user adjusts via focus wheel)
クローズフォーカス1.9m / 6.2フィート
望遠鏡マウントの説明三脚マウント
原産国中国

保証とサポート

Opticron products are manufactured to high standards and are designed for durability. For specific warranty details, please refer to the warranty card included with your product or visit the official Opticron website. In case of any issues or for technical support, please contact Opticron customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.

詳細については、以下をご覧ください。 www.opticron.co.uk
